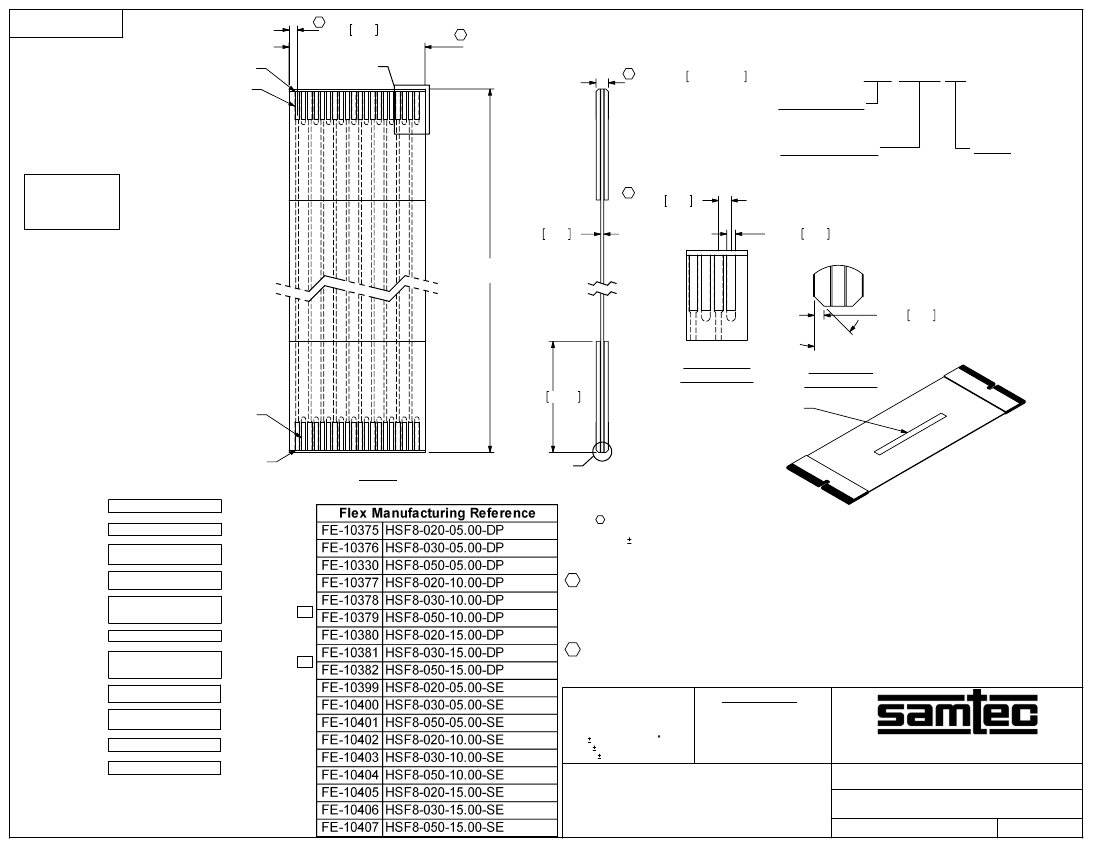

REVISION C
PIN 2
(PIN 1 ON OPPOSITE SIDE
SINGNAL
C1
.040 1.03
'A'
(TYP)
C2
(NO OF POS x .0315[.800] + .0492[1.25]
C3
.062±.006 1.57±0.152
MEASURED OVER FINISH
HSF8-0XX-XX.00-XX
No OF POSITIONS
-020, -030 (SEE FIG. 1)
-050 (SEE FIG. 2)
LENGTH (IN INCHES)
-05.00
-10.00
-15.00
*
SIGNAL
-SE: SINGLE ENDED
-DP: DIFFERNTIAL PAIR
(SEE FIG 2)
DO NOT
SCALE FROM
THIS PRINT
.016 0.40
-XX.00
LENGTH (IN INCHES)
C4
.0315 0.80
*
*
NOT RELEASED
.0217 0.55
.012 0.30
45°±10°
DETAIL 'A'
SCALE 4 : 1
.555 14.10
GROUND
PIN 1
(PIN 2 ON OPPOSITE SIDE)
SEE NOTE 4
DETAIL 'B'
SCALE 8 : 1
HSF8-020-XX.00-SE SHOWN
TOP SOLDERMASK
RIGID LAYER 1
RIGID LAYER 1
ADHESIVE
TOP COVERFILM
LAYER 2
COPPER CLAD
ADHESIVE
LAYER 3/ 4
COPPER CLAD
BOTTOM COVERFILM
RIGID LAYER 5
ADHESIVE
RIGID LAYER 5
BOTTOM SOLDERMASK
.002[.05] SOLDERMASK
.020[.05] FR4
.002[.05] ADHESIVE
.002[0.05] POLYIMIDE
.001[0.03] ADHESIVE
1/2 OZ COPPER
.002[.05] KAPTON
FIG. 1
'B'
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. ALL DIMENSIONS TO BE SYMMERTICAL ABOUT CENTERLINE
WITHIN .002[0.05] UNLESS OTHERWISE STATED.
3. PARTS TO BE LAYER PACKAGED.
4. SAMTEC LOGO, PART #, PANEL ID #, AND DATE CODE TO BE ETCHED
OR MARKED PERMANENTLY INTO FLEX.
C19
5. IMPEDANCE TO BE 100 OHMS +/- 10% FOR -DP SIGNALS AND 50 OHMS +/-10% FOR -SE SIGNALS.
VENDOR MAY ADJUST TRACE WIDTHS FROM PROVIDED GERBER
TO MEET IMPEDANCE, VENDOR TO PROVIDE IMPEDANCE VERIFICATION REPORT.
6. SURFACE FINISH OF PADS TO BE .000030 HARD GOLD
OVER .000100 NICKEL MIN.
7. PARTS TO BE ELECTRICALLY TESTED FOR OPENS AND SHORTS
8. FABRICATION OF THIS PARTS SHALL BE IN CONFORMANCE WITH IPC 6013 CLASS 2
C20
9. HOLE PLATING TO BE 0.00098 MINIMUM. HOLE DIAMETER SPECIFIED AFTER PLATING
10. NOTE DELETED.
11. CROSS SECTION DATA TO BE SUPPLIED BY VENDOR FOR PLATING AND TRACE REQUIREMENTS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
*
*
*
*
*
*
*
*
*
C
.001[0.03] ADHESIVE
1/2 OZ COPPER
.002[.05] KAPTON
1/2 OZ COPPER
C
.001[0.03] ADHESIVE
.002[0.05] POLYIMIDE
.002[.05] ADHESIVE
.020[.05] FR4
.002[.05] SOLDERMASK
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
CROSS SECTION OF
FLEX & STIFFENER
NOT TO SCALE
FOR REFERENCE ONLY
MATERIAL:
SEE CROSS SECTION DETAIL
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
FLEX CARD
HSF8-0XX-XX.00-XX
11/2/2005
SHEET
1
OF
4
F:\DWG\MISC\Mktg\HSF8-0XX-XX.00-XX-MKT.SLDDRW
BY:
T. SPINE

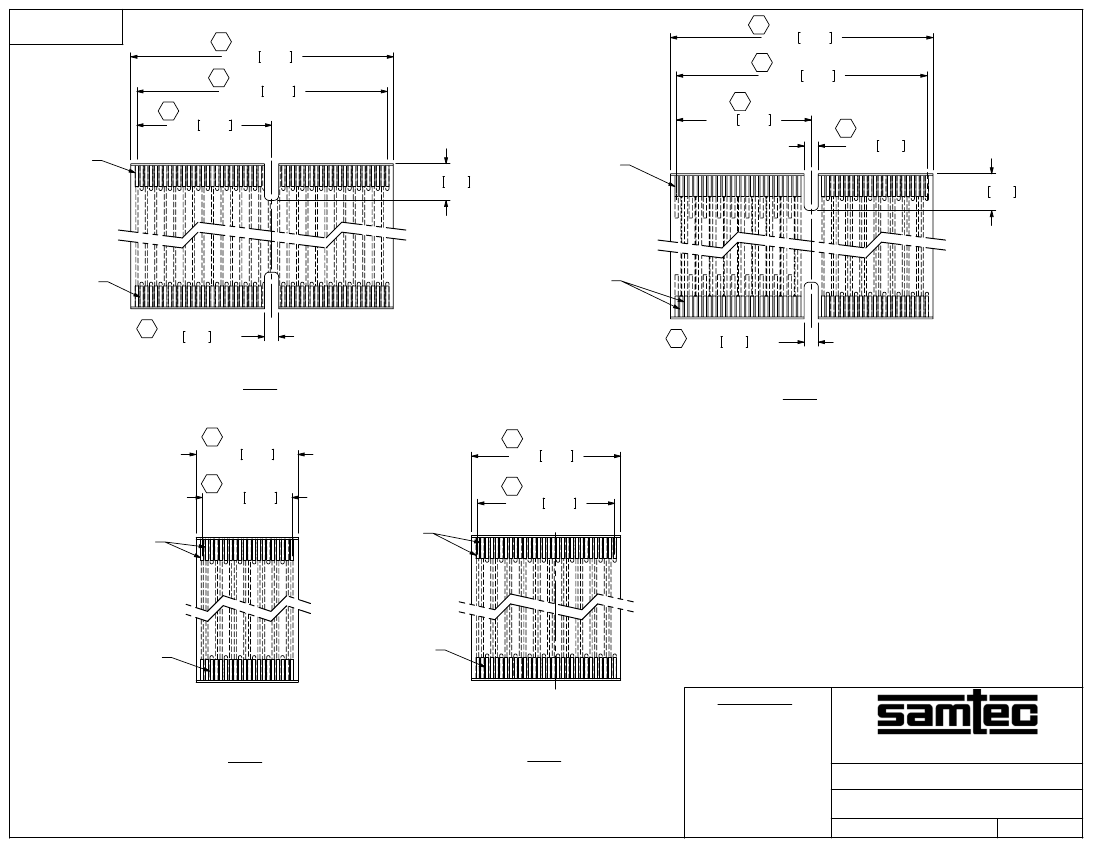

REVISION C
C10
C6
1.750 44.45
C7
1.6693 42.40
1.750 44.45
C11
1.6695 42.41
C12
C8
.898 22.80
SIGNAL
.244 6.20
GROUND
.898 22.80
C13
.095 2.41
.244 6.20
GROUND
SIGNAL
C9
.095 2.41 REF
HSF8-050-XX.00-SE
C14
.095 2.41 REF
HSF8-050-XX.00-DP
SAME AS FIGURE 1 EXCEPT AS SHOWN
FIG.2
SAME AS FIGURE 1 EXCEPT AS SHOWN
C17
FIG.3
C15
.679 17.25
C16
.994 25.25
C18
.5985 15.20
SIGNAL
.9135 23.20
SIGNAL
GROUND
GROUND
PROPRIETARY NOTE
HSF8-020-XX.00-DP
HSF8-030-XX.00-DP
SAME AS FIGURE 1 EXCEPT AS SHOWN
FIG.4
SAME AS FIGURE 1 EXCEPT AS SHOWN
FIG.5
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
*
NOT RELEASED
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
FLEX CARD
HSF8-0XX-XX.00-XX
11/2/2005
SHEET
2
OF
4
F:\DWG\MISC\Mktg\HSF8-0XX-XX.00-XX-MKT.SLDDRW
BY:
T. SPINE
REVISION C

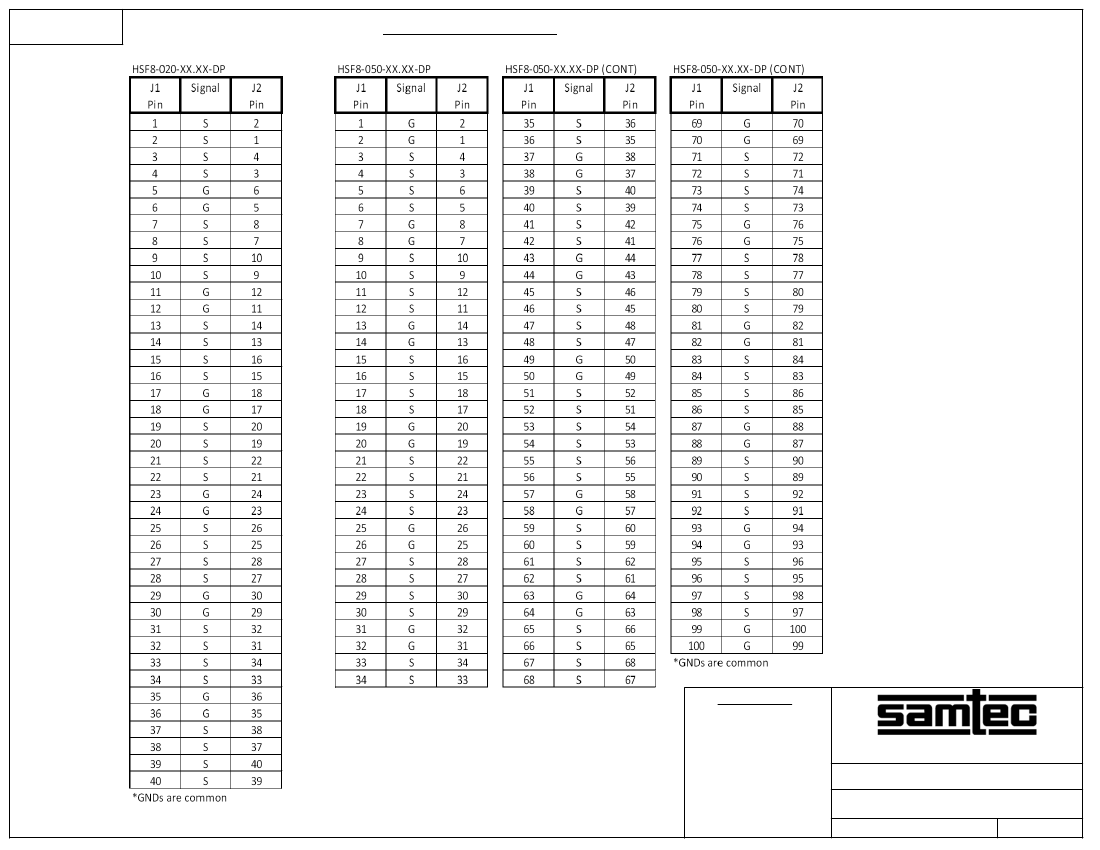

SIGNAL MAPPING -DP
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
FLEX CARD
HSF8-0XX-XX.00-XX
11/2/2005
SHEET
3
OF
4
F:\DWG\MISC\Mktg\HSF8-0XX-XX.00-XX-MKT.SLDDRW
BY:
T. SPINE
REVISION C

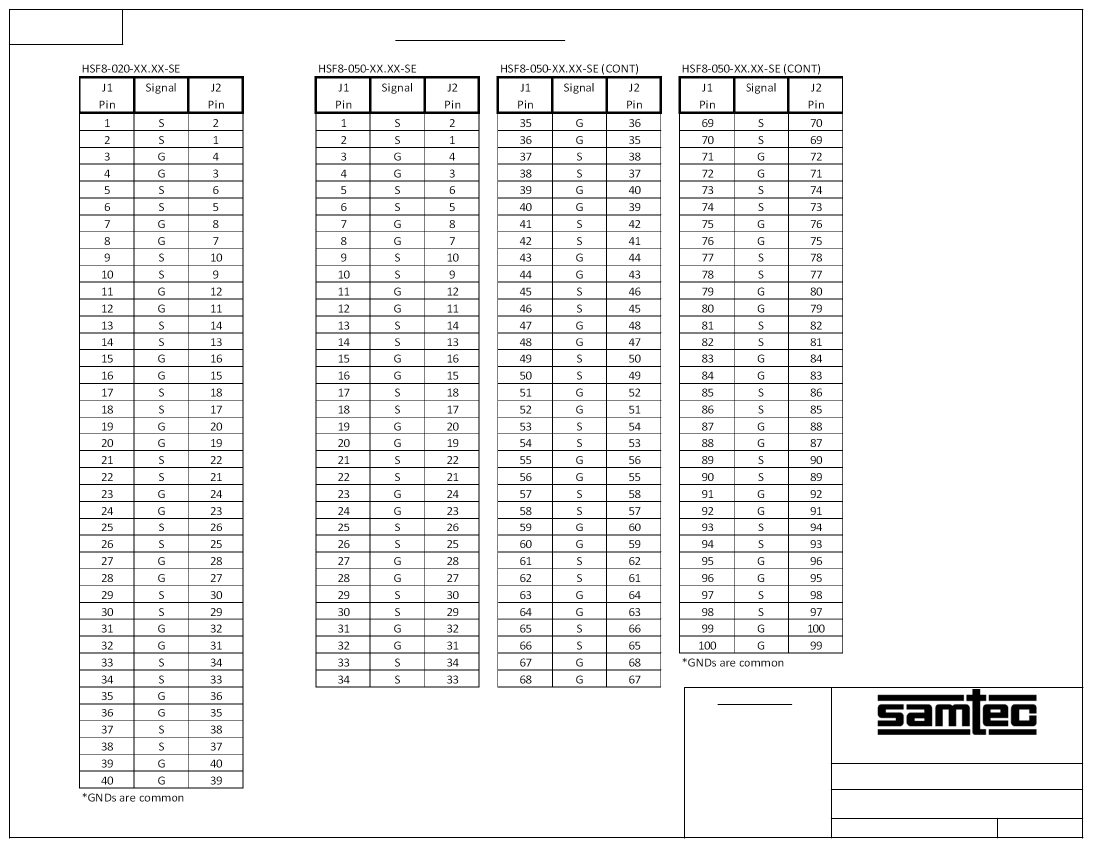

SIGNAL MAPPING -SE
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
FLEX CARD
HSF8-0XX-XX.00-XX
11/2/2005
SHEET
4
OF
4
F:\DWG\MISC\Mktg\HSF8-0XX-XX.00-XX-MKT.SLDDRW
BY:
T. SPINE
