SPD3889
Thru
SPD3893
12 A, 120 nsec, 50-400 V
Fast Recovery Rectifier
Features
:
•
•
•
•
•
•
•
•
•
•
Fast Recovery: 120nsec Maximum
Higher Voltage Devices Available
Low Reverse Leakage Current
Single Chip Construction
PIV to 400 Volts
Hermetically Sealed
High Surge Rating
Low Thermal Resistance
For Reverse Polarity add suffix “R”
TX, TXV, and Space Level Screening
Available
Designer’s Data Sheet
Part Number/Ordering Information
SPD
__ __
│
│
│
└
Screening
│
__
= Not Screened
│
TX = TX Level
│
TXV = TXV
│
S = S Level
│
└
Voltage
3889 = 50V
3890 = 100V
3891 = 200V
3892 = 300V
3893 = 400V
Maximum Ratings
Peak Repetitive Reverse Voltage and
DC Blocking Voltage @ 100µA
Average Rectified Forward Current
(Resistive Load, 60 Hz, Sine Wave, T
A
= 25 °C)
SPD3889
SPD3890
SPD3891
SPD3892
SPD3893
Symbol
V
RRM
V
RWM
V
R
Io
I
FSM
T
OP
& T
STG
R
θJC
DO-4
Value
50
100
200
300
400
12
200
Units
Volts
Amps
Amps
ºC
ºC/W
Peak Surge Current
(8.3 ms Pulse, Half Sine Wave, T
A
= 25 °C)
Operating & Storage Temperature
Maximum Thermal Resistance
(Junction to Case)
-65 to +150
2.5
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RF0007B
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, CA 90638
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SPD3889
Thru
SPD3893
Symbol
V
F
Electrical Characteristics
Instantaneous Forward Voltage Drop
(
I
F
=12Adc,
T
A
= 25 ºC
, 300
μ
s Pulse)
Instantaneous Forward Voltage Drop
(
I
F
=12Adc,
T
A
= -55 ºC
, 300
μ
s Pulse)
Value
1.3
Units
V
DC
V
F
1.45
V
DC
Reverse Leakage Current
(Rated V
R,
T
A
= 25 ºC , 300μs minimum pulse)
Reverse Leakage Current
(Rated V
R,
T
A
= 100 ºC , 300μs minimum pulse)
Reverse Recovery Time
(I
F
= 500 mA, I
R
= 1 Amp, I
RR
= 250 mA, T
A
= 25 ºC)
Junction Capacitance
(V
R
= 10V
DC
, T
A
= 25ºC, f = 1MHz)
I
R
I
R
t
RR
C
J
20
2
120
300
μA
mA
nsec
pF

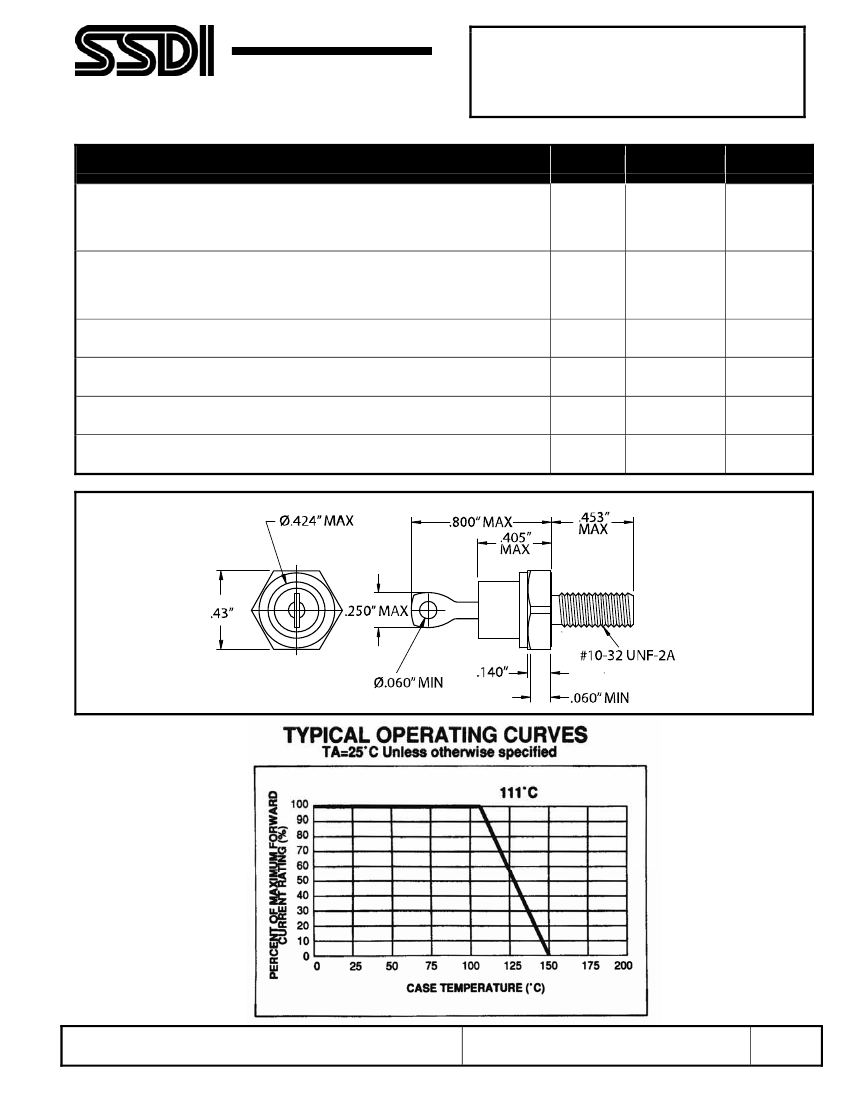

CASE OUTLINE: DO-4
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RF0007B
DOC
