HLMP-Pxxx
Subminiature LED Lamps
Data Sheet
HLMP-Pxxx Series, HLMP-Qxxx Series
HLMP-6xxx Series, HLMP-70xx Series
Description
Flat Top Package
The HLMP-Pxxx Series flat top lamps use an untinted,
nondiffused, truncated lens to provide a wide
radiation pattern that is necessary for use in
backlighting applications. The flat top lamps are also
ideal for use as emitters in light pipe applications.
Dome Packages
The HLMP-6xxx Series dome lamps for use as
indicators use a tinted, diffused lens to provide a
wide viewing angle with a high on-off contrast ratio.
High brightness lamps use an untinted, nondiffused
lens to provide a high luminous intensity within a
narrow radiation pattern.
Resistor Lamps
The HLMP-6xxx Series 5 volt subminiature lamps
with built in current limiting resistors are for use in
applications where space is at a premium.
Lead Configurations
All of these devices are made by encapsulating LED
chips on axial lead frames to form molded epoxy
subminiature lamp packages. A variety of package
configuration options is available. These include
special surface mount lead configurations, gull wing,
yoke lead or Z-bend. Right angle lead bends at 2.54
mm (0.100 inch) and 5.08 mm (0.200 inch) center
spacing are available for through hole mounting. For
more information refer to Standard SMT and Through
Hole Lead Bend Options for Subminiature LED Lamps
data sheet.
Features
•
Subminiature flat top package
– ideal for backlighting and light piping applications
•
Subminiature dome package
– diffused dome for wide viewing angle
– nondiffused dome for high brightness
•
•
•
•
•
TTL and LSTTL compatible 5 volt resistor lamps
Available in six colors
Ideal for space limited applications
Axial leads
Available with lead configurations for surface mount
and through hole PC board mounting
Device Selection Guide
Part Number: HLMP-xxxx
Standard
Red
P005
DH AS
AlGaAs
Red
P105
P102
6000
Q100
Q105
Q150
Q155
6600
6620
6700
6720
6800
6820
High
Efficiency
Red
P205
P202
6300
6305
7000
High
Perf.
Green
P505
P502
6500
6505
7040
Q600
Q605
Emerald
Green
P605
Device
Outline
Drawing
A
A
B
B
B
B
B
B
Orange
P405
P402
Q400
Q405
Yellow
P305
P302
6400
6405
7019
Device Description
[1]
Untinted, Nondiffused,
Flat Top
Untinted, Diffused, Flat Top
Tinted, Diffused
Untinted, Nondiffused,
High Brightness
Tinted, Diffused, Low Current
Nondiffused, Low Current
Tinted, Diffused, Resistor,
5 V, 10 mA
Diffused, Resistor, 5 V, 4 mA
Ordering Information
HLMX-XXXX-X X X X X
Packaging
Option
Color Bin
Selection
Max. Iv Bin
Min. Iv Bin
4 x 4 Prod.
Part
Number
2

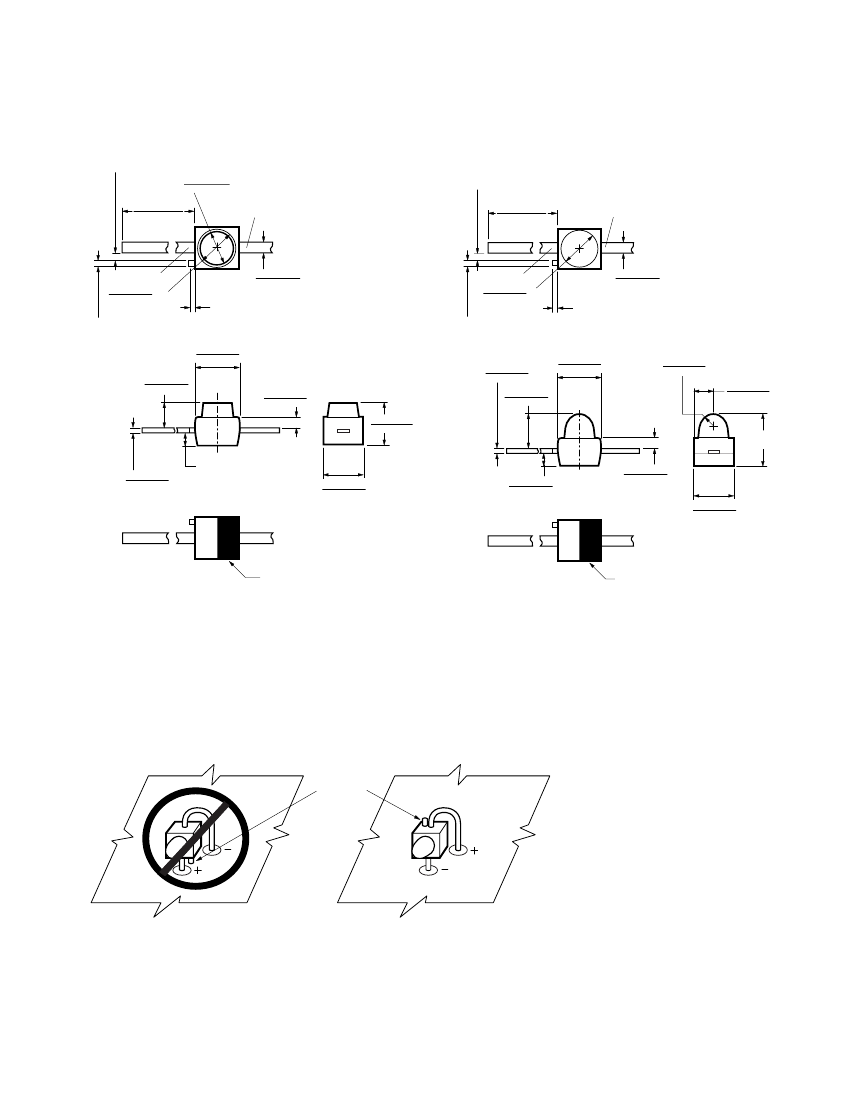

Package Dimensions
(A) Flat Top Lamps
(B) Diffused and Nondiffused
0.50 (0.020) REF.
1.40 (0.055)
1.65 (0.065)
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
CATHODE
0.50 (0.020) REF.
11.68 (0.460)
10.67 (0.420)
BOTH SIDES
CATHODE
ANODE
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
0.46 (0.018)
0.56 (0.022)
0.25 (0.010) MAX.
NOTE 2
ANODE
1.65 (0.065)
DIA.
1.91 (0.075)
0.20 (0.008) MAX.
0.46 (0.018)
0.56 (0.022)
0.25 (0.010) MAX.
NOTE 2
2.21 (0.087)
1.96 (0.077)
1.14 (0.045)
1.40 (0.055)
0.18 (0.007)
0.23 (0.009)
2.21 (0.087)
1.96 (0.077)
0.76 (0.030) R.
0.89 (0.035)
0.94 (0.037)
1.24 (0.049)
0.63 (0.025)
0.38 (0.015)
2.44 (0.096)
1.88 (0.074)
2.03 (0.080)
1.78 (0.070)
2.92 (0.115)
MAX.
0.63 (0.025)
0.38 (0.015)
2.08 (0.082)
2.34 (0.092)
0.79 (0.031) MAX.
0.18 (0.007)
0.23 (0.009)
2.08 (0.082)
2.34 (0.092)
0.79 (0.031)
0.53 (0.021)
CATHODE
STRIPE
CATHODE
STRIPE
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETRES (INCHES).
2. PROTRUDING SUPPORT TAB IS CONNECTED TO CATHODE LEAD.
3. LEAD POLARITY FOR AlGaAs LAMPS IS OPPOSITE TO THE LEAD
POLARITY OF SUBMINIATURE LAMPS USING OTHER TECHNOLOGIES.
CATHODE
TAB
NO. ANODE DOWN.
YES. CATHODE DOWN.
Figure 1. Proper right angle mounting to a PC board to prevent protruding cathode tab from shorting to anode connection.
3
Absolute Maximum Ratings at T
A
= 25°C
Standard
Red
50
1000
DH AS
AlGaAs
Red
30
300
High
Eff.
Red
30
90
6
5
2000
5
500
5
500
5
500
High Perf.
Green
30
90
6
5
500
Emerald
Green
30
90
6
5
500
Parameter
DC Forward Current
[1]
Peak Forward Current
[2]
DC Forward Voltage
(Resistor Lamps Only)
Reverse Voltage (I
R
= 100
µA)
Transient Forward Current
[3]
(10
µs
Pulse)
Orange
30
90
Yellow
20
60
6
5
500
Units
mA
mA
V
V
mA
Operating Temperature Range:
Non-Resistor Lamps
-55 to +100
Resistor Lamps
Storage Temperature Range
For Thru Hole Devices
Wave Soldering Temperature
[1.6 mm (0.063 in.) from body]
For Surface Mount Devices:
Reflow Soldering Temperature
-40 to +100
55 to +100
-40 to +85
-55 to +100
260°C for 5 seconds
-40 to +100
-20 to +100
-20 to +85
°C
°C
260°C for 20 seconds
Notes:
1. See Figure 5 for current derating vs. ambient temperature. Derating is not applicable to resistor lamps.
2. Refer to Figure 6 showing Max. Tolerable Peak Current vs. Pulse Duration to establish pulsed operating conditions.
3. The transient peak current is the maximum non-recurring peak current the device can withstand without failure. Do not operate these lamps at this
high current.
4
