57HA3F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 57HA3F

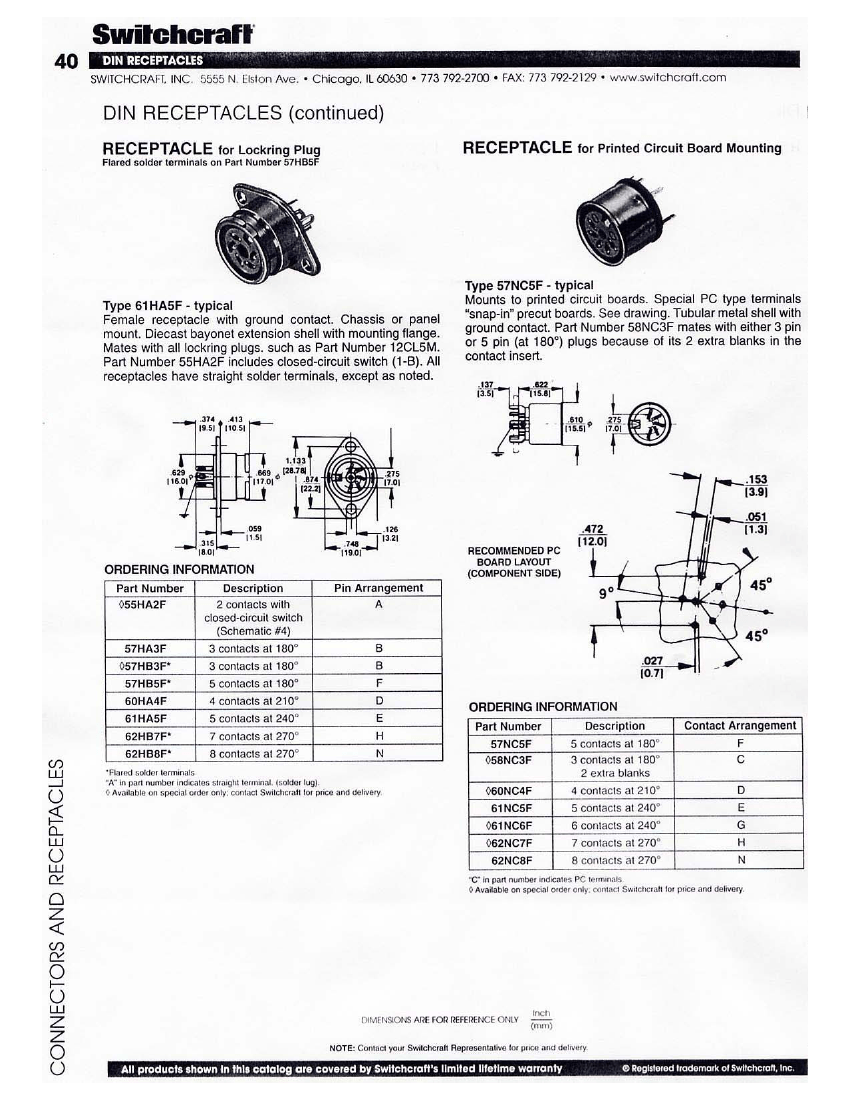

57HA3F: DescriptionCircular DIN Connector, 3 Contact(s), Female, Panel Mount, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerSwitchcraft

Download Datasheet Parametric Compare View All

57HA3F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	57HA3F	-	-	View	Buy Now

57HA3F Overview

Circular DIN Connector, 3 Contact(s), Female, Panel Mount, Solder Terminal, Receptacle,

57HA3F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
body width	0.748 inch
subject depth	0.472 inch
body length	1.133 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact pitch circle diameter	7 mm
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	YES
Dielectric withstand voltage	500VAC V
Electromagnetic interference shielding	NO
IEC compliance	NO
maximum insertion force	8.0064 N
MIL compliance	NO
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	ZINC
Termination type	SOLDER
Total number of contacts	3
Evacuation force-minimum value	1.0008 N
Base Number Matches	1

Preview

Download Datasheet

View All

57HA3F Related Products

	57HA3F	57NC5F	60NC4F	61NC6F	62NC7F	61NC5F	62NC8F	58NC3F
Description	Circular DIN Connector, 3 Contact(s), Female, Panel Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,	Circular DIN Connector, 3 Contact(s), Female, Board Mount, Solder Terminal, Receptacle,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact pitch circle diameter	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES
Electromagnetic interference shielding	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	3	5	4	6	7	5	8	3
Base Number Matches	1	1	1	1	1	1	1	-
Maker	-	-	Switchcraft	Switchcraft	Switchcraft	Switchcraft	Switchcraft	Switchcraft
