BZV55C11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZV55C11

BZV55C11: DescriptionZener Diode, 11V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size117KB，3 Pages; ManufacturerSPC Multicomp

Download Datasheet Parametric Compare View All

BZV55C11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZV55C11	-	-	View	Buy Now

BZV55C11 Overview

Zener Diode, 11V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2

BZV55C11 Parametric

Parameter Name	Attribute value
Maker	SPC Multicomp
package instruction	O-LELF-R2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.4 W
Nominal reference voltage	11 V
surface mount	YES
technology	ZENER
Terminal form	WRAP AROUND
Terminal location	END
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

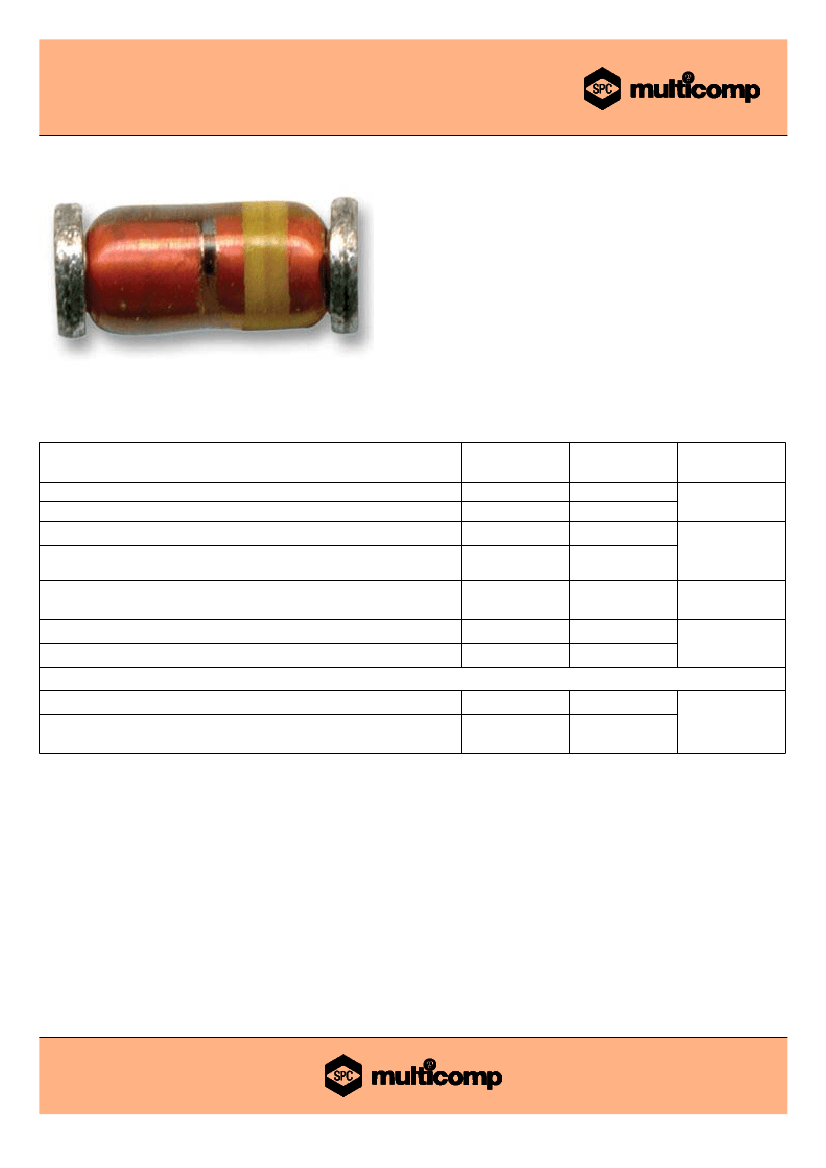

Zener Diode

Silicon Planar Zener Diodes

Feature:

•

Hermetically sealed, glass silicon diodes.

Absolute Maximum Ratings (T

=25°C)

Description

Average Forward Current (averaged Over any 20 ms period)

Repetitive Peak Forward Current

Total Power Dissipation up to T

flange

= 50ºC

Up to T

= 50ºC and Mounted on a Ceramic Substrate of 10mm x

10mm x 0.6mm

Non-Repetitive Peak Reverse Power Dissipation t = 100µs,

= 150ºC

Storage Temperature

Junction Temperature

Thermal Resistance

From Junction to tie-point (flanges)

From Junction to Ambient when Mounted on a Ceramic Substrate

of 10mm x 10mm x 0.6mm

th (j-tp)

th (j-a)

0.3

0.38

K/mW

Symbol

F(av)

FRM

tot

ZSM

stg

Value

250

500

400

- 65 to +200

200

Unit

ºC

Page 1

25/04/08 V1.1

BZV55C11 Related Products

	BZV55C11	BZV55C47	BZV55C43	BZV55C24	BZV55C5V6	BZV5530	BZV55C6V2
Description	Zener Diode, 11V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2	Zener Diode, 47V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2	Zener Diode, 43V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2	Zener Diode, 24V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2	Zener Diode, 5.6V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2	Zener Diode, 30V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2	Zener Diode, 6.2V V(Z), 5%, 0.4W, Silicon, Unidirectional, HERMETIC SEALED, GLASS PACKAGE-2
Maker	SPC Multicomp	SPC Multicomp	SPC Multicomp	SPC Multicomp	SPC Multicomp	SPC Multicomp	SPC Multicomp
package instruction	O-LELF-R2	O-LELF-R2	O-LELF-R2	HERMETIC SEALED, GLASS PACKAGE-2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Contacts	2	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W
Nominal reference voltage	11 V	47 V	43 V	24 V	5.6 V	30 V	6.2 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END	END	END
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%
Working test current	5 mA	2 mA	2 mA	5 mA	2 mA	2 mA	2 mA
