Data sheet
TERMSERIES
TRZ 60VUC 2CO AU
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

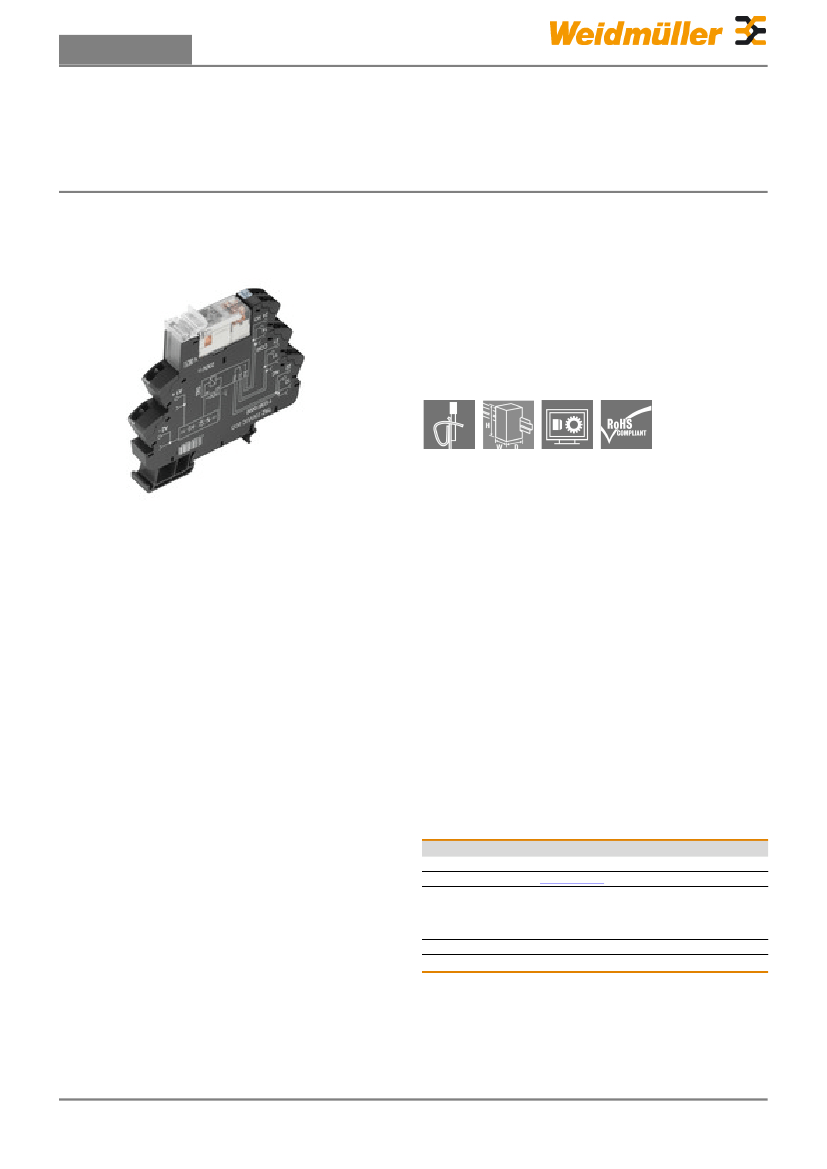

Product image
TERMSERIES relay module, complete modules consisting
of
a relay and a base with AC/DC/UC coils,
available in different versions:
• With screw and tension-clamp connection
• AgNi contact, optionally with hard gold-plated contacts
• 1 and 2 COs
• Optionally with multiple-voltage input: 24...230 V UC
• With various protective circuits
in the input (free-wheel diode, RC element)
• Illuminated ejection lever
Similar to illustration
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
TRZ 60VUC 2CO AU
1123890000
TERMSERIES, Relays, No. of contacts: 2 CO
contact AgNi 5µm Au, Rated control voltage: 60
V UC ±10 %, Continuous current: 8 A, Tension-
clamp connection
4032248905843
10 pc(s).
Creation date May 13, 2019 7:35:55 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
1
Data sheet
TERMSERIES
TRZ 60VUC 2CO AU
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
12.8 mm
90.5 mm
87.8 mm
57.6 g
Width (inches)
Height (inches)
Depth (inches)
Dimensions and weights
Width
Height
Depth
Net weight
0.504 inch
3.563 inch
3.457 inch
Temperatures
Humidity
5-95% relative humidity,
T
u
= 40°C, without
condensation
-40 °C
-40 °C
-40 °C...85 °C
Operating temperature, max.
Storage temperature, max.
Operating temperature
60 °C
85 °C
-40 °C...60 °C
Operating temperature, min.
Storage temperature, min.
Storage temperature
Environmental Product Compliance
REACH SVHC
Lead 7439-92-1
Rated data UL
Ambient temperature (operational), max. 60 °C
Connection cross-section AWG, max.
AWG 14
Pollution severity level
2
Connection cross-section AWG, min.
Type of conductor
AWG 26
rigid copper conductor,
flexible copper conductor
Input
Rated control voltage
Rated current DC
Pull-in/drop-out voltage, typ.
Status indicator
Coil voltage of the replacement relay
deviating from the rated control voltage Yes
60 V UC ± 10 %
6.0 mA
36 V / 13 V AC
40 V / 14 V DC
Green LED
Rated current AC
Power rating
Pull-in/drop-out current, typ.
Protective circuit
Coil voltage of the replacement relay
8.3 mA
360 mW, 500 mVA
5 mA / 2.5 mA AC
4 mA / 1.2 mA DC
Rectifier
60 V DC
Output
Rated switching voltage
Max. switching voltage, DC
Inrush current
DC switching capacity (resistive), max.
Switch-off delay
Max. switching frequency at rated load
250 V AC
250 V
15 A / 4 s
192 W @ 24 V
< 7 ms
0.1 Hz
Max. switching voltage, AC
Continuous current
AC switching capacity (resistive), max.
Switch-on delay
Min. switching power
250 V
8A
2000 VA
< 11 ms
1 mA @ 1 V
Contact data
Contact type
2 CO contact (AgNi 5µm
Au)
Mechanical service life
30 x 10
6
switching cycles
General data
Rail
Mechanical switch position indicator
TS 35
No
Test button
Colour
No
black
Creation date May 13, 2019 7:35:55 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
2
Data sheet
TERMSERIES
TRZ 60VUC 2CO AU
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
300 V
2
1.2 kV
eff
/ 5 s
2.5 kV
eff
4 kV
eff
/ 1 Min.
Insulation coordination
Rated voltage
Pollution severity
Dielectric strength, Input/Output
Dielectric strength of neighbouring
contacts
Dielectric strength to mounting rail
Surge voltage category
III
Protection degree
IP20
Creepage and clearance distance input –
output
≥ 5.5 mm
Dielectric strength of open contact
1 kV
eff
/ 1 min
Impulse withstand voltage
6 kV (1.2/50 µs)
Further details of approvals / standards
Standards
Certificate no. (cULus)
EN 50178, EN 55011, EN
61000-6-1, 2, 4
E141197
Certificate No. (DNVGL)
TAA00001E5
Connection data
Wire connection method
Clamping range, rated connection
Clamping range, max.
Tension-clamp connection
1.5 mm²
2.5 mm²
Wire connection cross section AWG,
max.
AWG 14
Wire cross-section, solid, max.
2.5 mm²
Wire connection cross section, finely
stranded, max.
2.5 mm²
Wire cross-section, finely stranded, max.
(AWG)
AWG 14
Wire connection cross-section, finely
stranded with wire-end ferrules DIN
46228/4, max.
1.5 mm²
Conductor cross-section, flexible, AEH
(DIN 46228-1), max.
1.5 mm²
Twin wire-end ferrules, max.
1 mm²
Gauge to IEC 60947-1
A1, B1
Stripping length, rated connection
Clamping range, min.
Wire connection cross section AWG,
min.
Wire cross-section, solid, min.
8 mm
0.14 mm²
AWG 26
0.14 mm²
Wire connection cross-section, finely
stranded, min.
0.14 mm²
Wire cross-section, finely stranded, min.
(AWG)
AWG 26
Wire connection cross-section, finely
stranded with wire-end ferrules DIN
46228/4, min.
0.14 mm²
Conductor cross-section, flexible, AEH
(DIN 46228-1), min.
0.14 mm²
Twin wire-end ferrules, min.
0.5 mm²
Blade size
0.6 x 3.5 mm
Classifications
ETIM 5.0
eClass 6.2
eClass 8.1
eClass 9.1
EC001437
27-37-16-01
27-37-16-01
27-37-16-01
ETIM 6.0
eClass 7.1
eClass 9.0
EC001437
27-37-16-01
27-37-16-01
Approvals
Approvals
ROHS
Conform
Creation date May 13, 2019 7:35:55 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
3
Data sheet
TERMSERIES
TRZ 60VUC 2CO AU
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
Downloads
Approval/Certificate/Document of
Conformity
Brochure/Catalogue
Engineering Data
Engineering Data
User Documentation
DE_PA5600_160229_001.pdf
CAT 4.2 ELECTR 18/19 EN
EPLAN, WSCAD, Zuken E3.S
STEP
Operating Instructions
Creation date May 13, 2019 7:35:55 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
4
Data sheet
TERMSERIES
TRZ 60VUC 2CO AU
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

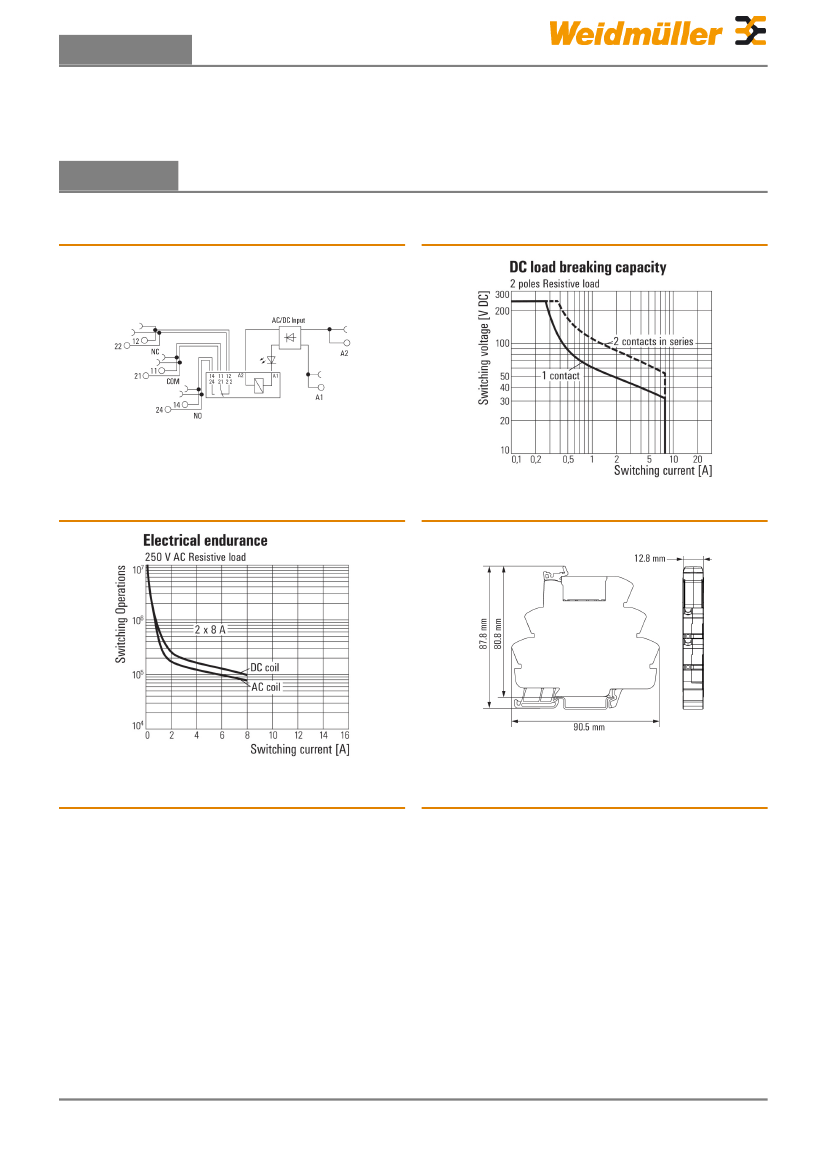

Drawings
Graph
Wiring diagram
Graph
DC load limit curve
Resistive load
Dimensional drawing
Electrical service life230 V AC resistive load
230 V AC resistive load
Creation date May 13, 2019 7:35:55 PM CEST
Catalogue status 01.05.2019 / We reserve the right to make technical changes.
5
