54F548DMQB datasheet, PDF - EEWORLD Datasheet

54F548DMQB: DescriptionDecoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20; Categorylogic logic; File Size74KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

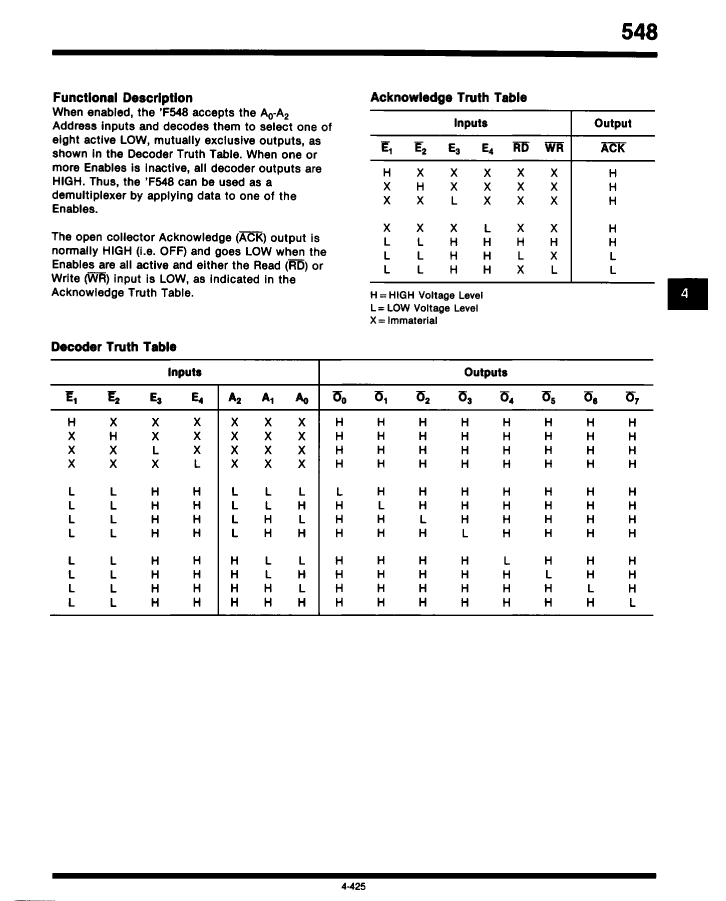

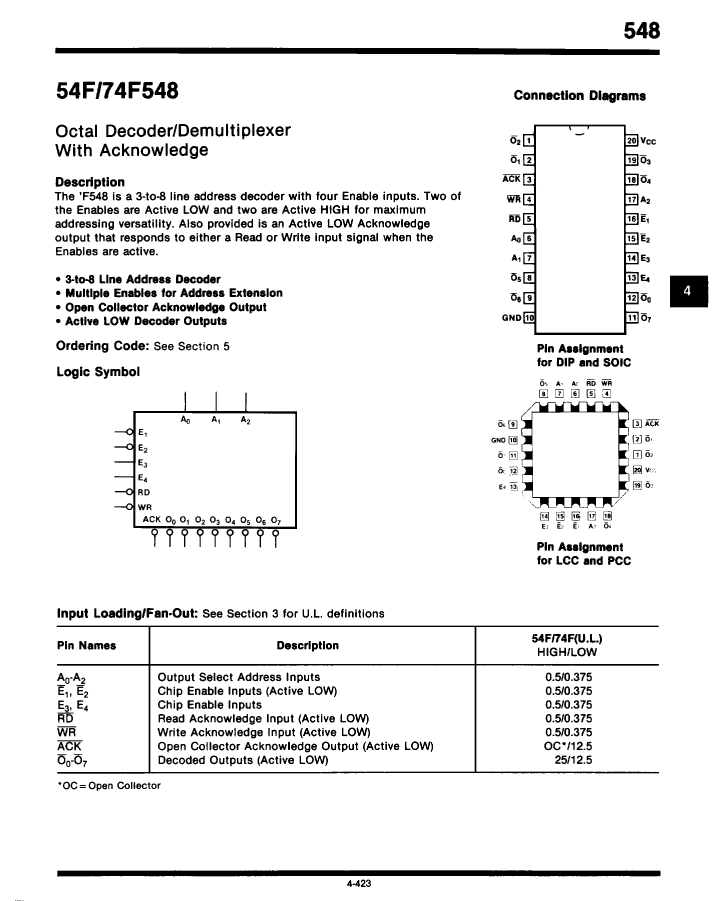

54F548DMQB Overview

Decoder/Driver, F/FAST Series, Inverted Output, TTL, CDIP20, CERAMIC, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	4 ENABLE INPUTS
series	F/FAST
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

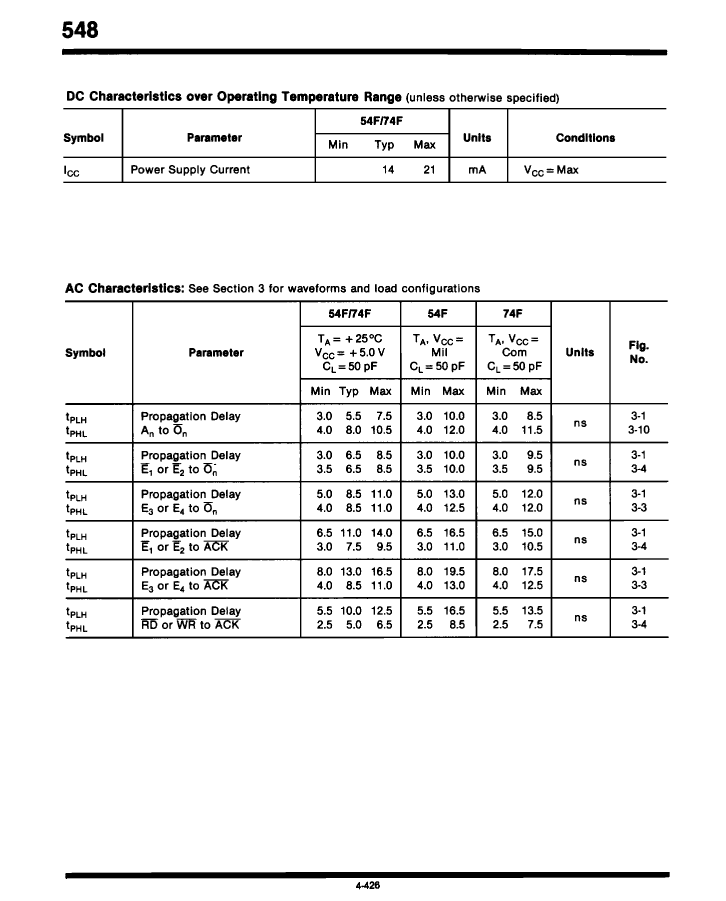

power supply	5 V
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
