0.35mm Pitch, 0.8mm Height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A
BM23PF Series
High current applicable
Conventional product
(P=0.35mm, 34pos.)
BM23PF-24pos.
(+2pos. for power)
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Power lines are concentrated into 2 power contacts
(Up to 5A/line) instead of conventional multiple
signal contacts.
Fig.1
■
Features

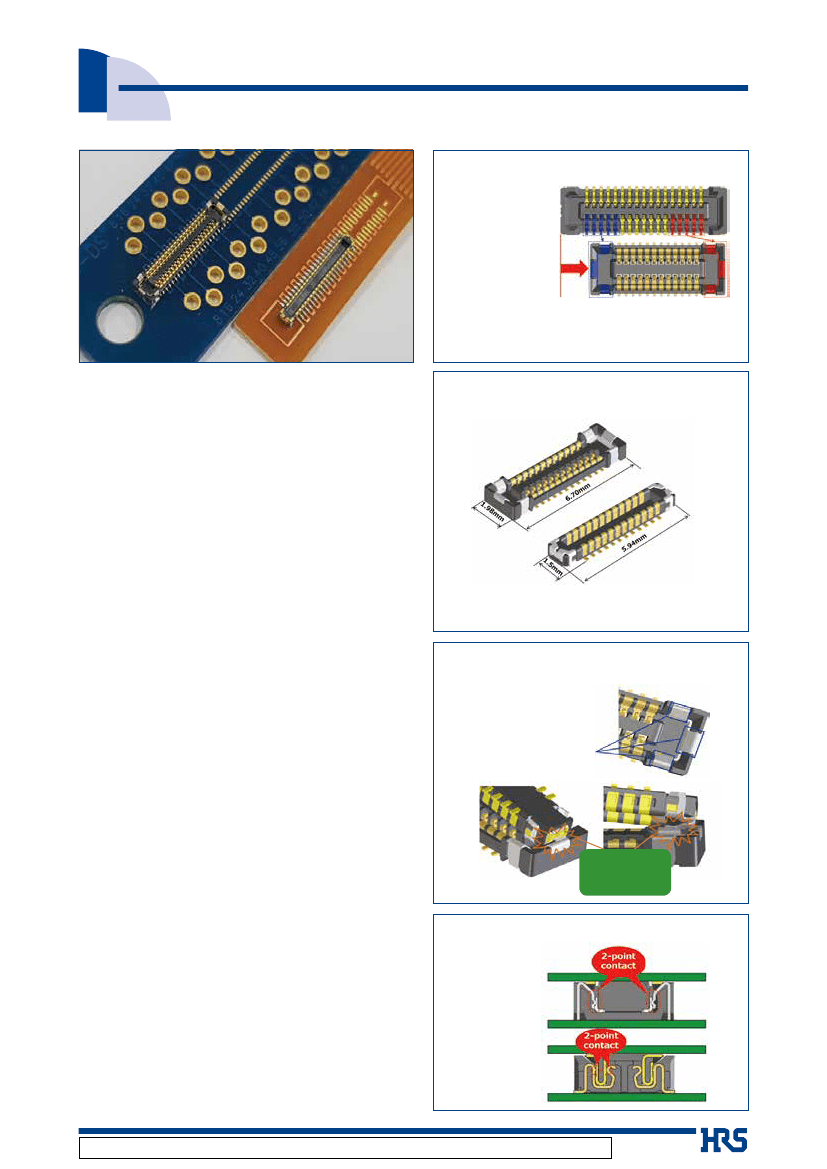

1. Rated current : 5A
Equipped with power contacts capable of handling up to
5A current. (See Fig.1)
Rated current : 5A (Power contact), 0.3A (Signal contact)
●
Space-saving
Dimension Example : 24 Pos.
Receptacle
Header
2. Space saving design
Compact design ideal for mobile devices. (See Fig.2)
Pitch : 0.35mm, Width : 1.98mm, Stacking height : 0.8mm
●
3. Robust [Breaking Strength : 90N]
Metal guides prevent housing damage due to incorrect
mating. (See Fig.3)
The narrower and shorter, yet flexible design allows
tight installation ( Pitch : 0.35mm, Width : 1.98mm )
Fig.2
4. Highly reliable contact design
2-point contact design for both power and signal contact
ensures high reliability. (See Fig.4)
Robust design
Metal guide prevents
connector damage even if
mated incorrectly.
Metal guide
5. Good mating operation
Wide self alignment range with metal guides offers
enhanced mating operation.
(0.4mm in pitch direction, 0.35mm in width direction)
Furthermore, a clear tactile click generated by the
unique locking contact design insures complete mating.
6. Supports USB 3.1 Gen.2 (10Gbps) transmission
Signal contacts support USB3.1 Gen.2 transmission
speed.
Breaking Strength
Actually Measured
90 N
Fig.3
■
Environmental
●
Cross-sectional view of mated contacts
Halogen-free*
As defined by IEC 61249-2-21
Br : 900ppm max., Cl : 900ppm max.
Br+Cl :1,500ppm max.
Power contact
Signal contact
Fig.4
In cases where the application will demand a high level of reliavility, such as automotive,
please contact a company representative for further information.
2018.06
②
1
BM23PF Series
●
0.35mm Pitch, 0.8mm Height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A
■Product
Specifications
Ratings
Rated
current
Rated
voltage
Items
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
4. Durability
Signal contact : 0.3A (Note1)
Power contact : 5A
30V AC/DC
Operating
temperature range
Operating
humidity range
Specifications
Signal contact : 90mΩ max.
Power contact : 30mΩ max.
50MΩ min.
No flashover or insulation breakdown
Contact resistance : Signal contact : 90mΩ max.
Power contact : 30mΩ max.
No electrical discontinuity for more than 1μs.
No electrical discontinuity of 1μs or more.
Contact resistance : Signal contact : 90mΩ max.
Power contact : 30mΩ max.
Insulation resistance : 25MΩ
min.
Contact resistance : Signal contact : 90mΩ max.
Power contact: 30mΩ max.
Insulation resistance : 50MΩ
min.
No dissolution or melting of the resin that will affect
the performance.
-55°C to 85°C
(Note2)
20% to 80%
Storage
temperature range
Storage
humidity range
Conditions
Measured at 20mV AC, 1kHz, and 1mA
Measured at 100V DC
100V AC for 1 minute
10 mating cycles
Frequency: 10 to 55Hz, single amplitude : 0.75mm
in 3 axis directions for 5 minutes,
10 cycles
Acceleration : 490m/s
2
, duration of pulse: 11ms
at 3 times for 3 directions.
96 hours at temperature of 40±2°C and a humidity
range from 90 to 95%
-55°C for 30minutes
➝
85°C for 30minutes,
5 cycles
Reflow : with recommended temperature profile;
Hand soldering at soldering iron temperature of
350°C for 3 seconds max.
-10°C to 60°C
(Note3)
40% to 70%
(Note3)
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5. Vibration
6. Shock resistance
7. Humidity
8. Temperature cycle
9. Soldering heat
resistance
Note 1 : The total current capacity for the connector with 40 or more signal contacts is 12A for all contacts.(Signal contact only)
Note 2 : Includes temperature rise caused by current flow.
Note 3 : Storage refers to long-term-storage of unused items before they are mounted on the PCB.
Operating temperature/humidity range applies to the state of temporary storage such as non-powered after mounting on the
PCB, and during transportation, etc.
■
Materials / Finish
Product
Receptacle
Header
Part
Insulator
Signal Contact
Power Contact
Material
LCP
Copper alloy
Copper alloy
Finish
Black
Gold plating
Gold plating
UL Regulation
UL94V-0
____
____
■
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●
Receptacle / Header
BM 23 PF 0.8
1
2
3
4
Series Name: BM
Series No. : 23
Shape Symbols
PF: Power contact type
Stacking Height : 0.8mm
Number of Contacts
-
*
5
DS
6
- 0.35 V
7
8
(
***
)
9
Connector Type
DS: Receptacle
DP: Header
Contact Pitch : 0.35mm
Terminal type
V : Straight SMT
Gold plated specification and packaging status
(51) : Gold plate thickness 0.05μm
Embossed tape packaging(10,000pcs/reel)
(895) : Gold plate thickness 0.05μm
Embossed tape packaging (1,000pcs/reel)
2
BM23PF Series
●
0.35mm Pitch, 0.8mm Height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A
■
Receptacle
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

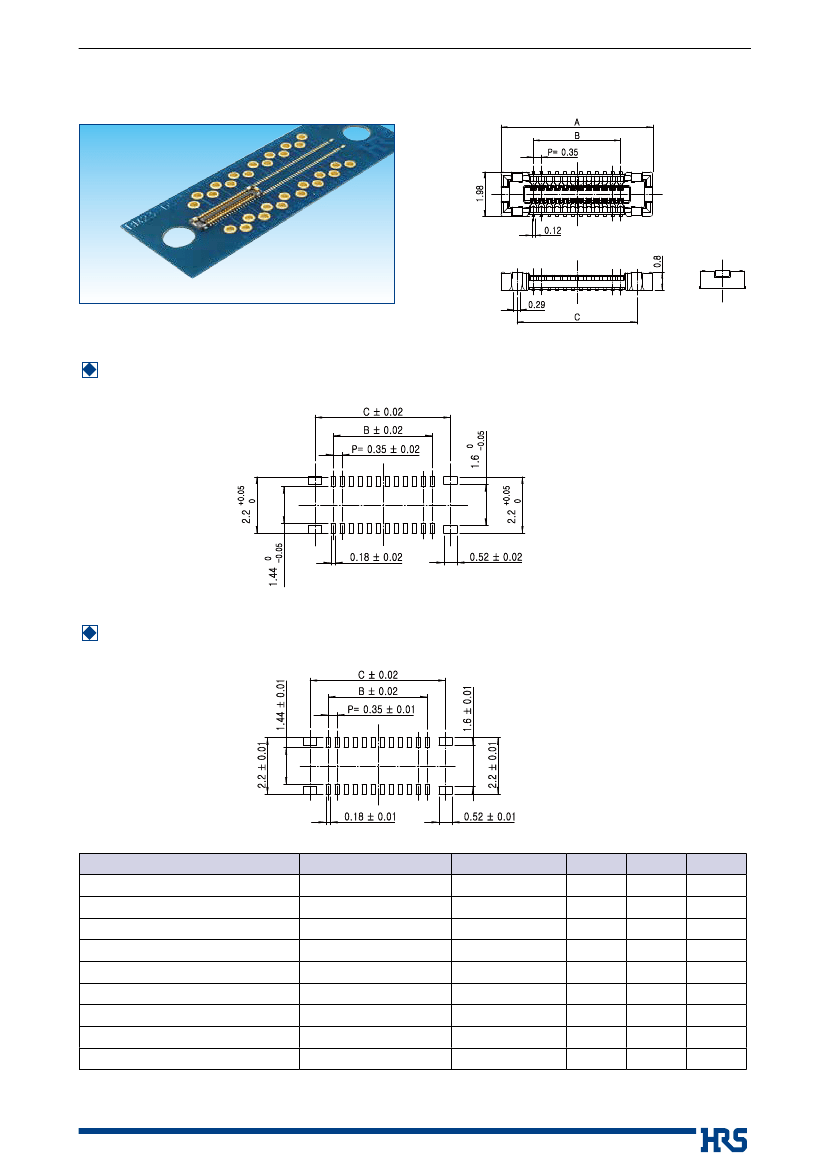

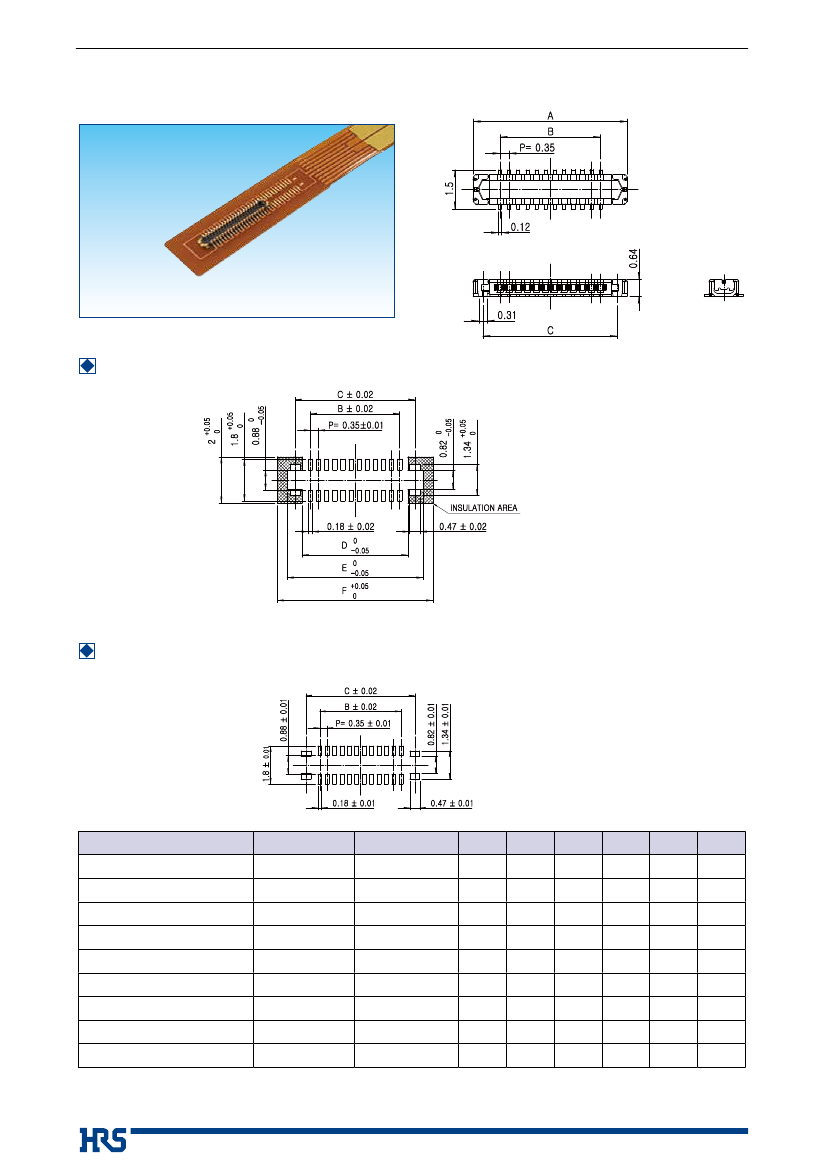

Recommended PCB layout
Recommended metal mask dimensions (mask thickness : 100µm)
Unit : mm
Part No.
BM23PF0.8-10DS-0.35V(***)
BM23PF0.8-14DS-0.35V(***)
BM23PF0.8-20DS-0.35V(***)
BM23PF0.8-24DS-0.35V(***)
BM23PF0.8-30DS-0.35V(***)
BM23PF0.8-40DS-0.35V(***)
BM23PF0.8-42DS-0.35V(***)
BM23PF0.8-46DS-0.35V(
***)
BM23PF0.8-54DS-0.35V(***)
HRS No.
480-0312-0 **
480-0367-0
**
480-0434-0 **
480-0368-0
**
480-0472-0 **
480-0369-0
**
480-0436-0
**
480-0402-0 **
480-0370-0 **
No. of contacts
10
14
20
24
30
40
42
46
54
A
4.25
4.95
6.00
6.70
7.75
9.50
9.85
10.55
11.95
B
1.40
2.10
3.15
3.85
4.90
6.65
7.00
7.70
9.10
C
2.84
3.54
4.59
5.29
6.34
8.09
8.44
9.14
10.54
Note 1 : Please place orders in full reel quantities.
Note 2 : This connector has no polarity.
Note 3 : The specification number(895) in the Part No. changes to(95) in the HRS No.
3
BM23PF Series
●
0.35mm Pitch, 0.8mm Height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A
■
Header
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Recommended PCB layout
Recommended metal mask dimensions (mask thickness : 100µm)
Unit : mm
Part No.
BM23PF0.8-10DP-0.35V(***)
BM23PF0.8-14DP-0.35V(***)
BM23PF0.8-20DP-0.35V(***)
BM23PF0.8-24DP-0.35V(***)
BM23PF0.8-30DS-0.35V(***)
BM23PF0.8-40DP-0.35V(***)
BM23PF0.8-42DP-0.35V(***)
BM23PF0.8-46DP-0.35V(
***)
BM23PF0.8-54DP-0.35V(***)
HRS No.
480-0306-0
**
480-0366-0
**
480-0433-0 **
480-0291-0 **
480-0426-0
**
480-0317-0 **
480-0435-0 **
480-0402-0 **
480-0303-0 **
No. of contacts
10
14
20
24
30
40
42
46
54
A
3.49
4.19
5.24
5.94
6.99
8.74
9.09
9.79
11.19
B
1.40
2.10
3.15
3.85
4.90
6.65
7.00
7.70
9.10
C
2.70
3.40
4.45
5.15
6.20
7.95
8.30
9.00
10.40
D
2.11
2.81
3.86
4.56
5.61
7.36
7.71
8.41
9.81
E
3.41
4.11
5.16
5.86
6.91
8.66
9.01
9.71
11.11
F
4.25
4.95
6.00
6.70
7.75
9.50
9.85
10.55
11.95
Note 1 : Please place orders in full reel quantities.
Note 2 : This connector has no polarity.
Note 3 : The specification number(895) in the Part No. changes to(95) in the HRS No.
4
BM23PF Series
●
0.35mm Pitch, 0.8mm Height, Board to Board or Board to FPC Connectors with Rated Current Up to 5A

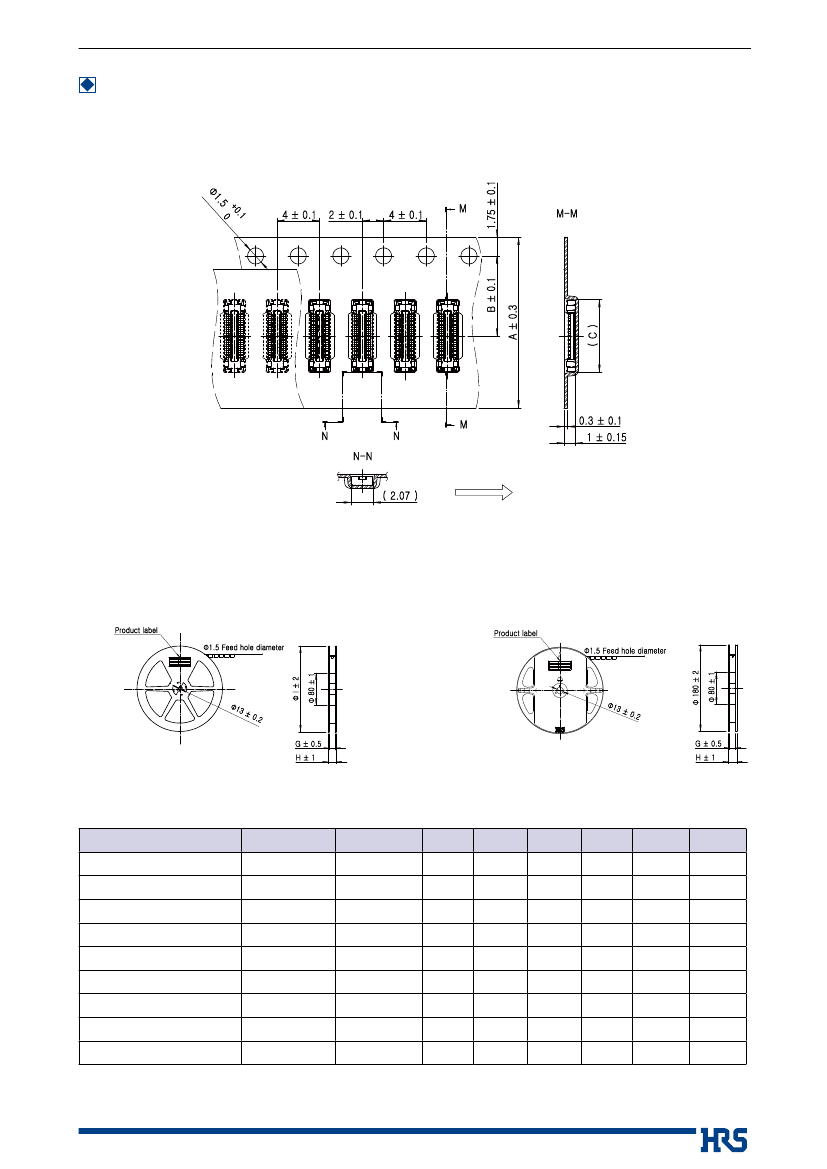

Embossed Tape Dimensions (IEC 602286-3, with JIC C 0806)
●
Receptacle
Sep.1.2019 Copyright 2019 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Un-reeling direction
●
Reel Dimensions
▶
10,000pcs/reel
▶
1,000pcs/reel
Unit : mm
Part No.
BM23PF0.8-10DS-0.35V(***)
BM23PF0.8-14DS-0.35V(***)
BM23PF0.8-20DS-0.35V(***)
BM23PF0.8-24DS-0.35V(***)
BM23PF0.8-30DS-0.35V(***)
BM23PF0.8-40DS-0.35V(***)
BM23PF0.8-42DS-0.35V(***)
BM23PF0.8-46DS-0.35V(
***)
BM23PF0.8-54DS-0.35V(***)
HRS No.
480-0312-0 **
480-0367-0
**
480-0434-0 **
480-0368-0
**
480-0472-0 **
480-0369-0
**
480-0436-0
**
480-0402-0 **
480-0370-0 **
No. of contacts
10
14
20
24
30
40
42
46
54
A
16
16
16
16
16
24
24
24
24
B
7.5
7.5
7.5
7.5
7.5
11.5
11.5
11.5
11.5
C
4.36
5.06
6.11
6.81
7.86
9.61
9.96
10.66
12.06
G
17.5
17.5
17.5
17.5
17.5
25.5
25.5
25.5
25.5
H
21.5
21.5
21.5
21.5
21.5
29.5
29.5
29.5
29.5
I
330
330
330
330
330
330
330
330
330
Note 1 : The specification number(895) in the Part No. changes to(95) in the HRS No.
5
