BA6395AFP-E1 datasheet, PDF - EEWORLD Datasheet

BA6395AFP-E1: DescriptionCD Motor Driver, 5 Channel, PDSO28, HSOP-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size390KB，10 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6395AFP-E1 Overview

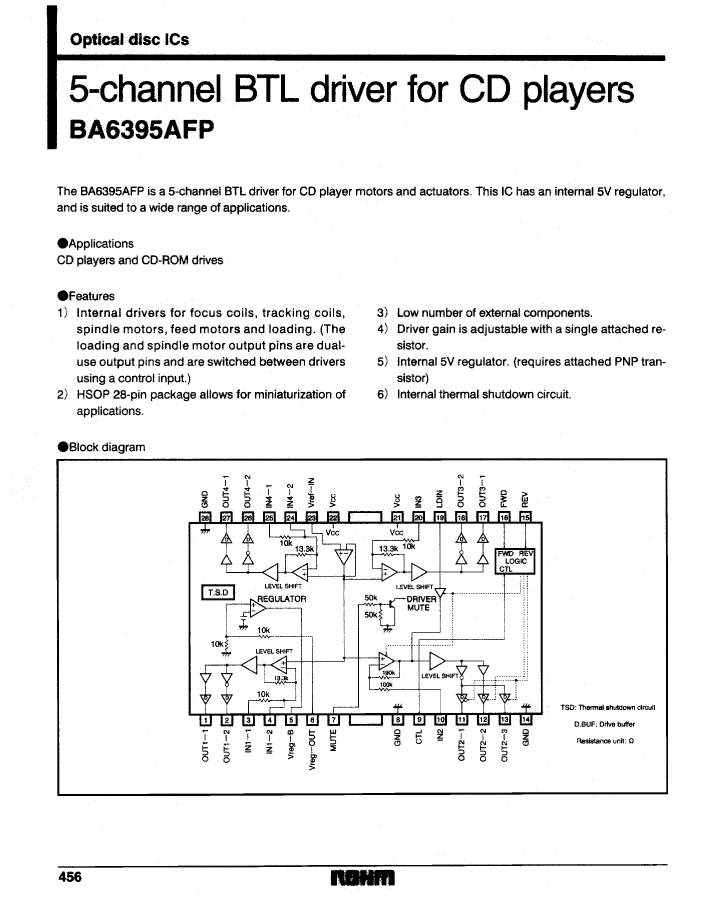

CD Motor Driver, 5 Channel, PDSO28, HSOP-28

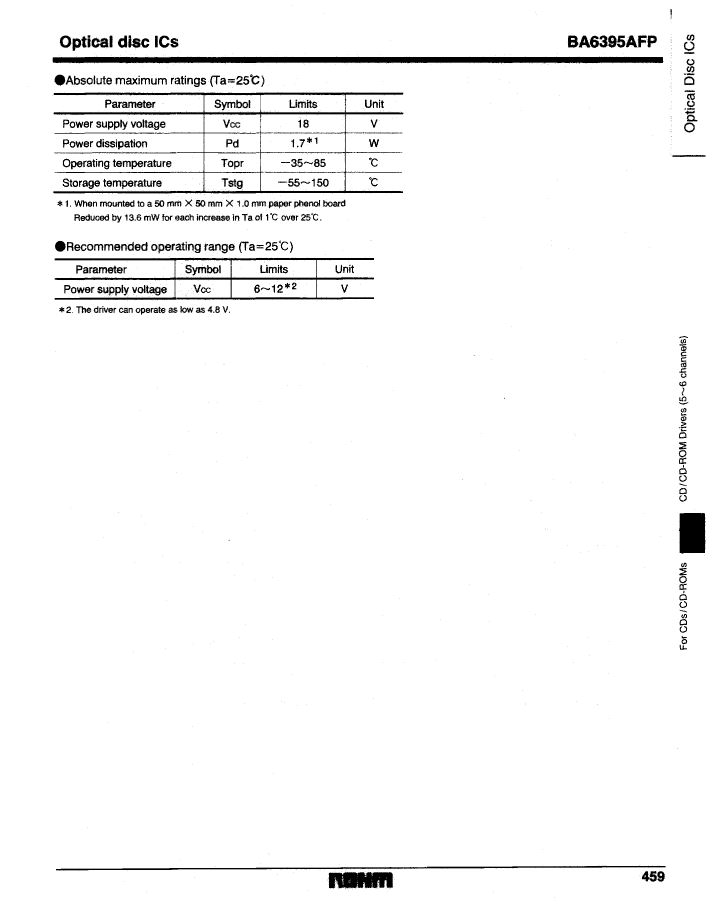

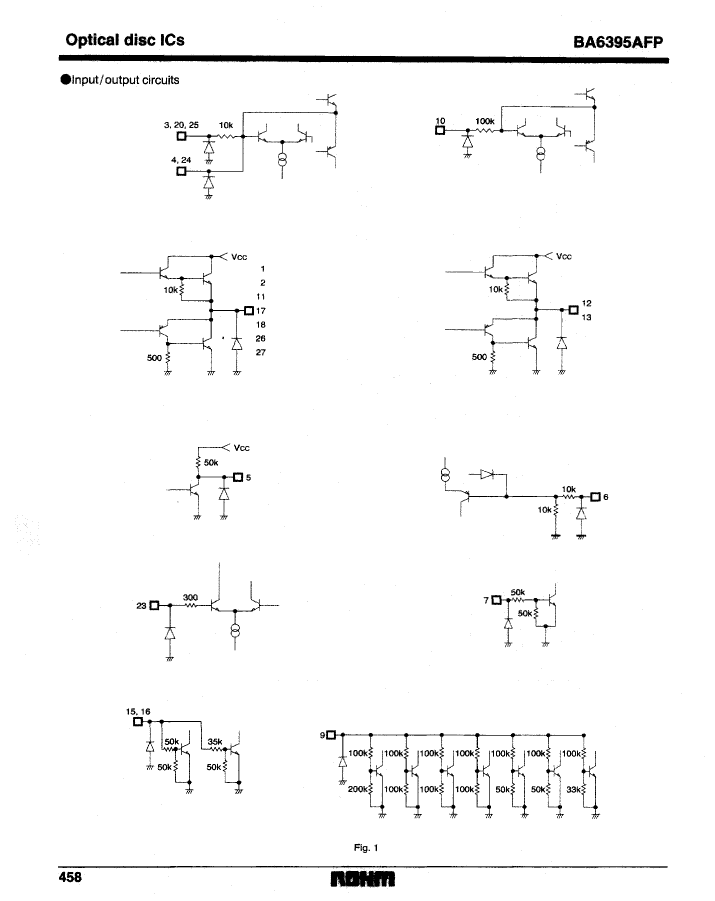

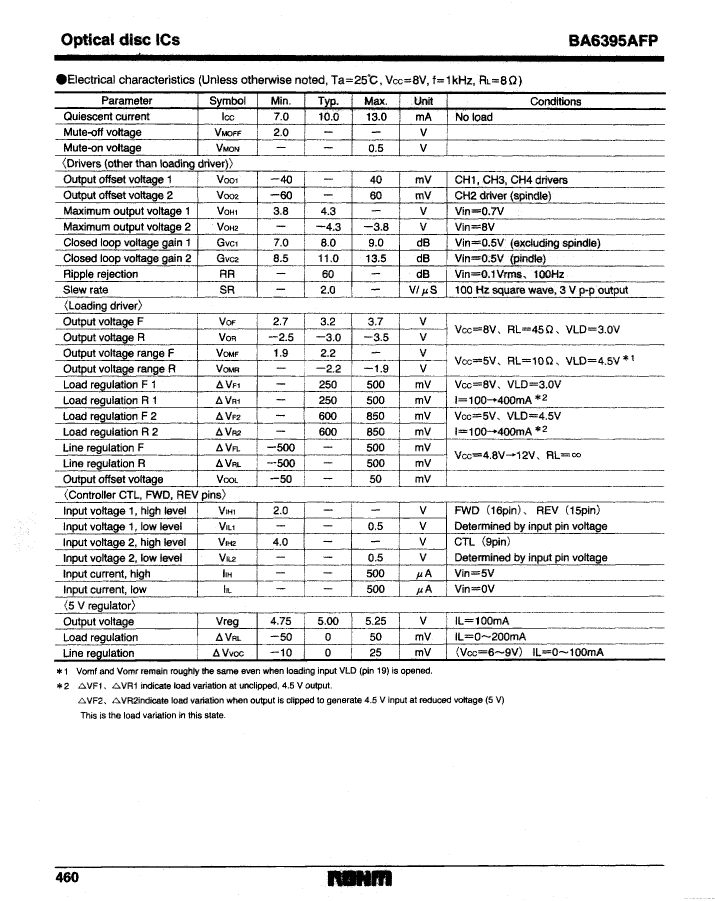

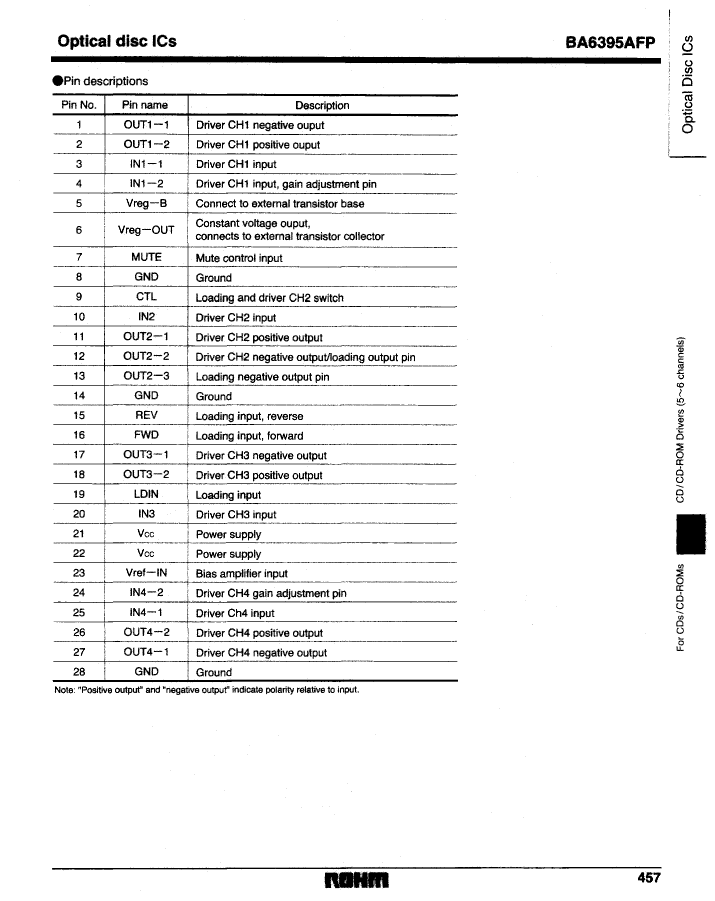

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compliant
Interface integrated circuit type	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G28
length	18.5 mm
Number of channels	5
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.3 mm
Maximum supply voltage	12 V
Minimum supply voltage	6 V
Nominal supply voltage	8 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
Base Number Matches	1

	BA6395AFP-E1	BA6395AFPE1	BA6395AFP-T1	BA6395AFPT1
Description	CD Motor Driver, 5 Channel, PDSO28, HSOP-28	CD MOTOR DRIVER, PDSO28, HSOP-28	CD Motor Driver, 5 Channel, PDSO28, HSOP-28	CD MOTOR DRIVER, PDSO28, HSOP-28
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	HSOP-28	HSSOP,	HSOP-28	HSSOP,
Contacts	28	28	28	28
Reach Compliance Code	compliant	unknow	compliant	unknown
Interface integrated circuit type	CD MOTOR DRIVER	CD MOTOR DRIVER	CD MOTOR DRIVER	CD MOTOR DRIVER
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28
length	18.5 mm	18.5 mm	18.5 mm	18.5 mm
Number of functions	1	1	1	1
Number of terminals	28	28	28	28
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	HSSOP	HSSOP	HSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.3 mm	2.41 mm	2.3 mm	2.41 mm
Maximum supply voltage	12 V	12 V	12 V	12 V
Minimum supply voltage	6 V	4.8 V	6 V	4.8 V
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm
Base Number Matches	1	1	1	1
