5962F9672401VRC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9672401VRC

5962F9672401VRC: DescriptionBus Driver, 2-Func, 4-Bit, True Output, CMOS, SIDE BRAZED, DIP-20; Categorylogic logic; File Size65KB，3 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962F9672401VRC Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, SIDE BRAZED, DIP-20

5962F9672401VRC Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
JESD-609 code	e4
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
propagation delay (tpd)	17 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
total dose	300k Rad(Si) V
Base Number Matches	1

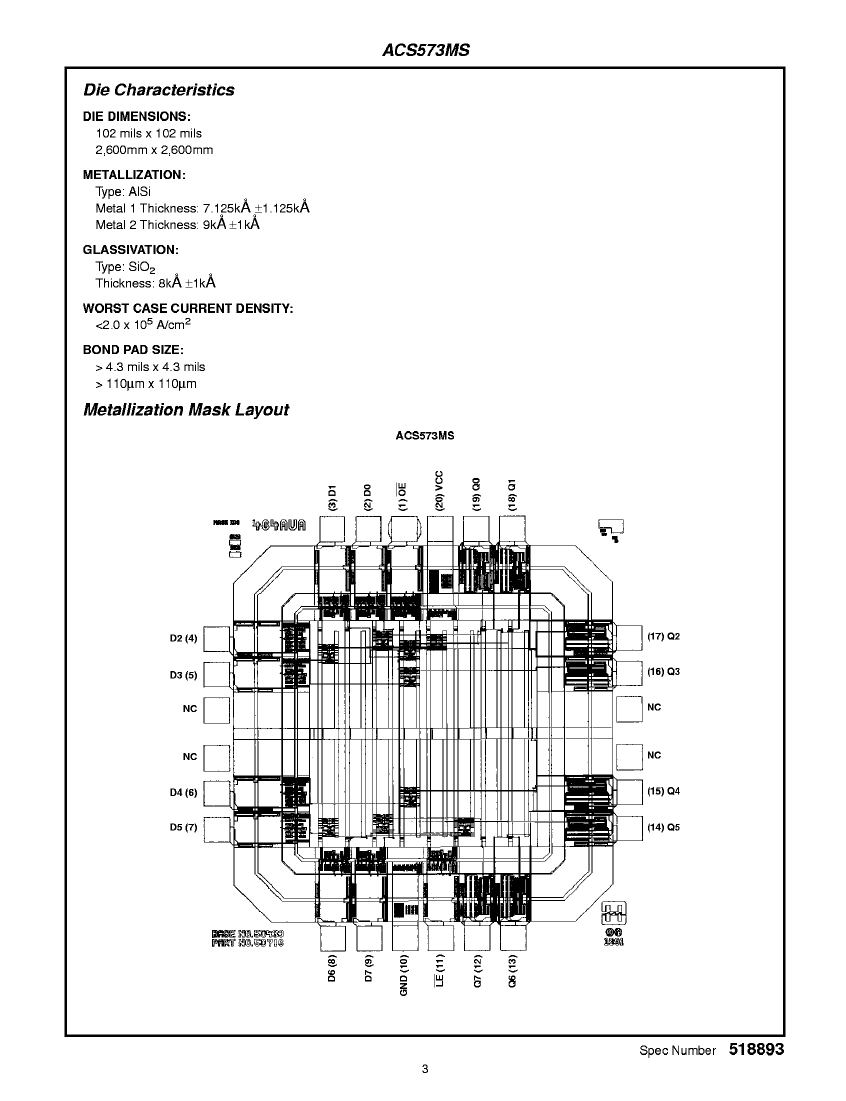

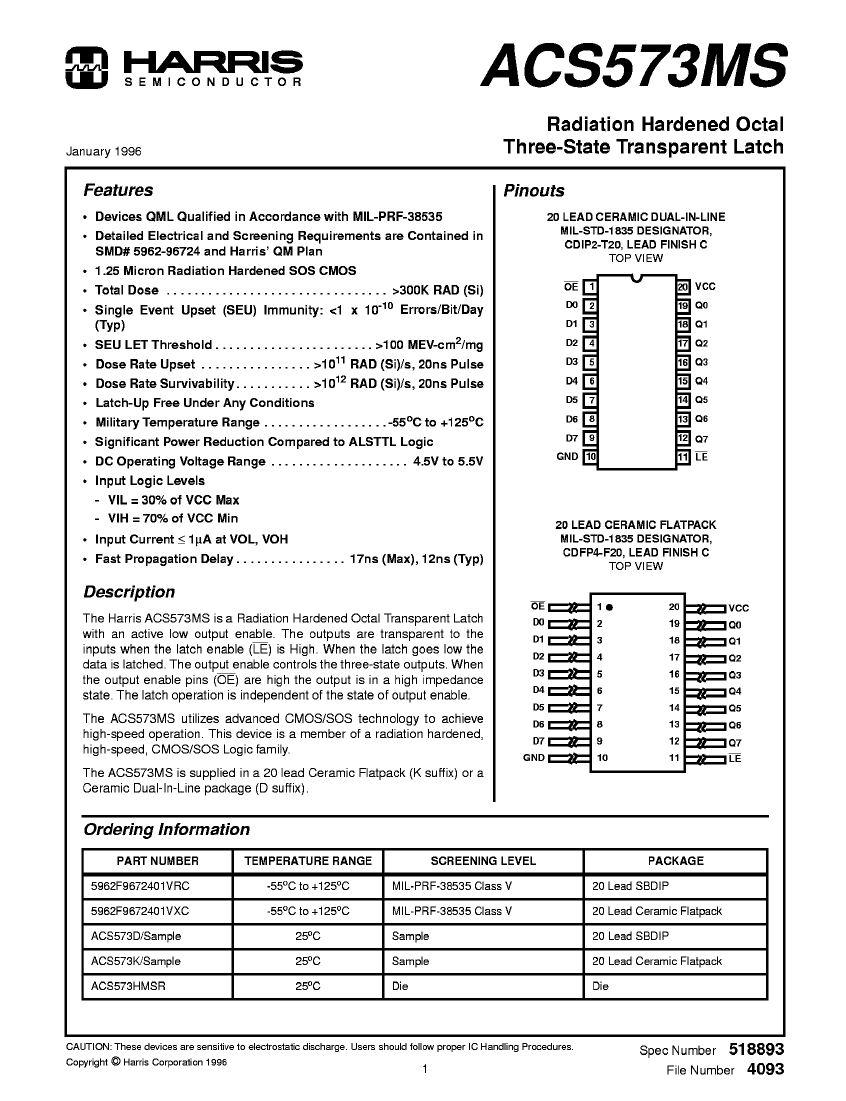

Preview

Download Datasheet

View All

5962F9672401VRC Related Products

	5962F9672401VRC	ACS573K/SAMPLE	ACS573K/SAMPLE-02	ACS573HMSR	ACS573HMSR-02	5962F9672401VXC	ACS573D/SAMPLE-02
Description	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, SIDE BRAZED, DIP-20	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, CERAMIC, FP-20	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, CERAMIC, FP-20	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, DIE	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, 0.102 X 0.102 INCH, DIE-24	Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CERAMIC, FP-20	Bus Driver, AC Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, SIDE BRAZED, CERAMIC, DIP-20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	8	8	8	8	4	8
Number of functions	2	1	1	1	1	2	1
Number of ports	2	2	2	2	2	2	2
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
propagation delay (tpd)	17 ns	17 ns	17 ns	17 ns	17 ns	17 ns	17 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Maker	Harris	-	-	Harris	Harris	Harris	Harris
series	-	AC	AC	AC	AC	-	AC
