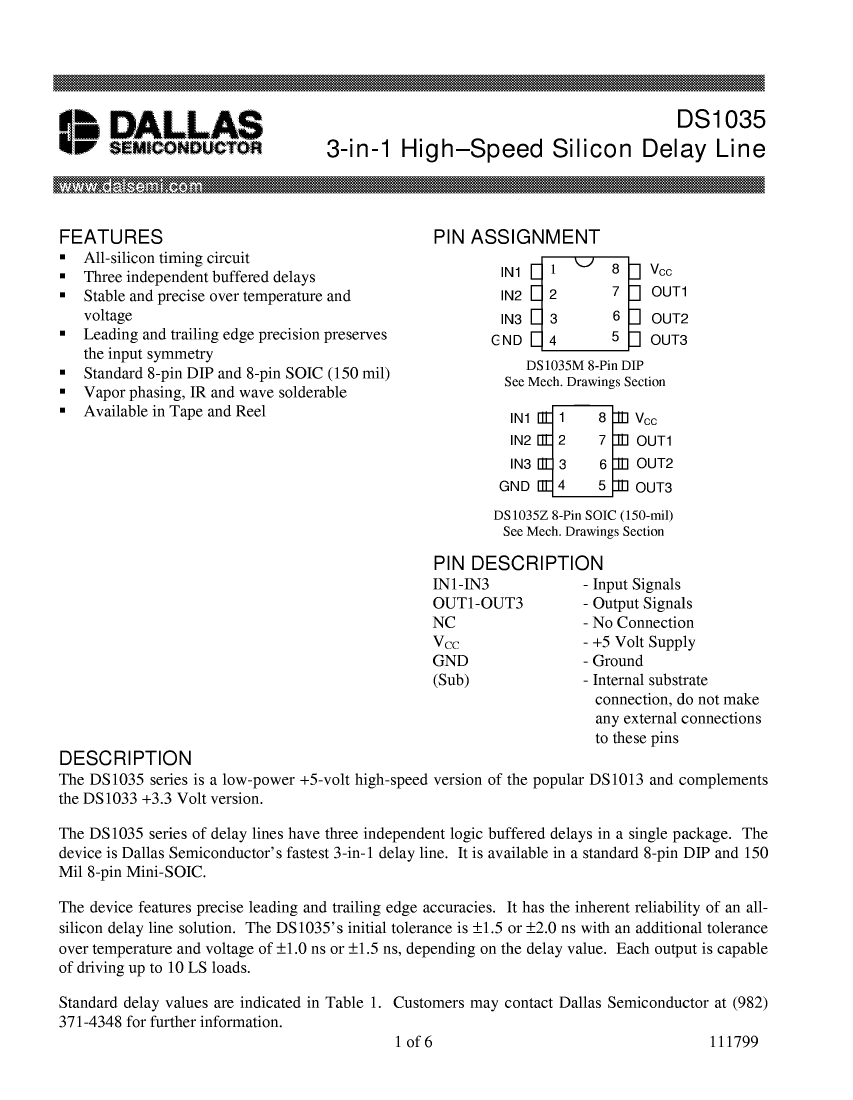

Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDIP8,

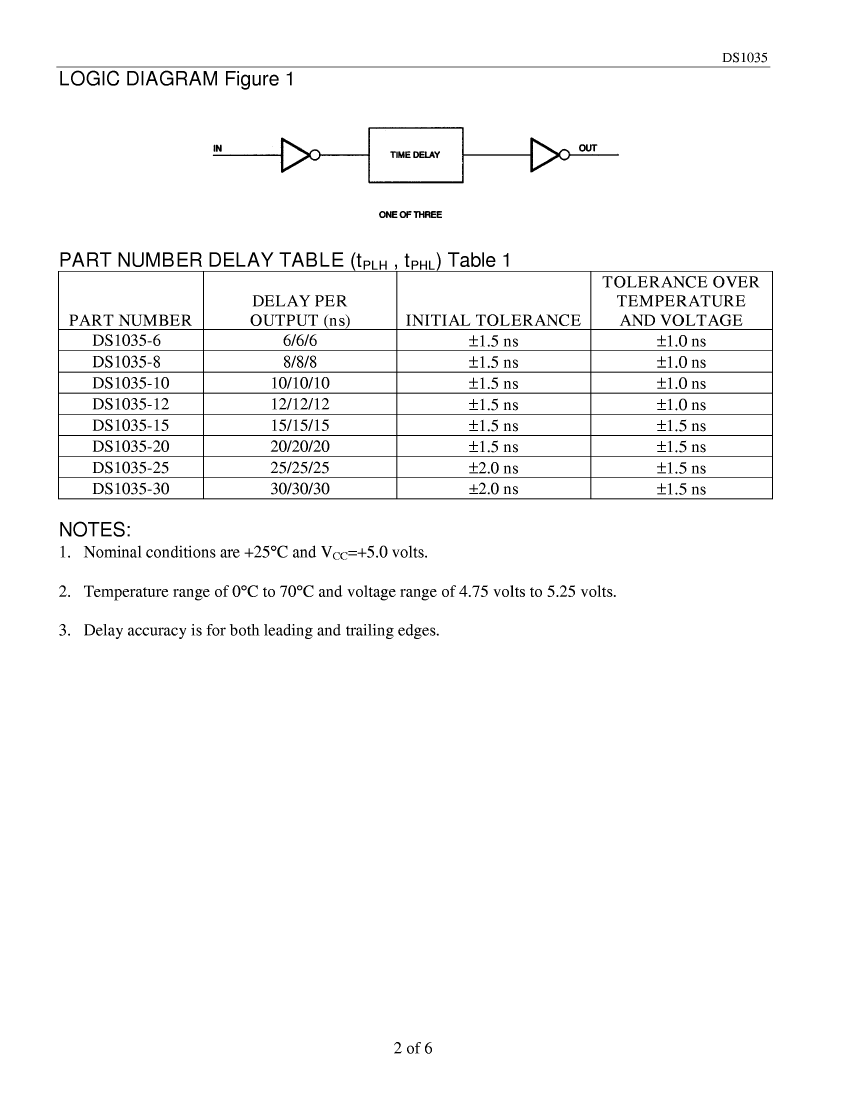

| Parameter Name | Attribute value |
| Maker | DALLAS |
| Reach Compliance Code | unknown |
| Other features | BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 LS LOAD PER OUTPUT |
| series | CMOS/TTL |
| Input frequency maximum value (fmax) | 83.3333 MHz |
| JESD-30 code | R-PDIP-T8 |
| Load capacitance (CL) | 15 pF |
| Logic integrated circuit type | SILICON DELAY LINE |
| Number of functions | 3 |
| Number of taps/steps | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| programmable delay line | NO |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Total delay nominal (td) | 6 ns |
| Base Number Matches | 1 |
| DS1035M-06 | DS1035M-08 | DS1035Z-08 | DS1035Z-06 | |
|---|---|---|---|---|
| Description | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDIP8, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDIP8, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO8, | Silicon Delay Line, 3-Func, 1-Tap, True Output, CMOS, PDSO8, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 LS LOAD PER OUTPUT | BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 LS LOAD PER OUTPUT | BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 LS LOAD PER OUTPUT | BOTH LEADING & TRAILING EDGE ACCURACY; MAX FAN OUT OF 10 LS LOAD PER OUTPUT |
| series | CMOS/TTL | CMOS/TTL | CMOS/TTL | CMOS/TTL |
| Input frequency maximum value (fmax) | 83.3333 MHz | 62.5 MHz | 62.5 MHz | 83.3333 MHz |
| JESD-30 code | R-PDIP-T8 | R-PDIP-T8 | R-PDSO-G8 | R-PDSO-G8 |
| Load capacitance (CL) | 15 pF | 15 pF | 15 pF | 15 pF |
| Logic integrated circuit type | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE | SILICON DELAY LINE |
| Number of functions | 3 | 3 | 3 | 3 |
| Number of taps/steps | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| programmable delay line | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Total delay nominal (td) | 6 ns | 8 ns | 8 ns | 6 ns |
| Maker | DALLAS | - | DALLAS | DALLAS |
