8980K16: DescriptionToggle Switch, DPST, Latched, 30A, 250VDC, Screw Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size90KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

8980K16 Overview

Toggle Switch, DPST, Latched, 30A, 250VDC, Screw Terminal, Panel Mount

8980K16 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Contact (AC) maximum rated R load	30A@250VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	30 A
Contact (DC) maximum rated R load	30A@250VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	250 V
Manufacturer's serial number	8980
Installation features	PANEL MOUNT
Maximum operating temperature	66 °C
Minimum operating temperature	-16 °C
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

2

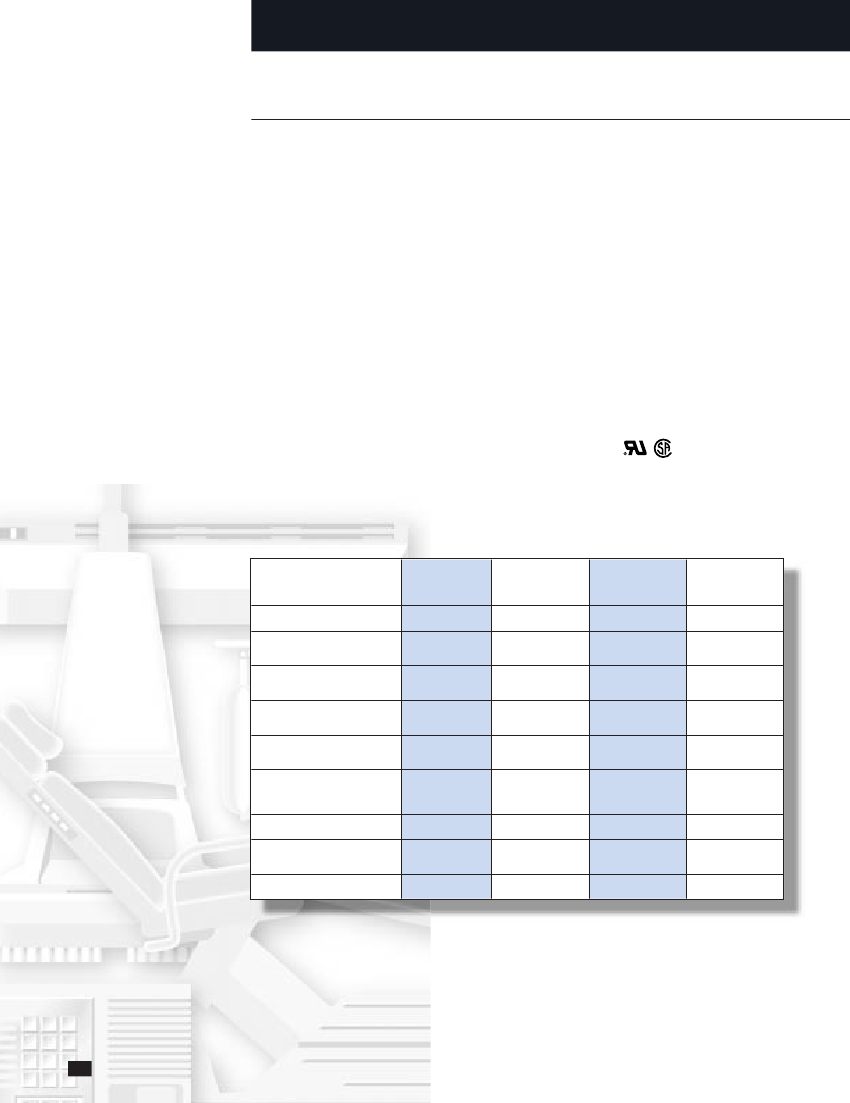

TOGGLE SWITCHES

Special Purpose Toggle Switches — Panelboard Switches

DESCRIPTION

This group of two position power

toggle switches is used by

manufacturers in a wide variety of

applications that require

dependability and long service,

such as welding equipment,

commercial ﬂoor polishers,

battery chargers, food processors

and panelboards.

Circuits:

1PST, 2PST, 3PST, 2 circuit.

Maintained.

Except for:

8980K13;

Momentary.

Contact Mechanism:

Quick-make/Quick-break

wiping action.

Except for:

8980K13:

Quick-make/Quick-break

butt contact.

Contact Material:

Movable — Bronze.

Stationary — Copper.

8980K13

— Silver.

Type of Termination:

Screw or bus.

Termination Material:

Copper.

Mounting Means:

Two Hole Mounting — Panel

Type Flush.

Dielectric Withstand:

1,000 Volts RMS minimum.

Operating Temperature Range:

-17.8°C to +65.6°C

(0°F to +150°F).

Approvals:

UL Recognized.

CSA Certiﬁed as noted.

SPECIFICATIONS

Rating:

10-60A, 120-600V.

See selection table.

PANEL BOARD SWITCH SELECTION TABLE

Rating

60A, 250V ac/dc

2 Hp, 125-250V ac/dc

Q

30A, 250V ac/dc

30A, 125V “T”

2 Hp, 120-240V ac

30A, 250V ac/dc

30A, 125V “T”

2 Hp, 120-250V ac

30A, 250V ac/dc

20A, 600V ac

2 Hp, 120-600V ac

30A, 250V ac/dc

20A, 600V ac

2 Hp, 120-600V ac 3 Phase

60A, 250V dc/575V ac

5 Hp, 230-575V ac 1 Phase

2 Hp, 125V dc

5 Hp, 250V dc

20A, 120-240V ac

2 Hp, 240V ac

30A, 250V ac/dc

2 Hp, 120V-240V ac

1 Hp, 480V ac

30A, 250V ac/dc

2 Hp, 120-240V ac

Poles

and

Throw

2 P S.T.

.

1P Double Break

(BOLD FACE TYPE INDICATES ITEMS NORMALLY IN DISTRIBUTOR STOCK)

Mounting

Terminals

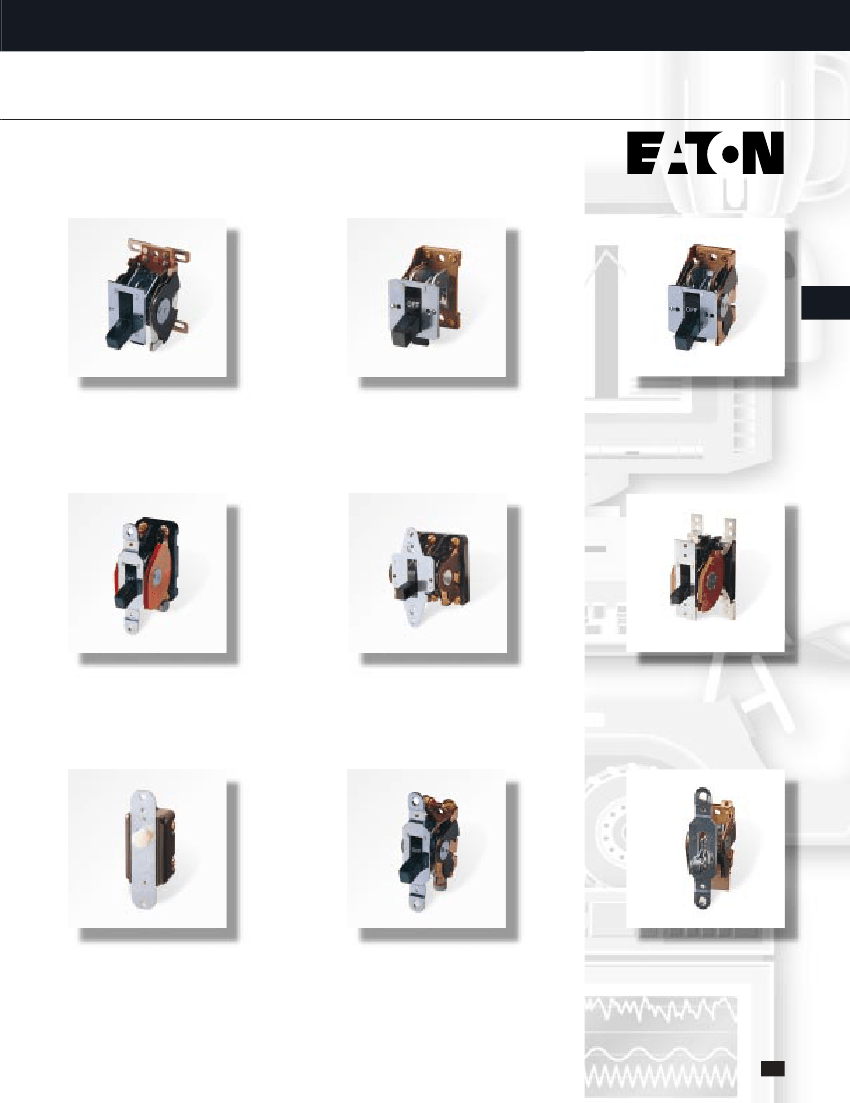

CATALOG NUMBERS

8980K1

W

Frame Plate

Center Bus

8980K2

1P Quad Break

Frame Plate

Center Bus

8980K3

2 P S.T.

.

Panel Type Strap

Screw

8980K5

3 P S.T.

.

Panel Type

Screw

8980K6

2 P.S.T.

Panel Type

Strap

Panel Type Strap

Bus

8980K7

2 P S.T. (N.O.)

.

2 P S.T.

.

2 P S.T.

.

Screw

8980K13

WR

8980K14

E

8980K16

Q

For appliance use only; 32A, 480V ac; 25A 600V ac.

W

CSA Certiﬁed.

E

Binding screws assembled. For binding screws provided unassembled, order

8980K30.

R

Suitable for side or back wiring.

2.16
