384673: DescriptionBoard Euro Connector, 160 Contact(s), 5 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

384673 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	384673	-	-	View	Buy Now

384673 Overview

Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Receptacle,

384673 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.637 inch
subject depth	0.456 inch
body length	3.74 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.6672 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D,E
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.236 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	160
Base Number Matches	1

Preview

Download Datasheet

View All

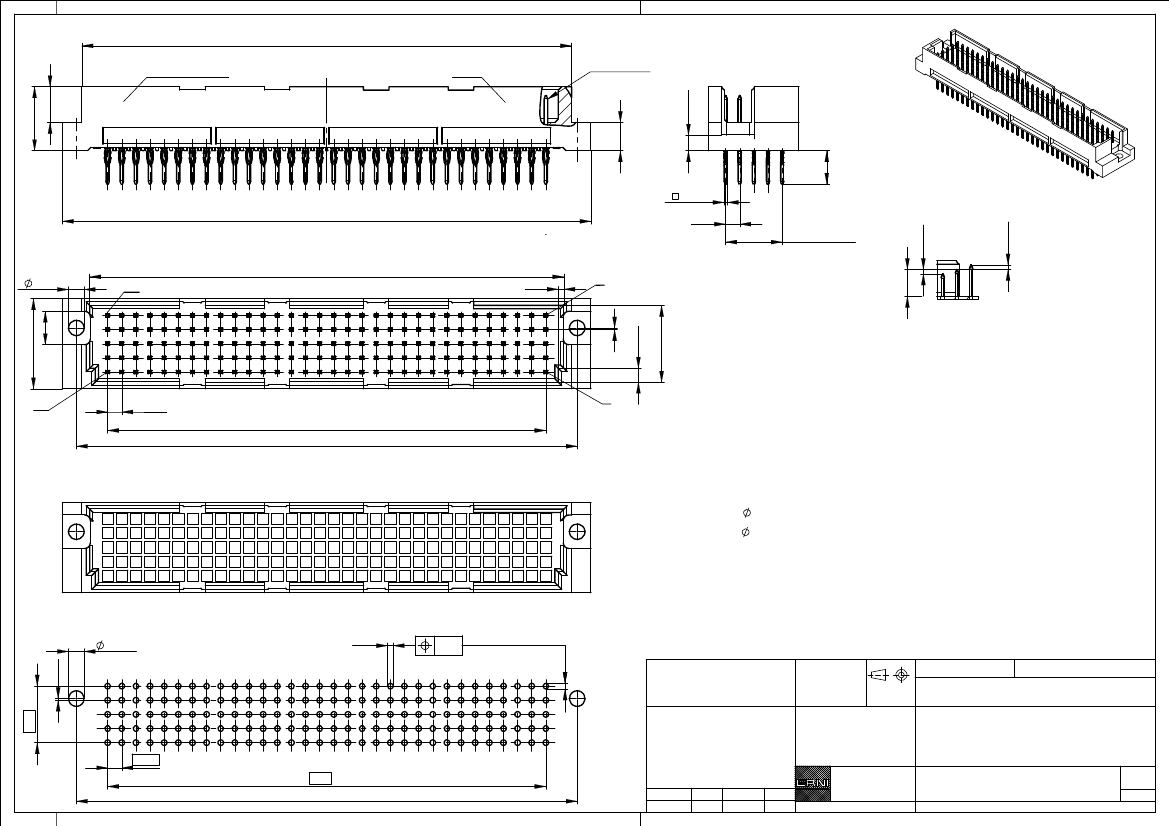

88

-0,2

Anforderungsstufe

class

Datum

Stecklänge

date

ERNI

mating length

2,9

-0,3

5,2

0,1

6,4

-0,1

max.11,6

0,6

max.95

2,54

4 x 2,54 = 10,16

85,2

a32

+0,2

6

±0,2

0,8

±0,1

L S E

4,8

2,8

+0,1

1

a1

+0,2

max.16,2

6

2,5

-0,2

13,8

+0,1

E =

early mate, late break

/ voreilend

S = standard

L =

late mate, early break

/ nacheilend

0,3

e32

2,54

31 x 2,54 = 78,74

90

±0,1

e1

Elastische Einpresszone /

compliant pressfit zone

Isolierwerkstoff /

housing material : PBT GF 30

Bauart 4 / t

ype 4

Anforderungsstufe 1 = 500 Steckzyklen /

performance class 1 = 500 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Bestückungsplan /

contact layout

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

S

a

b

c

d

e

Schichtaufbau im metalisierten Loch siehe Zeichnung 164062 / Nr. 6

diameter of drilled hole see drawing 164062 / No. 6

1)

1,0

+0,09

-0,06

Durchmesser des metallisierten Loches

1,0

-0,06

Diameter of finished plated-through hole

Bedruckung siehe Zeichnung 294905

+0,09

Marking see drawing 294905

Leiterplatten-Lochbild /

PCB drillhole pattern

2,8

0,3

+0,1

1)

0,05

Alle Löcher

all holes

a

b

c

d

e

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

4 x 2,54 = 10,16

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

2,54

31 x 2,54 = 78,74

90

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

-

Index

16.11.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Messerleiste TE 160 EE

Male Connector TE 160 Pressfit

www.ERNI.com

Class

384673

STVTE

0,8

±0,1

RC 1

XXXXXXX

a b c d e

Stecklänge /

mating length

A3
