5962-9054302MXX datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 5962-9054302MXX

5962-9054302MXX: DescriptionDMA Controller, 4 Channel(s), 5MHz, CMOS, CQCC44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size748KB，23 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962-9054302MXX Overview

DMA Controller, 4 Channel(s), 5MHz, CMOS, CQCC44

5962-9054302MXX Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Address bus width	16
Bus compatibility	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800
maximum clock frequency	5 MHz
External data bus width	8
JESD-30 code	S-CQCC-N44
Number of DMA channels	4
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER
Base Number Matches	1

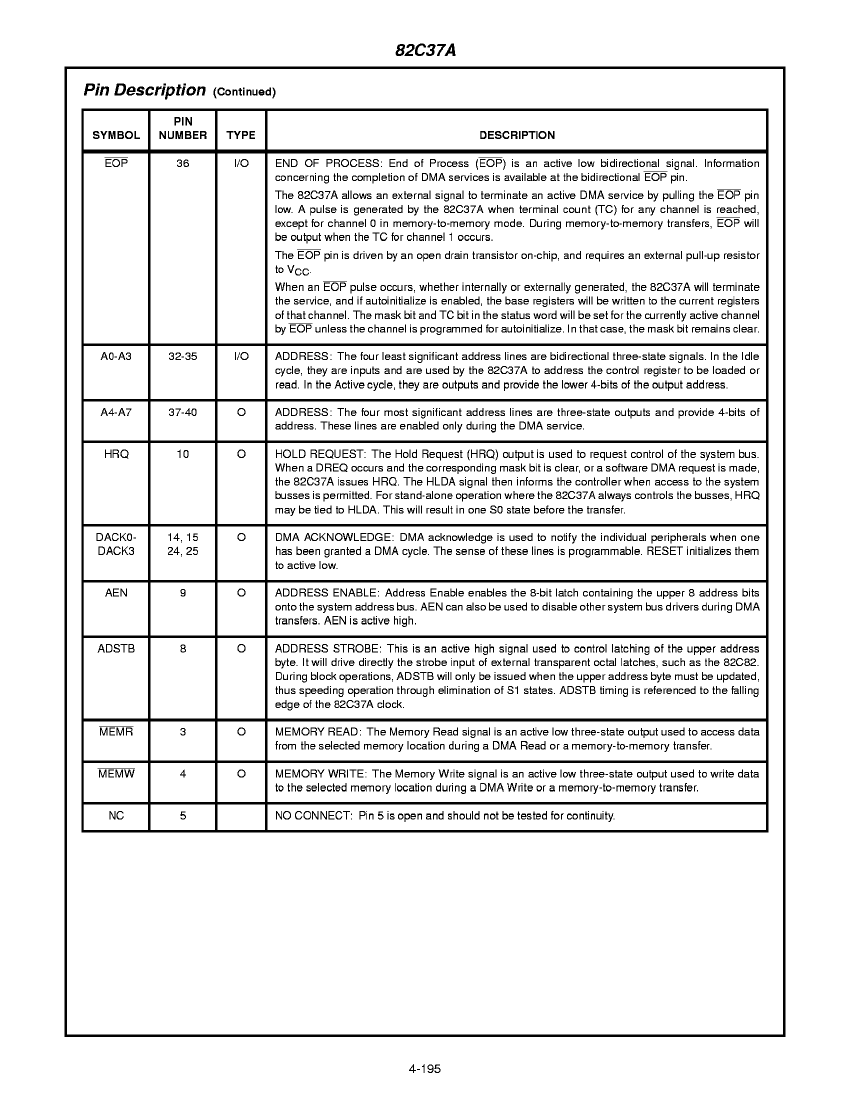

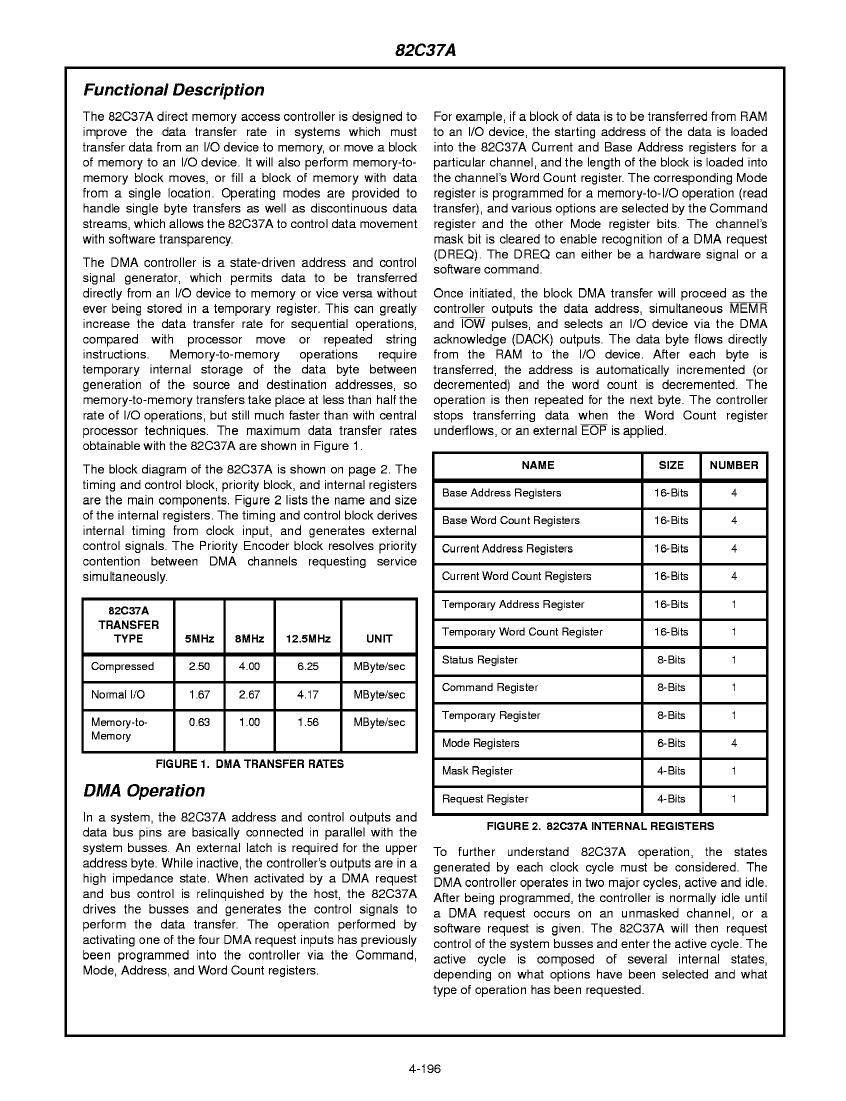

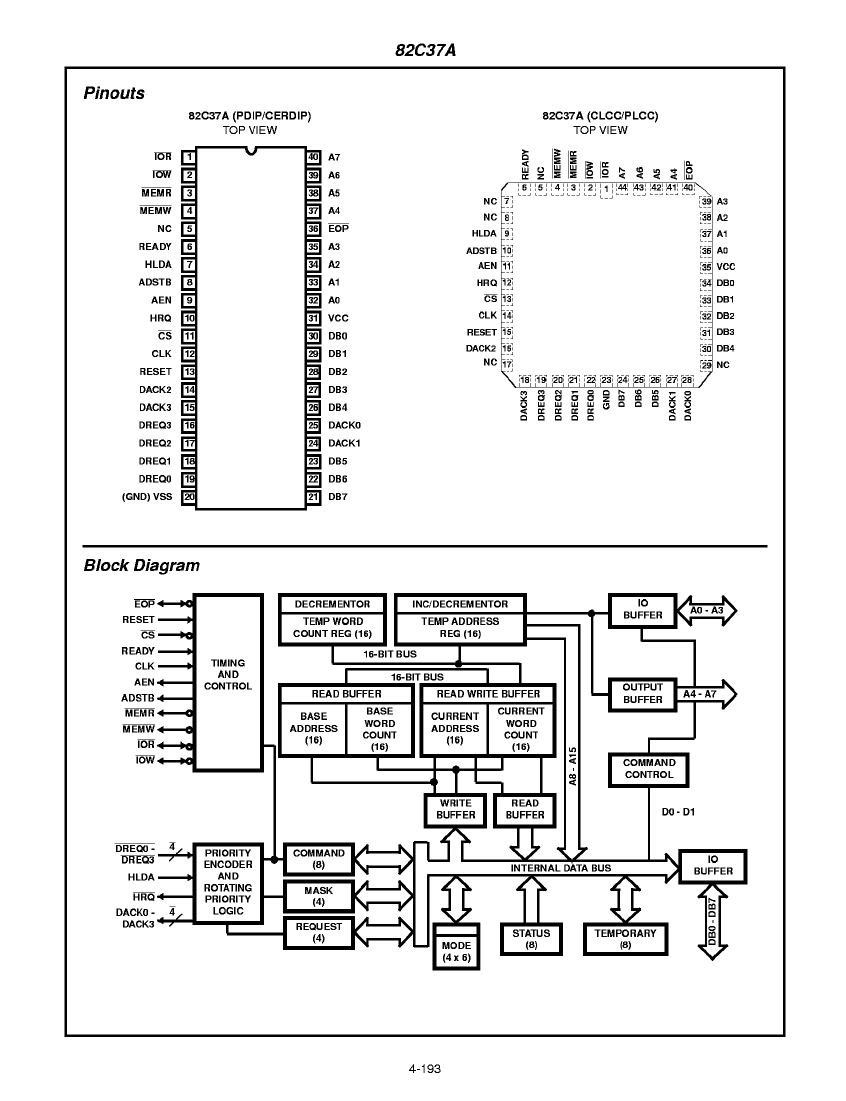

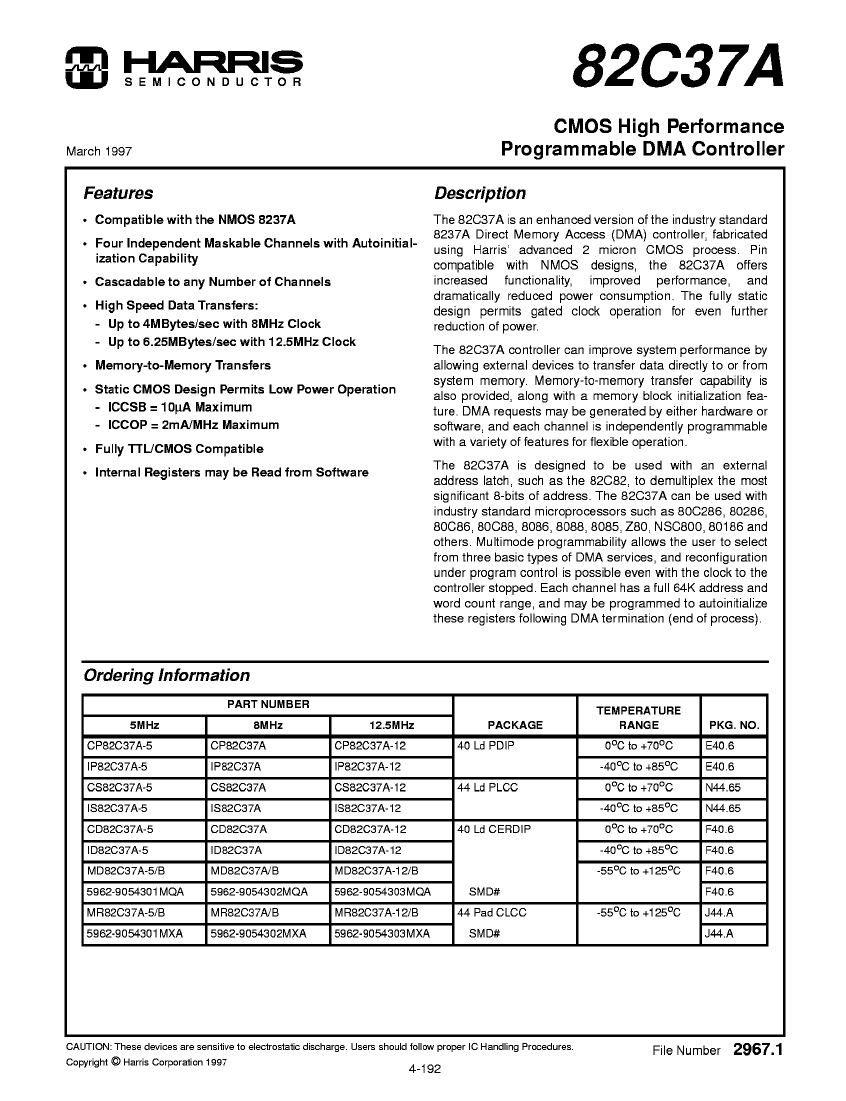

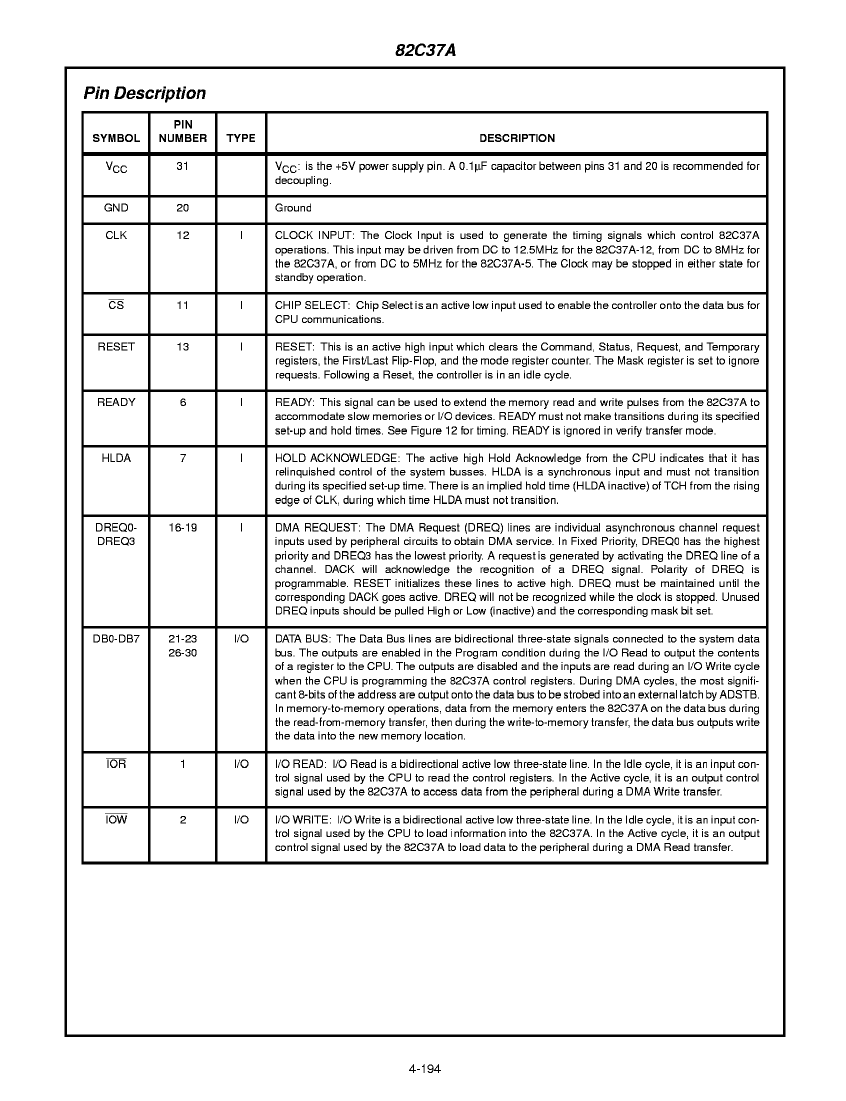

Preview

Download Datasheet

View All

5962-9054302MXX Related Products

	5962-9054302MXX	5962-9054303MQX	5962-9054302MQX	5962-9054303MXX	5962-9054301MXX	5962-9054301MQX
Description	DMA Controller, 4 Channel(s), 5MHz, CMOS, CQCC44	DMA Controller, 4 Channel(s), 12.5MHz, CMOS, CDIP40	DMA Controller, 4 Channel(s), 5MHz, CMOS, CDIP40	DMA Controller, 4 Channel(s), 12.5MHz, CMOS, CQCC44, CERAMIC, LCC-44	DMA Controller, 4 Channel(s), 5MHz, CMOS, CQCC44, CERAMIC, LCC-44	DMA Controller, 4 Channel(s), 8MHz, CMOS, CDIP40
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Address bus width	16	16	16	8	8	16
Bus compatibility	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800	80C286; 80286; 80186; 80C86; 8086; 80C88; 8088; 8085; Z80; NSC800
maximum clock frequency	5 MHz	12.5 MHz	5 MHz	12.5 MHz	5 MHz	8 MHz
External data bus width	8	8	8	8	8	8
JESD-30 code	S-CQCC-N44	R-GDIP-T40	R-GDIP-T40	S-CQCC-N44	S-CQCC-N44	R-GDIP-T40
Number of DMA channels	4	4	4	4	4	4
Number of terminals	44	40	40	44	44	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE
Terminal location	QUAD	DUAL	DUAL	QUAD	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER	DMA CONTROLLER
Base Number Matches	1	1	1	1	1	1
