16Z5948 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 16Z5948

16Z5948: DescriptionTelecom Transformer; CategoryPower management transformer; File Size37KB，1 Pages; ManufacturerVitec Electronics Corporation

Download Datasheet Parametric Compare View All

16Z5948 Overview

Telecom Transformer

16Z5948 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DATA COUPLING
high	6.4 mm
length	12.7 mm
Manufacturer's serial number	16Z
Installation features	THROUGH HOLE MOUNTED
physical size	12.7mm X 8.9mm X 6.4mm
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	8.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

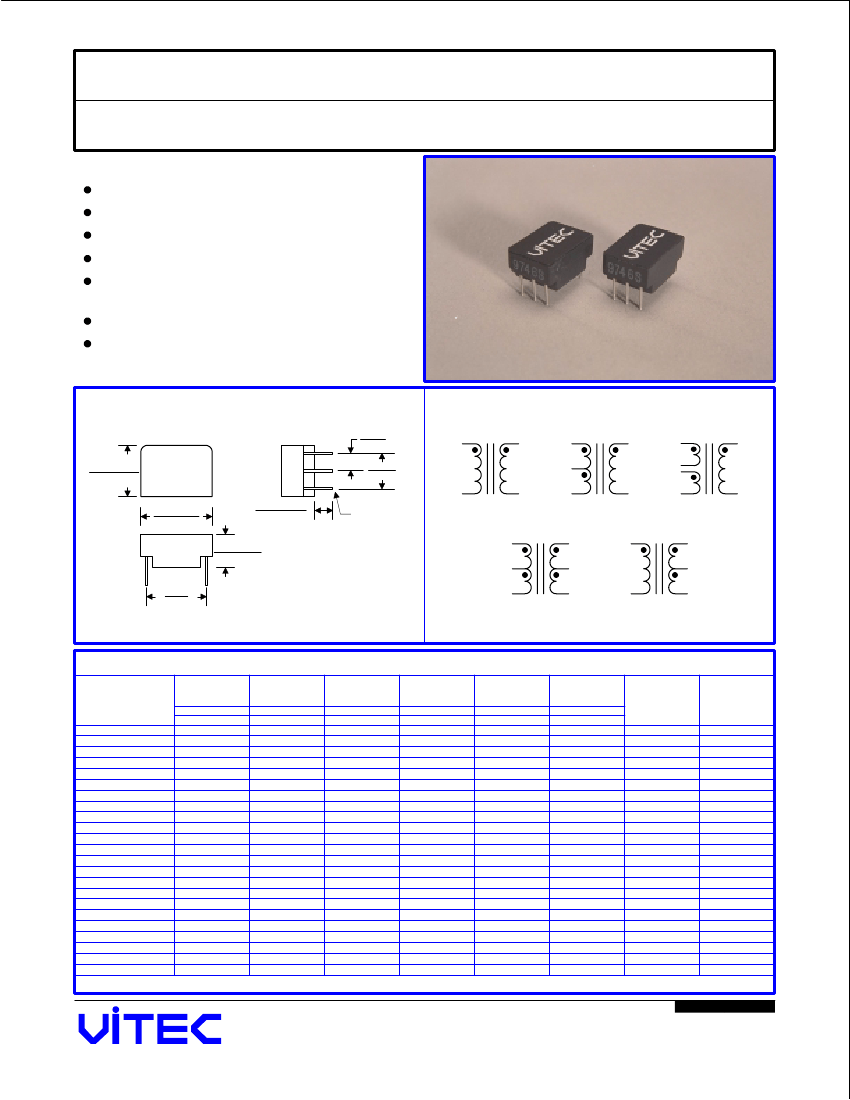

TYPE 16Z - SINGLE THROUGH-HOLE TRANSFORMERS

T1/E1 Standard Temperature Range

FEATURES

Designed for T1/E1 telecom applications.

Product matched to leading transceiver ICs.

Designed to meet FCC and CCITT G.703.

Meet UL 1459 and UL 1950.

TUV Bauart Certificate # B95 04 18725 002 for

EN60950:1993 +A1 +A2:1993, EN41003:1990.

Dielectric test voltage: 1500 Vrms minimum.

Extended temperature range and dual transformer

package available.

PACKAGE

0.100

2.54

0.350 MAX

8.90 MAX

SCHEMATICS

0.100 - 0.130

2.50 - 3.30

# 24 Leads

VITEC

16Z59XX

0.500 MAX

12.70 MAX

0.200

5.10

xxxx

0.250 MAX

6.40 MAX

0.400

10.20

Dimensions Inches/mm +/- 0.01" Unless noted

ELECTRICAL CHARACTERISTICS @ 25

Part

Number

16Z5924

16Z5925

16Z5931

16Z5932

16Z5933

16Z5934

16Z5935

16Z5936

16Z5937

16Z5940

16Z5941

16Z5942

16Z5943

16Z5944

16Z5945

16Z5946

16Z5948

16Z5949

16Z5950

16Z5952

16Z5953

16Z5955

16Z5961

Turns

Ratio

+/- 5%

MIN

Pri/Sec L

MAX

Pri/Sec C

MAX

Pri DCR

Ohms

MAX

Sec DCR

Ohms

MAX

Schematic

Primary

Pins

1-5

1-2

1-5

1-2

1-5

5-6

1-4

2-6

1-5

2-6

1-5

2-6

5-6

1-5

1CT:1

1:1.36CT

1:1:1(2CT)

1CT:1CT

1CT:3CT

1:1

1:1.36CT

1CT:1

1:1.36

1.26SCT:1

1SCT:1

1SCT:1.31

1:1.58:2

2CT:1CT

2.53CT:1

1:2CT

1:4CT

1:1.14CT

1CT:2CT

1:1.15CT

1:1:1.26

1:0.63:0.63

1CT:2.3CT

0.70

1.20

0.30

0.80

1.20

2.00

1.20

0.50

1.20

1.50

1.20

0.70

0.50

0.80

0.50

0.80

0.60

0.40

0.60

1.50

0.50

1.00

0.80

0.55

0.60

0.40

1.10

0.80

0.20

0.50

0.70

0.80

0.70

0.80

0.60

0.70

1.00

0.70

0.50

0.70

0.80

0.40

0.70

0.80

1.60

0.70

0.90

0.70

0.60

1.20

0.70

0.50

1.10

1.50

0.80

1.10

0.90

0.50

1.20

T-602.4

05/01

Vitec Electronics Corporation

www.VitecCorp.com

16Z5948 Related Products

	16Z5948	16Z5931	16Z5932	16Z5936	16Z5924	16Z5953	16Z5946
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DATA COUPLING	DATA COUPLING	DATA COUPLING	DATA COUPLING	DATA COUPLING	DATA COUPLING	DATA COUPLING
high	6.4 mm	6.4 mm	6.4 mm	6.4 mm	6.4 mm	6.4 mm	6.4 mm
length	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Manufacturer's serial number	16Z	16Z	16Z	16Z	16Z	16Z	16Z
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
physical size	12.7mm X 8.9mm X 6.4mm	12.7mm X 8.9mm X 6.4mm	12.7mm X 8.9mm X 6.4mm	12.7mm X 8.9mm X 6.4mm	12.7mm X 8.9mm X 6.4mm	12.7mm X 8.9mm X 6.4mm	12.7mm X 8.9mm X 6.4mm
surface mount	NO	NO	NO	NO	NO	NO	NO
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	8.9 mm	8.9 mm	8.9 mm	8.9 mm	8.9 mm	8.9 mm	8.9 mm
Base Number Matches	1	1	1	1	1	1	1
