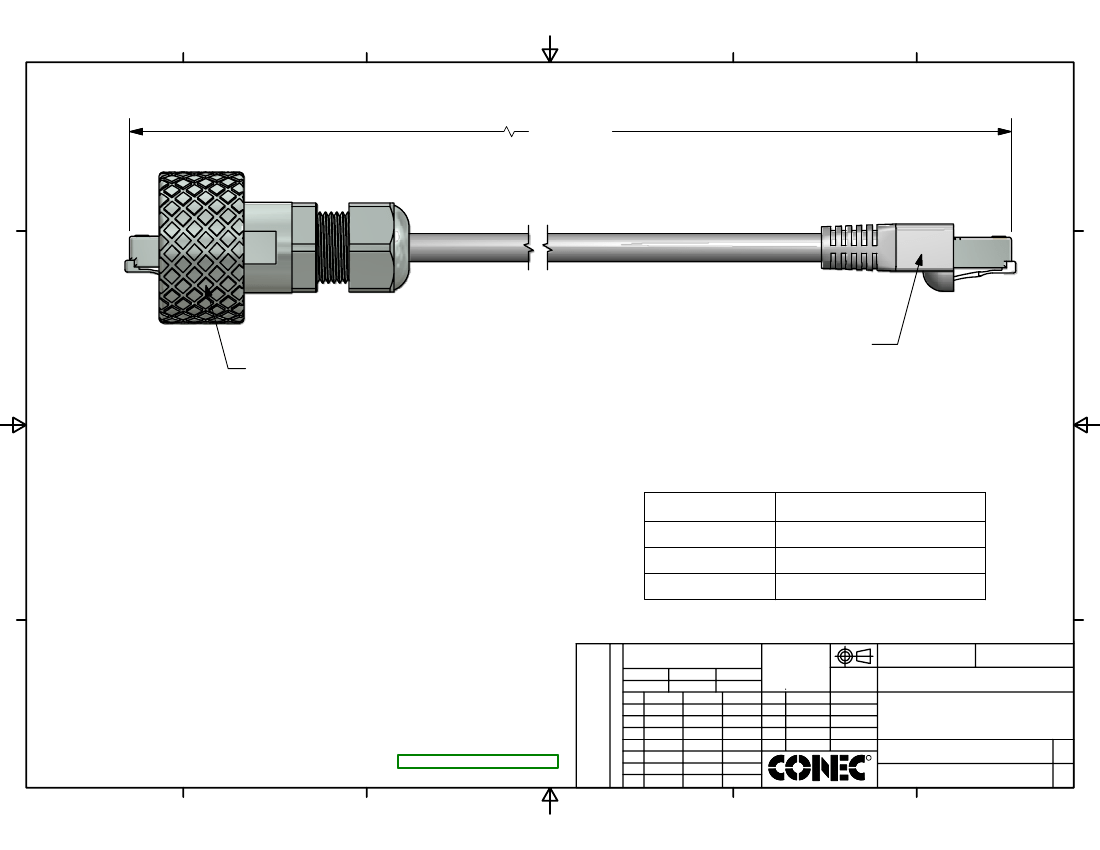

Cat. 6A RJ45 Plug
Industrial IP67
Metal version
M28 Thread Screw Type
Cat. 6A RJ45 Plug
(Standard)
C
Notes:
B
1. Electrical:
- Meets EIA/TIA-568-B.2-10 Cat. 6A Channel Specification
- Connector Operating Temperature: -40
~
C to +85
~
C
2. Materials and Finish:
- Metal Coupling Ring: Brass, Nickel Plated
- Plug Housing: Metallized ABS, UL94 V-0, Nickel Plated
- Interfacial Seal: Silicon, Color: White
- Cable Gland: Brass, Nickel Plated
- Cable Gland Seal: NBR, Color: Black
- Cat.6A RJ45 Plug Metal Shell: Copper Alloy, Nickel Plated
- Cat.6A RJ45 Plug Plastic Housing: Clear Polycarbonate UL94 V-2
- Cat.6A RJ45 Plug Contacts: Phosphor Bronze, Finish: 50 u" Gold min. over Nickel
- Cable: Cat.6A SSTP, 4 Pairs, AWG26, Stranded, Jacket Color: Black
- RJ45 Modular Boot: PVC, Color: Black
Directive 2002/95/EC RoHS Compliant
Cable Length
L
Part Number
17-150764
17-150774
17-150784
B
2m
4m
5m
Note: Special cable length are available please contact factory
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED
IN ANY WAY, AND MAY NOT BE PASSED ON TO A THIRD
PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC CORPORATION
DOT NOT ALTER CAD DRAWING BY HAND
Customer:
Name
Title
Approval Date
Unless otherwise specified
0 PLC
1 PLC
2 PLC
3 PLC
ANGES
±0.50
±0.38
±0.25
±0.10
±3°
Tolerance
Scale: NTS
Autodesk
Inventor
Name
Vincent Ke
J. Chaudry
Dim. in meter
Material: See Notes
2011
Draw.
Appd.
Norm
D-old
Date
Sept. 28
Sept. 28
A
Cat. 6A RJ45 Ethernet Patch Cords
A
IP67 Industrial to Standard
M28 Thread Metal Version
R
Drawing No.: 17K1A279
Part No.: SEE PART NUMBER TABLE
DIN
A3
Sheet
a
Rev.
original
Changes
Date
Name
1/1
