35FVX-RSM1-GAN-ETF(LF)(SN)(S) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 35FVX-RSM1-GAN-ETF(LF)(SN)(S)

35FVX-RSM1-GAN-ETF(LF)(SN)(S): DescriptionCard Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size118KB，2 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric View All

35FVX-RSM1-GAN-ETF(LF)(SN)(S) Overview

Card Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

35FVX-RSM1-GAN-ETF(LF)(SN)(S) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.2 mm
Termination type	SURFACE MOUNT
Total number of contacts	35
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

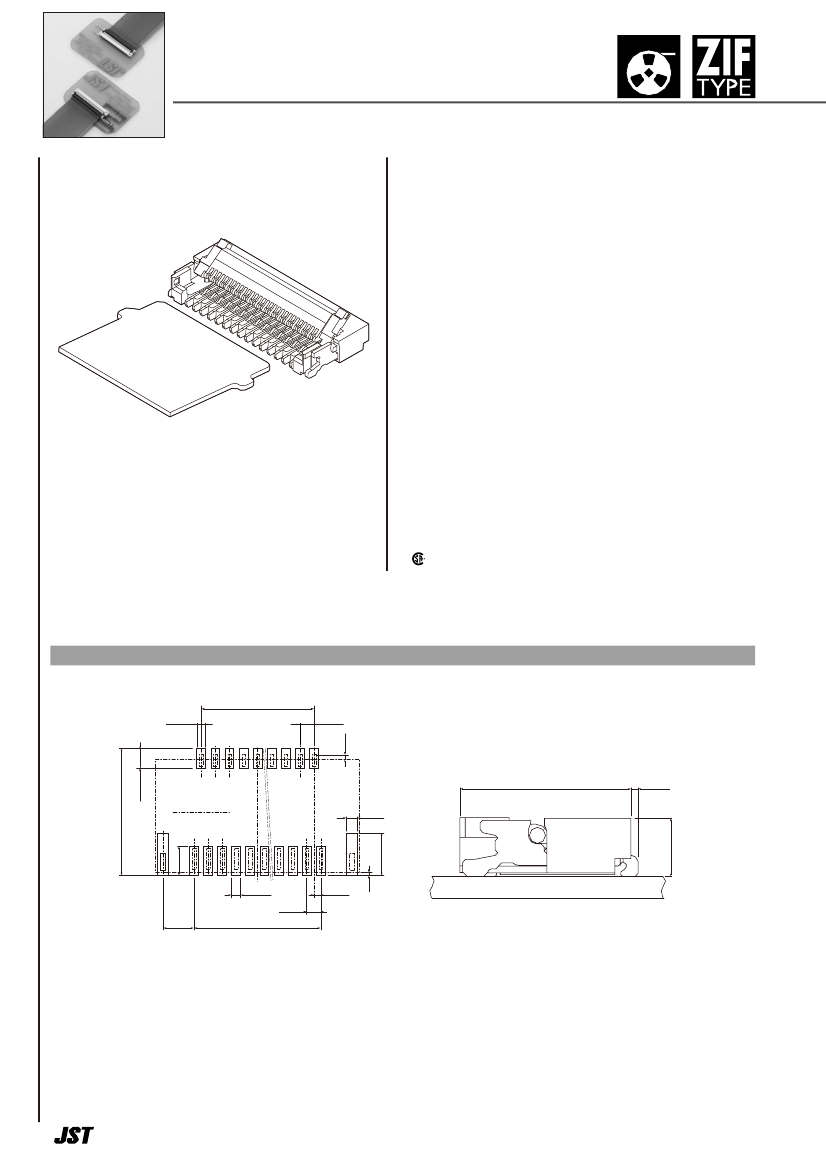

0.2mm pitch/Connectors for FPC

FVX

CONNECTOR

Emboss Tape

Specifications

–––––––––––––––––––

• Current rating: 0.2A AC, DC

• Voltage rating: 50V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/60mΩ max.

After environmental testing/60mΩ max.

(variation from initial value)

• Insulation resistance: 50MΩ min.

• Withstanding voltage: 200V AC/minute

• Applicable FPC: Conductor pitch/0.2mm

<0.4mm pitch staggered>

Conductor width/0.2mm

Mating part thickness/0.2±0.03mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

0.2mm pitch FVX connector for FPC has

been developed for small portable

equipment for which low profile and

miniaturization are required.

By using FPC with protrusions, the

positioning accuracy of FPC is improved.

Standards

––––––––––––––––––––––

Recognized E 60389

Certified LR 20812

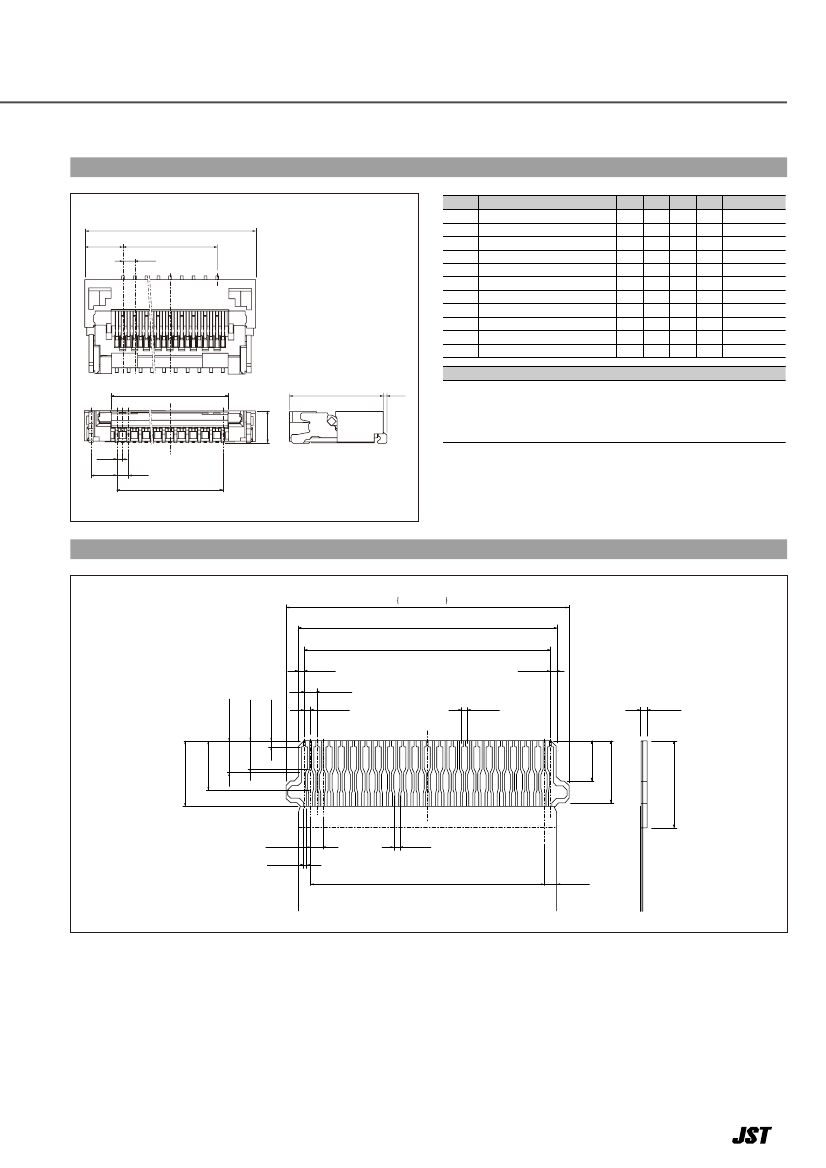

PC board layout (viewed from component side) and Assembly layout

0.03

0.25

0.03

0.4

0.03

0.13

0.55

0.03

2 4 6

Line b

Line a

1 3 5

0.83

0.03

0.3

0.03

3.17

0.13

3.57

0.05

1.2

0.03

0.25

0.03

0.4

0.03

0.88

0.03

0.2

0.03

Note: 1. Tolerances are non-cumulative:

0.03mm for all centers.

2. The dimensions above should serve as a guideline. Contact JST for details.

0.1
