8-1414964-8: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.067A (COIL), 12VDC (COIL), 800mW (COIL), 20A (CONTACT), 12VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size353KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8-1414964-8 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.067A (COIL), 12VDC (COIL), 800mW (COIL), 20A (CONTACT), 12VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

8-1414964-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10.2 mm
body height	14 mm
Body length or diameter	15.35 mm
Maximum coil current (DC)	0.067 A
Coil operating voltage (DC)	6.9 V
Coil power	800 mW
Coil release voltage (DC)	1 V
Coil resistance	180 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	20A@12VAC
Maximum contact current (AC)	20 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@12VDC
Maximum contact voltage (AC)	12 V
Maximum contact voltage (DC)	12 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	3 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
method of packing	BULK
physical size	15.35mm x 10.2mm x 14mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

PCB Relays

Twin Relays

Double Nano Relay (THT – THR)

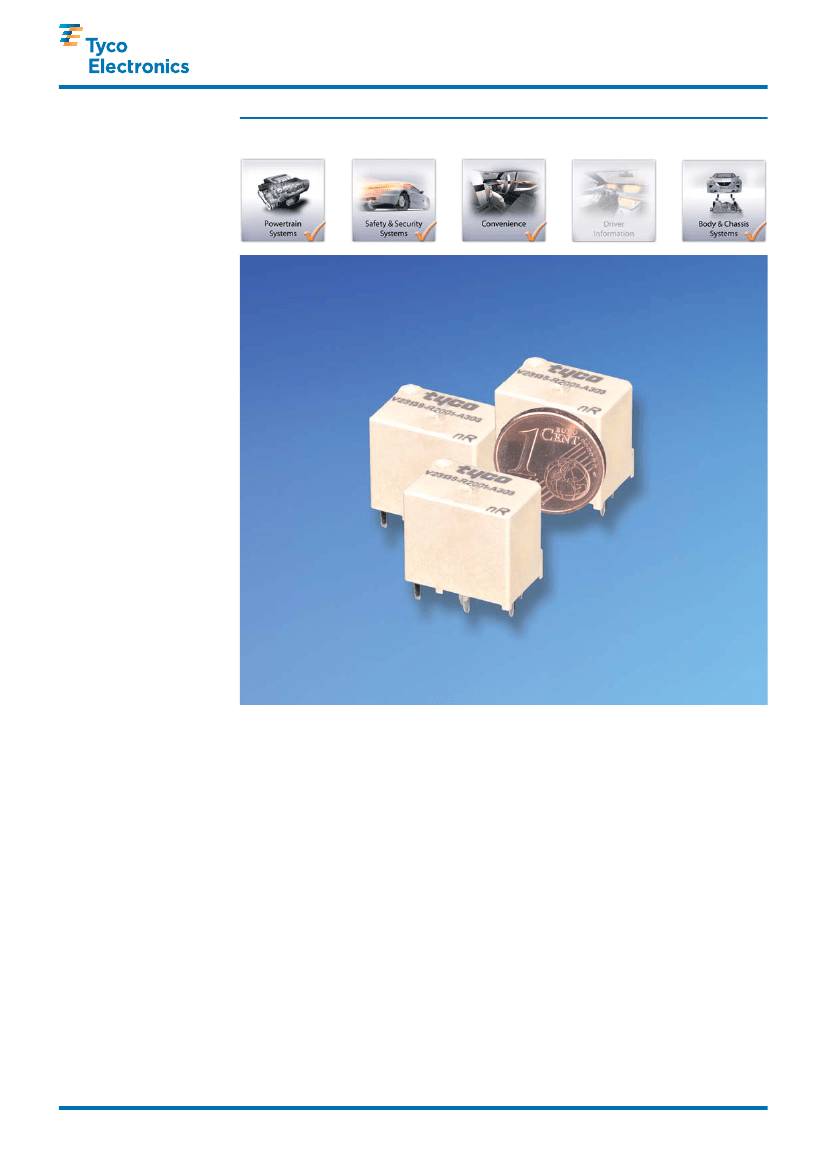

Catalog 1308028-2

Revised 8-2009

Features

– Smallest automotive PCB

relay in its class:

• Minimum PCB area

required: 157mm

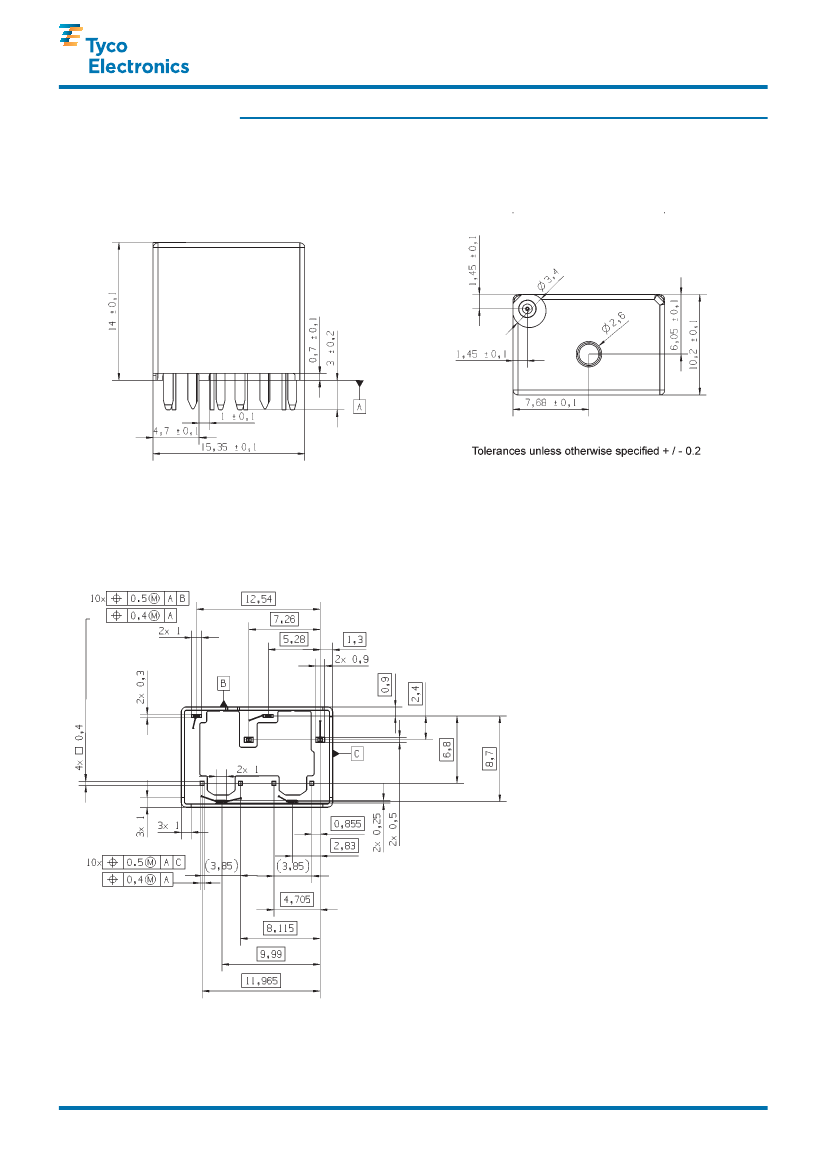

• Dimensions:

L x H x W (mm)

15.4 x 14.0 x 10.2

• Minimal height:

14.0 mm

• Minimal weight

– First automotive relay

using overmolding

technology

– Highest reliability due

to overmolding process

– Limiting continuous

current 30 A

– Very easy routing of

PCB-layout

– Power-saving high-

impedance coil

– Low noise operation

– Wave (THT) and reflow

(THR/pin-in-paste)

solderable versions

– For single version refer

to Single Nano Relay

Typical Applications

–

Car alarm

Door control

Door lock

Electrical steering

column lock

Heated rear screen

Immobilizer

Seat control

Sun roof

Window lifter

138_3D03

Design

– ELV/RoHS/WEEE compliant

– THT: sealed type washable

– THR: sealed type open vent hole

Terminals

PCB terminals for assembly on

printed circuit boards

Conditions

All parametric, environmental and

endurance tests are performed

according to EIA Standard RS-407-A

at standard test conditions unless

otherwise noted:

23°C ambient temperature,

20 - 50% RH, 998.9 ±33.9 hPa.

For general storage and processing

recommendations please refer to our

Application Notes and especially to

Storage

in the “Glossary” page 23 or

at http://relays.tycoelectronics.com/

appnotes/

Weight

Approx. 6.5 g (0.23 oz.)

Please contact Tyco Electronics

for relay application support.

Nominal Voltage

12 V

Disclaimer

All technical performance data apply to the relay as such, specific conditions of the individual application are not considered. Please always check the suitability of the

relay for your intended purpose. We do not assume any responsibility or liability for not complying herewith. We recommend to complete our questionnaire and to request

our technical service. Any responsibility for the application of the product remains with the customer only. All specifications are subject to change without notification.

All rights of Tyco Electronics are reserved.

162

All specifications subject to change. Consult Tyco Electronics for latest specifications.
