5962R9574201VXC: DescriptionHCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDFP16, CERAMIC, DFP-16; Categorylogic logic; File Size231KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9574201VXC Overview

HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDFP16, CERAMIC, DFP-16

5962R9574201VXC Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Counting direction	UP
series	HCT
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	20000000 Hz
MaximumI(ol)	0.004 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	6.73 mm
minfmax	30 MHz
Base Number Matches	1

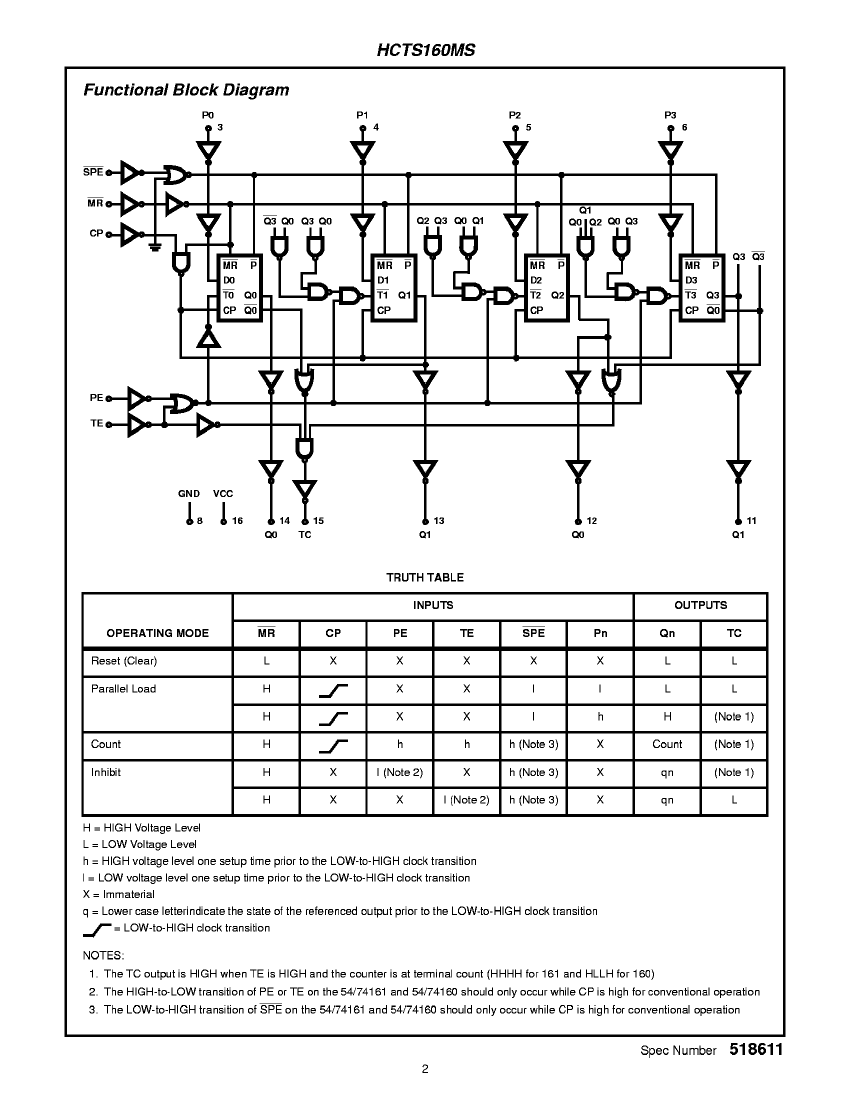

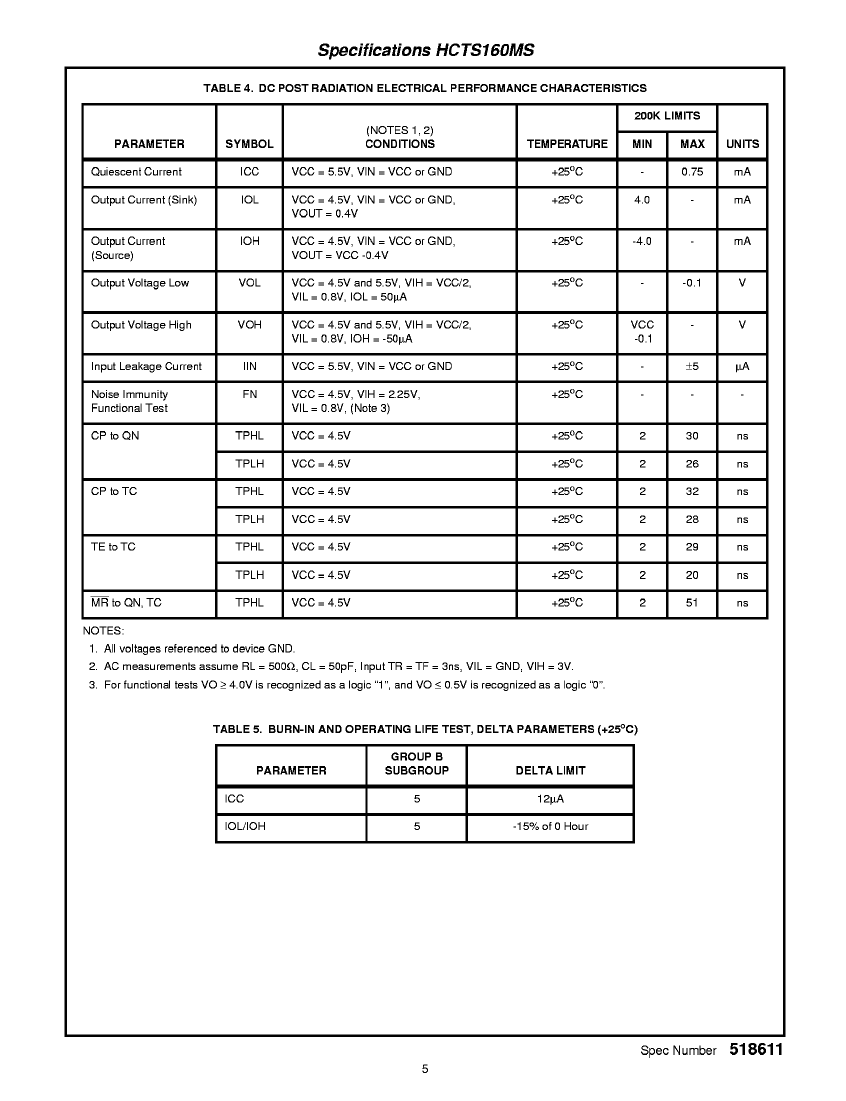

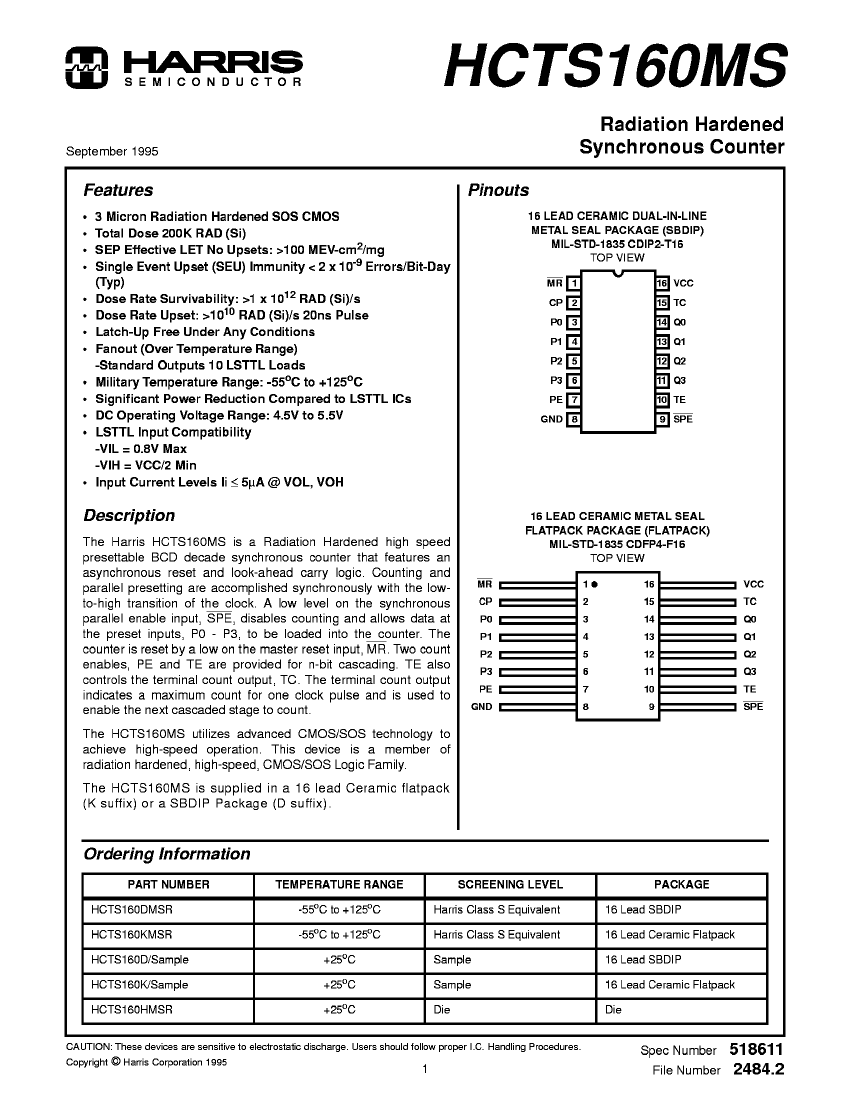

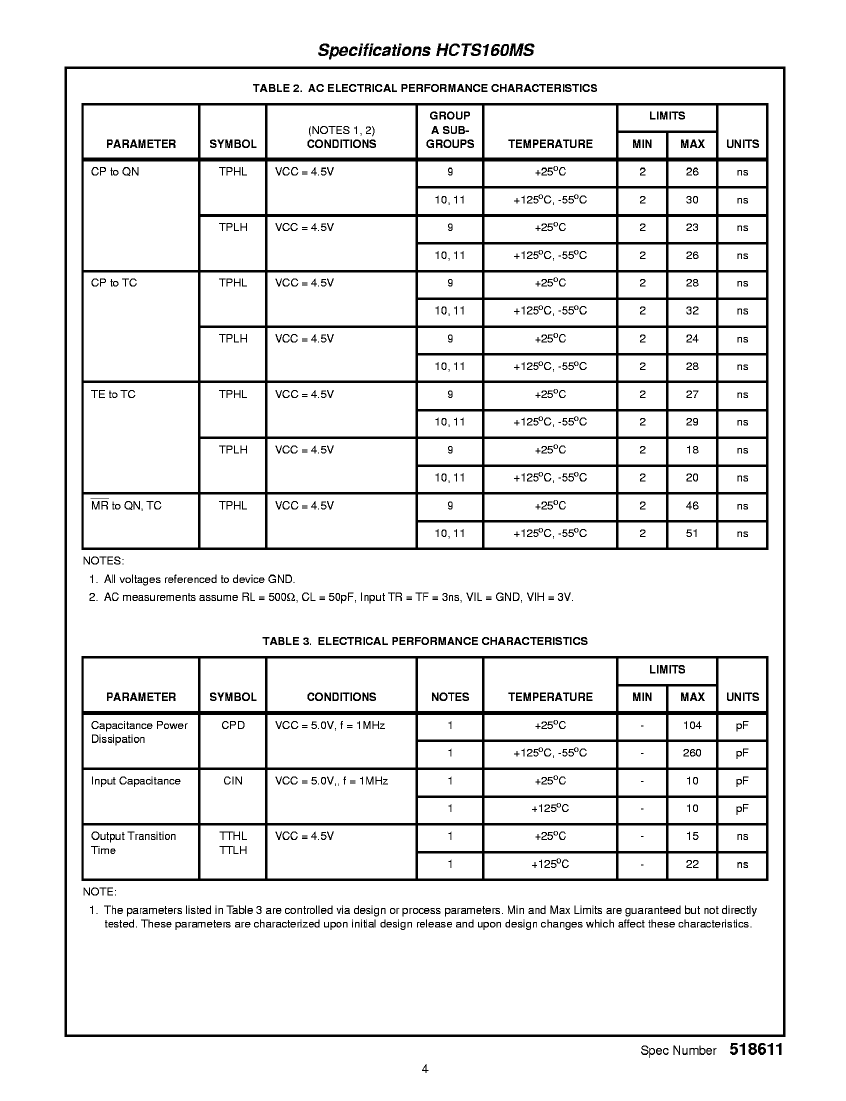

Preview

Download Datasheet

View All

5962R9574201VXC Related Products

	5962R9574201VXC	5962R954201V9A	5962R9574201VEC
Description	HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDFP16, CERAMIC, DFP-16	HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, UUC16	HCT SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP DECADE COUNTER, CDIP16
Parts packaging code	DFP	DIE	DIP
package instruction	DFP, FL16,.3	DIE,	DIP, DIP16,.3
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Counting direction	UP	UP	UP
series	HCT	HCT	HCT
JESD-30 code	R-CDFP-F16	R-XUUC-N16	R-CDIP-T16
JESD-609 code	e4	e0	e4
Load/preset input	YES	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIE	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	UNCASED CHIP	IN-LINE
propagation delay (tpd)	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	TIN LEAD	GOLD
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	UPPER	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1
Load capacitance (CL)	50 pF	-	50 pF
Maximum Frequency@Nom-Sup	20000000 Hz	-	20000000 Hz
MaximumI(ol)	0.004 A	-	0.004 A
Encapsulate equivalent code	FL16,.3	-	DIP16,.3
power supply	5 V	-	5 V
Filter level	MIL-PRF-38535 Class V	-	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm	-	5.08 mm
Terminal pitch	1.27 mm	-	2.54 mm
width	6.73 mm	-	7.62 mm
minfmax	30 MHz	-	30 MHz
