2065-E00-5CW02N datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2065-E00-5CW02N

2065-E00-5CW02N: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal; CategoryThe connector The connector; File Size493KB，2 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

2065-E00-5CW02N Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal

2065-E00-5CW02N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER COPPER
Contact completed and terminated	GOLD OVER COPPER
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	2065
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

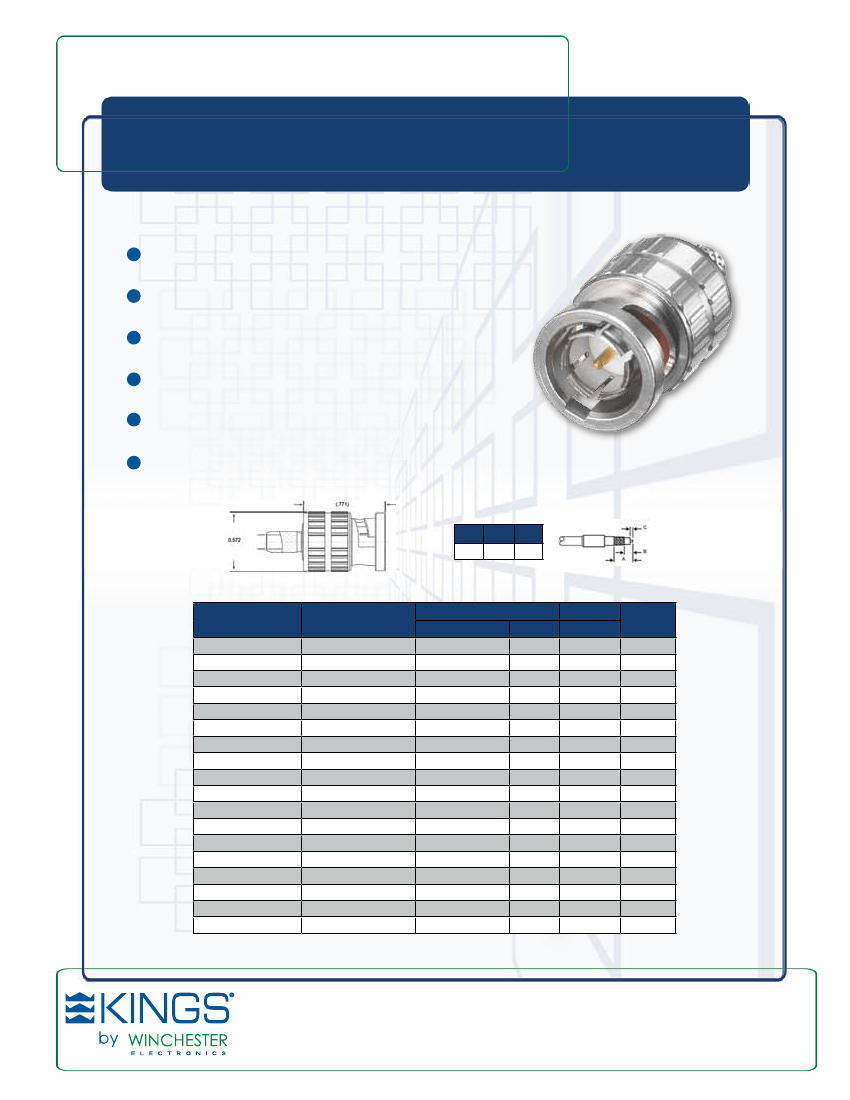

Winchester Electronics Presents...

2065 Series Long Barrel BNC

Product Benefits:

Ergonomic design - longer grip

Designed for analog & digital cables

Full crimp design

Field installable

Meets or exceeds HDTV standards

White markings to visually confirm correct mating

.748

.394

.138

KINGS

Part No.

With White Marking

2065-E00-28C01N

2065-E00-3C201N

2065-E00-3CF01N

2065-E00-3CH01N

2065-E00-3CW01N

2065-E00-4CF01N

2065-E00-4CH01N

2065-E00-5C201N

2065-E00-5CF01N

2065-E00-5CH01N

2065-E00-5CW01N

2065-E00-6CH01N

2065-E00-7CF01N

2065-E00-7CH01N

2065-E00-8CH01N

2065-E00-C7103N

2065-E00-C7203N

2065-E00-C9005N

KINGS

Part No.

Without White Marking

2065-E00-28C02N

2065-E00-3C202N

2065-E00-3CF02N

2065-E00-3CH02N

2065-E00-3CW02N

2065-E00-4CF02N

2065-E00-4CH02N

2065-E00-5C202N

2065-E00-5CF03N

2065-E00-5CH02N

2065-E00-5CW02N

2065-E00-6CH02N

2065-E00-7CF02N

2065-E00-7CH02N

2065-E00-8CH02N

2065-E00-C7102N

2065-E00-C7202N

2065-E00-C9004N

CABLE

Tachii

TCX-2.8CHD

TCX-3C2V/TCX-3C2VS

TCX-3CFB

TCX-3CHD

TCX-3CFWS

TCX-4CFB

TCX-4CHD

TCX-5C2V/TCX-5C2VS

TCX-5CFBL

TCX-5CHD

TCX-5CFWS

TCX-6CHD

TCX-7CFBL

TCX-7CHD

TCX-8CHD

1505A

1855A

1694A

7731A

CABLING

Belden

Crimp Die

KTH-5009

KTH-5005

KTH-5006

KTH-5003

KTH-5009

KTH-5005

KTH-5006

KTH-5008

KTH-5007

KTH-2298

KTH-5003

KTH-2325

Bulk Packs

Available?

Yes

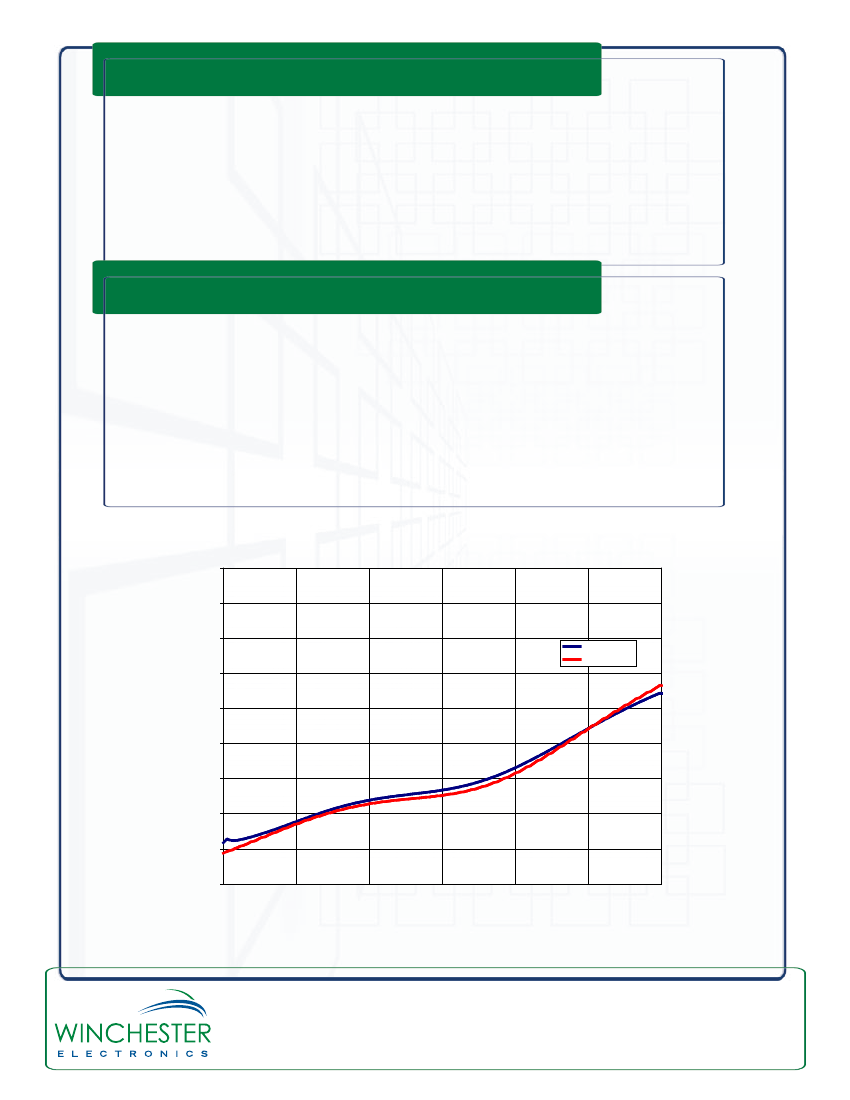

November 2010

www.winchesterelectronics.com
