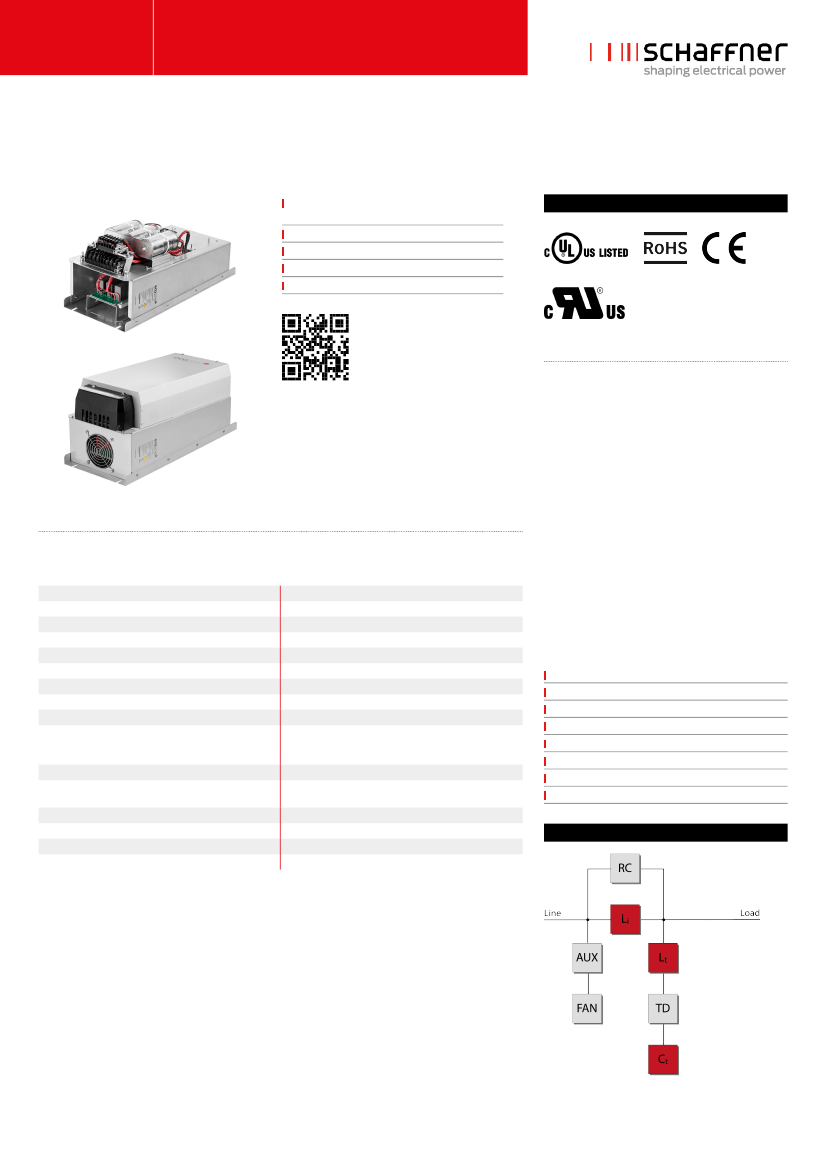

economical solution to the challenge of load-applied
harmonics mitigation in three-phase power systems.
With a plug-and-play approach and more compact
dimensions than comparable products, they can be
quickly installed and easily commissioned. They
increase the reliability and service life of electric
installations, help utilize electric sytem capacity
better, and are the key to meet Power Quality
standards such as IEEE 519. Ecosine filters reshape
your distorted current back to the desired sinusoidal
waveform. Schaffner ecosine filters can be applied to
virtually any kind of power electronics with front-end
six-pulse rectifiers, 3-phase diode or thyristor bridges,
where harmonic current distortion needs to be
reduced to defined limits.
Technical specifications
Nominal operating voltage
Operating frequency
Nominal motor drive input power rating
Total harmonic current distortion THID*
Efficiency
High potential test voltage
Protection category
Cooling
Overload capability
Ambient temperature range
3 x 440 VAC to 500 VAC ±10%
50 Hz ±1 Hz
1.1 to 250 kW
≤5% at rated power
>98% for rated voltage and power
P –> E 2160 VAC (1 s)
IP 00, IP 20
Internal fan cooling or external cooling**
1.6x rated current for 1 minute, once per hour
–25°C to +45°C fully operational
–25°C to +85°C transport and storage
+45°C to +70°C derated operation***
UL 94 V-2
Filter: UL 61800-5-1, EN 61800-5-1
Chokes: EN 61558-2-20 or EN 60076-6
>200,000 hours
100 kA
TN, TT, IT
OV III (IEC 60664-1 / UL 61800-5-1)
Typical applications
Equipment with front-end six-pulse rectifier
Motor drives
Factory automation equipment
Water/wastewater treatment facilities
Fan and pump applications
HVAC installations
Mission-critical processes
DC fast chargers
Flammability corresponding to
Design corresponding to
MTBF @ 45°C/415 V (Mil-HB-217F)
SCCR****
Earthing System
Overvoltage category
Typical electrical schematic
****System requirements: THVD <2%, line voltage unbalance <1%
** *
Note: performance specifications in this brochure refer to six-pulse diode rectifiers with 8% DC-link choke.
THID ~5% at rated power for filter <6 kW
** Please check the inlet air flow required for cooling table on page 6 of this document.
*** I
derated
= I
nominal
*√((T
max-
T
amb
)/(T
max-
T
nominal
)) = I
nom
*√(70°C-T
amb
)/25°C
**** External UL-rated fuses required. Please consult the user manual.
(all configurable optional fuctionalities shown)
2
Ecosine passive
Schaffner Group
Datasheets
15 Nov 2018
Filter selection table – IP 00 enclosure
Filter
Rated load power
@ 480 VAC/50 Hz
[kW]
FN 3451-1-110-E0_ _ _ _ _*
FN 3451-2-110-E0_ _ _ _ _*
FN 3451-4-112-E0_ _ _ _ _*
FN 3451-6-112-E0_ _ _ _ _*
FN 3451-8-112-E0_ _ _ _ _*
FN 3451-11-112-E0_ _ _ _ _*
FN 3451-15-113-E0_ _ _ _ _
FN 3451-19-113-E0_ _ _ _ _
FN 3451-22-113-E0_ _ _ _ _
FN 3451-30-115-E0_ _ _ _ _
FN 3451-37-115-E0_ _ _ _ _
FN 3451-45-115-E0_ _ _ _ _
FN 3451-55-115-E0_ _ _ _ _
FN 3451-75-115-E0_ _ _ _ _
FN 3451-90-116-E0_ _ _ _ _
FN 3451-110-116-E0_ _ _ _ _
FN 3451-132-118-E0_ _ _ _ _
FN 3451-160-118-E0_ _ _ _ _**
FN 3451-200-118-E0_ _ _ _ _**
FN 3451-250-118-E0_ _ _ _ _**
1.1
2.2
4
5.5
7.5
11
15
19
22
30
37
45
55
75
90
110
132
160
200
250
Motor drive
input current***
[Arms]
1.4
2.8
5.1
7.1
9.6
14.1
19.3
24.4
28
38.5
47.5
58
71
97
116
142
170
207
259
324
Rated filter
input current
[Arms]
1.3
2.7
4.9
6.7
9.2
13.4
18.3
23
27
36.6
45
55
67
92
110
135
162
197
246
308
Min. required
L
DC
****
[mH]
53.87
26.94
14.82
10.78
7.90
5.39
3.95
3.12
2.69
1.98
1.60
1.32
1.08
0.79
0.66
0.54
0.45
0.37
0.30
0.24
Min. required
L
AC
****
[mH]
16.70
7.85
4.47
3.48
2.55
1.82
1.26
1.02
0.88
0.64
0.527
0.451
0.357
0.265
0.218
0.176
0.149
0.118
0.094
0.073
[kg]
5
7
10
12
15
17
24
27
31
38
43
49
54
70
100
108
130
149
183
221
110
110
112
112
112
112
113
113
113
115
115
115
115
115
116
116
118
118
118
118
A
A
B
B
C
C
D
D
D
E
E
E
F
F
G
G
H
H
H
H
Weight
Terminal
Frame size
*
Filter rating which does not require forced cooling or fan module
** Filter rating which does not require RC damping module for rectifiers with EMI filter
*** Motor drive input current without harmonic filter
**** In order to apply FN 3451 filters, motor drives have to be equipped with either DC-link choke or AC line choke. The minimum required inductance
values are given in mH in the filter selection table. If neither DC-link choke nor AC line choke is present, or if the minimum mH rating is not fulfilled,
FN 3451 filter must not be used. In this case, FN 3450 need to be chosen.
Filter power terminals
Terminal designation*
Screw thread
Flex wire AWG
Flex wire
Screw torque value
Max width**
cable lug
[mm
2
]
110
112
113
115
116
118
M3
M4
M6
M8
M8
M10
14-22
10-22
6-18
1/0-8
3/0-8
3/0-500 kcmil
0.4-2.5
0.4-6
0.75-16
10-50
10-95
95-240
[Nm]
0.5
1.2
3
8
8
10
[lbs·in]
4.4
10.6
26.6
70.8
70.8
88.5
[mm]
7
10
15
15
17
35
A
B, C
D
E, F
G
H
Frame size
* Recommended connector type: wire or cable lug for 110 to 113, only cable lug for 115 to 118
** To fulfill creepage/clearance acc. UL 61800-5-1 without additional protection (insulation). Creepage/clearance can vary depending on applicable standard and must
be reviewed by customer. Creepage/clearance may be reduced when additional protection (insulation) is provided.
Filter signal and earth terminals
Terminal type
Screw thread
Screw torque value
[Nm]
Signal
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
M3*
M5
M6
M6
M8
M8
M10
M10
M10
0.5
4
8
8
14
14
25
25
25
All
A
B
C
D
E
F
G
H
Frame size
* Max width cable lug = 7 mm
3
Ecosine passive
Schaffner Group
Datasheets
15 Nov 2018
Filter selection table – IP 20 enclosure
Filter
Rated load power
@ 480 VAC/50 Hz
[kW]
FN 3451-1-110-E2_ _ _ _ _*
FN 3451-2-110-E2_ _ _ _ _*
FN 3451-4-112-E2_ _ _ _ _*
FN 3451-6-112-E2_ _ _ _ _*
FN 3451-8-112-E2_ _ _ _ _*
FN 3451-11-112-E2_ _ _ _ _*
FN 3451-15-113-E2_ _ _ _ _
FN 3451-19-113-E2_ _ _ _ _
FN 3451-22-113-E2_ _ _ _ _
FN 3451-30-115-E2_ _ _ _ _
FN 3451-37-115-E2_ _ _ _ _
FN 3451-45-115-E2_ _ _ _ _
FN 3451-55-115-E2_ _ _ _ _
FN 3451-75-115-E2_ _ _ _ _
FN 3451-90-116-E2_ _ _ _ _
FN 3451-110-116-E2_ _ _ _ _
FN 3451-132-118-E2_ _ _ _ _
FN 3451-160-118-E2_ _ _ _ _**
FN 3451-200-118-E2_ _ _ _ _**
FN 3451-250-118-E2_ _ _ _ _**
1.1
2.2
4
5.5
7.5
11
15
19
22
30
37
45
55
75
90
110
132
160
200
250
Motor drive
input current***
[Arms]
1.4
2.8
5.1
7.1
9.6
14.1
19.3
24.4
28
38.5
47.5
58
71
97
116
142
170
207
259
324
Rated filter
input current
[Arms]
1.3
2.7
4.9
6.7
9.2
13.4
18.3
23
27
36.6
45
55
67
92
110
135
162
197
246
308
Min. required
L
DC
****
[mH]
53.87
26.94
14.82
10.78
7.90
5.39
3.95
3.12
2.69
1.98
1.60
1.32
1.08
0.79
0.66
0.54
0.45
0.37
0.30
0.24
Min. required
L
AC
****
[mH]
16.70
7.85
4.47
3.48
2.55
1.82
1.26
1.02
0.88
0.64
0.527
0.451
0.357
0.265
0.218
0.176
0.149
0.118
0.094
0.073
[kg]
6
8
11
13
16
19
28
30
34
44
49
55
62
77
109
117
147
166
200
238
110
110
112
112
112
112
113
113
113
115
115
115
115
115
116
116
118
118
118
118
A
A
B
B
C
C
D
D
D
E
E
E
F
F
G
G
H
H
H
H
Weight
Terminal
Frame size
*
Filter rating which does not require forced cooling or fan module
** Filter rating which does not require RC damping module for rectifiers with EMI filter
*** Motor drive input current without harmonic filter
**** In order to apply FN 3451 filters, motor drives have to be equipped with either DC-link choke or AC line choke. The minimum required inductance
values are given in mH in the filter selection table. If neither DC-link choke nor AC line choke is present, or if the minimum mH rating is not fulfilled,
FN 3451 filter must not be used. In this case, FN 3450 need to be chosen.
Filter power terminals
Terminal designation*
Screw thread
Flex wire AWG
Flex wire
Screw torque value
Max width**
cable lug
[mm
2
]
110
112
113
115
116
118
M3
M4
M6
M8
M8
M10
14-22
10-22
6-18
1/0-8
3/0-8
3/0-500 kcmil
0.4-2.5
0.4-6
0.75-16
10-50
10-95
95-240
[Nm]
0.5
1.2
3
8
8
10
[mm]
7
10
15
15
17
35
A
B, C
D
E, F
G
H
Frame size
* Recommended connector type: wire or cable lug for 110 to 113, only cable lug for 115 to 118
** To fulfill creepage/clearance acc. UL 61800-5-1 without additional protection (insulation). Creepage/clearance can vary depending on applicable standard and must
be reviewed by customer. Creepage/clearance may be reduced when additional protection (insulation) is provided.
Filter signal and earth terminals
Terminal type
Screw thread
Screw torque value
[Nm]
Signal
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
Earth (PE)
M3*
M5
M6
M6
M8
M8
M10
M10
M10
0.5
4
8
8
14
14
25
25
25
All
A
B
C
D
E
F
G
H
Frame size
* Max width cable lug = 7 mm
4
Ecosine passive
Schaffner Group
Datasheets
15 Nov 2018

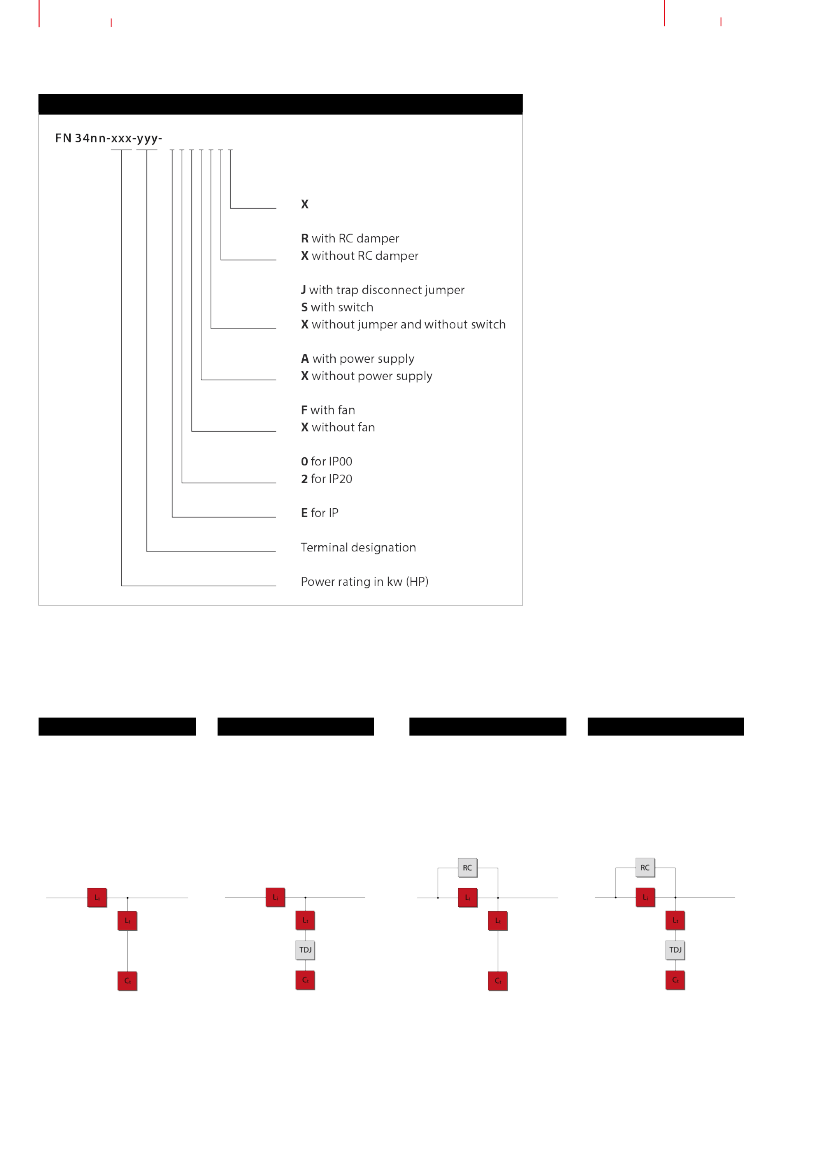

Product selector
Table 1: Filter configurations if external air flow is available for cooling
(Filters do
not contain fan
and do
not contain aux. power supply)
E0XXXXX
- For rectifiers with DC-link choke
E0XXJXX
- For rectifiers with DC-link choke
- Filters contain trap disconnect
jumper
E0XXXRX
- For rectifiers with DC-link choke
and with EMI filter
- Filters contain RC damper
module
E0XXJRX
- For rectifiers with DC-link choke
and with EMI filter
- Filters contain RC damper
module and trap disconnect
jumper
5
Ecosine passive
Schaffner Group
Datasheets
15 Nov 2018
Table 2: Filter configurations with embedded ventilation
(Filters
contain fan
and
aux. power supply)
E0FAXXX and E2FAXXX
- For rectifiers with DC-link choke
- Filters contain fan and aux. power
supply
E0FAJXX and E2FAJXX
- For rectifiers with DC-link choke
- Filters contain fan, aux. power
supply and trap disconnect
jumper
E0FAXRX and E2FAXRX
- For rectifiers with DC-link choke
and with EMI filter
- Filters contain fan, aux. power
supply and RC damper module
E0FAJRX and E2FAJRX
- For rectifiers with DC-link choke
and with EMI filter
- Filters contain fan, aux. power
supply, RC damper module and
trap disconnect jumper
Table 3: Filter configurations if external aux. power supply for the fan is available
[b]【Recruitment】Samsung Electronics China Research Institute Recruitment LTE/LTE-A DSP Development Engineer[/b] Job Description - Responsible for the development of DSP on the base station side (inclu...
Headhunter position [Guangzhou] Job responsibilities: 1. Participate in project demand analysis, responsible for embedded system development and verification, MCU bottom-level driver writing, control ...
[i=s]This post was last edited by alan000345 on 2018-6-29 14:10[/i] The Oak Ridge National Laboratory in Tennessee, USA, demonstrated the world's first 20-kilowatt wireless charging system for electri...
[size=4] Decoupling capacitors are usually placed after each node in the circuit, close to the unit power supply position, the closer the better. According to the operating frequency and power consump...
introduction
With the continuous optimization of surface mount technology (SMT) and the rapid development of chip component manufacturing technology, the application of chip mounters in the el...[Details]
1. Introduction
Automobile pollution is one of the most important issues that people are most concerned about and need to solve urgently. As an important method for detecting automobile exhau...[Details]
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
From the PIC16F946 datasheet, we know that there are two ways to write values to the LCD for display:
1. Directly write the value to LCDDATA1~LCDDATA23
2. Use disconnect t...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
General LED lighting has a current limiting resistor in the driving circuit, and the power consumed by the resistor has nothing to do with the LED light emission. In order to improve efficiency, a...[Details]
Among the many members of the single-chip microcomputer family, the MCS-51 series of single-chip microcomputers has occupied the main market of industrial measurement and control and automation eng...[Details]
From the previous section, we have learned that the timer/counter in the microcontroller can have multiple uses, so how can I make them work for the purpose I need? This requires setting the timer/...[Details]
Introduction
As the country increases its efforts to control the atmospheric environment, motorcycle emission regulations will become stricter year by year, and motorcycles that do not meet the...[Details]
With the rapid development of wireless
digital communication
, more challenges have been raised for integrated circuit design and testing. In the product design stage, in order to ensure
t...[Details]
The launch of Shenzhou IX is imminent, and Tiangong is welcoming visitors again. Yesterday, Professor Fu Qiang, Vice President of the Institute of Science and Industrial Technology of Harbin Instit...[Details]
Introduction
Today, as IC (integrated circuit) has developed to a super-large scale, IC design based on IP (Intellectual Property) cores and their reuse are important means to ensure the ef...[Details]
Zarlink Semiconductor has developed an ultra-low-power RF transceiver chip for pacemakers, neurostimulators, drug pumps, and other such implantable medical devices. It has high data rates, low power c...[Details]
Currently, high-frequency and high-efficiency DCDC converters are increasingly used in automotive electronic systems.
High switching frequency can use smaller power inductors and output filter...[Details]
1 Introduction
At present, people have higher and higher requirements for the quality of life. When people are busy with work, soymilk machine is a new type of household beverage machine. It uses so...[Details]
Talking about work
京公网安备 11010802033920号
EEWORLD
