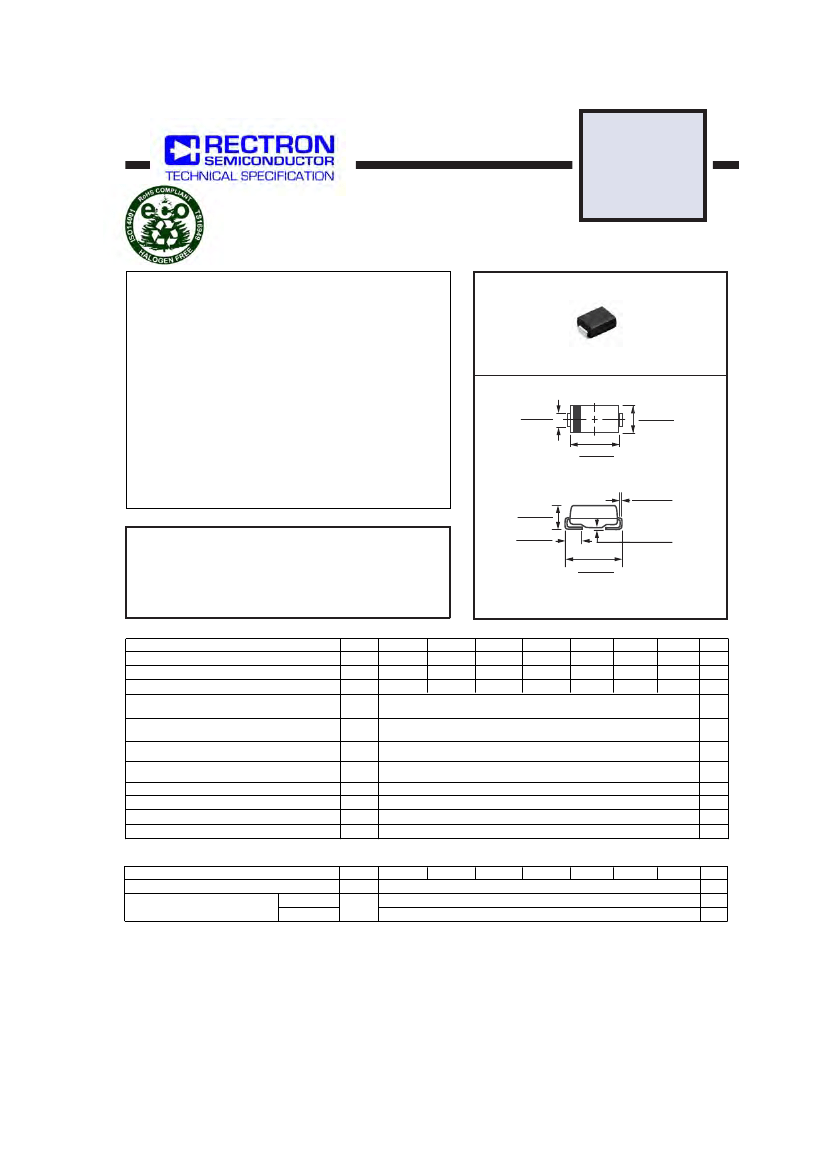

SURFACE MOUNT
GLASS PASSIVATED SILICON RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Ampere
FEATURES
*
*
*
*
*
*
Glass passivated device
Ideal for surface mounted applications
Low leakage current
Metallurgically bonded construction
Mounting position: Any
Weight: 0.098 gram
FM201L
THRU
FM207L
SMBL
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
0.083 (2.11)
0.077 (1.96)
0.155 (3.94)
0.130 (3.30)
0.180 (4.57)
0.160 (4.06)
0.012 (0.305)
0.006 (0.152)
0.085 (2.15)
0.061 (1.55)
0.060 (1.52)
0.030 (0.76)
0.008 (0.203)
0.004 (0.102)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
0.220 (5.59)
0.205 (5.21)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at Ambient Temperature
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Current Squared Time
Typical Thermal Resistance (Note 1)
Typical Thermal Resistance (Note 1)
Typical Junction Capacitance (Note 2)
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
I
2
T
R
q
JA
R
q
JL
C
J
T
J
T
STG
FM201L
FM202L
FM203L
FM204L
FM205L
FM206L
FM207L
UNITS
Volts
Volts
Volts
Amps
Amps
A
2
S
0
0
50
35
50
100
70
100
200
140
200
400
280
400
2.0
50
10.3
53
16
30
150
-55 to + 150
600
420
600
800
560
800
1000
700
1000
C/W
C/W
pF
0
0
C
C
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 2.0A DC
Maximum Average Reverse Current
at Rated DC Blocking Voltage
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
V
F
I
R
FM201L
FM202L
FM203L
FM204L
FM205L
FM206L
FM207L
UNITS
Volts
mA
mA
2010-05
REV: O
1.1
5.0
125
NOTES : 1.
Thermal Resistance :Mounted on PCB.
2. Measured at 1 MHz and applied reverse voltage of 4.0 volts.
3. "Fully ROHS compliant","100% Sn plating (Pb-free)".
4. Available in Halogen-free epoxy by adding suffix -HF after the part nbr.

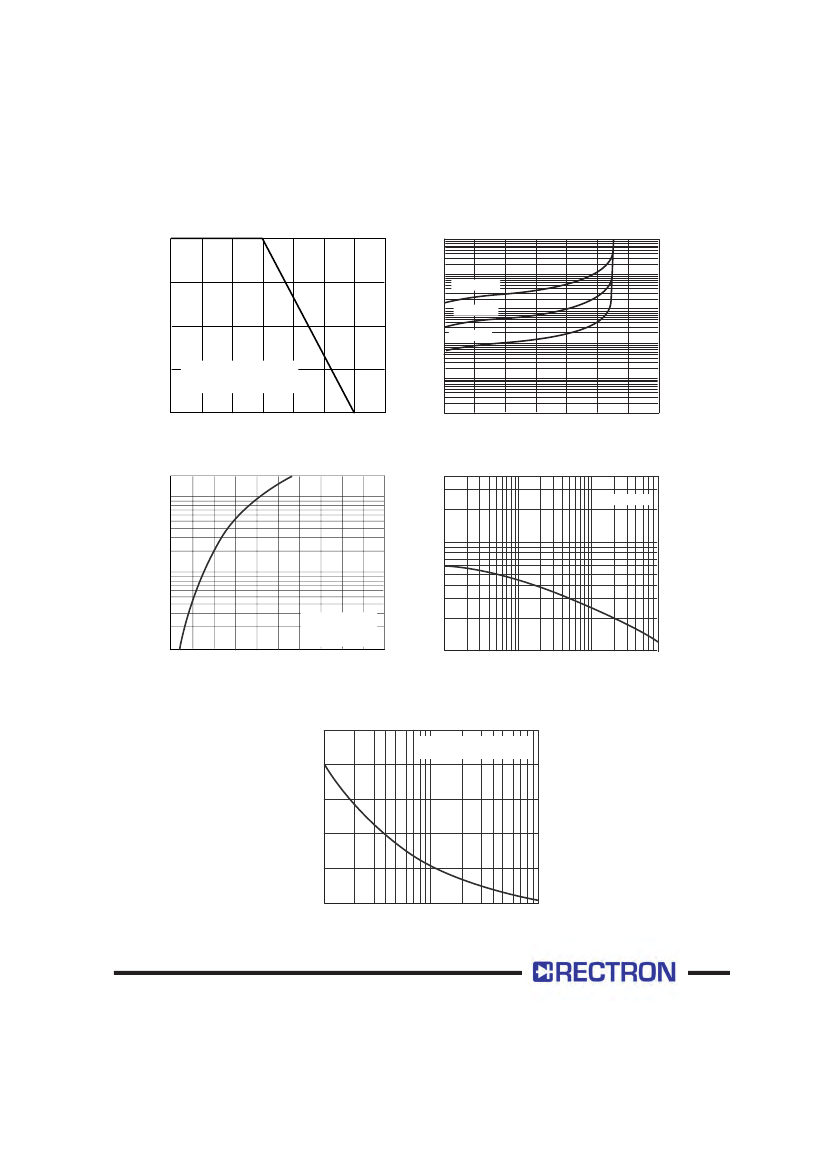

RATING AND CHARACTERISTICS CURVES ( FM201L THRU FM207L )
2.0
INSTANTANEOUS FORWARD CURRENT, (mA)
AVERAGE FORWARD CURRENT, (A)
1000
100
10
1.0
0.1
0.01
0
1.5
T
A
= 100
O
C
T
A
= 75
O
C
T
A
= 25
O
C
1.0
0.5
Single Phase Half Wave 60Hz
Resistive or Inductive Load
0.375" (9.5mm) Lead Length
0
0
25
50
75
100
125
O
150
175
20
40
60
80
100
120
140
AMBIENT TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS REVERSE CURRENT, (A)
10
C
J
, JUNCTION CAPACITANCE, (pF)
20
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
400
200
100
80
60
40
20
10
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
T
J
= 25
O
C
1.0
0.1
T
J
= 25
O
C
Pulse width=300mS
1% Duty Cycle
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0.1
0.4
1.0
4
10
40 80
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, (V)
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
PEAK FORWARD SURGE CURRENT, (A)
FIG.4 TYPICAL JUNCTION CAPACITANCE
60
50
40
30
20
10
1
8.3mS Single Half Sine-Wave
JEDEC Method
2
4
6
8 10
20
40
80 100
NUMBER OF CYCLES AT 60Hz
FIG.5 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
