DM74ALS158M datasheet, PDF - EEWORLD Datasheet

DM74ALS158M: DescriptionMultiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, SOP-16; Categorylogic logic; File Size122KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

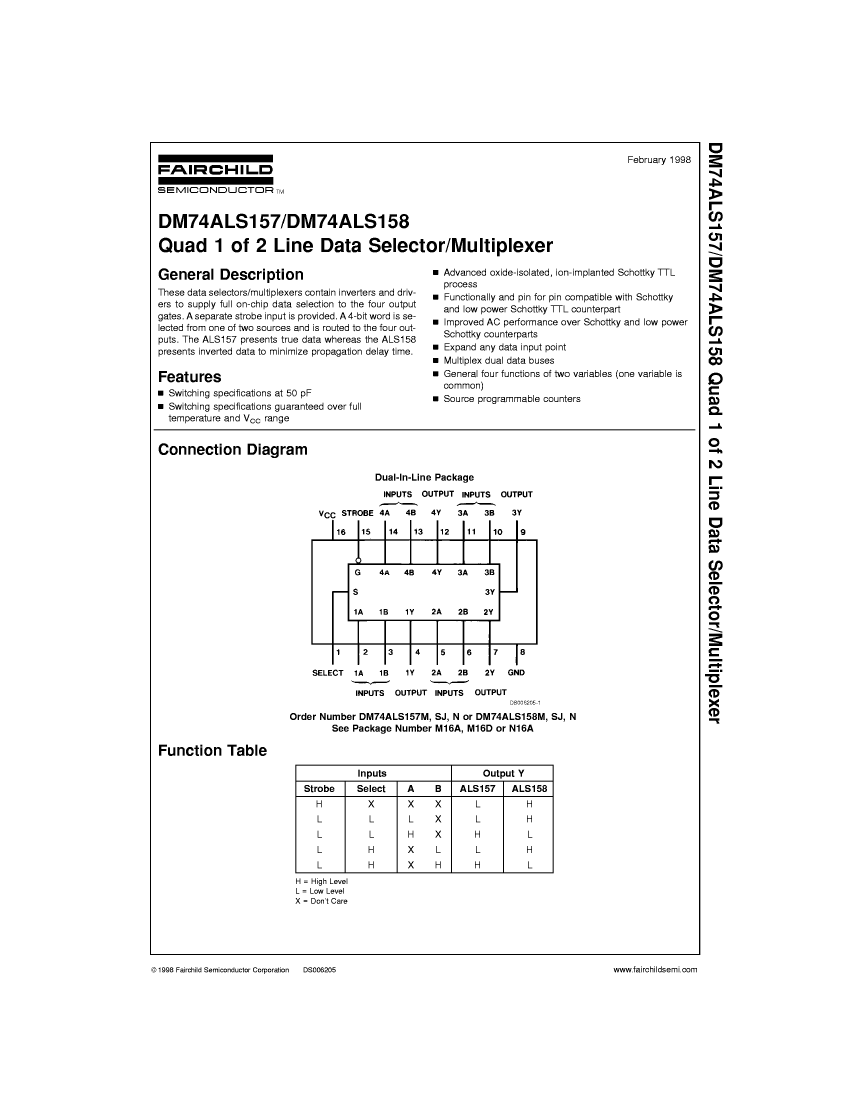

DM74ALS158M Overview

Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, SOP-16

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	SOP,
Reach Compliance Code	unknown
series	ALS
JESD-30 code	R-PDSO-G16

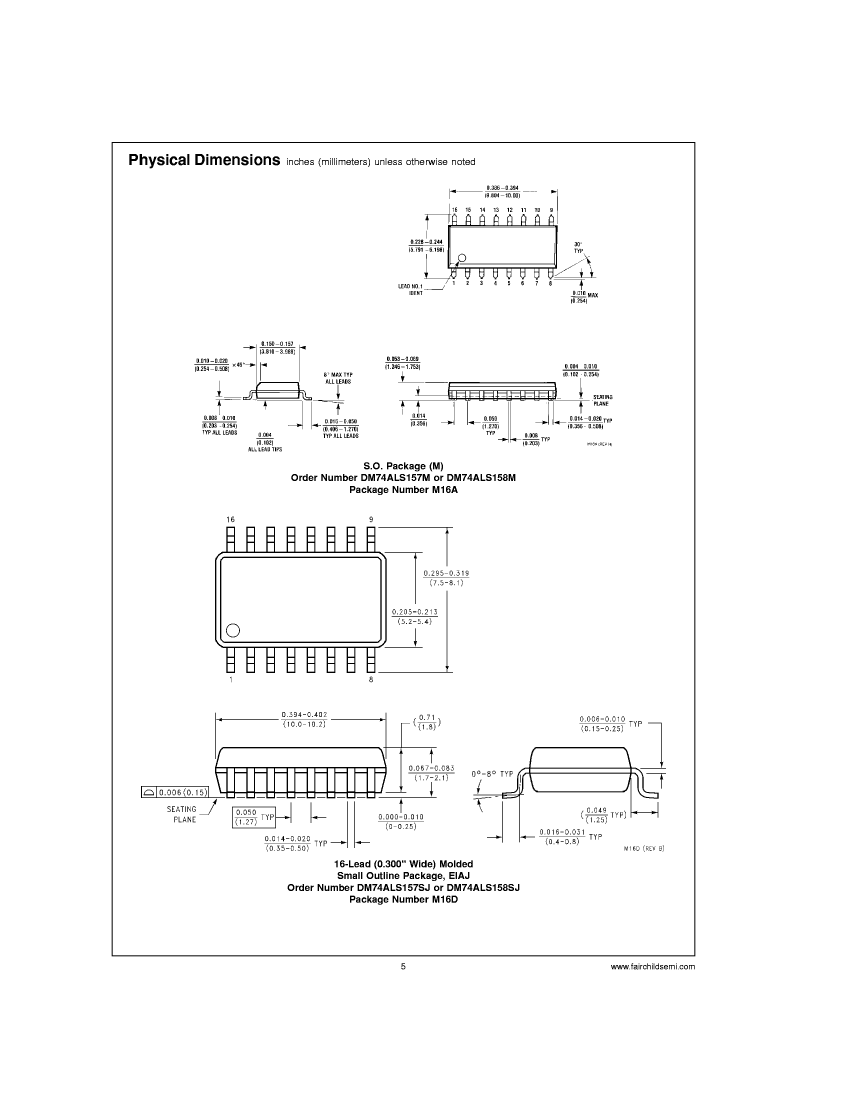

length	9.9 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

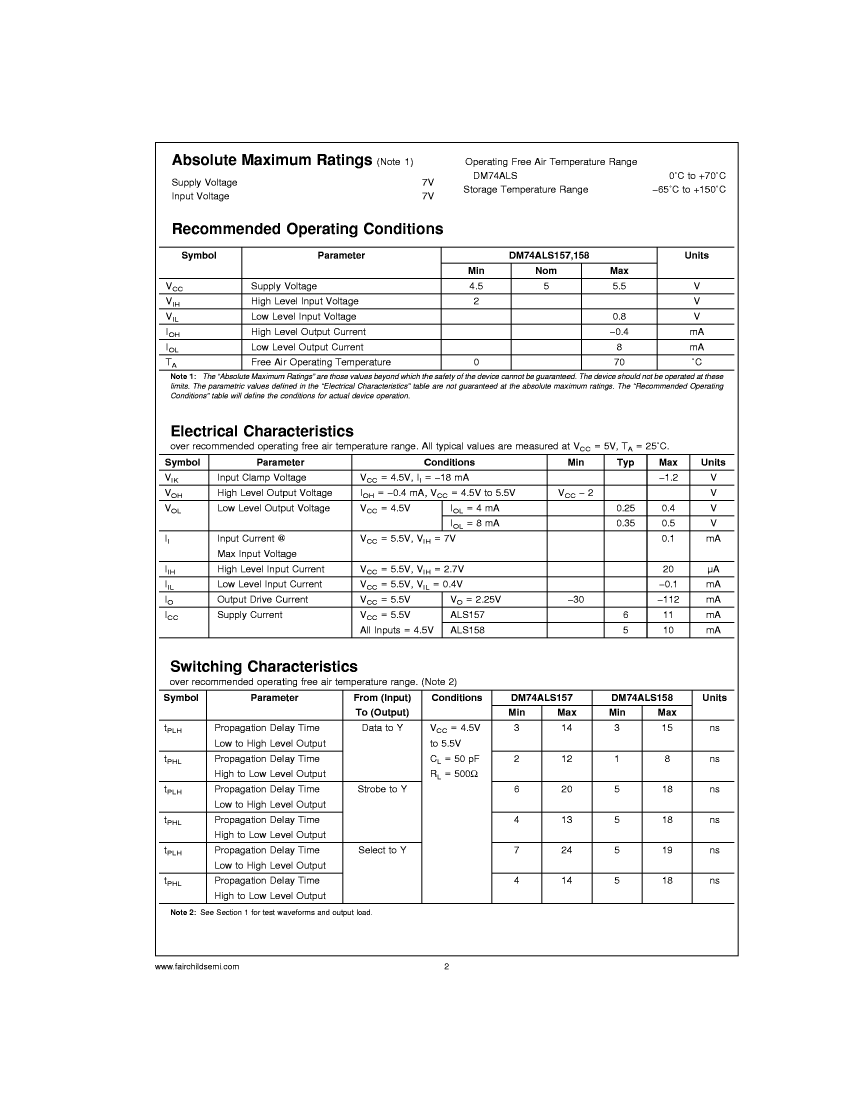

propagation delay (tpd)	18 ns
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	DM74ALS158M	DM74ALS158N	DM74ALS158SJ
Description	Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, SOP-16	Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDIP16, 0.300 INCH, PLASTIC, MS-001, DIP-16	Multiplexer, ALS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, 0.300 INCH, EIAJ, PLASTIC, SOP-16
Maker	Rochester Electronics	Rochester Electronics	Rochester Electronics
package instruction	SOP,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
series	ALS	ALS	ALS
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16
length	9.9 mm	19.305 mm	10.1 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4
Number of entries	2	2	2
Output times	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	18 ns	15 ns	18 ns
Maximum seat height	1.75 mm	5.08 mm	2.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	5.3 mm
