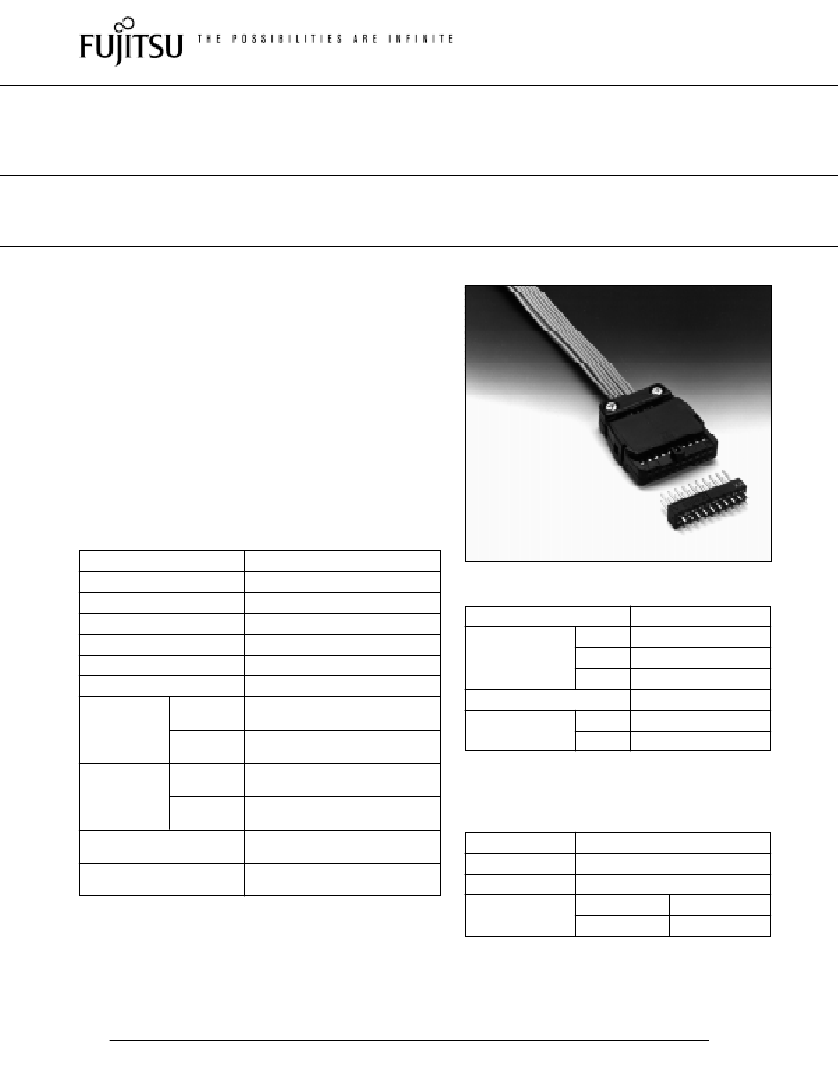

PC BOARD MOUNTING CONNECTORS
720 SERIES (CRIMP TYPE CONNECTORS)
s
FEATURES
The 720 series connectors (crimp connector) are designed
for a wide range of uses, and come in many shapes, two
contact arrangements (one and two rows), and various pin
types. The 720 series headers can be mated with 700 and
740 series sockets, and are lockable when a special cover
is used. Female contacts are secured in the housing by a
unique internal spring structure. High-pressure contacts
are also available which prevent accidental disconnection in
applications that use only a few contacts.
For W and S type headers, insulation molds can be cut to
the necessary size.
s
SPECIFICATIONS
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric strength
Standard
contacts
Insertion force
High-pressure
contacts
Standard
contacts
Withdrawal force
High-pressure
contacts
Specification
–55°C to +85°C
DC 3 A
AC 250 V
20 mΩ max. (DC 6 V, 0.1 A)
1000 MΩ max. (DC 500 V)
AC 500 V for 1 minute
1.05 kg max. (3 pins), 25.2 kg max.
(72 pins)
2.1 kg max. (3 pins), 50.4 kg max.
(72 pins)
0.09 kg min. (3 pins), 2.16 kg min.
(72 pins)
0.18 kg min. (3 pins), 4.32 kg min.
(72 pins)
Wire-wrap: AWG #26 to #30 (solid)
Crimping: AWG #20 to #32
1.6 mm (0.062 in.)
Conductor
Contact
Plating
Terminal
Insulating material
Item
Header
Socket
Cover
Materials
Polyester (UL94V-0)
PPO (UL94V-1)
Nylon 6 (UL94V-2)
Copper alloy
Gold
Palladium
s
MATERIALS
Note: Tin-plated connectors are also available
for 8- to 34-pin types.
s
MATERIALS (SMT CONNECTOR)
Item
Insulating material
Conductor
Plating
Terminal
Materials
66 Nylon (UL94V-0)
Copper alloy
Contact
Gold
Palladium
Applicable wire
Applicable PC board
(standard)
Note: For thin wire crimping, the crimp height must be
adjusted for increased reliability. Please contact us
for further information.
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
1
720 Series (Crimp Type Connectors)
s
ORDERING CODE
1. Header
FCN-72 4 P 050-AU / 0
Main body
0 (zero), L, W: 2-row type
S:
1-row type
A:
No bracket (SMT) type
Plating
AU: Gold
SN: Tin
L: Gold (SMT)
Number of contacts
P: Header
Tail type
2: Wire-wrapping
4: Straight
5: Right-angle
8: SMT
720 series
Fujitsu connector
2. Housing
FCN-723 J 050 / 2
Main body
1: 1-row type
2: 2-row type
2A: Multiblock
2B: Multiblock
2C: Multiblock
Housing type
J: Standard socket
B: Bump type
D: Lockable D type
F: Lockable F type
3: Crimping
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
2
720 Series (Crimp Type Connectors)

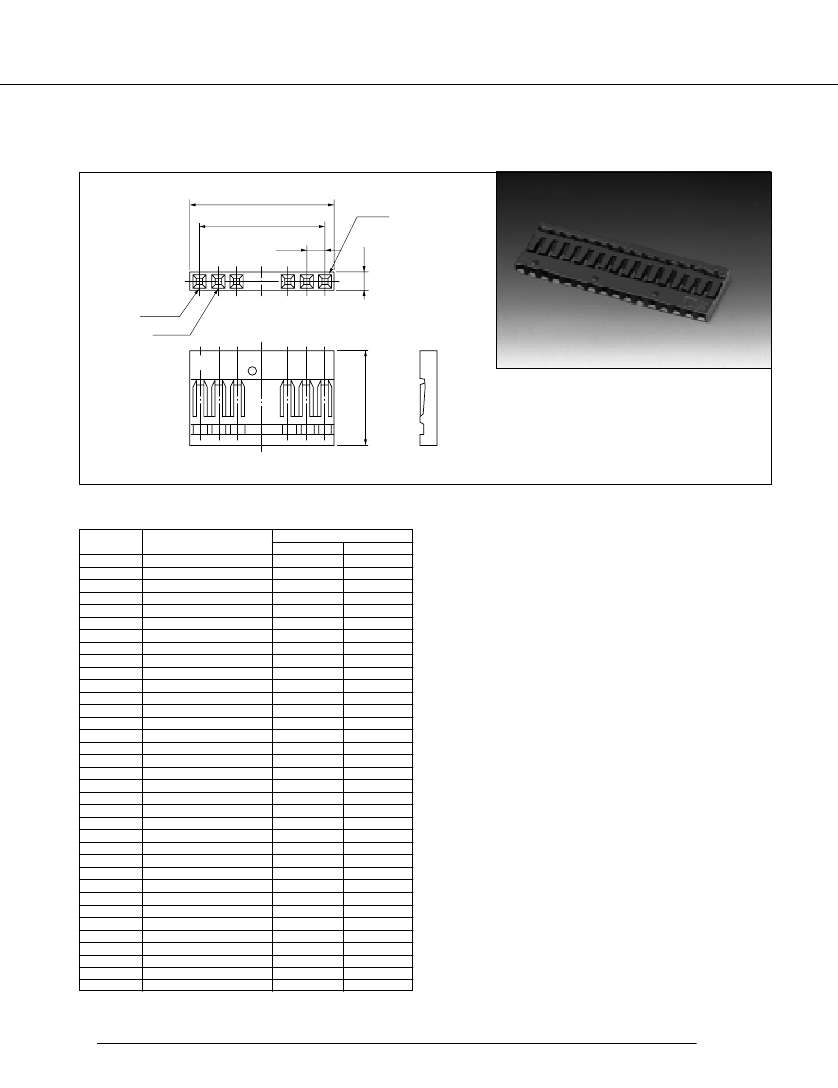

CRIMP SOCKET HOUSING (1-ROW TYPE)
s
DIMENSIONS
A
End pin
2.54 (0.10)
13.8 (0.543)
B
2.54 (0.10)
Pin No. 1
Pin No. 2
F
Note: Circles are marked every fifth
position from the end marked with a
triangle.
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
2
3
4
5*
6
7
8
9
10*
11
12
13
14
15*
16
17
18
19
20*
21
22
23
24
25*
26
27
28
29
30*
31
32
33
34
35
36*
Part number
FCN-723J002/1
FCN-723J003/1
FCN-723J004/1
FCN-723J005/1
FCN-723J006/1
FCN-723J007/1
FCN-723J008/1
FCN-723J009/1
FCN-723J010/1
FCN-723J011/1
FCN-723J012/1
FCN-723J013/1
FCN-723J014/1
FCN-723J015/1
FCN-723J016/1
FCN-723J017/1
FCN-723J018/1
FCN-723J019/1
FCN-723J020/1
FCN-723J021/1
FCN-723J022/1
FCN-723J023/1
FCN-723J024/1
FCN-723J025/1
FCN-723J026/1
FCN-723J027/1
FCN-723J028/1
FCN-723J029/1
FCN-723J030/1
FCN-723J031/1
FCN-723J032/1
FCN-723J033/1
FCN-723J034/1
FCN-723J035/1
FCN-723J036/1
Dimensions: mm (in.)
A
B
5.08 (0.200)
2.54 (0.100)
7.62 (0.300)
5.08 (0.200)
10.16 (0.400)
7.62 (0.300)
12.70 (0.500) 10.16 (0.400)
15.24 (0.600) 12.70 (0.500)
17.78 (0.700) 15.24 (0.600)
20.32 (0.800) 17.78 (0.700)
22.86 (0.900) 20.32 (0.800)
25.40 (1.000) 22.86 (0.900)
27.94 (1.100) 25.40 (1.000)
30.48 (1.200) 27.94 (1.100)
33.02 (1.300) 30.48 (1.200)
35.56 (1.400) 33.02 (1.300)
38.10 (1.500) 35.56 (1.400)
40.64 (1.600) 38.10 (1.500)
43.18 (1.700) 40.64 (1.600)
45.72 (1.800) 43.18 (1.700)
48.26 (1.900) 45.72 (1.800)
50.80 (2.000) 48.26 (1.900)
53.34 (2.100) 50.80 (2.000)
55.88 (2.200) 53.34 (2.100)
58.42 (2.300) 55.88 (2.200)
60.96 (2.400) 58.42 (2.300)
63.50 (2.500) 60.96 (2.400)
66.04 (2.600) 63.50 (2.500)
68.58 (2.700) 66.04 (2.600)
71.12 (2.800) 68.58 (2.700)
73.66 (2.900) 71.12 (2.800)
76.20 (3.000) 73.66 (2.900)
78.74 (3.100) 76.20 (3.000)
81.28 (3.200) 78.74 (3.100)
83.82 (3.300) 81.28 (3.200)
86.36 (3.400) 83.82 (3.300)
88.90 (3.500) 86.36 (3.400)
91.44 (3.600) 88.90 (3.500)
s
REMARKS
• A polarizing key can be used to prevent incorrect
insertion.
Part number of the polarizing key
FCN-700A1
Note: Standard headers are indicated by numbers
starting with * for the number of contacts.
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
3
720 Series (Crimp Type Connectors)

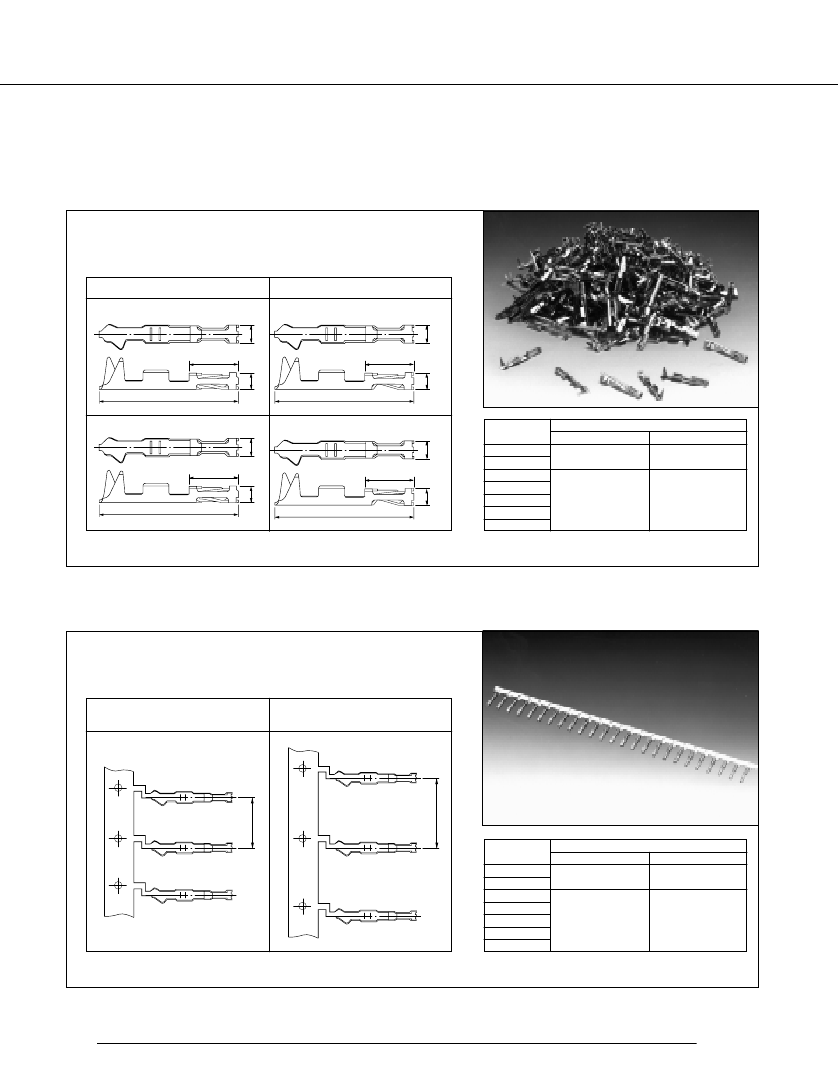

CRIMP CONTACT
s
DIMENSIONS
1.
Parts in bulk
Tool: Hand crimping tool
Standard contact
High pressure contact
FCN-723J-AU/U
(.055)
1.4
FCN-723J-AU/W
(.055)
(.059)
1.4
4.3
(0.170)
(.059)
1.5
4.3
(0.170)
1.5
12.5
(0.492)
12.5
(0.492)
FCN-723J-AU/Q
(.055)
1.4
FCN-723J-AU/S
(.055)
1.4
4.3
(0.170)
(.059)
1.5
4.3
(0.170)
(.059)
1.5
12.5
(0.492)
12.5
(0.492)
Wire gauge
(AWG#)
#20
#22
#24
#26
#28
#30
#32
Applied contact
Standard type
High pressure
FCN-723J-AU/U
FCN-723J-AU/W
FCN-723J-AU/Q
FCN-723J-AU/S
Unit: mm (in.)
2.
Parts in strips
Tool: Semiautomatic crimping tool
• FCN-723J-AU/R
• FCN-723J-AU/T
• FCN-723J-AU/V
• FCN-723V-AU/X
6.5 (0.256)
8.65 (0.340)
Wire gauge
(AWG#)
#20
#22
#24
#26
#28
#30
#32
Applied contact
Standard type
High pressure
FCN-723J-AU/V
FCN-723J-AU/X
FCN-723J-AU/R
FCN-723J-AU/T
Unit: mm (in.)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
4
720 Series (Crimp Type Connectors)

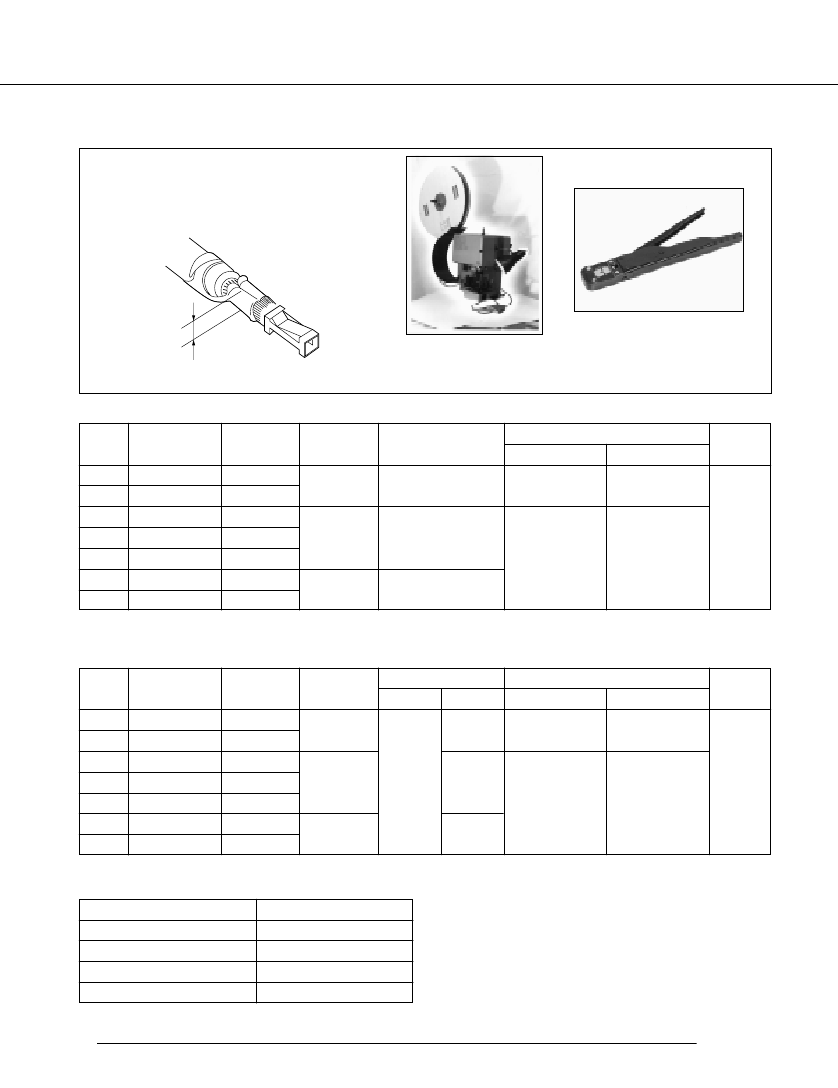

CRIMPING TOOLS
s
NOTES ON USING CRIMPING TOOLS
• Always use the crimping tools
specified by Fujitsu.
• When using the tools, be sure to
adjust the crimp height according to
the table below.
Crimp height
Hand crimping tool
Semiautomatic
crimping tool
s
HAND CRIMPING TOOL
Wire
gauge
(AWG#)
#20
#22
#24
#26
#28
#30
#32
Wire cross-
sectional area
(mm (in.))
0.52 to 0.64
(0.0205 to .0251)
0.30 to 0.40
(0.0118 to 0.0157)
0.20 to 0.24
(0.0079 to 0.0094)
0.13 to 0.16
(0.0051 to 0.0063)
0.088 to 0.096
(0.0035 to 0.0038)
0.055 to 0.060
(0.0022 to 0.0029)
0.032 to 0.038
(0.0013 to 0.0015)
Crimp height
(mm (in.))
Insulator
diameter
(mm (in.))
Hand crimping tool
Contact type
Standard type
High pressure
FCN-723J-AU/W
Stripped
length
(mm (in.))
0.75 to 0.85
(0.029 to 0.033)
φ1.3
to
φ1.8
0.70 to 0.80
(0.051 to 0.071)
(.027 to .031)
0.70 to 0.80
(.027 to .031)
0.66 to 0.76
φ1.1
to
φ1.6
(.026 to .030)
(0.043 to 0.063)
0.60 to 0.68
(.024 to .027)
φ0.7
to
φ1.0
0.68 to 0.75
(.027 to .029)
(0.028 to 0.039)
(φ0.5 to
φ0.6)
0.66 to 0.71
(0.020 to 0.024)
(.026 to .028)
FCN-723T-T018/H
FCN-723J-AU/U
FCN-723T-T007/H
FCN-723J-AU/Q
FCN-723T-T008/H
(FCN-723T-T015/H)
FCN-723J-AU/S
3.1 to 3.6
(0.122 to
0.141)
Note: Also, hand tool is available that can crimp two wires (AWG #30
φ0.5
mm) on one contact.
Part Number: FCN-723T-T014/H, Applicable contact: FCN-723J-Au/Q or S
s
SEMIAUTOMATIC CRIMPING TOOL
Wire
gauge
(AWG#)
#20
#22
#24
#26
#28
#30
#32
Wire cross-
sectional area
(mm (in.))
0.52 to 0.64
(0.0205 to .0251)
0.30 to 0.40
(0.0118 to 0.0157)
0.20 to 0.24
(0.0079 to 0.0094)
0.13 to 0.16
(0.0051 to 0.0063)
0.088 to 0.096
(0.0035 to 0.0038)
0.055 to 0.060
(0.0022 to 0.0029)
0.032 to 0.038
(0.0013 to 0.0015)
Crimp height
(mm (in.))
Insulator
diameter
(mm (in.))
Semiautomatic crimping tool
Press
Applicator
Contact type
Standard type
FCN-723J-AU/V
High pressure
FCN-723J-AU/X
Stripped
length
(mm (in.))
0.75 to 0.85
(0.029 to 0.033)
φ1.3
to
φ1.7
FCN-A118
0.70 to 0.80
(0.051 to 0.070)
(.027 to .031)
0.70 to 0.80
(.027 to .031)
φ0.8
to
φ1.6
FCN-M100
0.66 to 0.76
FCN-A107
(.026 to .030)
(0.031 to 0.063)
0.60 to 0.68
(.024 to .027)
0.68 to 0.75
(.027 to .029)
φ0.5
to
φ1.3
FCN-A108
0.66 to 0.71
(0.020 to 0.051)
(.026 to .028)
FCN-723J-AU/R
FCN-723J-AU/T
3.1 to 3.6
(0.122 to
0.141)
Note: FCN-M100 conventional 3-ton press is also available. Contact us.
s
UNITS OF ORDERING PARTS IN STRIPS
Part number
FCN-723J-AU/V
FCN-723J-AU/R
FCN-723J-AU/X
FCN-723J-AU/T
Units of order
5,000
8,000
5,000
8,000
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
5
