7684-7881110 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

7684-7881110 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	0.535 inch
subject depth	0.846 inch
body length	2.327 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7684
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.129 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

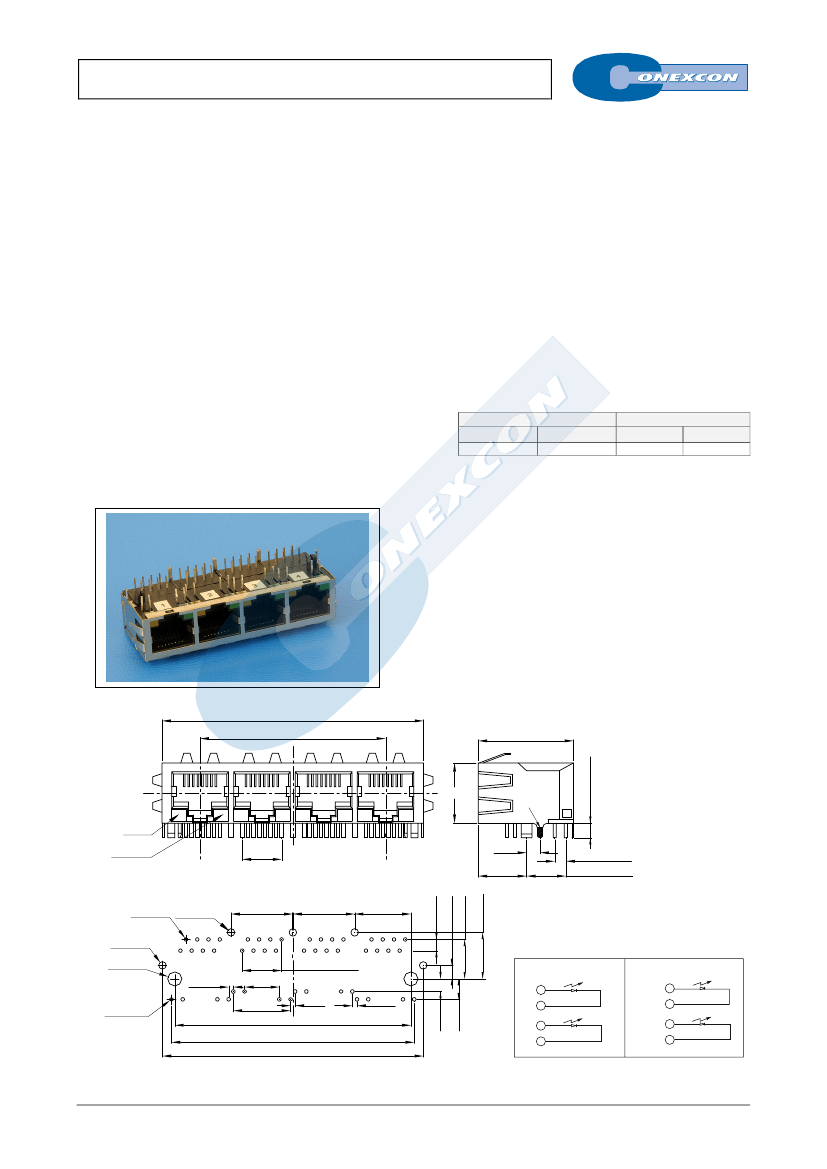

SIDE ENTRY MULTIPORT PCB JACK FCC-68

7684 SERIES.

Shielded right angle PCB jack. With leds and filters.

General Features

Electrical Features



Available in 8/8 circuits

Available in 4 ports

Standard telephone jack FCC-68

13.60 mm. height

Accept standard plugs FCC-68 type

Selective gold plating with different finish

Bifurcated plastic foot print

With /without grounding tabs



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.35 mm thickness phosphor bronze

Shielded: 0.25 mm thickness brass

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Part Number

Position Leds A

7684 –

T8811SF*

Position Leds B

7684 –

T8812SF*

LED 1

LED Colour

LED 2

Yellow

Green

Dimensional Information

T = Contact Plating



T =

4.

10µ” gold over 50µ” nickel

T =

5.

15µ” gold over 50µ” nickel

T =

6.

30µ” gold over 50µ” nickel

T =

7.

50µ” gold over 50µ” nickel

S = Grounding Tabs

S =

1.

Shielded without grounding tabs

S =

2.

Shielded with grounding tabs

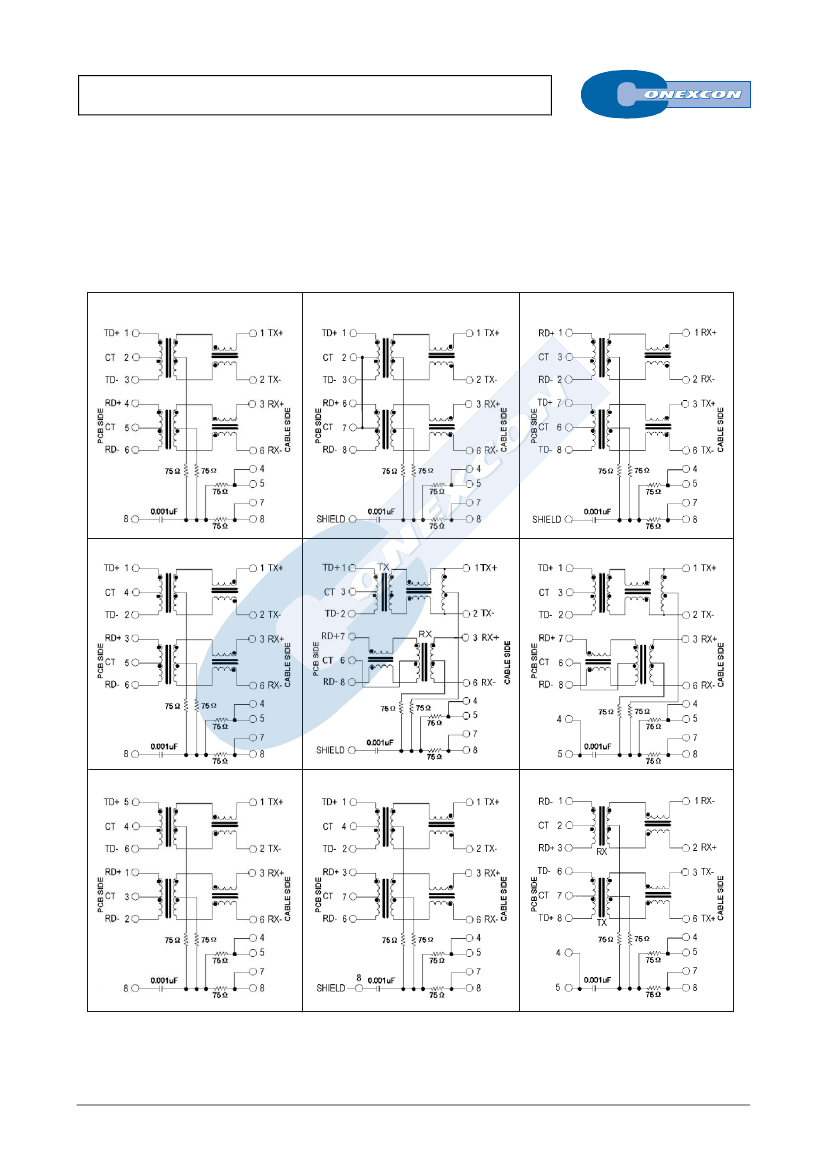

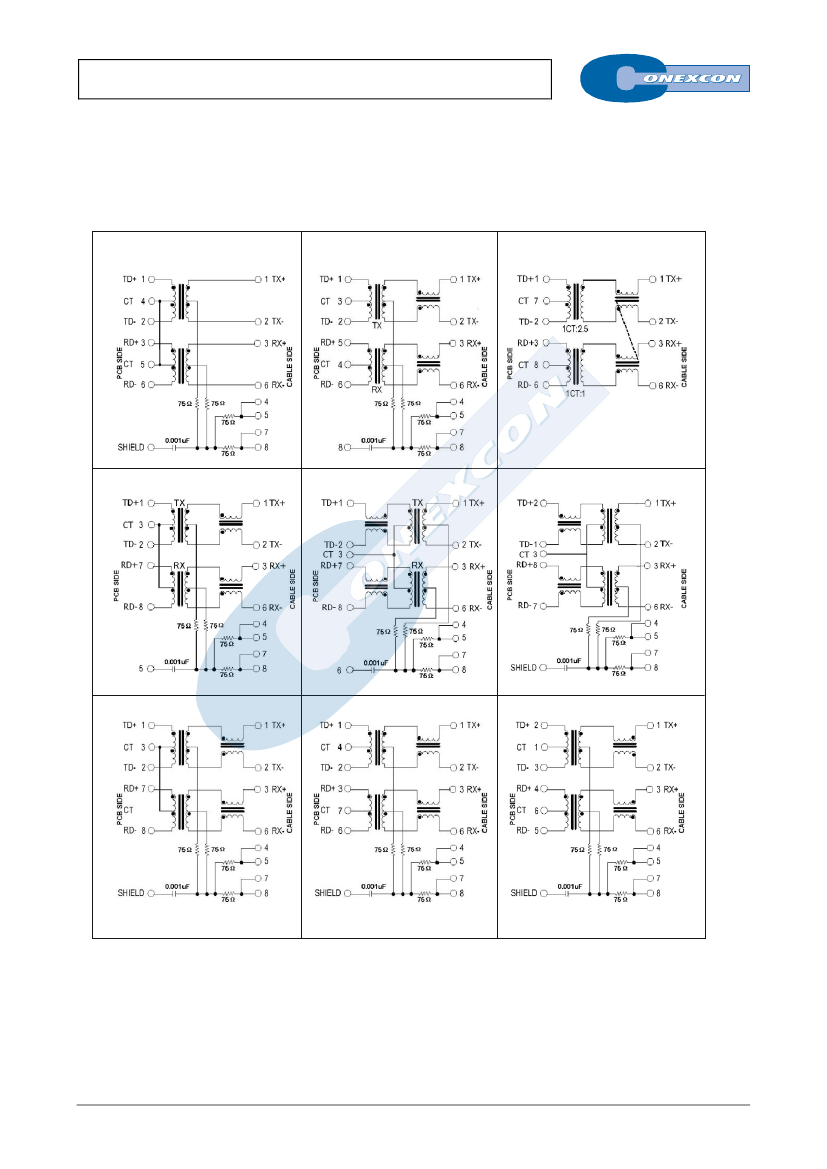

F = Filter Options

*Replace F for the type of filter

(Check in the next page)

59.12

41.91

21.50

3.30±0.51

2.54±0.20

8.89±0.20

1

8

13.60

PRE-SOL DERING

Green

Yellow

1.27x7=8.89

10.16

2.54

3.0 5

8.8 9

3.05

10.90

32xø0.9

2xø1.70

2xø3.20

3xø1.70

2

1

1.04

7

8 2

1

13.97

8 2

7 1

1.27x7=8.89

12.70

8

7

Position Leds A

7.85

12.93

53.34

54.84

58.93

1.04

4 .0 6

2 .28

Position Leds B

9

10

12

11

9

10

11

12

16xø1.00

9 10

1112

E-XX
