M85049/3624W09C datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> M85049/3624W09C

Preview

M85049/3624W09C: DescriptionConnector Accessory,; CategoryThe connector Connector bracket; File Size100KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049/3624W09C Overview

Connector Accessory,

M85049/3624W09C Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

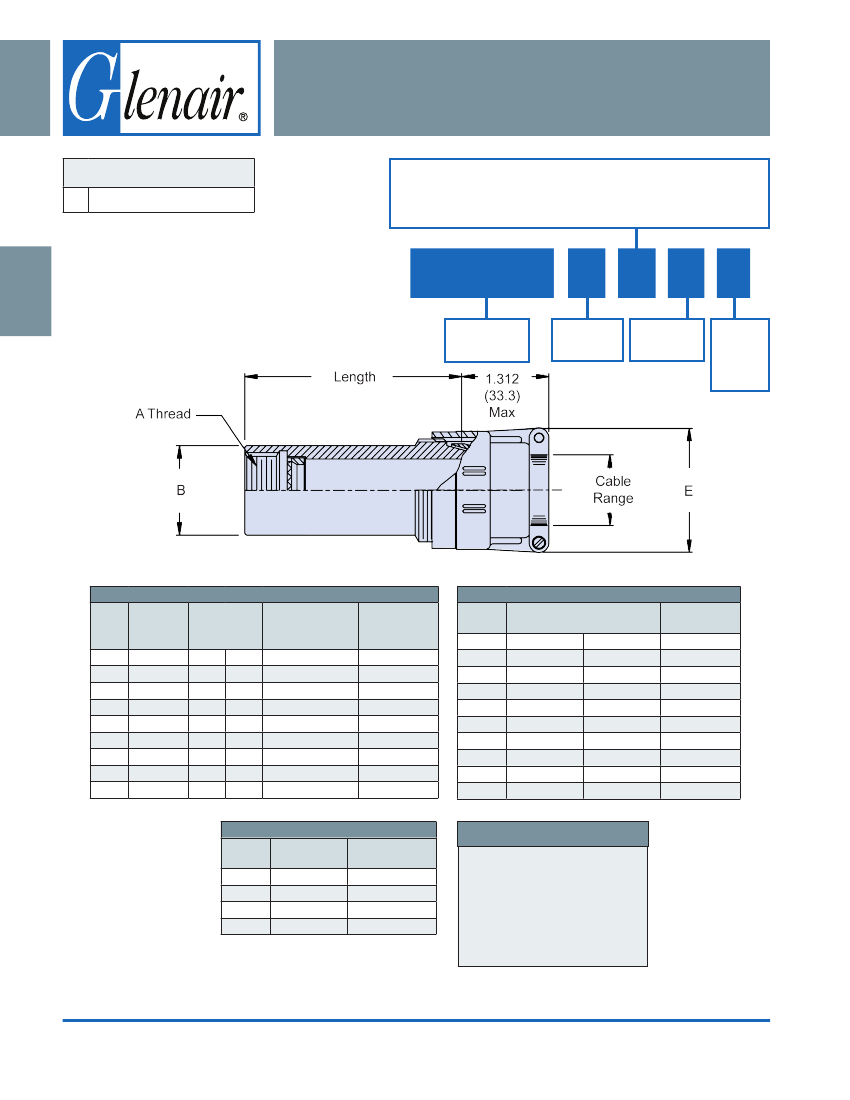

AS85049/36 and M38999/7

Straight EMI/RFI Non-Environmental Backshell

B

Table III

AS85049

CONNECTOR DESIGNATOR:

F

MIL-DTL-38999 Series I and II

Finish

N

= Electroless Nickel

X

= Nickel Fluorocarbon Polymer

W

= 1,000 Hr. Cadmium Olive Drab

Z

= Zinc-Nickel, Black

over Electroless Nickel

M85049/36

Basic

Part Number

10

Shell Size

(Table I)

N

03

A

Length

Code

(Omit for

Standard)

Clamp Size

(Table I)

TABLE I: Shell Size and Clamp Size

TABLE II: Cable Range and Dimensions

Shell Series I

Size Shell Size

Ref.

08

10

12

14

16

18

20

22

24

09

11

13

15

17

19

21

23

25

Clamp Size

(Table II)

Min Max

01

02

03

04

02

03

04

05

06

07

08

09

10

A Thread

Class 2B

.438 - 28 UNEF

.562 - 24 UNEF

.688 - 24 UNEF

.813 - 20 UNEF

.938 - 20 UNEF

1.063 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

B Dia

Max

.65

.77

.89

1.02

1.15

1.23

1.36

1.48

1.73

(16.5)

(19.6)

(22.6)

(25.9)

(29.2)

(31.2)

(34.5)

(37.6)

(43.9)

Clamp

Size

01

02

03

04

05

06

07

08

09

10

Cable Range

Min Max

.062 (1.6)

.125 (3.2)

.250 (6.4)

.375 (9.5)

.312 (7.9)

.500 (12.7)

.437 (11.1)

.625 (15.9)

.562 (14.3)

.750 (19.1)

.687 (17.4)

.875 (22.2)

.812 (20.6) 1.000 (25.4)

.937 (23.8) 1.125 (28.6)

1.062 (27.0) 1.250 (31.8)

E

Max

.781

.969

1.062

1.156

1.250

1.375

1.500

1.625

1.750

1.875

(19.8)

(24.6)

(27.0)

(29.4)

(31.8)

(34.9)

(38.1)

(41.3)

(44.5)

(47.6)

TABLE III: Length Code

Length

Code

Std.

A

B

C

Available

Shell Sizes

08 - 24

14 - 24

20 - 24

APPLICATION NOTES

1.

2.

3.

For complete dimensions see the

applicable Military Specification.

Metric dimensions (mm) are in

parentheses.

Cable Range is defined as the

accommodation range for the wire

bundle or cable. Dimensions shown

are not intended for inspection

criteria.

Length

1.500 (38.1)

2.500 (63.5)

3.500 (88.9)

4.500 (114.3)

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-60

E-Mail: sales@glenair.com
