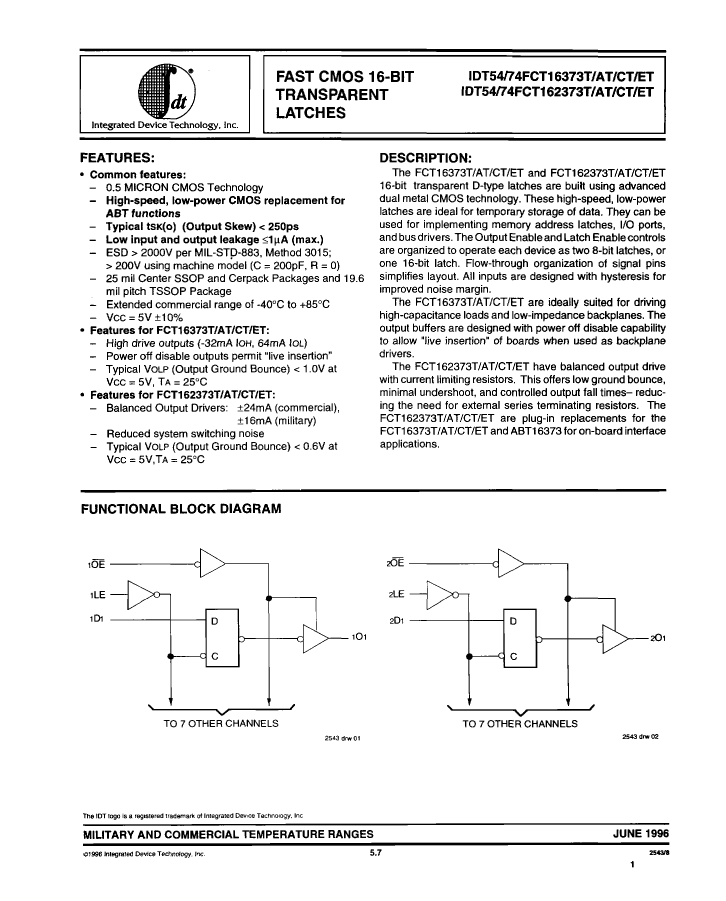

Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48

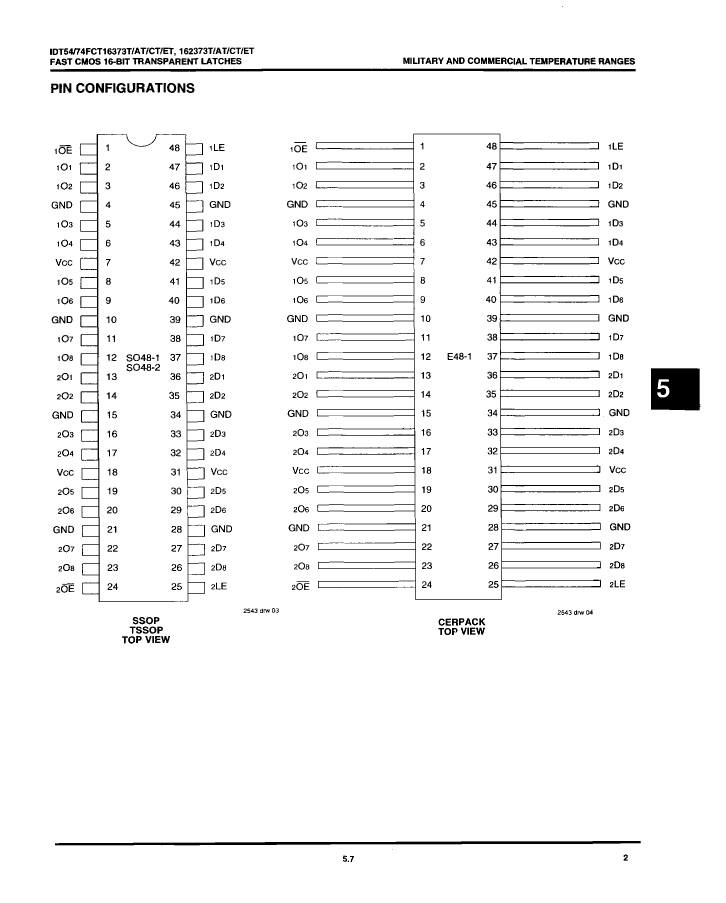

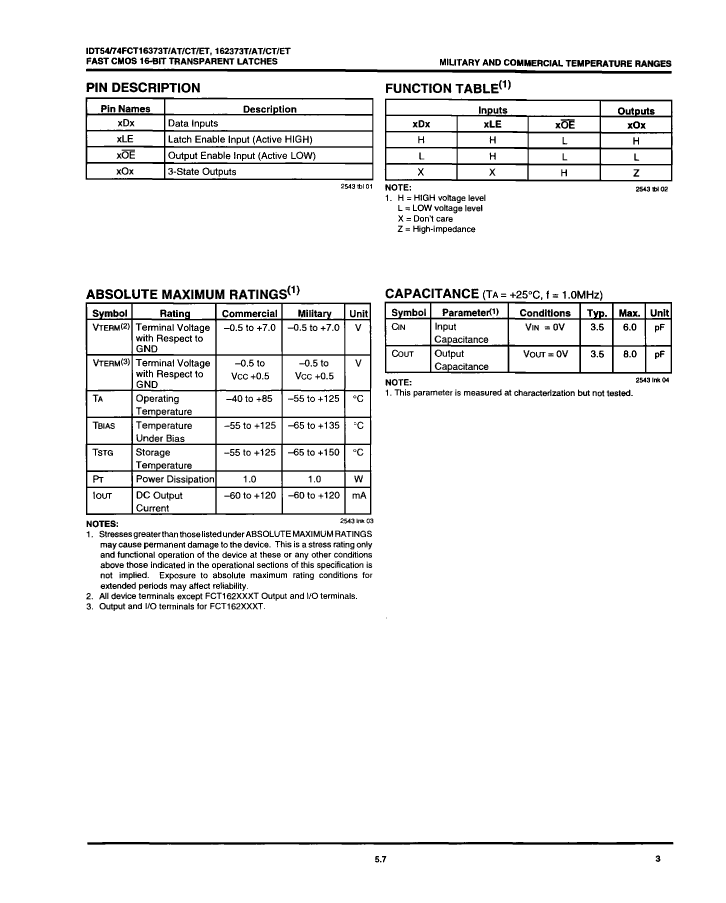

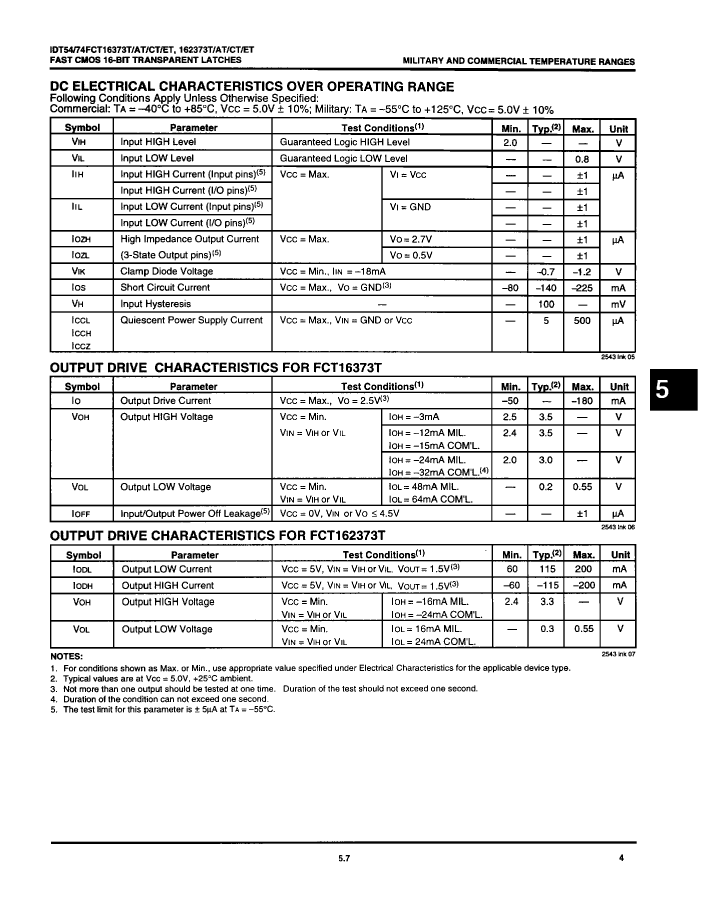

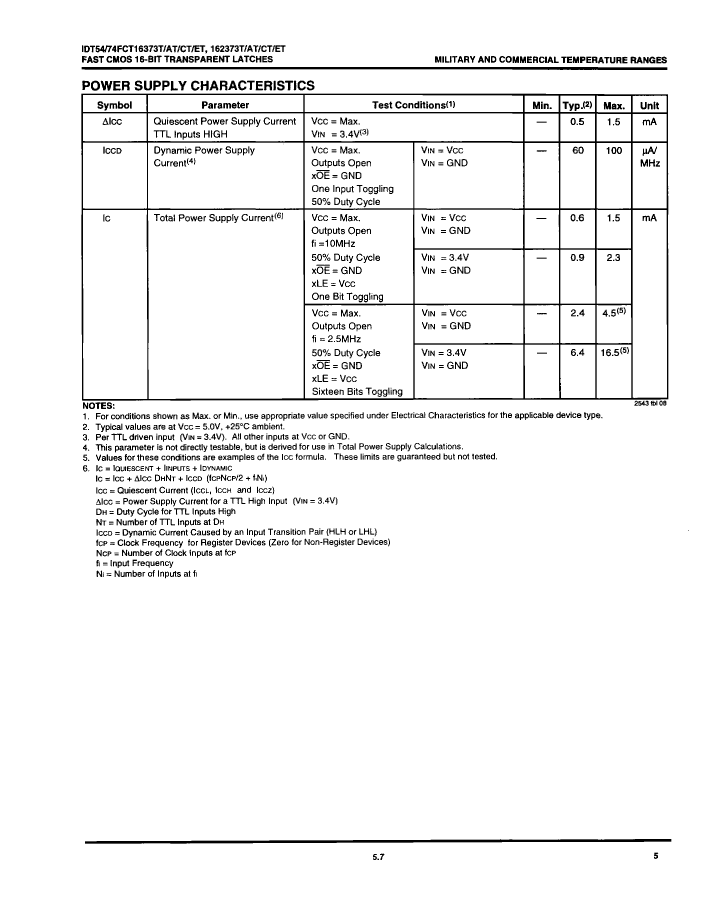

| Parameter Name | Attribute value |
| Parts packaging code | DFP |
| package instruction | DFP, |
| Contacts | 48 |
| Reach Compliance Code | unknown |
| Other features | MAX OUTPUT SKEW = 0.5NS; TYP VOLP < 0.6V @ VCC = 5V, TA = 25 DEGREE C |
| series | FCT |
| JESD-30 code | R-GDFP-F48 |
| JESD-609 code | e0 |
| length | 15.875 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 8 |
| Number of functions | 2 |
| Number of ports | 2 |
| Number of terminals | 48 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 8 ns |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 2.413 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | FLAT |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| width | 9.652 mm |
| Base Number Matches | 1 |
| 5962-9227303MXA | 5962-9225903MXA | 5962-9227301MXA | 5962-9225901MXA | 5962-9225902MXA | 5962-9227302MXA | |
|---|---|---|---|---|---|---|
| Description | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48 | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48 | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48 | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48 | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48 | Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, CERPACK-48 |
| Parts packaging code | DFP | DFP | DFP | DFP | DFP | DFP |
| package instruction | DFP, | DFP, | DFP, | DFP, | DFP, | DFP, |
| Contacts | 48 | 48 | 48 | 48 | 48 | 48 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| series | FCT | FCT | FCT | FCT | FCT | FCT |
| JESD-30 code | R-GDFP-F48 | R-GDFP-F48 | R-GDFP-F48 | R-GDFP-F48 | R-GDFP-F48 | R-GDFP-F48 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 15.875 mm | 15.875 mm | 15.875 mm | 15.875 mm | 15.875 mm | 15.875 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 48 | 48 | 48 | 48 | 48 | 48 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE WITH SERIES RESISTOR | 3-STATE | 3-STATE WITH SERIES RESISTOR | 3-STATE | 3-STATE | 3-STATE WITH SERIES RESISTOR |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | DFP | DFP | DFP | DFP | DFP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | FLATPACK | FLATPACK | FLATPACK | FLATPACK | FLATPACK |
| propagation delay (tpd) | 8 ns | 8 ns | 15 ns | 15 ns | 9.8 ns | 9.8 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 2.413 mm | 2.413 mm | 2.413 mm | 2.413 mm | 2.413 mm | 2.413 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT |
| Terminal pitch | 0.635 mm | 0.635 mm | 0.635 mm | 0.635 mm | 0.635 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 9.652 mm | 9.652 mm | 9.652 mm | 9.652 mm | 9.652 mm | 9.652 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
