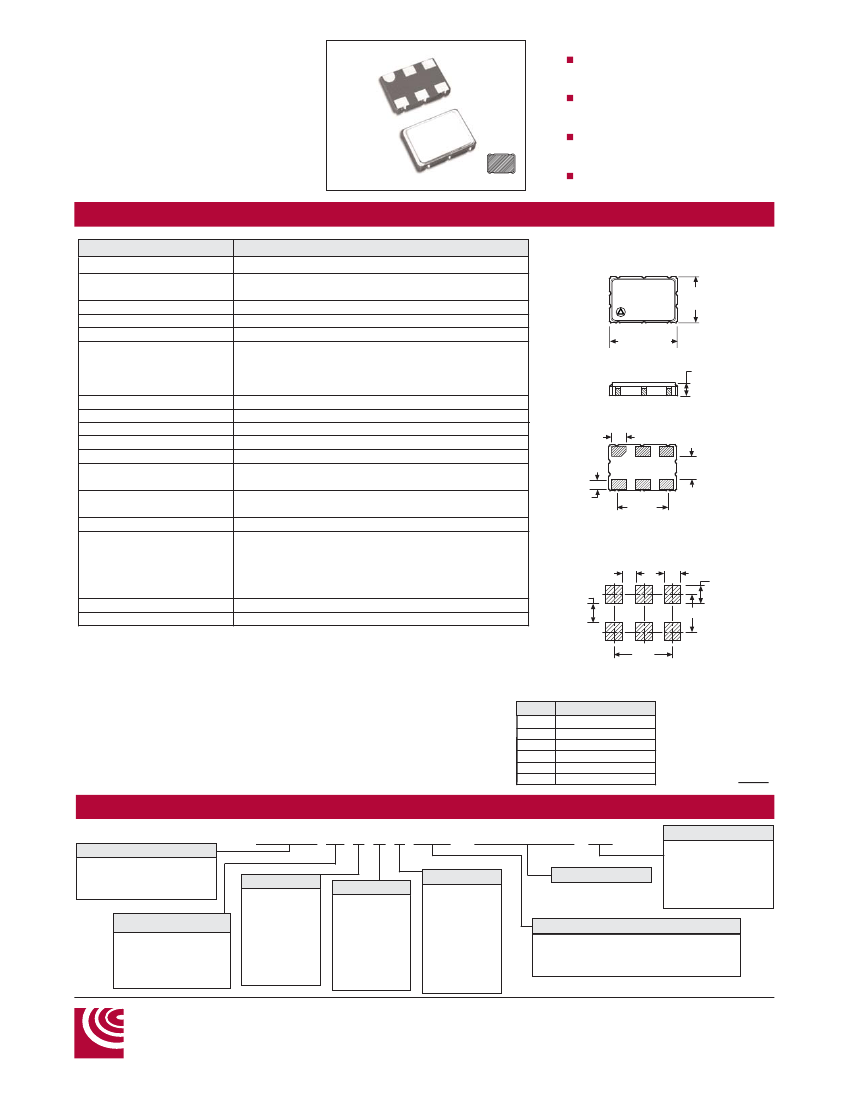

FMVC3S
SERIES
3.3 Vdc VCXO
3.3 Vdc Supply Voltage
HCMOS / TTL Compatible
Small Footprint
Actual Size
CERAMIC SMD 5x7
SPECIFICATIONS
Parameter
Frequency Range
Overall Frequency Tolerance
Specification
Excellent Stability
05|issue1|012005
HALF SIZE 8 PIN DIP
6
5
4
0.197
±0.008
(5.0
±0.2)
1
2
3
0.276
±0.008
(7.0
±0.2)
0.75
(1.90)
MAX
1.54 MHz - 200 MHz
±20 ppm to ±100 ppm (±50 ppm STD)
(Inclusive of Operating Temp., Supply Voltage, & Load.)
Operating Temperature Range 0 to +70°C Std.
Storage Temperature
-55 to +125°C
Supply Voltage (Vdd)
+3.3 Vdc (±0.3 Vdc)
Supply Current (Icc)
30 mA max. @ 1.54 to 23.9 MHz
50 mA max. @ 24.0 to 60.0 MHz
75 mA max. @ 61.0 to 160.0 MHz
90 mA max. @ 161.0 to 200.0 MHz
Symmetry (Duty Cycle)
40/60% Std., 45/55% Available (See Spec. Option S).
Output “0” Level (VOL)
0.3 Vdc max. @ +3.3 Vdc
Output “1” Level (VOH)
3.0 Vdc min. @ +3.3 Vdc
Rise and Fall Time
10 ns max. < 5 ns typical
Linearity
±20% max. Std. , ±10% Available (See Spec. Option L)
Output Load
10 TTL / 15 pF HCMOS < 40.0 MHz
15 pF HCMOS
Pullability
±50 to ±100 ppm typical @ 3.3 Vdd
(Select a min. and max. pullability from part number.)
Jitter (typical)
< 10 pico seconds, one sigma
Phase Noise (typical)
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
Control Voltage (Vc)
Nominal 1.65 Vdc, Range 0.0-3.3 Vdc, Positive Transfer
Aging @ 25°C
±3 ppm max first year
All specifications subject to change without notice.
Side View
0.055
(1.40)
TYP
1
2
3
0.102
(2.60) TYP
5
0.200
(5.08)
TYP
4
0.047
(1.10)
TYP
6
Bottom View
0.94
2.40
3.90
1.60
1.50
5.08
Soldering Position
PIN FUNCTION TABLE
Pin
1
2
3
4
5
6
Function
Control Voltage
Tri-State Control
Ground
Output
N/C
+Vdd
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
HCMOS/TTL Compatible
3.3 Vdc VCXO
Ceramic SMD
Overall Frequency Tol.
25 - ± 25 ppm
50 - ± 50 ppm
00 - ± 100 ppm
nn - ± Custom Value
MARKING: See Page 57, Format H
Options
GW- Gull Wing
JL - J-Lead
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVC3S 50 C G A S / L - XX.XXXXXXM - CM
Min. Pullability
A - +1-50 ppm
B - ± 75 ppm
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
F - ± 175 ppm
G - ± 200 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Frequency (MHz)
Spec. Options
S - Tight Symmetry (45/55%) Duty Cycle
L - Linearity ±10% Max.
BLANK- None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
1-800-800-XTAL
[9825]
www.fmi-inc.com
