TR/3216FF1-R: DescriptionElectric Fuse, Fast Blow, 1A, 32VAC, 63VDC, 50A (IR), Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size329KB，2 Pages; ManufacturerCooper Industries; Environmental Compliance

Download Datasheet Parametric View All

TR/3216FF1-R Overview

Electric Fuse, Fast Blow, 1A, 32VAC, 63VDC, 50A (IR), Surface Mount, ROHS COMPLIANT

TR/3216FF1-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cooper Industries
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 63 VDC: 50 A, JOULE-INTEGRAL-NOM AT 63 VDC: 0.030
Fusing characteristics	FAST
body width	1.6 mm
body height	0.89 mm
Body length or diameter	3.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal
Manufacturer's serial number	3216FF
Installation features	SURFACE MOUNT
method of packing	TAPE AND REEL
physical size	3.2mm x 1.6mm x 0.89mm
Rated breaking capacity	50 A
Rated current	1 A
Rated voltage (AC)	32 V
Rated voltage (DC)	63 V
Guideline	CSA
surface mount	YES
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

Chip

™

Fuses

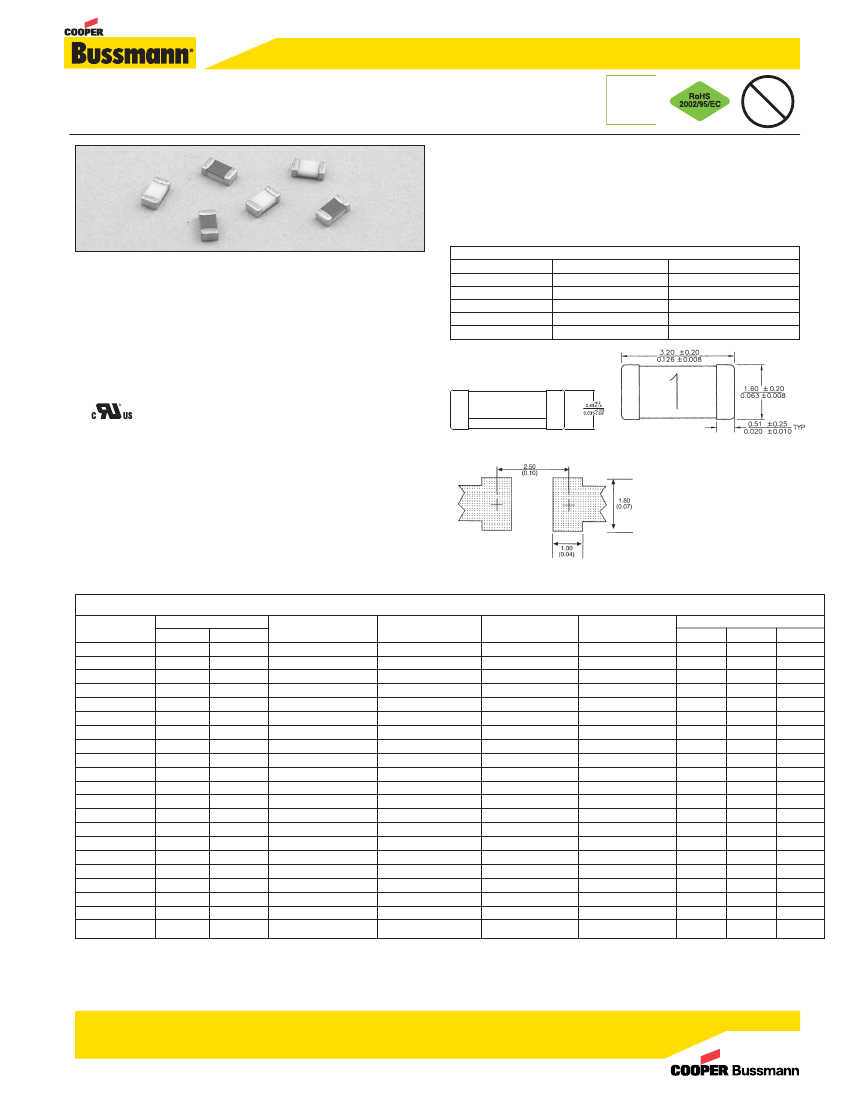

3216FF Series, Fast-Acting

FREE

Ordering

• Specify packaging and product code

(i.e., TR/3216FF250-R)

Soldering Method

• Wave Immersion: 260°C, 10 sec max.

• Infrared Reflow: 260°C, 30 sec max.

HALOGEN

Description

• Fast-acting surface mount fuse

• Ratings up to 30 amps

• Excellent temperature and cycling characteristics

• Compatible with reflow and wave solder

Agency Information

• UL Recognition Guide JDYX2 & File E19180.

• CSA Component Acceptance: 053787 C 000 &

Class No: 1422 30.

•

Recognition File: E19180, Guide JDYX2/JDYX8

Environmental Data

• Thermal Shock: MIL-STD-202, Method 107,

Test Condition B (-65°C to 125°C)

• Vibration: MIL-STD-202, Method 204,

Test Condition C (55Hz - 2kHz, 10G)

• Moisture Resistance: MIL-STD-202, Method 106,

10 day cycle

• Solderability: ANSI/J-STD-002, Test B

• Additional resistance to solder heat teast: MIL-STD-202G Method

210F Condition A

• Operating Temperature: -55ºC to 125ºC

Part

Number

3216FF250-R

3216FF375-R

3216FF500-R

3216FF750-R

3216FF1-R

3216FF1.25-R

3216FF1.5-R

3216FF2-R

3216FF2.5-R

3216FF3-R

3216FF4-R

3216FF4.5-R

3216FF5-R

3216FF6.5-R

3216FF7-R

3216FF10-R

3216FF12-R

3216FF15-R

3216FF20-R

3216FF25-R

3216FF30-R

Volt Ratings

Vdc

Interrupting Rating*

(amps) AC/DC

150

250

300

Amp Rating

250mA - 30A

1.25A - 3A

250mA - 3A

4A - 7A

10A - 30A

Drawing Not to Scale

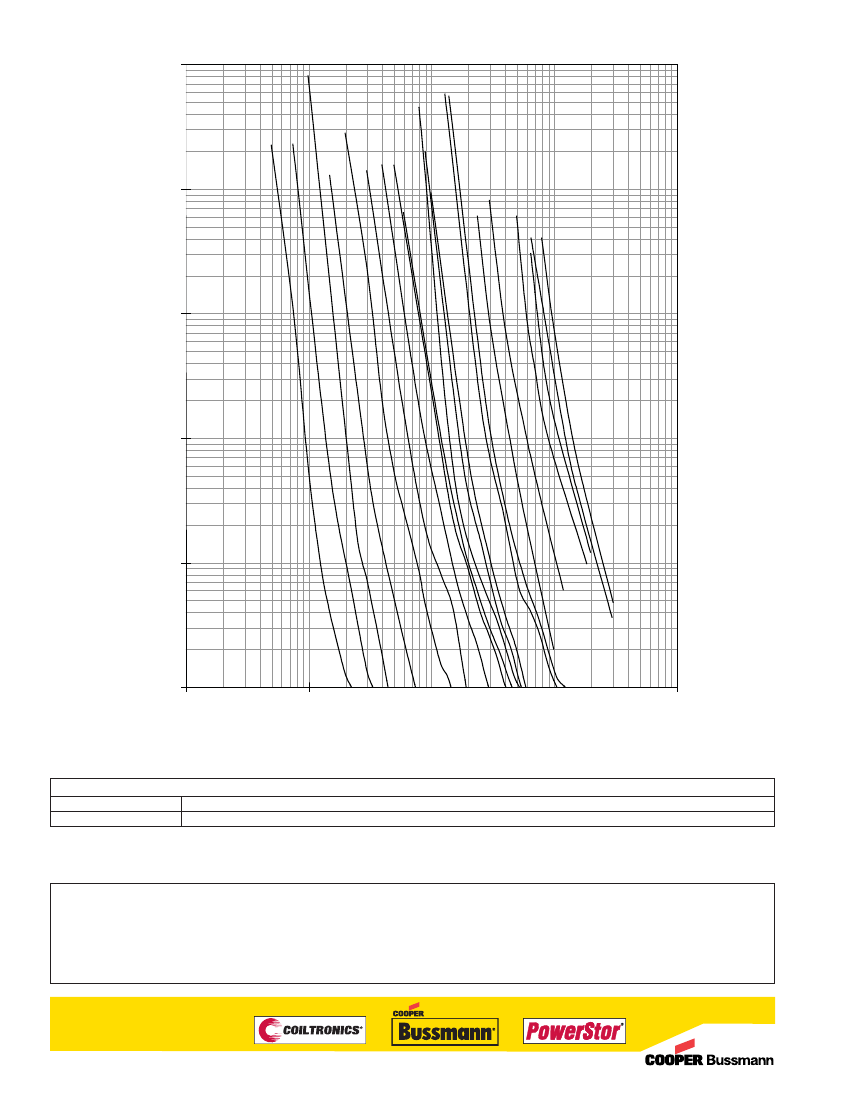

Electrical Characteristics

% of Amp Rating

100%

200%

250%

350%

Opening Time

4 Hrs. Min.

60 Sec. Max.

5 Sec. Max.

1 Sec. Max.

5 Sec. Max.

Dimension - mm/inches

Recommended Pad Layout - mm (in)

Specifications

Vac

Typical DC Cold

Resistance (

)**

3.5000

1.7500

0.9800

0.5400

0.2190

0.1700

0.1190

0.0660

0.0460

0.0360

0.0180

0.0160

0.0140

0.0086

0.0070

0.0045

0.0039

0.0031

0.0018

0.0014

0.0012

Typical Melt

t (A

S) DC***

0.00038

0.00077

0.00190

0.0053

0.030

0.046

0.093

0.126

0.260

0.275

0.337

0.405

0.534

2.294

3.623

2.0

7.0

25.5

48.6

32.0

43.0

Typical Voltage

Drop (V)†

1.40

0.73

0.66

0.63

0.20

0.18

0.16

0.14

0.13

0.11

0.10

0.09

0.076

0.078

0.062

0.070

0.066

0.060

0.057

0.068

Agency Approvals

CSA

cURus

* AC Interrupting Rating measured at rated voltage with a unity power factor; DC Interrupting Rating measured at rated voltage, time constant of less than 50 microseconds, battery source

**Typical DC Cold Resistance measured at 10% of rated current

***Typical Melting I

t measured with a battery bank at rated DC voltage, 10x-rated current, not to exceed IR, time constant of calibrated circuit less than 50 microseconds (6.5A - 30A measured at interrupting rating)

†Typical Voltage Drop measured at rated current after temperature stabilizes. It is recommended that fuses be mounted with ceramic (white) side facing up.

Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended, with further derating required at elevated ambient temperatures.

0411

BU-SB11302

Page 1 of 2

Data Sheet 3001
