49-411G: DescriptionPushbutton Switch, SPST, Momentary, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size160KB，2 Pages; ManufacturerITW Switches; Environmental Compliance

Download Datasheet Parametric View All

49-411G Overview

Pushbutton Switch, SPST, Momentary, Solder Terminal, Panel Mount-threaded, ROHS COMPLIANT

49-411G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ITW Switches
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	ROUND TYPE
body height	22.2 mm
Body length or diameter	12.2 mm
Electrical life	500000 Cycle(s)
illumination	GREEN LED
Manufacturer's serial number	49
Installation features	PANEL MOUNT-THREADED
Maximum operating force	3 N
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

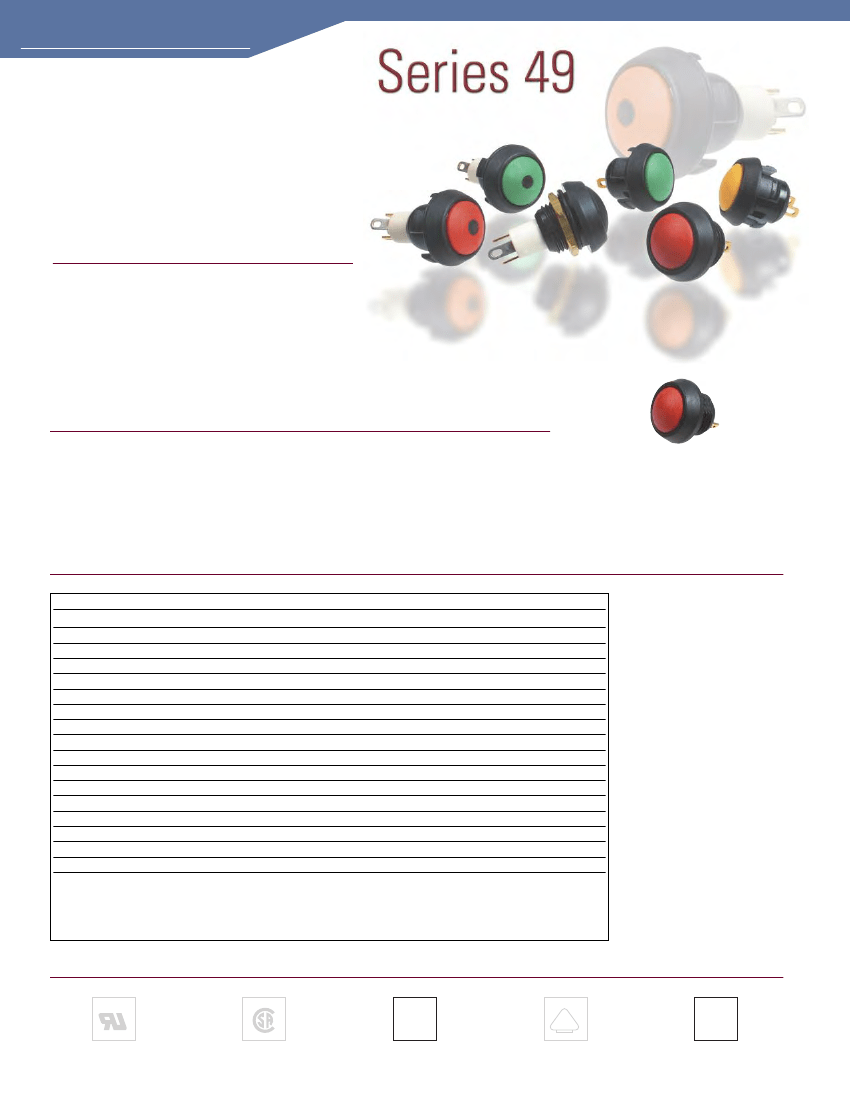

P

USHBUTTON

S

WITCHES

M

INIATURE

S

EALED

ESD R

ESISTANT

This switch series is rugged, panel sealed, avail-

able with round or square bezels and LED lighted

or non-lighted. Bushing mount or snap-in mount-

ing available. Series 49 switches are ideal for

demanding applications in harsh environments

where water, moisture or dust are problematic.

A

PPLICATIONS

•

Industrial equipment control handles

Dog training control modules

Outdoor controls

Medical equipment

Beverage dispensing

K

EY

F

EATURES

:

•

Normally open or closed circuitry

Momentary action

LED lighted or non-lighted

.110 Quick Connect or

Solder terminals available

•

Gold contacts

ESD 15KV minimum

Panel sealed to IP67

Long life – up to 1 million cycles

Threaded or snap-in mounting

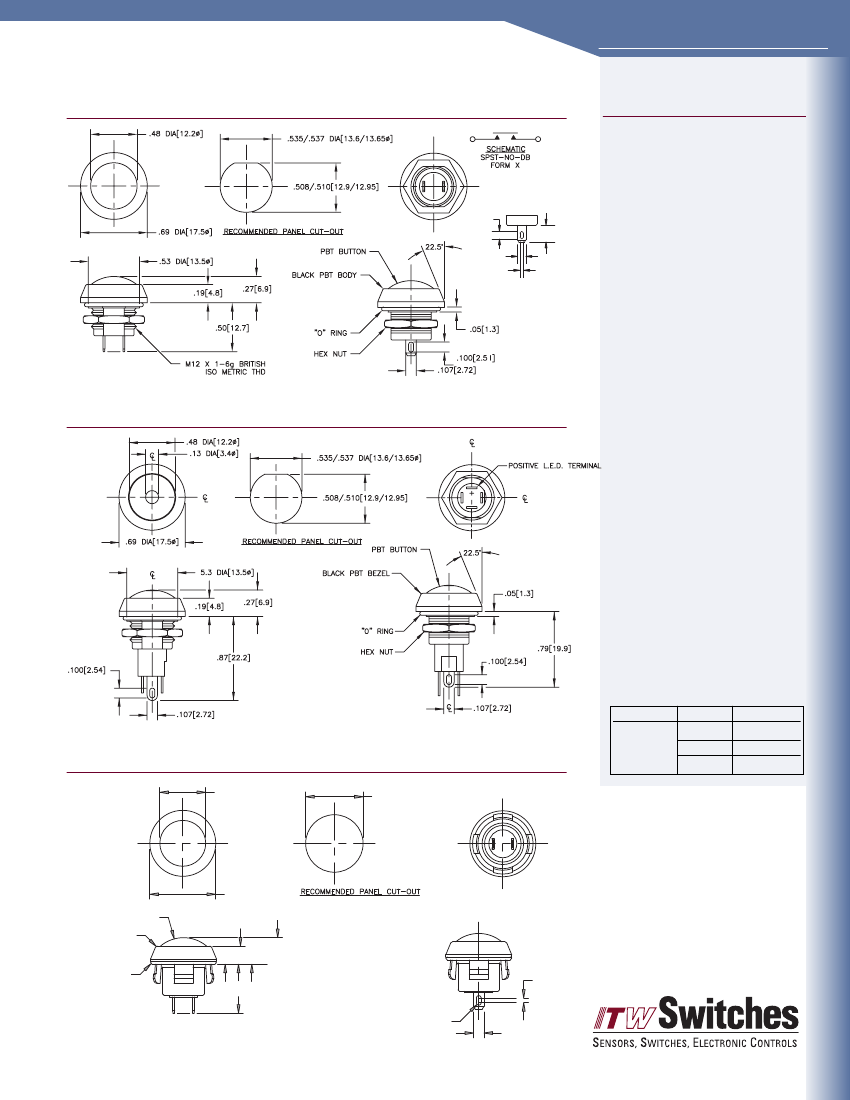

A

CTUAL

S

IZE

O

RDERING

I

NFORMATION

:

Part Number

49-111

49-112

49-113

49-411G

49-411R

49-412G

49-412R

49-413G

49-413R

49-9111

49-9113

49-611

49-612

49-613

49-131

49-132

49-133

Body Style

Round bezel

Illuminated round

Snap-in round

Round bezel

Button Color

Black

Red

Green

Black

Red

Green

Black

Green

Black

Red

Green

Black

Red

Green

LED Color

—

Green

Red

Green

Red

Green

Red

—

Contacts

Normally Open

Normally Closed

Normally Open

Terminals

Solder

.110 QC

S

TANDARDS

/ A

GENCY

/ R

ATINGS

:

®

RoHS

COMPLIANT

2002 / 95 / EC

V

D E

IEC

IP67

COMPLIANT

www.itwswitches.com

20

Contact an Authorized Distributor or Factory for Pricing
