31_TNC-716-50-1/133_WE: DescriptionRF Connector Adapter, TNC-7/16, Female-Female, Jack-jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

31_TNC-716-50-1/133_WE Overview

RF Connector Adapter, TNC-7/16, Female-Female, Jack-jack, ROHS COMPLIANT

31_TNC-716-50-1/133_WE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	TNC-7/16
Other features	STANDARDS: IEC 60169-17; MIL-STD-348A/313
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Manufacturer's serial number	BETWEEN
Installation method	STRAIGHT
Maximum operating frequency	7.5 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

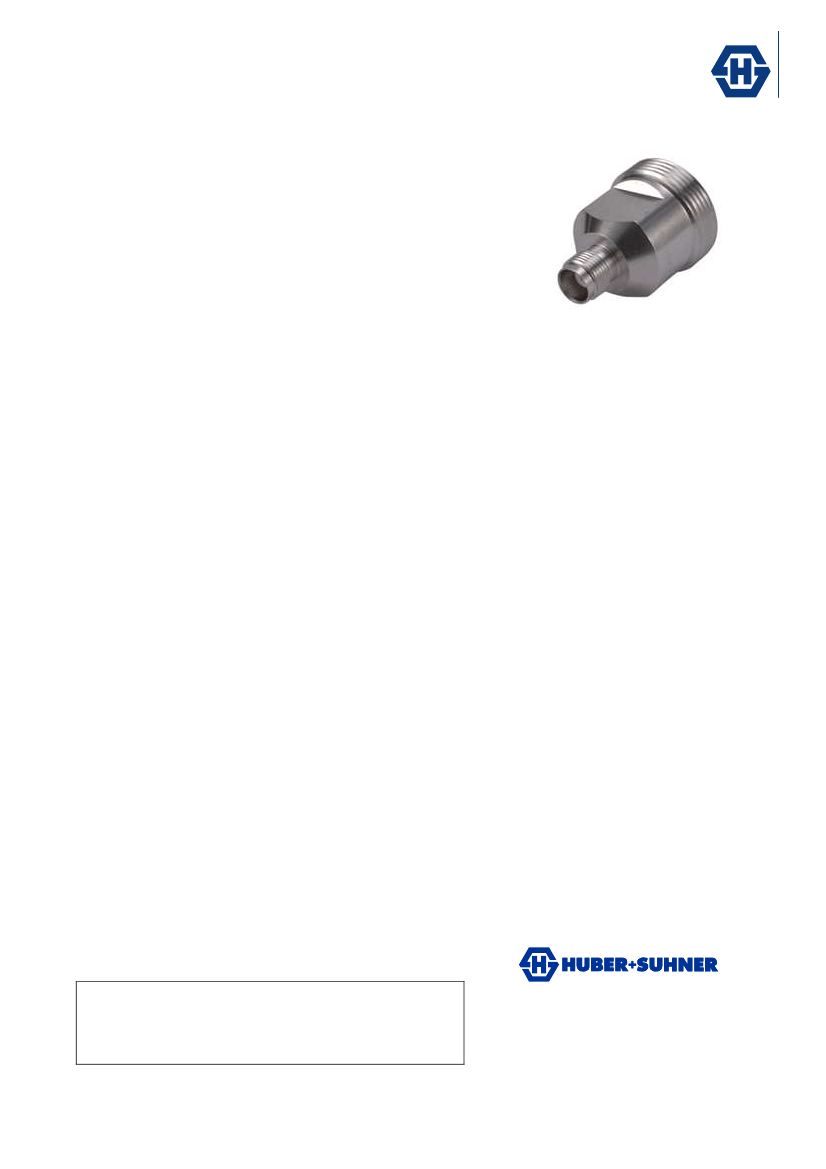

DATA SHEET

Between Series Adapter: 31_TNC-716-50-1/133_W

Description

Rev.: C

Adaptor jack/jack

TNC jack (female) / 7/16 jack (female)

Interface standards

IEC 60169-17_MIL-STD-348A/313_CECC 22200

Benefits

Low intermodulation adaptors

For Test & Measurement applications

Technical Data

Electrical Data

Impedance

Interface frequency max.

rd

3 order intermodulation max.

Mechanical Data

Number of matings

Weight

50

Ω

7.5 GHz

Static -165 dBc at 2x 43 dBm / 2x 20 W carrier

500

0.0843 kg

-65 °C to 165 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

DOU-00014573

31_TNC-716-50-1/133_WE

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Material Data

Piece Parts

(TNC)

Centre contact

Outer contact

Body

Insulator

Piece Parts

(7/16)

Centre contact

Outer contact

Body

Insulator

Outline drawing

Single package

Recommended Resources

Touch-type delay circuit using digital circuits (3)

YH01 lighting control application specific integrated circuit

TV antenna amplifier circuit

Ultrasonic insect repellent circuit 03

Electromechanical control single-phase half-wave rectifier circuit

Gas discharge type digital tube dynamic drive circuit
