2203773-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2203773-2

2203773-2: DescriptionCombination Line Connector; CategoryThe connector The connector; File Size543KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2203773-2 Overview

Combination Line Connector

2203773-2 Parametric

Parameter Name	Attribute value
Objectid	7281858324
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.768 inch
subject depth	1.043 inch
body length	0.972 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
empty shell	NO
Filter function	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	150 °C
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	4

Preview

Download Datasheet

View All

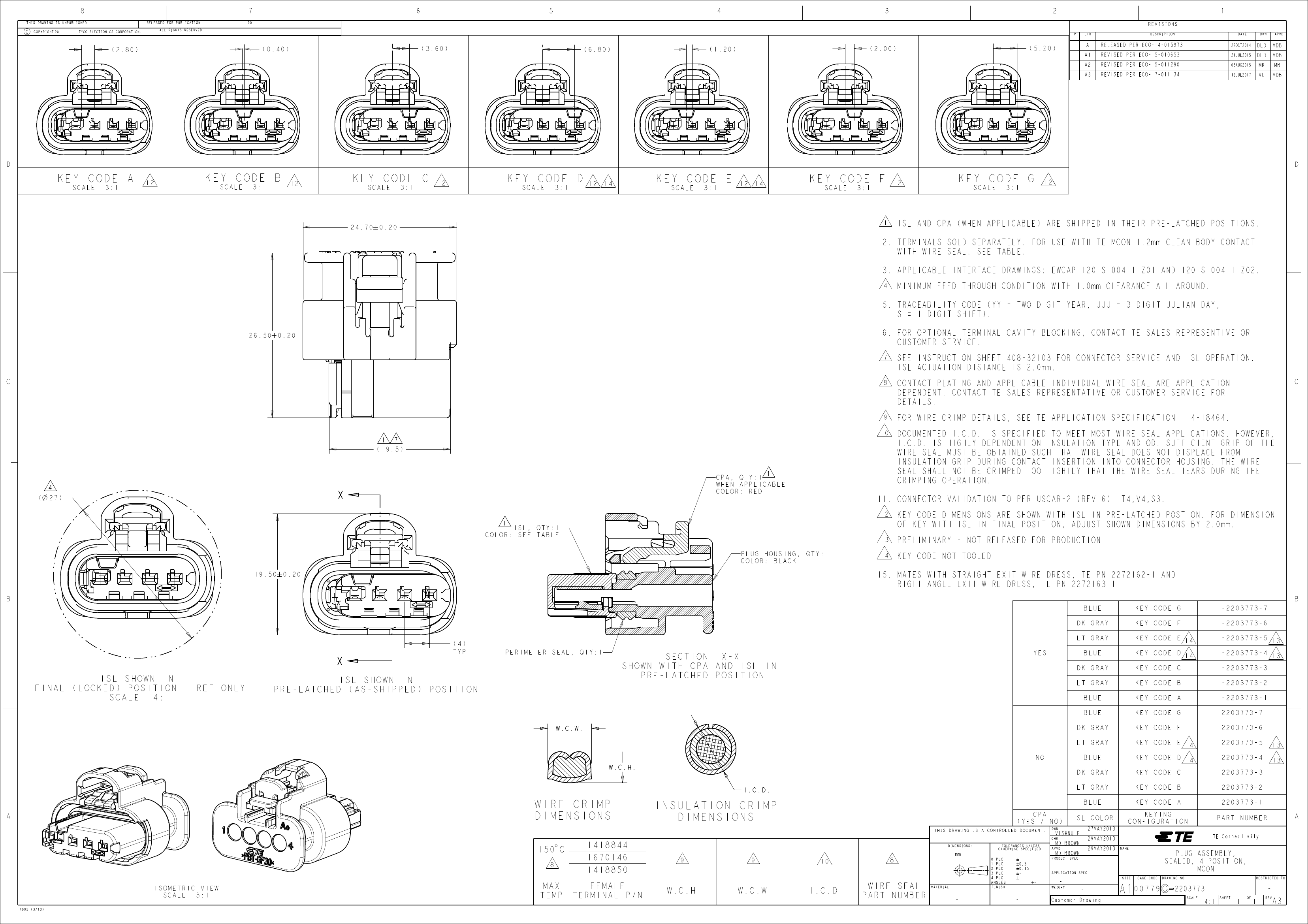

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

TYCO ELECTRONICS CORPORATION.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

( 2.80 )

( 0.40 )

( 3.60 )

( 6.80 )

( 1.20 )

( 2.00 )

( 5.20 )

RELEASED PER ECO-14-015973

REVISED PER ECO-15-010653

REVISED PER ECO-15-011290

REVISED PER ECO-17-011134

22OCT2014

21JUL2015

05AUG2015

12JUL2017

DLD

MDB

KEY CODE A

SCALE

3:1

KEY CODE B

SCALE

3:1

KEY CODE C

SCALE

3:1

KEY CODE D

SCALE

3:1

KEY CODE E

SCALE

3:1

KEY CODE F

SCALE

3:1

KEY CODE G

SCALE

3:1

24.70

0.20

ISL AND CPA (WHEN APPLICABLE) ARE SHIPPED IN THEIR PRE-LATCHED POSITIONS.

2. TERMINALS SOLD SEPARATELY. FOR USE WITH TE MCON 1.2mm CLEAN BODY CONTACT

WITH WIRE SEAL. SEE TABLE.

3. APPLICABLE INTERFACE DRAWINGS: EWCAP 120-S-004-1-Z01 AND 120-S-004-1-Z02.

MINIMUM FEED THROUGH CONDITION WITH 1.0mm CLEARANCE ALL AROUND.

5. TRACEABILITY CODE (YY = TWO DIGIT YEAR, JJJ = 3 DIGIT JULIAN DAY,

S = 1 DIGIT SHIFT).

26.50

0.20

6. FOR OPTIONAL TERMINAL CAVITY BLOCKING, CONTACT TE SALES REPRESENTIVE OR

CUSTOMER SERVICE.

SEE INSTRUCTION SHEET 408-32103 FOR CONNECTOR SERVICE AND ISL OPERATION.

ISL ACTUATION DISTANCE IS 2.0mm.

CONTACT PLATING AND APPLICABLE INDIVIDUAL WIRE SEAL ARE APPLICATION

DEPENDENT. CONTACT TE SALES REPRESENTATIVE OR CUSTOMER SERVICE FOR

DETAILS.

FOR WIRE CRIMP DETAILS, SEE TE APPLICATION SPECIFICATION 114-18464.

DOCUMENTED I.C.D. IS SPECIFIED TO MEET MOST WIRE SEAL APPLICATIONS. HOWEVER,

I.C.D. IS HIGHLY DEPENDENT ON INSULATION TYPE AND OD. SUFFICIENT GRIP OF THE

WIRE SEAL MUST BE OBTAINED SUCH THAT WIRE SEAL DOES NOT DISPLACE FROM

INSULATION GRIP DURING CONTACT INSERTION INTO CONNECTOR HOUSING. THE WIRE

SEAL SHALL NOT BE CRIMPED TOO TIGHTLY THAT THE WIRE SEAL TEARS DURING THE

CRIMPING OPERATION.

( 19.5 )

CPA, QTY:1

WHEN APPLICABLE

COLOR: RED

( n27 )

11. CONNECTOR VALIDATION TO PER USCAR-2 (REV 6) T4,V4,S3.

ISL, QTY:1

COLOR: SEE TABLE

PLUG HOUSING, QTY:1

COLOR: BLACK

19.50

0.20

KEY CODE DIMENSIONS ARE SHOWN WITH ISL IN PRE-LATCHED POSTION. FOR DIMENSION

OF KEY WITH ISL IN FINAL POSITION, ADJUST SHOWN DIMENSIONS BY 2.0mm.

PRELIMINARY - NOT RELEASED FOR PRODUCTION

KEY CODE NOT TOOLED

15. MATES WITH STRAIGHT EXIT WIRE DRESS, TE PN 2272162-1 AND

RIGHT ANGLE EXIT WIRE DRESS, TE PN 2272163-1

BLUE

DK GRAY

(4)

TYP

LT GRAY

PERIMETER SEAL, QTY:1

KEY CODE G

KEY CODE F

KEY CODE E

KEY CODE D

KEY CODE C

KEY CODE B

KEY CODE A

KEY CODE G

KEY CODE F

KEY CODE E

KEY CODE D

KEY CODE C

KEY CODE B

KEY CODE A

KEYING

CONFIGURATION

1-2203773-7

1-2203773-6

1-2203773-5

1-2203773-4

1-2203773-3

1-2203773-2

1-2203773-1

2203773-7

2203773-6

2203773-5

2203773-4

2203773-3

2203773-2

2203773-1

PART NUMBER

TE Connectivity

NAME

ISL SHOWN IN

FINAL (LOCKED) POSITION - REF ONLY

SCALE

4:1

ISL SHOWN IN

PRE-LATCHED (AS-SHIPPED) POSITION

SECTION

X-X

SHOWN WITH CPA AND ISL IN

PRE-LATCHED POSITION

YES

BLUE

DK GRAY

LT GRAY

BLUE

W.C.W.

DK GRAY

LT GRAY

W.C.H.

I.C.D.

BLUE

DK GRAY

LT GRAY

BLUE

CPA

(YES / NO)

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

WIRE CRIMP

DIMENSIONS

150 $ C

ISOMETRIC VIEW

SCALE

3:1

4805 (3/13)

INSULATION CRIMP

DIMENSIONS

ISL COLOR

27MAY2013

29MAY2013

VISHNU.P

MD BROWN

1418844

1670146

1418850

FEMALE

TERMINAL P/N

APVD

MAX

TEMP

W.C.H

W.C.W

I.C.D

WIRE SEAL

PART NUMBER

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.15

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

Customer Drawing

00779

SIZE

CAGE CODE

DRAWING NO

PLUG ASSEMBLY,

SEALED, 4 POSITION,

MCON

2203773

SCALE

RESTRICTED TO

4:1

SHEET

REV

2203773-2 Related Products

	2203773-2	2203773-6	2203773-5	1-2203773-6	RMFS25C4750F-52-T20	2203773-4	1-2203773-5	1-2203773-7	2203773-3	2203773-7
Description	Combination Line Connector	Combination Line Connector	Combination Line Connector	Combination Line Connector	Fixed Resistor, Metal Film, 0.25W, 475ohm, 200V, 1% +/-Tol, 50ppm/Cel, Through Hole Mount, AXIAL LEADED	Combination Line Connector	Combination Line Connector	Combination Line Connector	Combination Line Connector	Combination Line Connector
Objectid	7281858324	7281858328	7281858327	7281858322	145066905854	7281858326	7281858321	7281858323	7281858325	7281858329
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	155 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
body width	0.768 inch	0.768 inch	0.768 inch	0.768 inch	-	0.768 inch	0.768 inch	0.768 inch	0.768 inch	0.768 inch
subject depth	1.043 inch	1.043 inch	1.043 inch	1.043 inch	-	1.043 inch	1.043 inch	1.043 inch	1.043 inch	1.043 inch
body length	0.972 inch	0.972 inch	0.972 inch	0.972 inch	-	0.972 inch	0.972 inch	0.972 inch	0.972 inch	0.972 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	-	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	-	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
empty shell	NO	NO	NO	NO	-	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	-	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	-	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	-	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1	-	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	-	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	4	4	4	4	-	4	4	4	4	4
