MOX3CR20J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> MOX3CR20J

MOX3CR20J: DescriptionRES,AXIAL,METAL FILM,200M OHMS,5% +/-TOL,-200,200PPM TC; CategoryPassive components The resistor; File Size336KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric Compare View All

MOX3CR20J Overview

RES,AXIAL,METAL FILM,200M OHMS,5% +/-TOL,-200,200PPM TC

MOX3CR20J Parametric

Parameter Name	Attribute value
Maker	KOA Speer
package instruction	Axial,
Reach Compliance Code	unknown
Other features	FLAME PROOF
structure	Tubular
JESD-609 code	e2
Lead diameter	0.8 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package diameter	9 mm
Package length	24.5 mm
Package form	Axial
method of packing	BULK
Rated power dissipation(P)	3 W
Rated temperature	70 °C
resistance	0.2 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Copper (Sn/Cu)
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	0.7746 V
Base Number Matches	1

Preview

Download Datasheet

View All

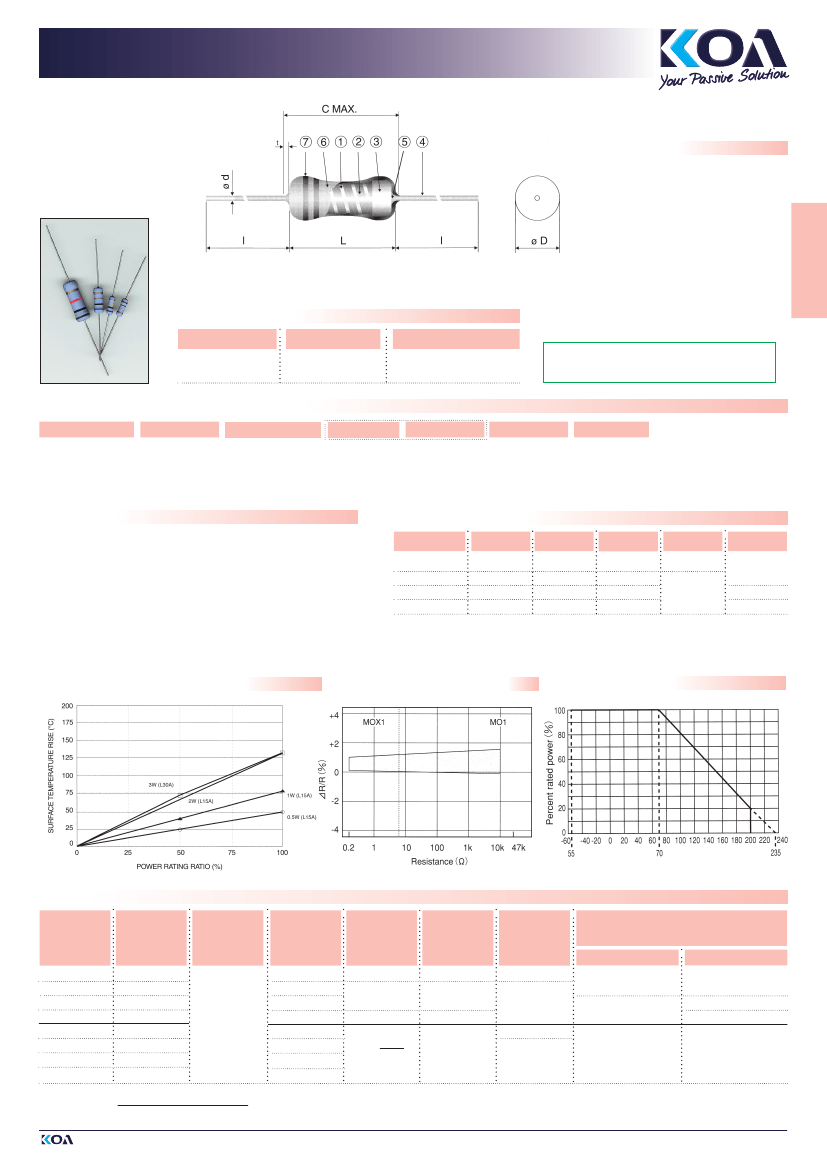

POWER TYPE RESISTORS

METAL OxIDE

STanDaRD

MO • MOX

STRUCTURE

Ceramic core

MO= trimmed metal oxide

MOX= trimmed metal film

Steel cap

(Su, Sn plated)

Lead wire

Welding joint

Flame retardant insulation coating

Marking

IDEnTIFICaTIOn

PRODUCT CODE

MOX

COaTIng COLOR

Blue grey

MaRKIng

Color Code

(R-value and tolerance)

all these products have Pb-free terminations and

meet EU-RoHS and China-RoHS requirements

TYPE DESIgnaTIOn (HOW TO ORDER)

MOX

Contact our sales representatives before you use our products for applications including

automotives, medical equipment and aerospace equipment. Malfunction or failure of the

products in such applications may cause loss of human life or serious damage .

POWER RATING

Unit: Watt

1/2… 3

TERMINATION

SURFACE MATERIAL

C: SnCu

T631

TAPING &

FORMING

PACKAGING

A: Ammo

R: Reel

1R0

NOMINAL

RESISTANCE

3 digits

RESISTANCE

TOLERANCE

G: (±2%)

J: (±5%)

PRODUCT CODE

MOX

request for environmental hazardous

material other than the substance

specified by EU-RoHS

‘Blank‘ = Bulk

*Please see “PACKAGING”

FEaTURES

■

General purpose power type resistors

■

Flame retardant coating (Equivalent to UL94 V-0)

■

Automatic insertion is applicable

■

Various formings are available

■

High reliability for performance

■

MO= metal oxide film

■

MOX= metal film

■

Meets or exceeds IEC 60 115-4, JIS C 5201-4, EIAJ RC-2138

■

Rated ambient temperature: +70°C

■

Operating temperature range: -55°C... +200°C

DIMEnSIOnS (mm)

TYPE

MO(X) 1/2

MO(X) 1

MO(X) 2

MO(X) 3

L±1

9.0

12.0

15.5

24.5

C Max.

11.1

15.0

18.0

28.0

øD

3.2±0.5

4.0±0.5

6.0±1.0

9.0±1.0

ø d (nom.)

0.70

0.80

24 Min.

30±3

38±3

*Lead length changes depending on taping and forming type.

SURFaCE TEMPERaTURE RISE

LOaD LIFE aT 70°C/1000h

DERaTIng CURVE

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order/or use.

Ambient Temperature °(C)

RaTIng

DIn

SIZE

0411

0414

0617

0922

0411

0414

0617

0922

TYPE

MO 1/2

MO 1

MO 2

MO 3

MOX 1/2

MOX 1

MOX 2

MOX 3

T.C.R.

(ppm/K)

POWER

RaTIng*

0.5 W

2 W

3 W

0.5 W

2 W

MaX.

WORKIng

VOLTagE

250V

350V

500V

E= √P x R

MaX.

OVERLOaD

VOLTagE

DIELECTRIC

WITHSTanDIng

VOLTagE

RESISTANCE RANGE • E24

g (±2%)

10Ω...47kΩ

10Ω...100kΩ

5.1Ω...9.1Ω

J (±5%)

10Ω...47kΩ

10Ω...120kΩ

10Ω...150kΩ

0.2Ω...9.1Ω

400V

600V

800V

E x 2.5

400V

500V

400V

500V

±200

* or resistors operated at an ambient temperature of +70°C or above, the power rating shall be derated in accordance with the above derating curve.

Rated voltage = Power rating x resistance value or max. working voltage, whichever is lower.

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

117

Revision: 14. Dec. 2009

POWER TYPE

RESISTORS
