3-147100-1 datasheet, PDF - EEWORLD Datasheet

3-147100-1: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size257KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3-147100-1 Overview

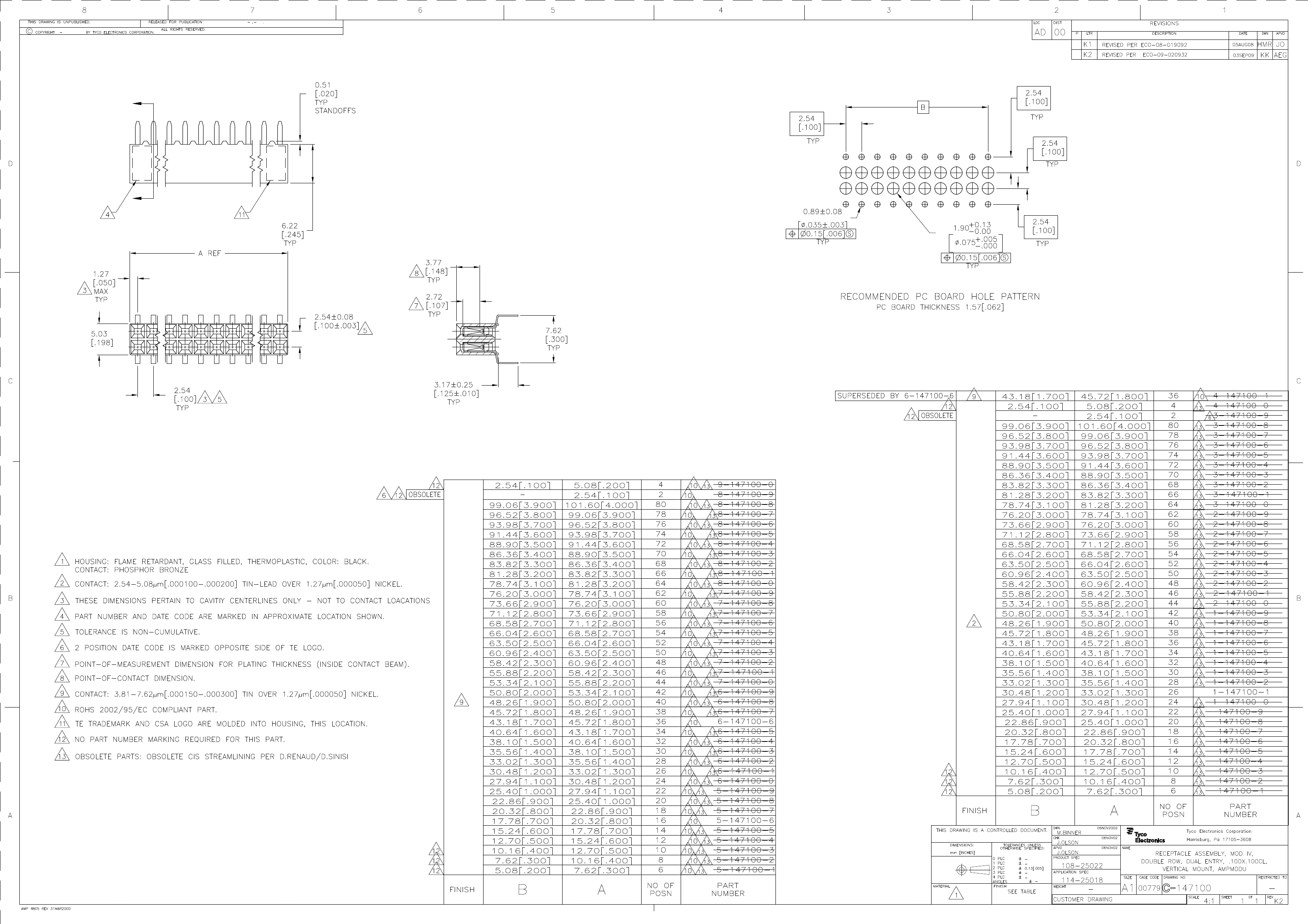

HEADER CONNECTOR,PCB MNT,PLUG,66 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	PCB STANDOFF
body width	0.24 inch
subject depth	0.265 inch
body length	3.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	75 Cycles
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	147100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT BOTTOM MOUNT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	80u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	66
Evacuation force-minimum value	.417 N
Base Number Matches	1
