852-078-02 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 852-078-02

852-078-02: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size205KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

852-078-02 Overview

Connector Accessory

852-078-02 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	852
Base Number Matches	1

Preview

Download Datasheet

View All

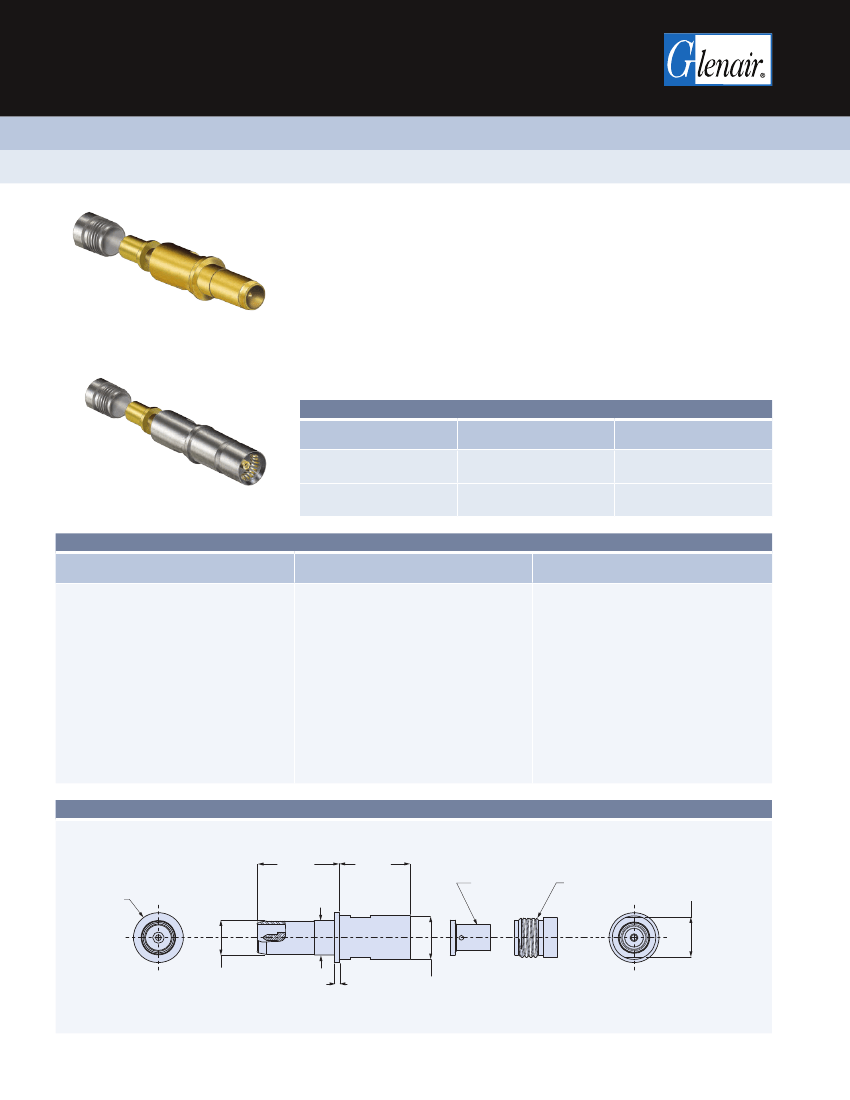

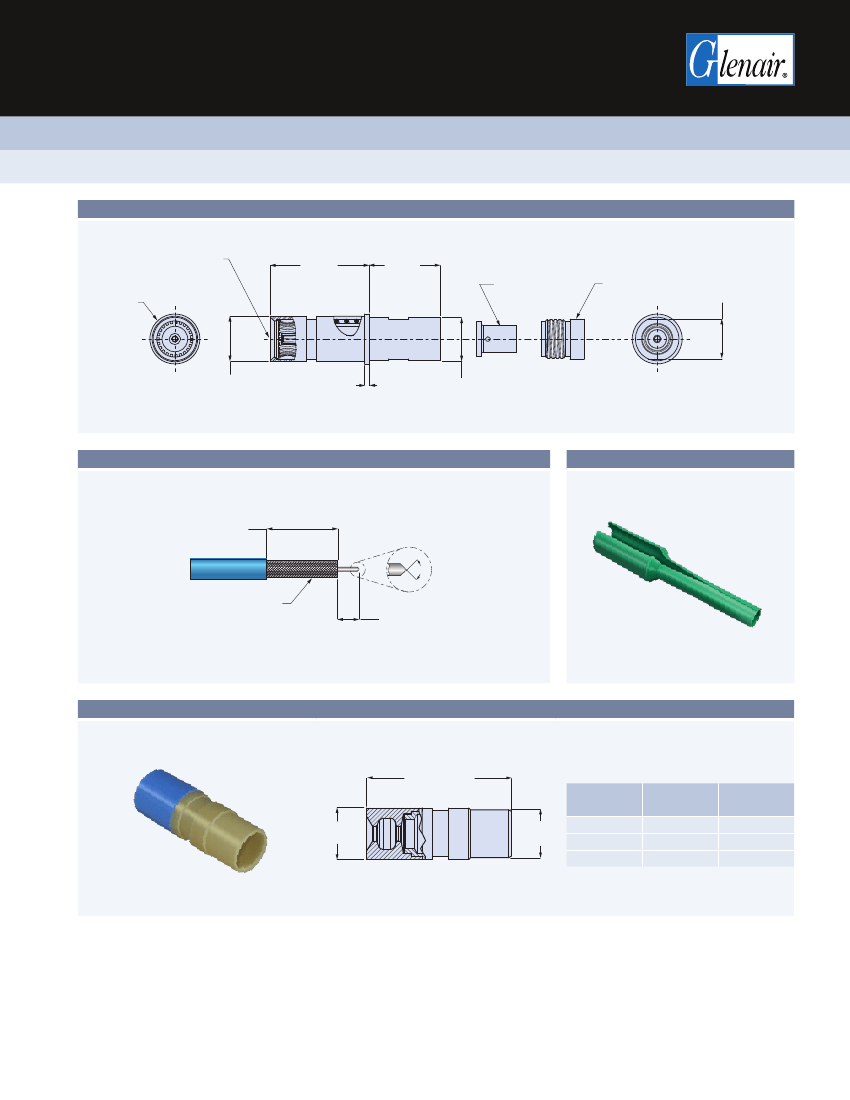

RF, Microwave and Datalink Contacts

for MIL-DTL-38999, SuperNine

, Mighty Mouse and

Micro-Crimp

Connectors

Spring-Loaded Microwave Frequency Coaxial Contacts

Size #8 BMA Contacts for DC – 18 GHz

Size 8 50 ohm microwave BMA coaxial contacts provide mode-free operation from DC to 18

GHz. BMA socket contact features a stainless steel spring mechanism for consistent contact

engagement, and a gold-plated annular interface spring for continuous outer conductor

electrical contact and RFI suppression. Interface conforms to MIL-STD-348 figure 321. Solder

termination. Supplied with cable sealing boot.

Pin Contact

DC – 18 GHz frequency range

50 ohm impedance

Aerospace-grade construction

BMA Interface per MIL-DTD-348

Low VSWR, low insertion loss

Low RF leakage

Accepts RG402-Flex and RG405-Flex

cables

Size 8 50 Ohm BMA Coaxial Contacts for DC – 18 GHz

Cable

RG-405 Flex (.086 inch dia.)

Pin Contact

852-078-01

852-078-02

Socket Contact

852-079-01

852-079-02

Socket Contact

RG-402 Flex (.141 inch dia.)

Technical Data

Specifications

Construction

Connector Compatibility

BMA contacts are compatible with the following

connectors with size #8 contact cavities:

Operating temperature: -55°C. to +125°C.

Dielectric withstanding voltage: 500 Vac

rms

Frequency range: DC – 18 GHz

VSWR: 1.12 + (.005 X Freq GHz)

50 ohm nominal impedance

Insertion loss: 0.05 x √(Freq in GHz)

RF leakage: -(90 – Freq GHz)

Durability: 500 mating cycles

Shock: EIA-364-27 condition D

Vibration: EIA-364-28 condition VI, letter J

Center contact, solder sleeve:

copper alloy,

50 microinches gold over nickel plating

Insulators:

PTFE per ASTM D-1710

Pin contact body:

copper alloy, 50

microinches gold over nickel plating

Socket contact body:

303 stainless steel,

passivated

Retaining nut:

303 stainless steel,

passivated

Spring:

stainless steel, passivated

Interface spring:

beryllium copper, 50

microinches gold over nickel plating

Sealing Boot:

fluorosilicone rubber, glass-

filled PEI

MIL-DTL-38999 Series I, III and IV

Glenair Series 23 SuperNine®

Glenair Series 80 Mighty Mouse

Pin Contact 852-078

.390

(9.91)

Ø.314

(7.98)

Ø.217

(5.51)

.445

(11.30)

SOLDER

SLEEVE

RETAINING

NUT

Ø.250 (6.35)

ACROSS

FLAT

Ø.210

(5.33)

.033/.029

(0.84/0.74)

Ø.274

(6.96)

Dimensions in Inches (millimeters) are subject to change without notice.

852-078-02 Related Products

	852-078-02	852-078-01	852-079-02	852-079-01
Description	Connector Accessory	Connector Accessory	Connector Accessory	Connector Accessory
Maker	Glenair	Glenair	Glenair	Glenair
Reach Compliance Code	compliant	unknown	compliant	compliant
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Base Number Matches	1	1	1	1
Manufacturer's serial number	852	-	852	852
