SM555-2001-007

Description
Single Color LED Array, Deep Red, Diffused, T-3/4, 2mm, 14 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size393KB，1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric View All

SM555-2001-007 Overview

Single Color LED Array, Deep Red, Diffused, T-3/4, 2mm, 14 PIN

SM555-2001-007 Parametric

Parameter NameAttribute value
MakerLEDtronics
package instruction14 PIN
Reach Compliance Codeunknown
colorDEEP RED
ConfigurationSEPARATE, 7 ELEMENTS
Maximum forward current0.01 A
Lens typeDIFFUSED
Nominal luminous intensity3.2 mcd
Installation featuresSURFACE MOUNT
Number of functions7
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesSINGLE COLOR LED ARRAY
total height6.3 mm
method of packingBULK
peak wavelength655 nm
shapeROUND
size2 mm
surface mountYES
T codeT-3/4
Terminal pitch3.9 mm
Base Number Matches1

Preview

Download Datasheet

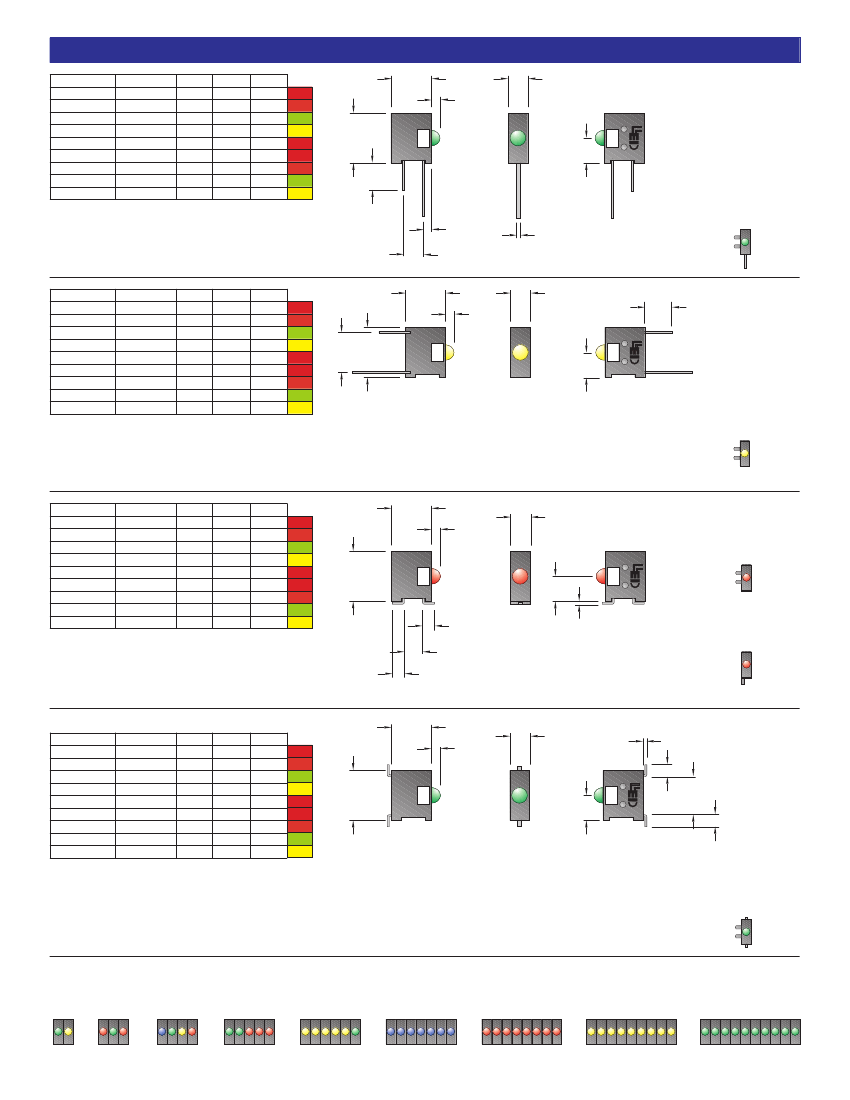

SINGLE LEVEL T
3/4
[2mm] LEDs
PART NO.
555M-2001
555M-2101
555M-2301
555M-2401
555M-2003
555M-2004
555M-2007
555M-2303
555M-2403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.200
[5.1]
.045
[1.2]
.100
[2.6]
*
*
*
*
*
+
.250
[6.4]
.140 MIN
[3.6]
.125
[3.2]
Options
-SI
SNAP IN
NOTES:
SCALE 2=1
HOUSING MATERIAL IS NYLON 66 (UL 94V-0)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
.040
[1.0]
.100
[2.6]
.027
[0.7]
*
PART NO.
555M-3001
555M-3101
555M-3301
555M-3401
555M-3003
555M-3004
555M-3007
555M-3303
555M-3403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.200
[5.1]
.045
[1.2]
.100
[2.6]
.140 MIN
[3.6]
*
*
*
*
*
.250
[6.4]
+
.125
[3.2]
.200
[5.1]
Options
-SI
SNAP IN
NOTES:
SCALE 2=1
HOUSING MATERIAL IS NYLON 66 (UL 94V-0)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
*
PART NO.
SM555-2001
SM555-2101
SM555-2301
SM555-2401
SM555-2003
SM555-2004
SM555-2007
SM555-2303
SM555-2403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.200
[5.1]
.045
[1.2]
.100
[2.6]
Options
-SI
SNAP IN
*
*
*
*
*
+
.250
[6.4]
.060
[1.6]
.090
[2.3]
.060
[1.6]
.028 SQ x .060 TAB
.125
[3.2]
.020
[0.5]
-P
LOCATING PIN
NOTES:
SCALE 2=1
HOUSING MATERIAL IS RYNITE (UL 94HB)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
*
.200
[5.1]
PART NO.
SM555-3001
SM555-3101
SM555-3301
SM555-3401
SM555-3003
SM555-3004
SM555-3007
SM555-3303
SM555-3403
COLOR
DEEP RED
HI-EFF RED
GREEN
YELLOW
â
DEEP RED
DEEP RED
HI-EFF RED
GREEN
YELLOW
mA
10
10
10
10
6
16
3
5
5
Vf
1.6/2.0
1.8/3.0
2.0/3.0
2.0/3.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
5.0/6.0
Iv mcd
1.3/3.2
1.0/3.0
1.0/3.0
1.0/3.0
0.6/1.2
1.0/3.0
0.8/2.0
0.2/0.5
0.3/0.6
.045
[1.2]
.100
[2.6]
.020
[0.5]
.190
[4.8]
*
*
*
*
*
+
.250
[6.4]
.125
[3.2]
.060
[1.6]
.060
[1.6]
NOTES:
SCALE 2=1
HOUSING MATERIAL IS RYNITE (UL 94HB)
ALL "Vf" READINGS ARE TYP/MAX
ALL "mcd" READINGS ARE MIN/TYP
" " DENOTES LED WITH INTEGRATED RESISTOR
Options
-SI
SNAP IN
*
LEADS ARE CUT TO .140 ON ALL ARRAYS
FOR "555M" SERIES
Arrays
-005
-006
-007
-008
-009
-010
-002
-003
-004
LEDTRONICS, INC.
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
1
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
