FTMH-119-03-LM-DV datasheet, PDF

Datasheet> All Categories > The connector> The connector> FTMH-119-03-LM-DV

FTMH-119-03-LM-DV: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size300KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

FTMH-119-03-LM-DV Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

FTMH-119-03-LM-DV Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FTMH
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	38
Base Number Matches	1

Preview

Download Datasheet

View All

REVISION BA

No OF POS PER ROW

-02 THRU -50

TABLE 1

LEAD STYLE

"A"

-02

.075 [1.91]

-03

.065 [1.65]

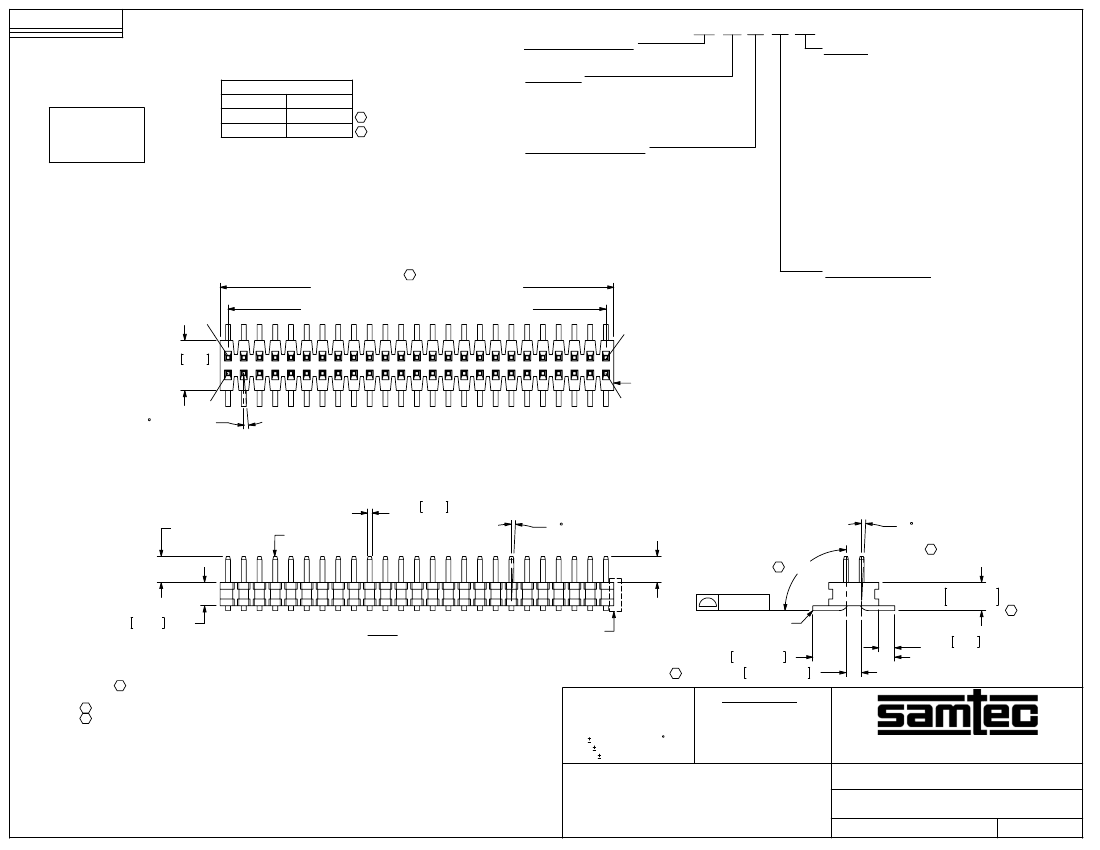

FTMH-1XX-XX-XX-DV-XX

LEAD STYLE

-02: .075 [1.91]

(USE T-1S16-03-XX-2)

-03: .065 [1.65]

(USE T-1S16-03-XX-2)

PLATING SPECIFICATION

-L: 10µ" LIGHT SELECTIVE GOLD IN

CONTACT AREA, MATTE TIN ON TAIL

-F: 3µ" FLASH SELECTIVE GOLD IN

CONTACT AREA, MATTE TIN ON TAIL

-H: 30µ" HEAVY GOLD IN CONTACT

AREA, 3µ" FLASH GOLD ON TAIL

-G: 10µ" GOLD IN CONTACT AREA,

3µ" FLASH GOLD ON TAIL

-LM: 10µ" LIGHT SELECTIVE GOLD IN

CONTACT AREA, MATTE TIN ON TAIL

-FM: 3µ" FLASH SELECTIVE GOLD IN

CONTACT AREA, MATTE TIN ON TAIL

OPTIONS

-P: PICK & PLACE PAD (USE PPP-30)

(USE PPP-30-NT FOR TAPE & REEL)

(SEE FIG 3, SHT 4; 6 POS MIN)

-TR: TAPE & REEL PACKAGING

-ES: SNAP ON END SHROUDS

(SEE FIG 2, SHT 2; 9 POS MIN)

MOLD TO POSITION END SHROUDS

(5 POS MIN; SEE FIG 2, SHT 2)

(SAMTEC DISCRETION ON WHICH END SHROUDS

ARE USED FOR POSITIONS -09 AND GREATER)

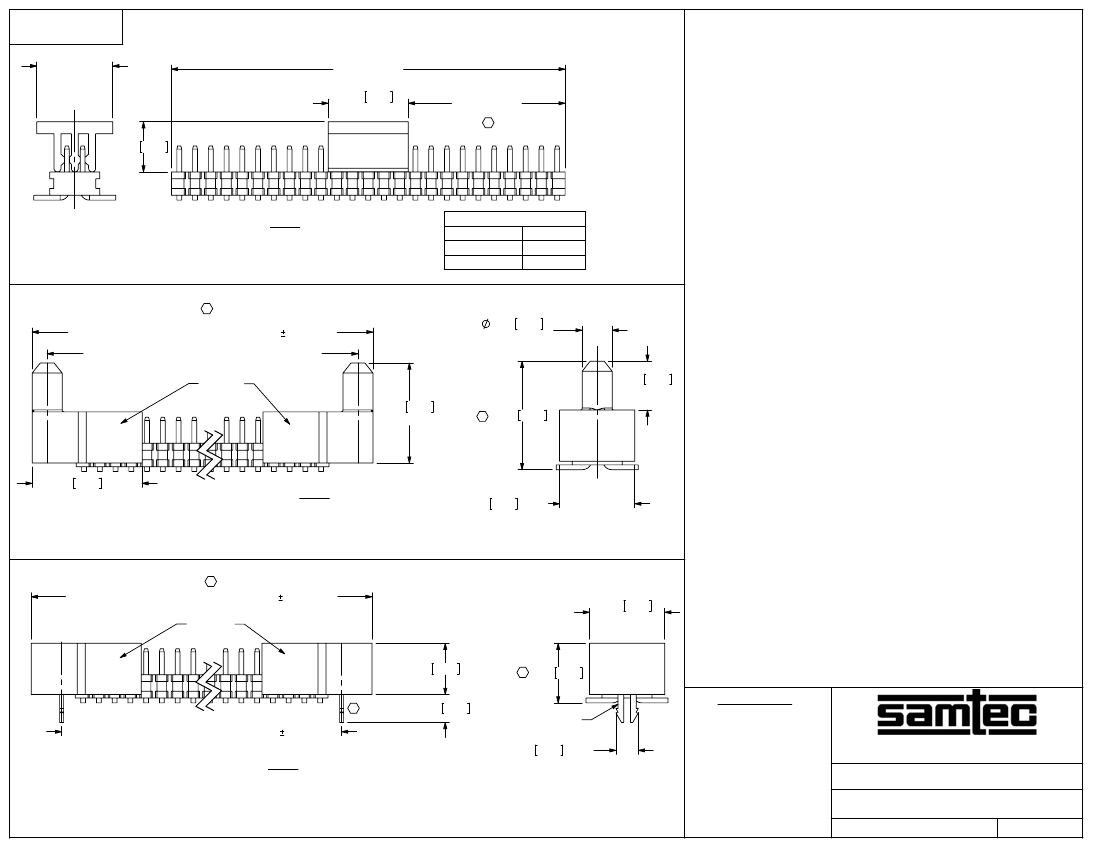

-EP: GUIDE POST (SEE FIG 4, SHT 4; 9 POS MIN)

(USE ONLY WHEN MATING WITH A CLM)

-EC: LOCKING CLIP (SEE FIG 5, SHT 4)

(SEE NOTE 9; 9 POS MIN)

-A: ALIGNMENT PIN (SEE FIG 6 & 7, SHT 5)

(SAMTEC DISCRETION ON WHICH -A PIN IS USED)

(MOLDED: 3 POS MIN, USE FTMH-75-D-XX)

(STAKED: 7 POS MIN, USE FTMH-60-D)

ROW SPECIFICATION

-DV: DOUBLE ROW VERTICAL

(USE FTMH-75-D)

DO NOT

SCALE FROM

THIS PRINT

No OF POS x .03937[1.0000] ±.010[±.25]

.125 3.18

REF

2 MAX SWAY

(EITHER DIRECTION)

No OF POS X .03937[1.0000]-.03937[1.0000]

FTMH-75-D

CONTACT AREA

(SEE NOTE 8)

.012 0.30 SQ

REF

T-1S16-03-XX-2

2 MAX SWAY

(EITHER DIRECTION)

"A"

(SEE TABLE 1)

.004[.10]

2 MAX SWAY

(EITHER DIRECTION)

90°±3°

.0705

- .000

1.791

+.005

+0.13

0.00

(SEE NOTE 6)

.0585 1.486 REF

FTMH-125-03-X-DV SHOWN

NOTES:

REPRESENTS CRITICAL DIMENSION.

MIN PUSHOUT FORCE: 1.0 LB = 16 OZ.

MAX BURR: .003 [.08].

MAX CUT FLASH: .010 [.25].

POSITIONS -02 THRU -04 TO BE LAYER PACKAGED.

MEASURED AT BEND RADIUS.

SHEAR TAILS TO DIMENSION SHOWN.

FOR SELECTIVE PLATING OPTIONS, GOLD PLATING TO

BE ON POST, TIN PLATING TO BE ON TAIL.

9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -EC OPTION

IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS

MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -EC OPTION.

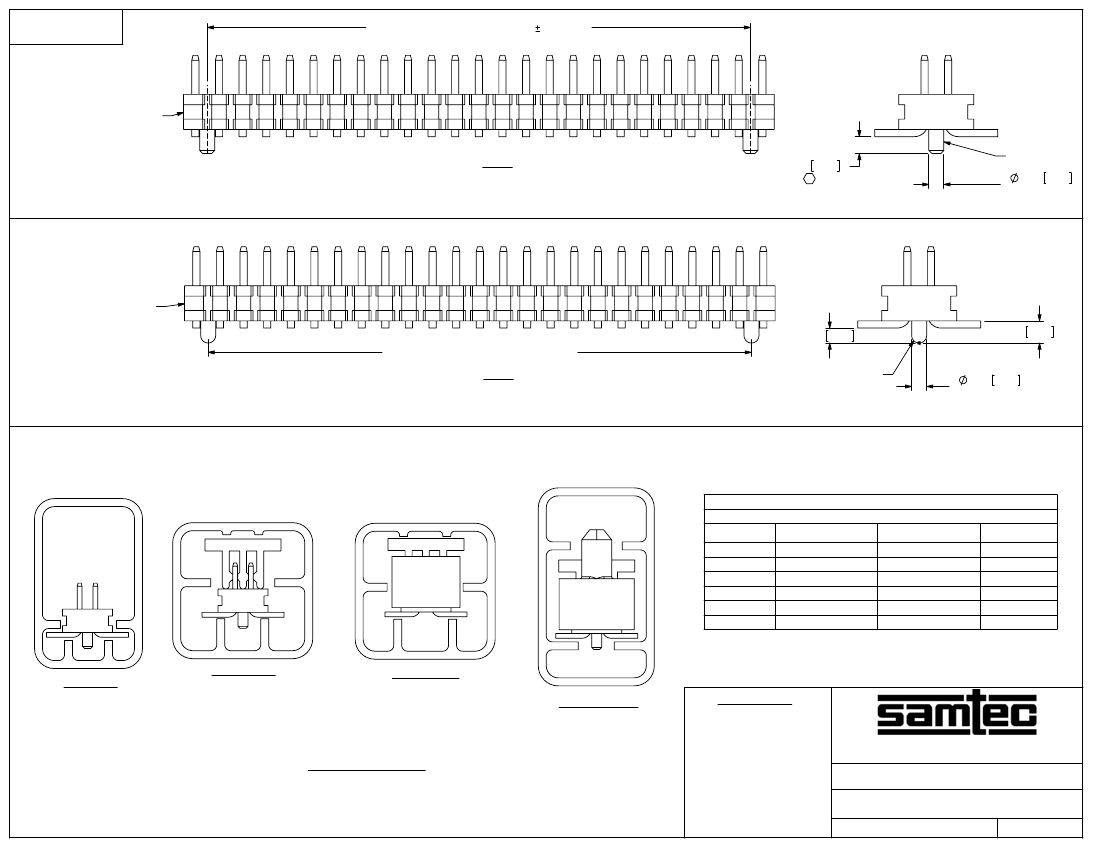

FIG 1

SEE NOTE 4

(2 PLCS)

SEE NOTE 3

.205±.008 5.21±0.20

.03937±.004 1.0000±0.10

.040 1.02 REF

(SEE NOTE 7)

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01[.3]

.XXX: .005[.13]

.XXXX: .0010[.025]

MATERIAL

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 5:1

INSULATOR:

BLACK, LCP, UL-94-V-0

TERMINAL:

PHOSPHOR BRONZE

F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW

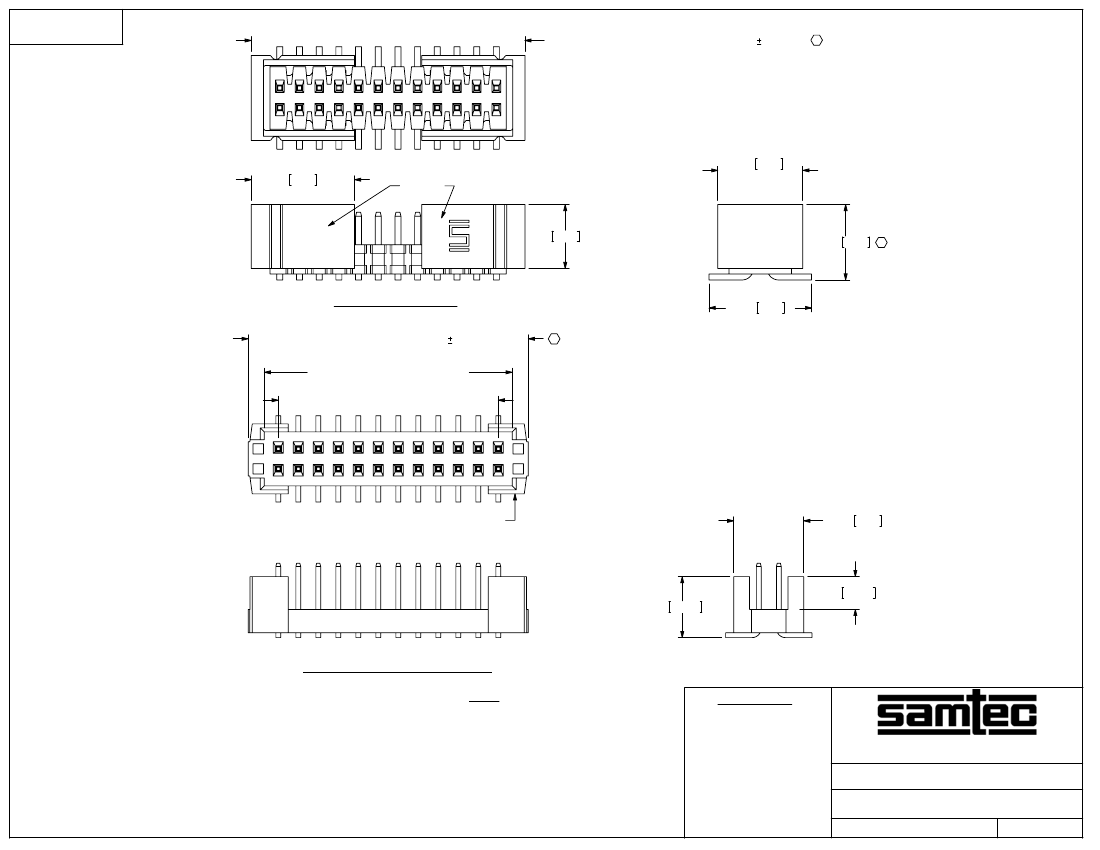

1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP

BY:

PURVIS

FTMH-1XX-XX-XX-DV-XX

04-22-96

SHEET
