5962-9221206M2A datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-9221206M2A

5962-9221206M2A: DescriptionD Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CQCC20, LCC-20; Categorylogic logic; File Size157KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

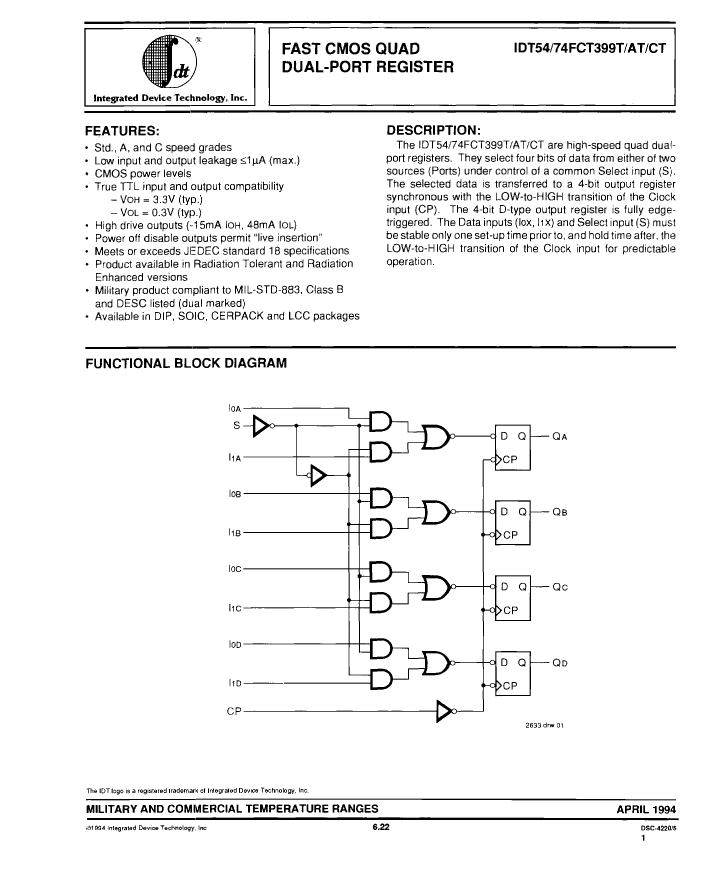

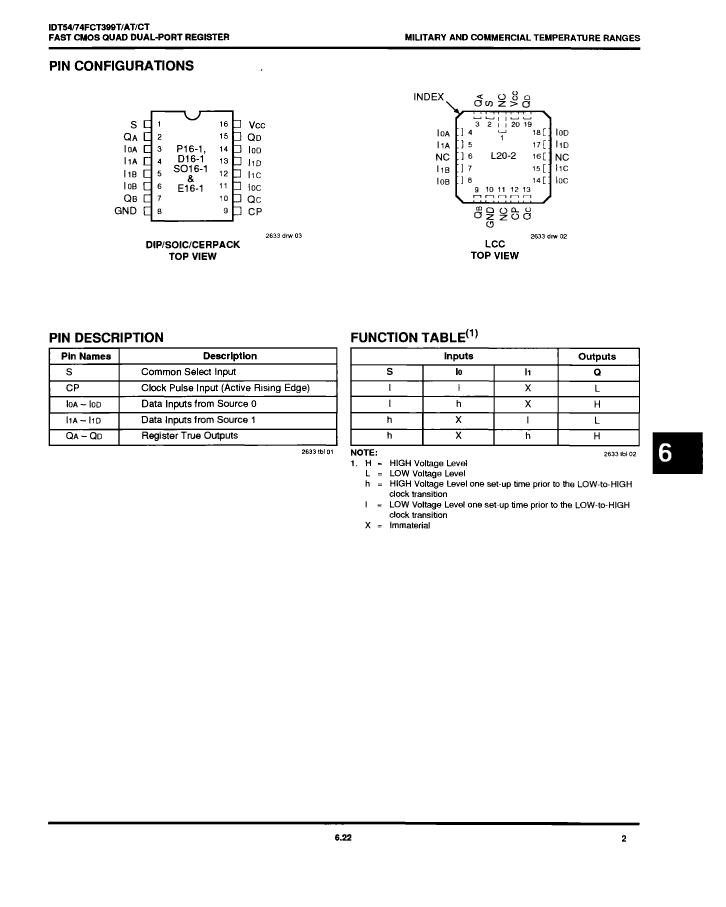

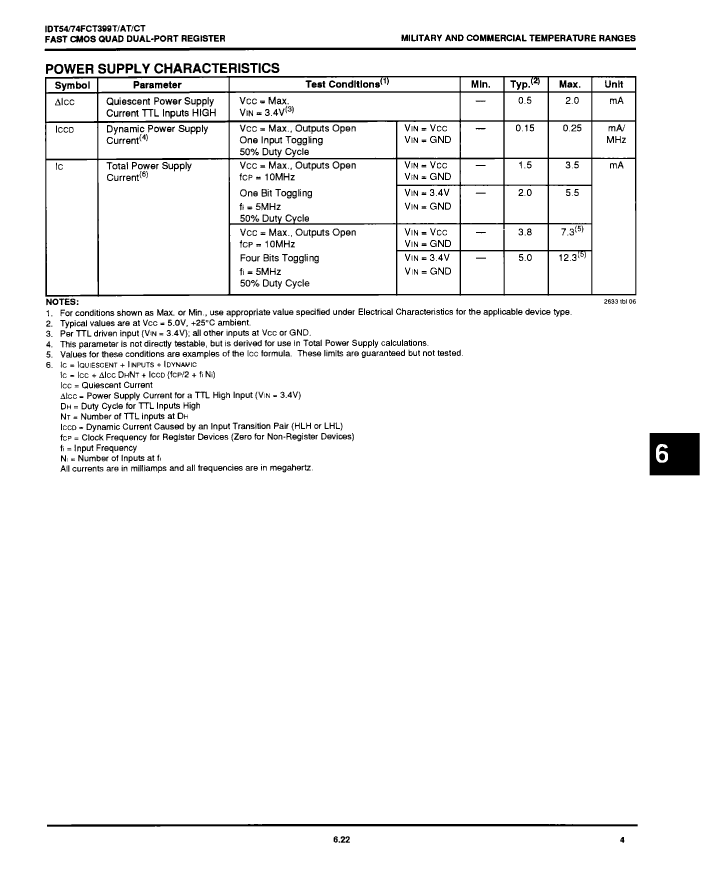

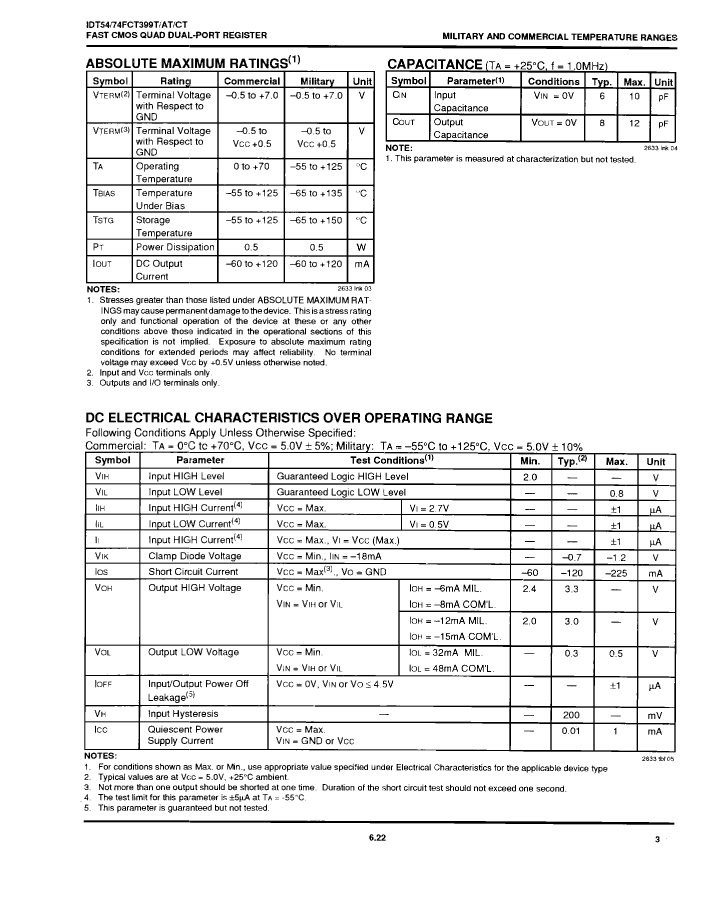

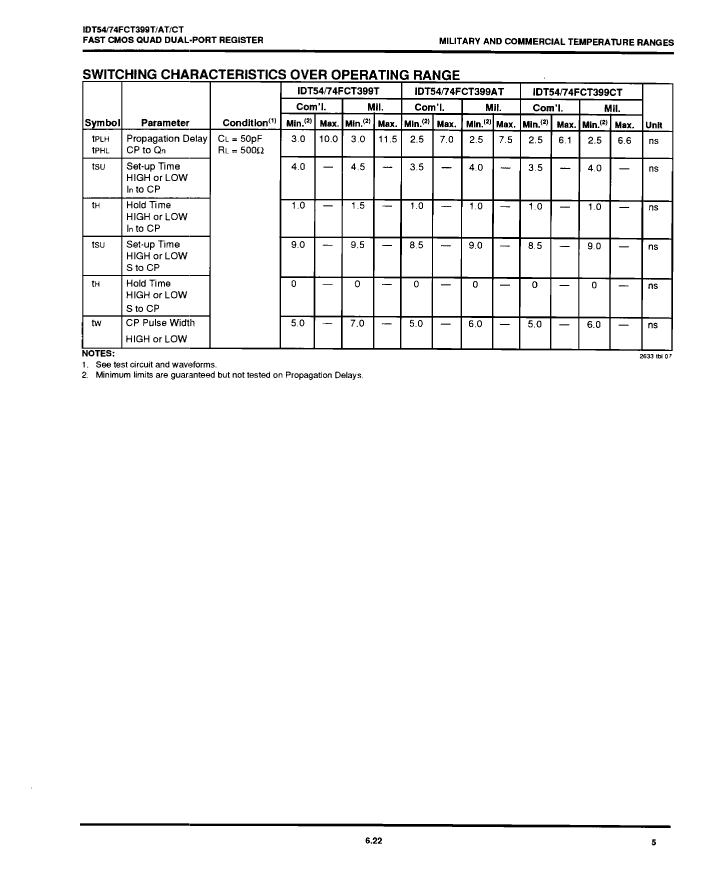

5962-9221206M2A Overview

D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CQCC20, LCC-20

5962-9221206M2A Parametric

Parameter Name	Attribute value
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	FCT
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
propagation delay (tpd)	6.6 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
width	8.89 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9221206M2A Related Products

	5962-9221206M2A	5962-9221204M2A	5962-9221206MEA	5962-9221202M2A	5962-9221204MFA	5962-9221202MEA	5962-9221204MEA	5962-9221206MFA	5962-9221202MFA
Description	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CQCC20, LCC-20	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CQCC20, LCC-20	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CDIP16, CERDIP-16	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CQCC20, LCC-20	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CDFP16, CERPACK-16	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CDIP16, CERDIP-16	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CDIP16, CERDIP-16	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CDFP16, CERPACK-16	D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 4-Bit, True Output, CMOS, CDFP16, CERPACK-16
Parts packaging code	QLCC	QLCC	DIP	QLCC	DFP	DIP	DIP	DFP	DFP
package instruction	QCCN,	QCCN,	DIP,	QCCN,	DFP,	DIP,	DIP,	DFP,	DFP,
Contacts	20	20	16	20	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER	FOUR 2:1 MUX FOLLOWED BY REGISTER
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	S-CQCC-N20	S-CQCC-N20	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16	R-GDIP-T16	R-GDFP-F16	R-GDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	8.89 mm	8.89 mm	20.066 mm	8.89 mm	10.16 mm	20.066 mm	20.066 mm	10.16 mm	10.16 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	16	20	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	QCCN	DIP	QCCN	DFP	DIP	DIP	DFP	DFP
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	FLATPACK	FLATPACK
propagation delay (tpd)	6.6 ns	7.5 ns	6.6 ns	11.5 ns	7.5 ns	11.5 ns	7.5 ns	6.6 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	2.54 mm	2.54 mm	5.08 mm	2.54 mm	2.159 mm	5.08 mm	5.08 mm	2.159 mm	2.159 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	8.89 mm	8.89 mm	7.62 mm	8.89 mm	6.731 mm	7.62 mm	7.62 mm	6.731 mm	6.731 mm
Base Number Matches	1	1	1	1	1	1	1	1	-
