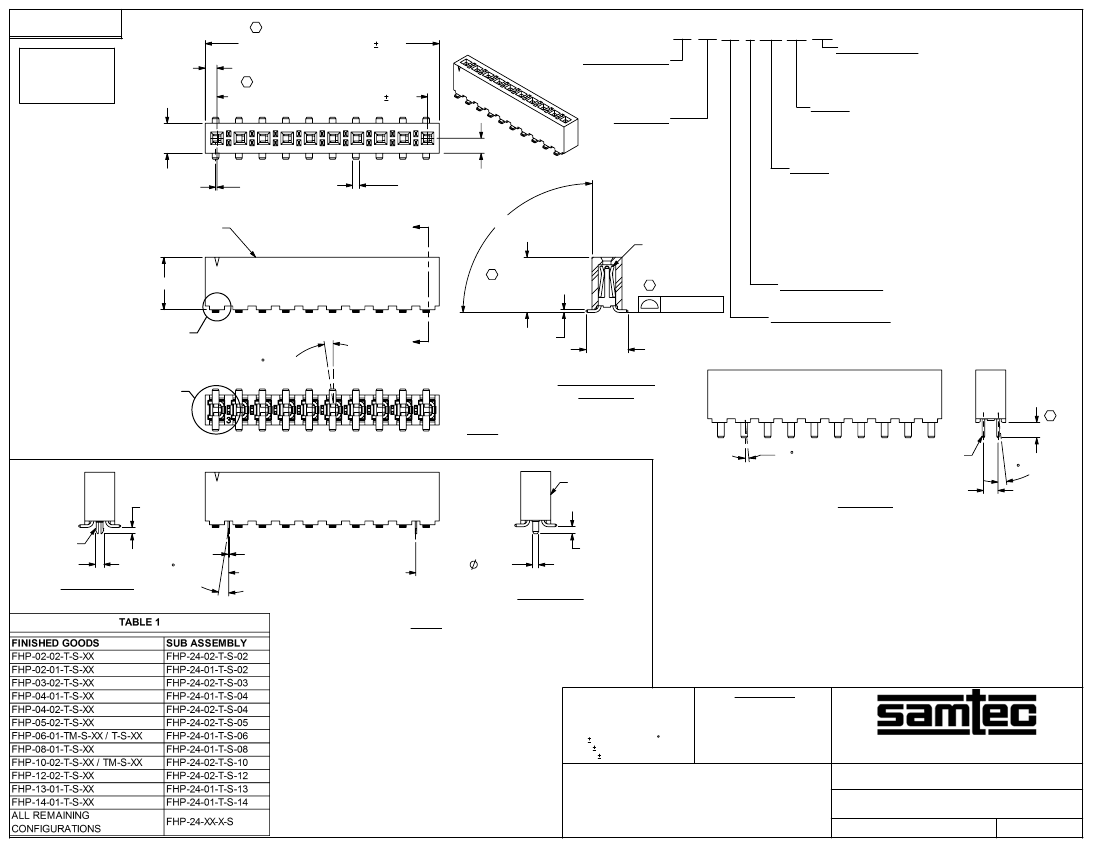

REVISION AJ
DO NOT
SCALE FROM
THIS PRINT
.078±.010
C
C
(No OF POSITIONS x .156) .010
FHP-XX-XX-XX-S-XX-XX-XX
No OF POSITIONS
-02 THRU -24
(PER ROW)
[SEE POSITIONAL FILL VIEW]
LEAD STYLE
-01: THROUGH HOLE
(USE C-130-03-X)
-02: SURFACE MOUNT
(USE C-130-04-X)
(No OF POSITIONS -1) X .156) .003
.200 (REF)
01
02
.009 REF
FHPR-XX-S
.045 REF
.100 REF
*POLARIZATION
-02 THRU -06, -08, -10, -12, -13 & -14
(SEE TABLE 1 FOR AVAILABLE COMBINATIONS)
(SEE SHT 3, IN-PROCESS 1 POLARIZED FILL)
(SEE NOTE 12)
OPTION
-TR: TAPE & REEL PACKAGING
(T&R AVAILABLE FOR 2 THRU 18 POS)
(SEE NOTES 6 & 10)
* = INTERNAL USE ONLY
NOT FOR SALE
90°
C-130-04-X
"A"
.350 REF
C
.368
- .002
(SEE NOTE 9)
+.004
OPTION
-LC: LOCKING CLIP (USE LC-05-TM)
(-02 LEAD STYLE ONLY, SEE NOTE 11)
-A: ALIGNMENT PIN (USE FHPR-XX-S-A)
(SEE FIG 2)(-02 LEAD STYLE ONLY)
-K: POLYIMIDE FILM PAD
(SEE FIG 3, SHT. 2)(USE K-DOT-.256-.375-.005)
(-02 LEAD STYLE ONLY)
( AVAILABLE ON POSITIONS 2-24,
2-4 POSITIONS MUST BE IN -TR)
ROW SPECIFICATION
-S: SINGLE (USE FHPR-XX-S)
PLATING SPECIFICATION
-T: MATTE TIN CONTACT AND TAIL (USE C-130-XX-T)
-TM: MATTE TIN CONTACT AND TAIL (USE C-130-XX-T)
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL (USE C-130-XX-H)
C
SEE NOTE 2
'B'
3 MAX SWAY
"A"
.018 REF
.280 REF
'A'
SECTION "A"-"A"
STYLE -02
FIG 1
[FHP-10-02-X-S SHOWN]
FHPR-XX-S-A
3 MAX SWAY
ALL LEADS TO BE IN THE
SAME DIRECTION
(EITHER DIRECTION)
C-130-03-X
.097 REF
C
.102±.003
2 MAX TOE
.042
LC-05-TM
.056 REF
NOTES:
STYLE -01
-LC OPTION
2 MAX
SWAY
.010 REF
(No OF POSITIONS x .156) -.312
.0470
.0400
-A OPTION
-LC & -A OPTIONS
[-LC & -A OPTIONS ONLY AVAILABLE ON -02 LEAD STYLE]
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 2
1.
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY TO BE WITHIN .006".
3. BURR ALLOWANCE: .0015 MAX.
4. MAXIMUM CUT FLASH: .020.
5. MINIMUM PUSHOUT FORCE: 1.0 LB.
6. LAYER PACKAGE STYLE -01 & -02, POSITIONS 02 - 04 WITH NO OPTIONS ONLY.
7. OPEN PART OF CONTACT FILLED TOWARDS #1 PIN INDICATOR
8. MINIMUM WALL THICKNESS TO BE .010".
9. MEASURED @ BEND.
10. TUBE PACKAGING AVAILABLE FOR 5 THRU 24 POSITIONS.
11. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDSMANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE –LC OPTION.
12. POLARIZATION NUMBER INDICATES THE AMOUNT OF LIVE CONTACTS IN THE
CONNECTOR.
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
MATERIAL: VECTRA E130i
COLOR: BLACK
CONTACT: BeCu, 174HT
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
.156 HI POWER SOCKET ASSEMBLY
03/01/99
SHEET
1
OF
3
DWG. NO.
FHP-XX-XX-XX-S-XX-XX-XX
F:\DWG\MISC\MKTG\FHP-XX-XX-XX-S-XX-XX-XX-MKT.SLDDRW
BY:
BRATCHER
REVISION AJ
"M"
"P"

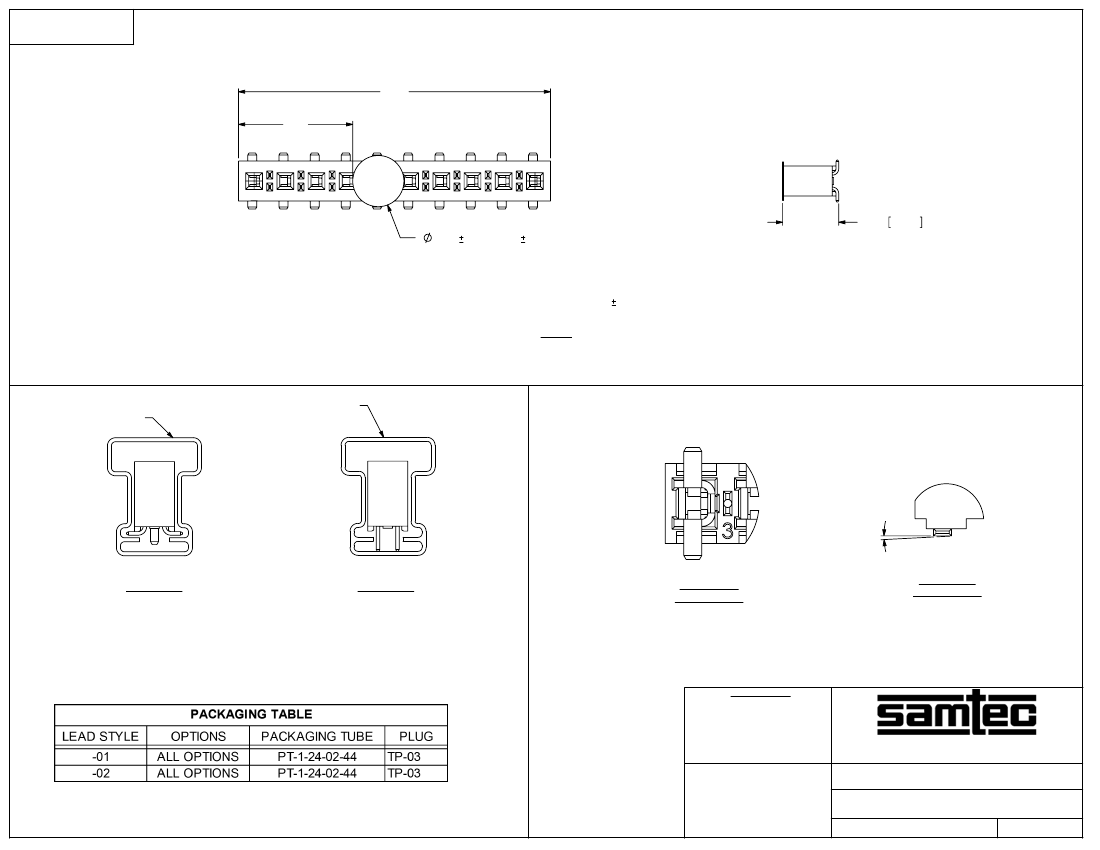

.374 9.500
.256 .010 [6.500 .25]
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .256 [6.50]) / 2} .020 [.51]
FIG 3
-K: POLYIMIDE FILM PAD OPTION
(SHOWN: FHP-10-02-X-S-K)
PT-1-24-02-44
PT-1-24-02-44
3° MAX TWIST
STYLE -02
(WITH ALIGNMENT PIN)
STYLE -01
DETAIL 'A'
SCALE 4 : 1
(SHOWN FOR
CONTACT ORIENTATION)
DETAIL 'B'
SCALE 4 : 1
(TUBE PACKAGING AVAILABLE FOR 5 THRU 24 POS)
(TUBE PACKAGE THE PARTS WITH #1 PIN TOWARDS ARROW)
F:\DWG\MISC\MKTG\FHP-XX-XX-XX-S-XX-XX-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
.156 HI POWER SOCKET ASSEMBLY
03/01/99
SHEET
2
OF
3
BY:
BRATCHER
FHP-XX-XX-XX-S-XX-XX-XX
REVISION AJ
= DENOTES EMPTY POSITION
-02 POLARIZATION
(8 FINISHED GOODS)
FHP-24-02-XX-S-02 SHOWN
POLARIZED OPTION
IN-PROCESS 1
FILL C-130-XX-X
STANDARD FILL
FINISHED PART
-03 POLARIZATION
(6 FINISHED GOODS)
FHP-24-02-XX-S-03 SHOWN
4 POSITION SHOWN
[PRIOR TO CUT-TO-POSITION OPERATION]
-04 POLARIZATION
(5 FINISHED GOODS)
FHP-24-02-XX-S-04 SHOWN
-12 POLARIZATION
(1 FINISHED GOODS)
FHP-24-02-XX-S-12 SHOWN
-05 POLARIZATION
(4 FINISHED GOODS)
FHP-24-02-XX-S-05 SHOWN
-13 POLARIZATION
(1 FINISHED GOODS)
FHP-24-01-XX-S-13 SHOWN
-06 POLARIZATION
(3 FINISHED GOODS)
FHP-24-01-XX-S-06 SHOWN
-14 POLARIZATION
(1 FINISHED GOODS)
FHP-24-01-XX-S-14 SHOWN
-08 POLARIZATION
(2 FINISHED GOODS)
FHP-24-01-XX-S-08 SHOWN
-10 POLARIZATION
(2 FINISHED GOODS)
FHP-24-02-XX-S-10 SHOWN
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.25:1
.156 HI POWER SOCKET ASSEMBLY
BY:
BRATCHER
FHP-XX-XX-XX-S-XX-XX-XX
03/01/99
SHEET
3
OF
3
