251-065-1022G datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 251-065-1022G

Preview

251-065-1022G: DescriptionRF SMA Connector, Female, Panel Mount, Receptacle; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

251-065-1022G Overview

RF SMA Connector, Female, Panel Mount, Receptacle

251-065-1022G Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	251
Installation method	STRAIGHT
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Base Number Matches	1

Preview

Download Datasheet

View All

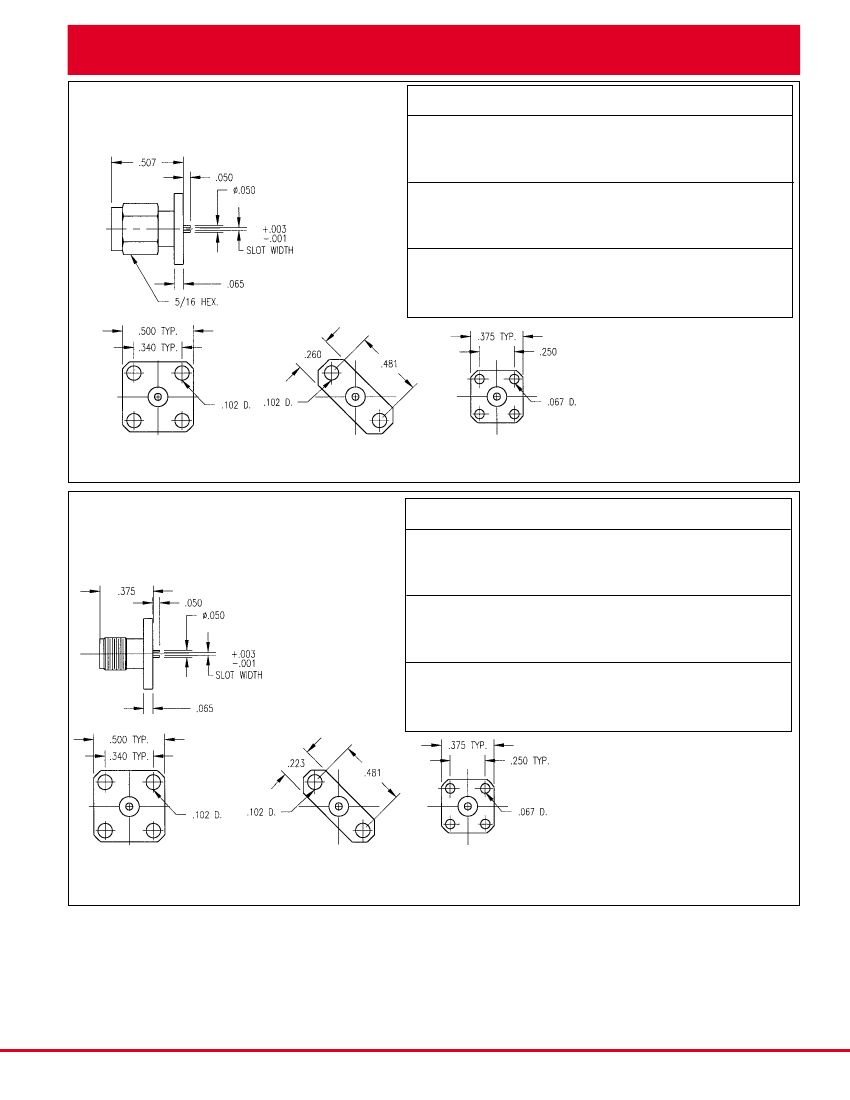

SMA STAINLESS STEEL:

Straight Plug

Flange Mount

Flange Mount Receptacles

Part Number

250-065-1022G

250-065-1023G

250-065-1024G

250-065-1025G

250-055-1022G

250-055-1023G

250-055-1024G

250-055-1025G

250-066-1022G

250-066-1023G

250-066-1024G

250-066-1025G

Mounting Hole Figure Slot Width

No. 065

No. 055

No. 066

1

3

2

.012

.018

.028

.036

.012

.018

.028

.036

.012

.018

.028

.036

Part Number

250-065-0022G

250-065-0023G

250-065-0024G

250-065-0025G

250-055-0022G

250-055-0023G

250-055-0024G

250-055-0025G

250-066-0022G

250-066-0023G

250-066-0024G

250-066-0025G

(Captivated Contact) (Non-Captivated)

Figure 2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 3

Figure 1

Straight Jack

Flange Mount

Part Number

251-065-0022G

251-065-0023G

251-065-0024G

251-065-0025G

251-055-0022G

251-055-0023G

251-055-0024G

251-055-0025G

251-066-0022G

251-066-0023G

251-066-0024G

251-066-0025G

Part Number

251-065-1021G

251-065-1022G

251-065-1023G

251-065-1024G

251-055-1021G

251-055-1022G

251-055-1023G

251-055-1024G

251-066-1021G

251-066-1022G

251-066-1023G

251-066-1024G

Mounting Hole Figure Slot Width

No. 065

No. 055

No. 066

1

3

2

.012

.018

.028

.036

.012

.018

.028

.036

.012

.018

.028

.036

(Captivated Contact) (Non-Captivated)

Figure 2

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For passivated version change suffix to “P”.

Figure 3

Figure 1

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

RF/11
