FPA-VL22-14 datasheet, PDF - EEWORLD Datasheet

FPA-VL22-14: DescriptionCard Edge Connector, 14 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size129KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric View All

FPA-VL22-14 Overview

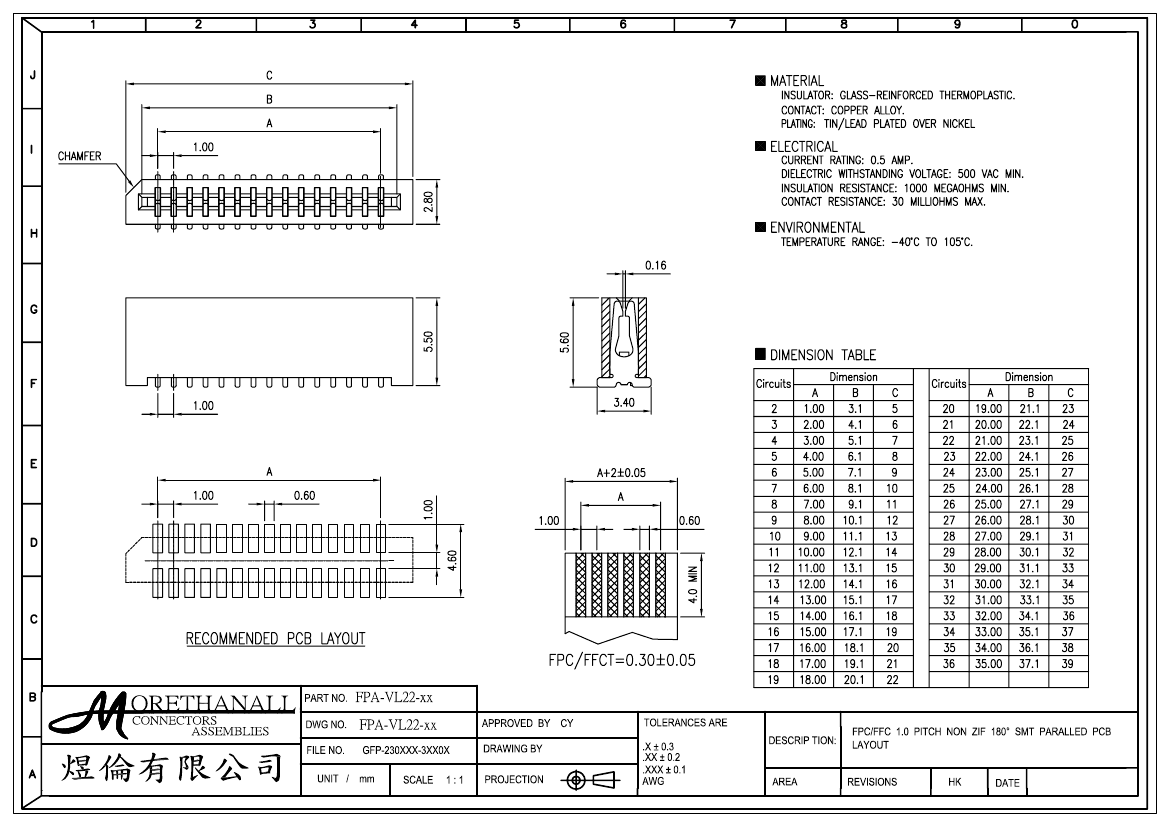

Card Edge Connector, 14 Contact(s), 1 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking

Parameter Name	Attribute value
Maker	Morethanall Co., Ltd.
Reach Compliance Code	unknown
Other features	NONE
body width	0.11 inch
subject depth	0.217 inch
body length	0.669 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	DUAL PRONG
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.794 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Base Number Matches	1
