89220-7130 datasheet, PDF - EEWORLD Datasheet

89220-7130: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.09 inch Pitch, Surface Mount Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

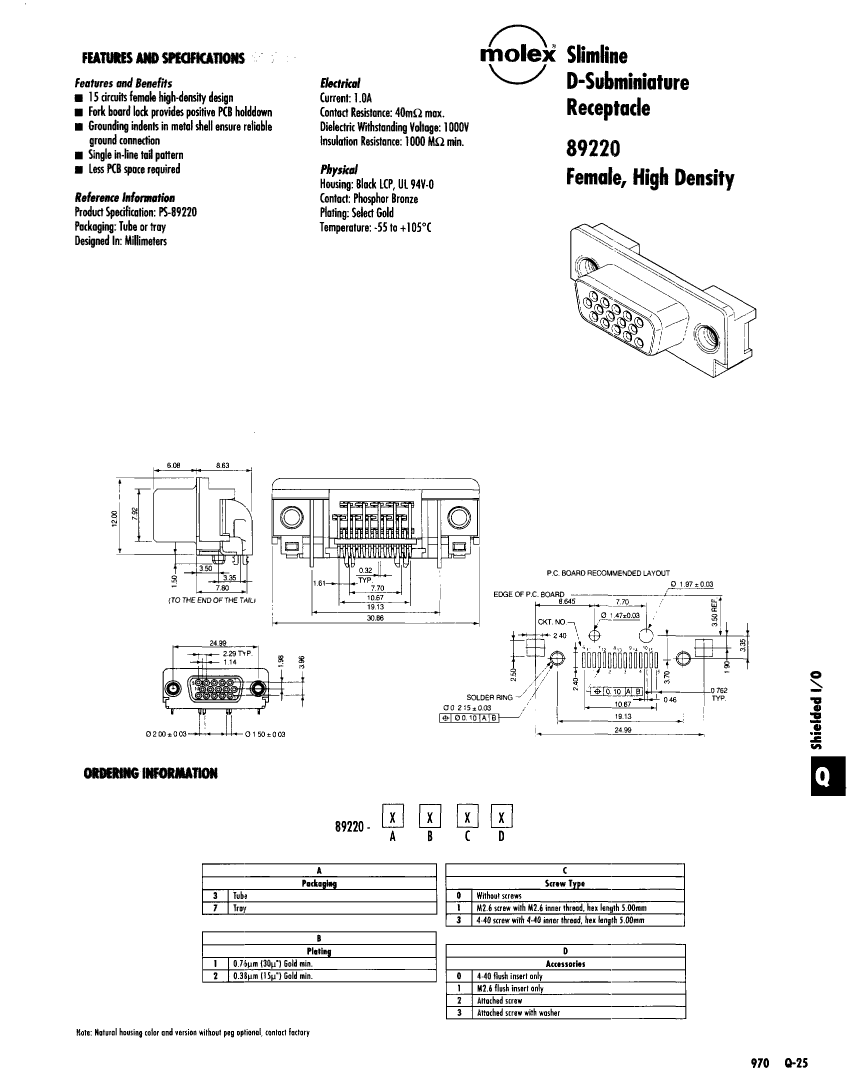

Download Datasheet Parametric View All

89220-7130 Overview

D Subminiature Connector, 15 Contact(s), Female, 0.09 inch Pitch, Surface Mount Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	4-40 SCREW WITH INNER THREAD
body width	0.472 inch
subject depth	0.34 inch
body length	1.215 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	40 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	89220
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Housing size	2/A
Terminal pitch	0.762 mm
Termination type	SURFACE MOUNT
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1
