54FCT138ADM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT138ADM

54FCT138ADM: DescriptionCDIP-16, Tube; Categorylogic logic; File Size290KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

54FCT138ADM Overview

CDIP-16, Tube

54FCT138ADM Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	CDIP
package instruction	DIP, DIP16,.3
Contacts	16
Manufacturer packaging code	CD16
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.032 A
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	7.8 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

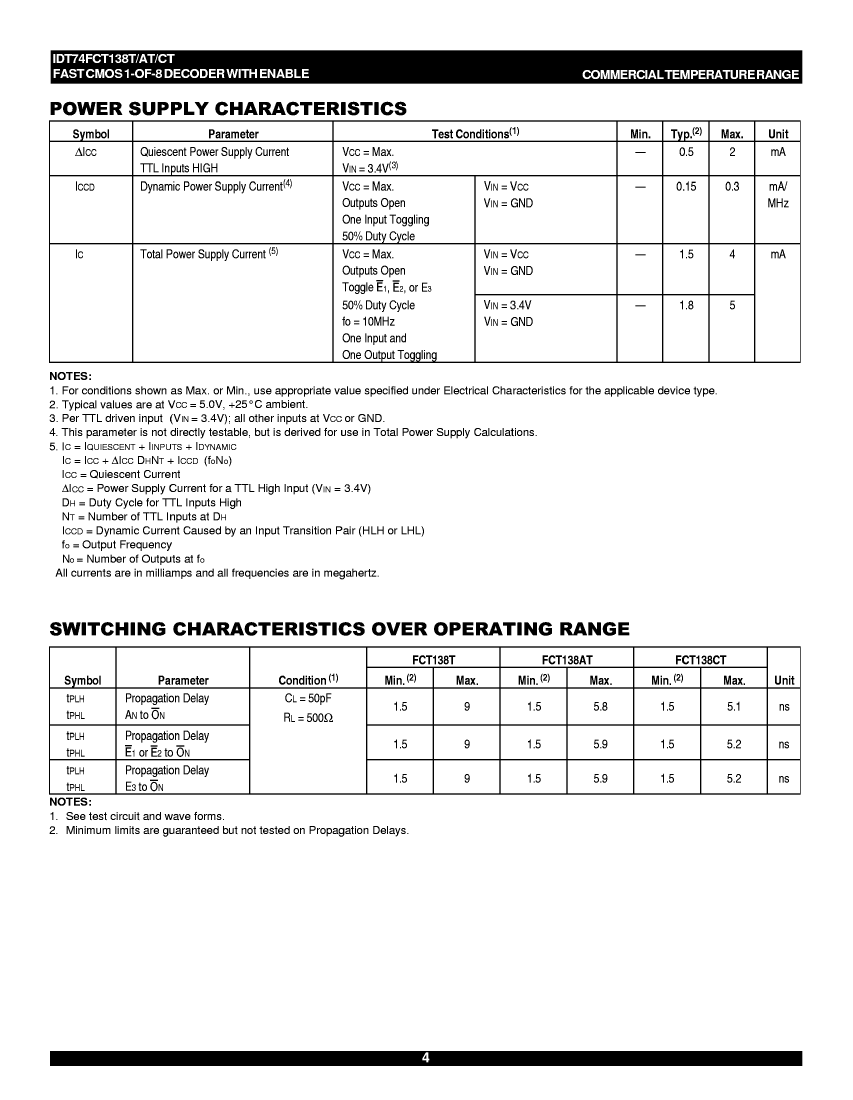

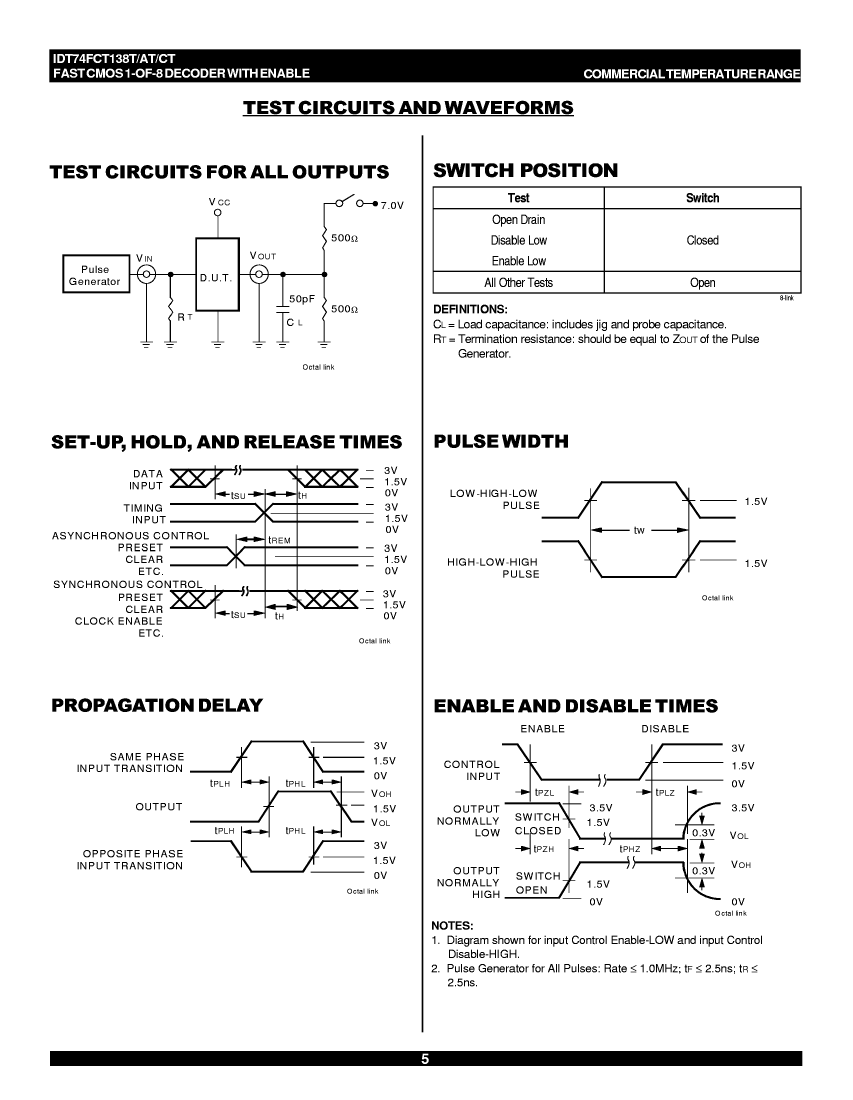

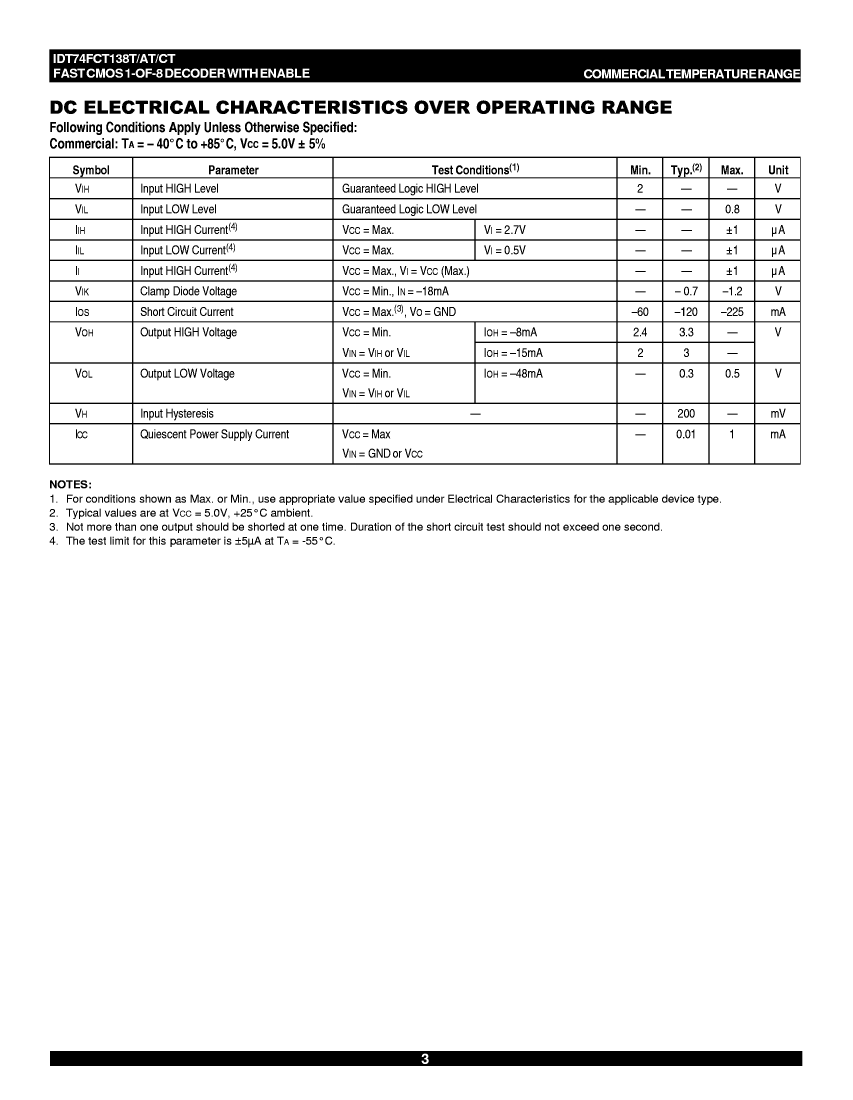

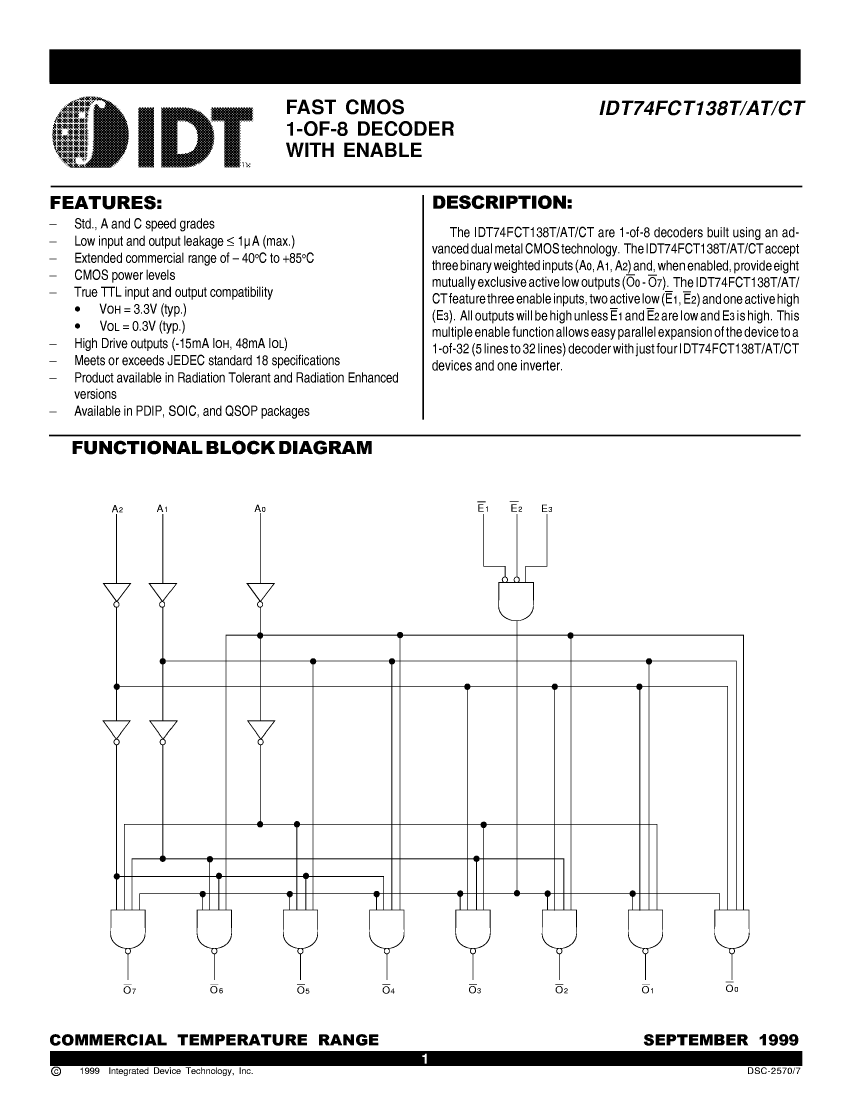

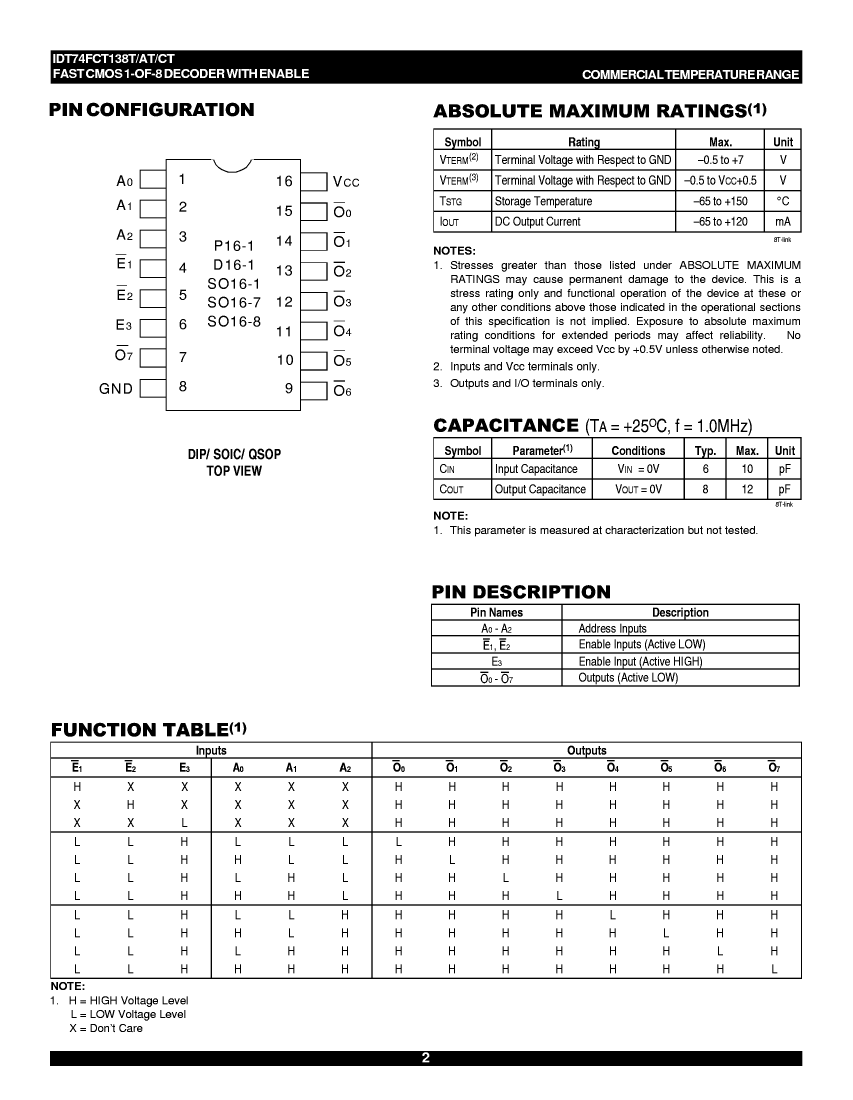

Preview

Download Datasheet

View All

54FCT138ADM Related Products

	54FCT138ADM	IDT74FCT138PQ	IDT74FCT138J	IDT54FCT138DM	54FCT138L	54FCT138DM	IDT74FCT138APQ	IDT54FCT138ADM
Description	CDIP-16, Tube	Decoder/Driver, CMOS, PDIP16	Decoder/Driver, CMOS, PQCC20	Decoder/Driver, CMOS, CDIP16	Decoder/Driver, CMOS, CQCC20	Decoder/Driver, CMOS, CDIP16	Decoder/Driver, CMOS, PDIP16	Decoder/Driver, CMOS, CDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	not_compliant	unknown	unknown	not_compliant	unknown	not_compliant	unknown
JESD-30 code	R-XDIP-T16	R-PDIP-T16	S-PQCC-J20	R-XDIP-T16	S-XQCC-N20	R-XDIP-T16	R-PDIP-T16	R-XDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.032 A	0.048 A	0.048 A	0.032 A	0.032 A	0.032 A	0.048 A	0.032 A
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	20	16	20	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	125 °C	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-	-55 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	UNSPECIFIED	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	QCCJ	DIP	QCCN	DIP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	LDCC20,.4SQ	DIP16,.3	LCC20,.35SQ	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	7.8 ns	9 ns	9 ns	12 ns	12 ns	12 ns	5.8 ns	7.8 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1	1	1
package instruction	DIP, DIP16,.3	-	-	DIP, DIP16,.3	LCC-20	DIP, DIP16,.3	-	DIP, DIP16,.3
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
