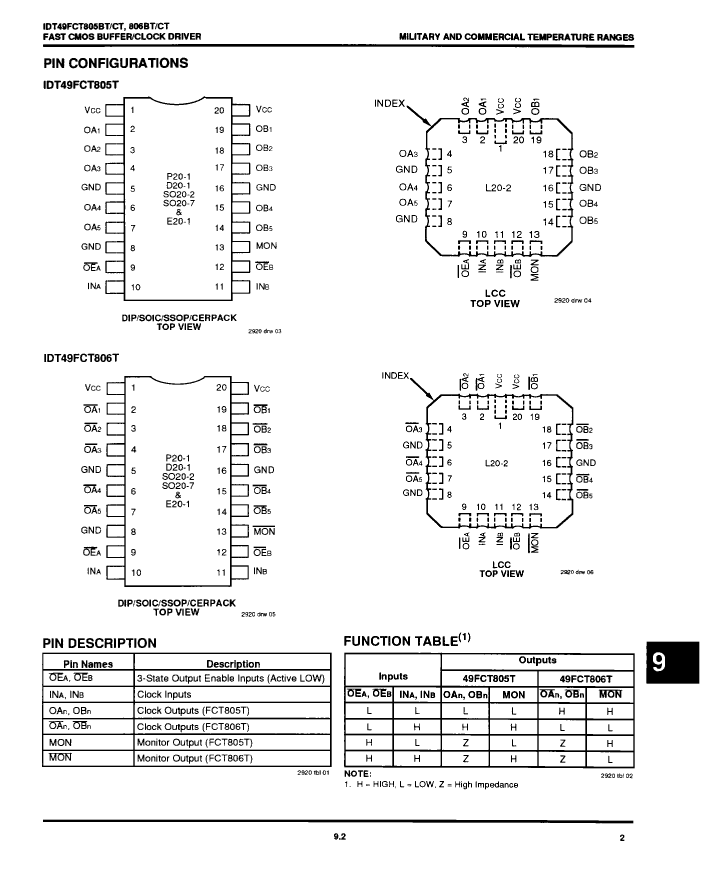

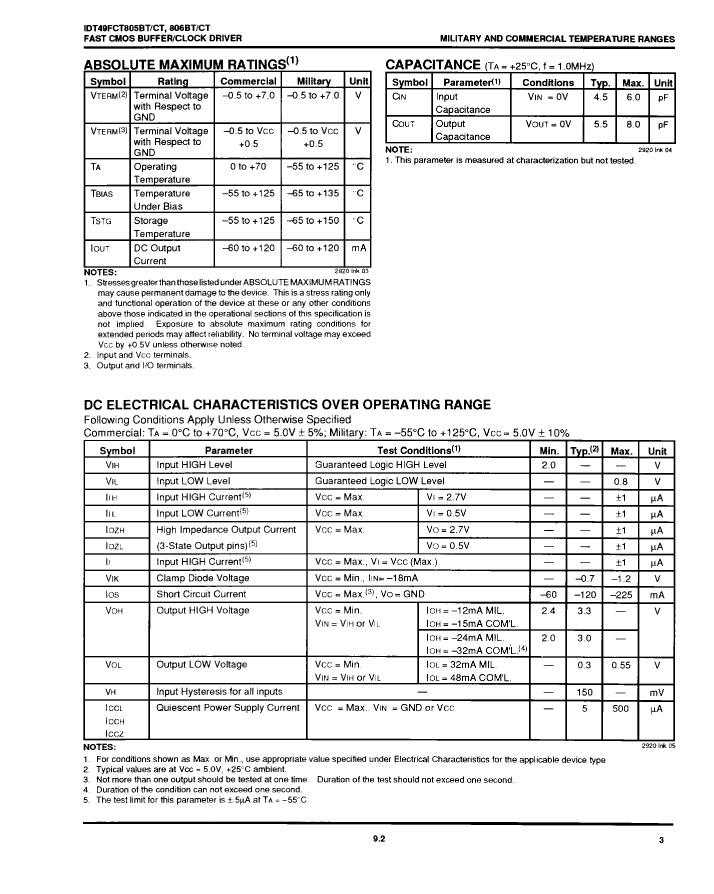

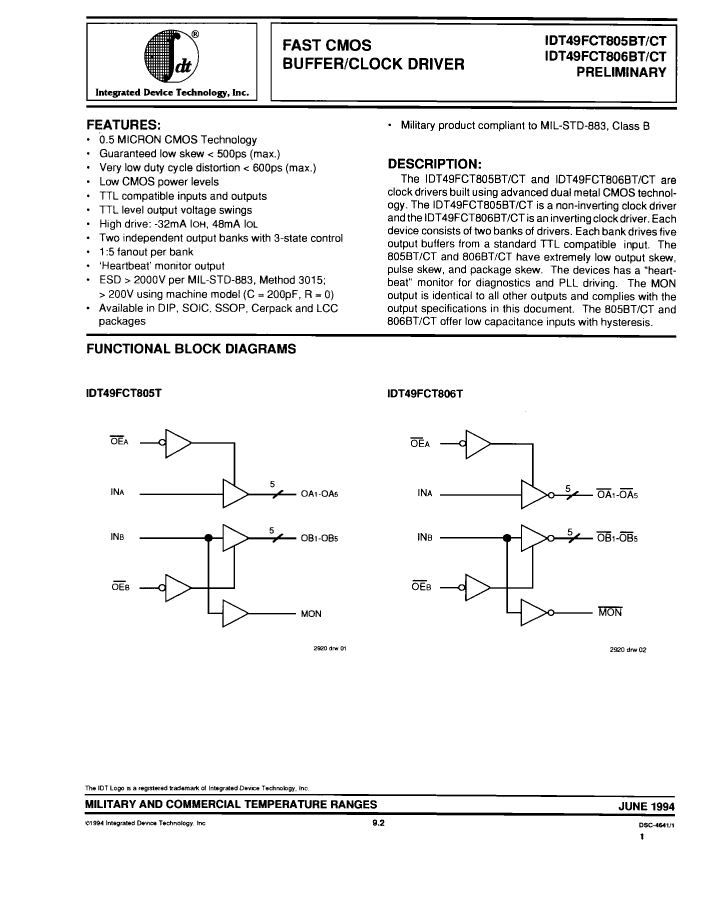

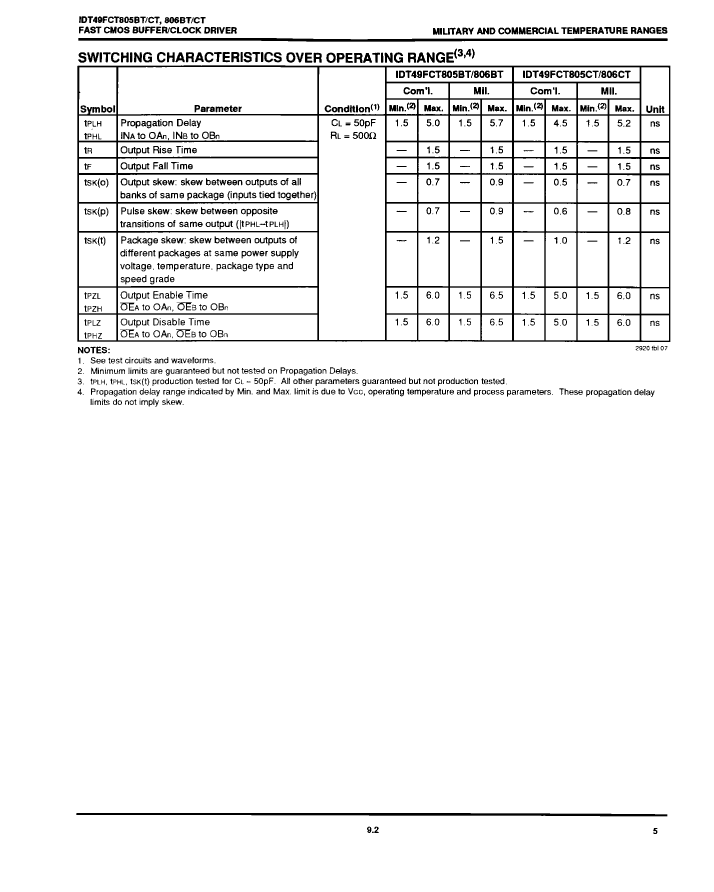

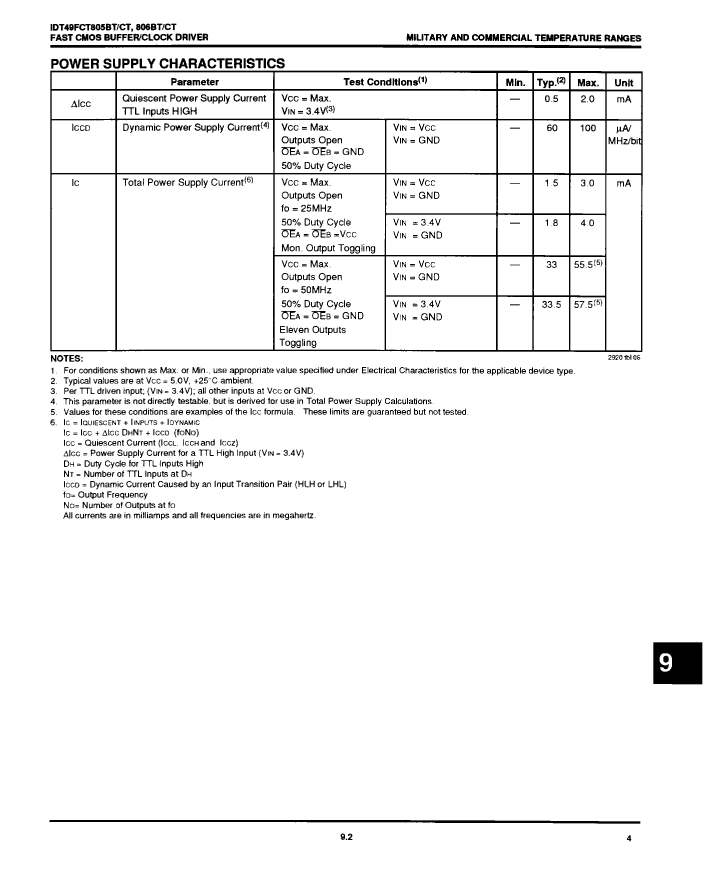

Preview

5962-9576101MSA: DescriptionLow Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDFP20, CERAMIC, DFP-20; Categorylogic logic; File Size178KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9576101MSA Overview

Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDFP20, CERAMIC, DFP-20

5962-9576101MSA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	CERAMIC, DFP-20
Contacts	20
Reach Compliance Code	not_compliant
series	FCT
Input adjustment	SCHMITT TRIGGER
JESD-30 code	R-GDFP-F20
JESD-609 code	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.032 A
Number of functions	2
Number of inverted outputs
Number of terminals	20
Actual output times	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Prop。Delay @ Nom-Sup	5.7 ns
propagation delay (tpd)	5.7 ns
Certification status	Not Qualified
Same Edge Skew-Max（tskwd）	0.9 ns
Filter level	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9576101MSA Related Products

	5962-9576101MSA	5962-9576201MSA	5962-9576102MSA	5962-9576202MSA
Description	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDFP20, CERAMIC, DFP-20	Low Skew Clock Driver, FCT Series, 0 True Output(s), 5 Inverted Output(s), CMOS, CDFP20, CERAMIC, DFP-20	Low Skew Clock Driver, FCT Series, 5 True Output(s), 0 Inverted Output(s), CMOS, CDFP20, CERAMIC, DFP-20	Low Skew Clock Driver, FCT Series, 0 True Output(s), 5 Inverted Output(s), CMOS, CDFP20, CERAMIC, DFP-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DFP	DFP	DFP
package instruction	CERAMIC, DFP-20	CERAMIC, DFP-20	CERAMIC, DFP-20	CERAMIC, DFP-20
Contacts	20	20	20	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
series	FCT	FCT	FCT	FCT
Input adjustment	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
JESD-30 code	R-GDFP-F20	R-GDFP-F20	R-GDFP-F20	R-GDFP-F20
JESD-609 code	e0	e0	e0	e0
Logic integrated circuit type	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER	LOW SKEW CLOCK DRIVER
MaximumI(ol)	0.032 A	0.032 A	0.032 A	0.032 A
Number of functions	2	2	2	2
Number of terminals	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DFP	DFP
Encapsulate equivalent code	FL20,.3	FL20,.3	FL20,.3	FL20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	225	225	225	225
power supply	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	5.7 ns	5.7 ns	5.2 ns	5.2 ns
propagation delay (tpd)	5.7 ns	5.7 ns	5.2 ns	5.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Same Edge Skew-Max（tskwd）	0.9 ns	0.9 ns	0.7 ns	0.7 ns
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30
Base Number Matches	1	1	1	1
