5962-9759802QXA datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> 5962-9759802QXA

5962-9759802QXA: DescriptionFlash PLD, 19ns, CMOS, CPGA84, CAVITY-UP, CERAMIC, PGA-84; CategoryProgrammable logic devices Programmable logic; File Size326KB，13 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

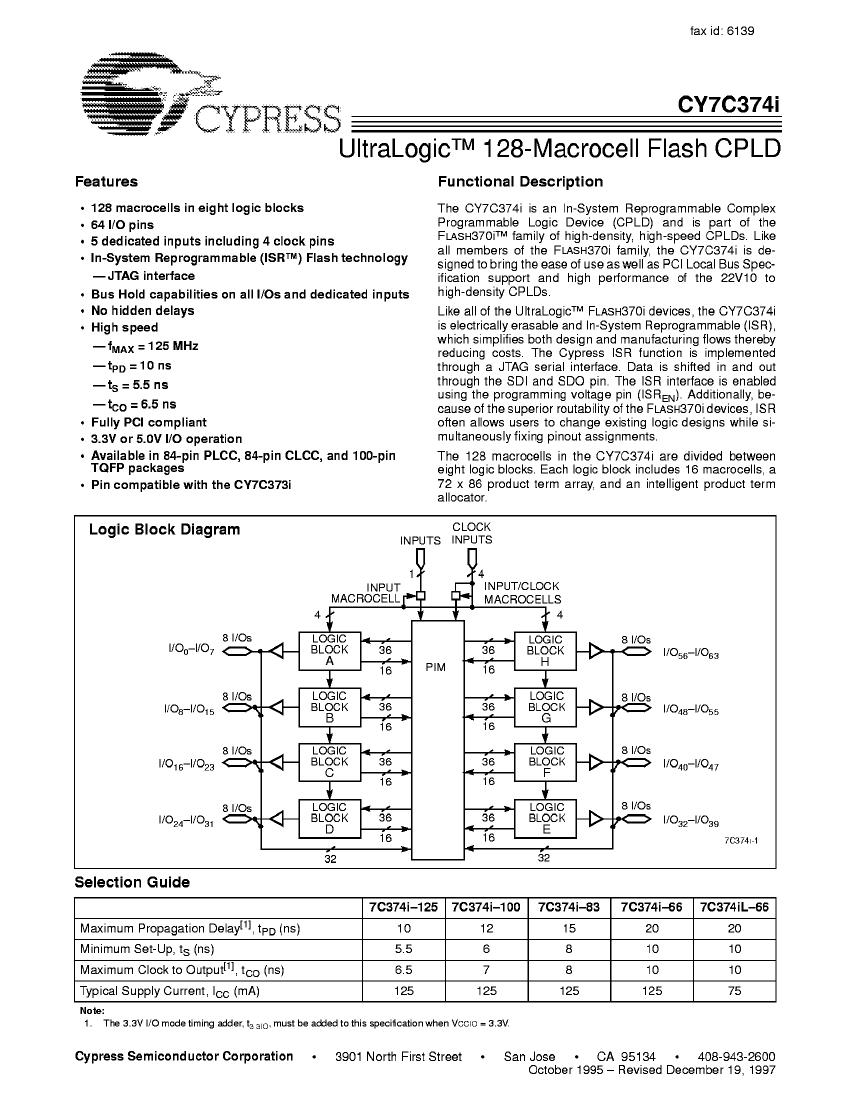

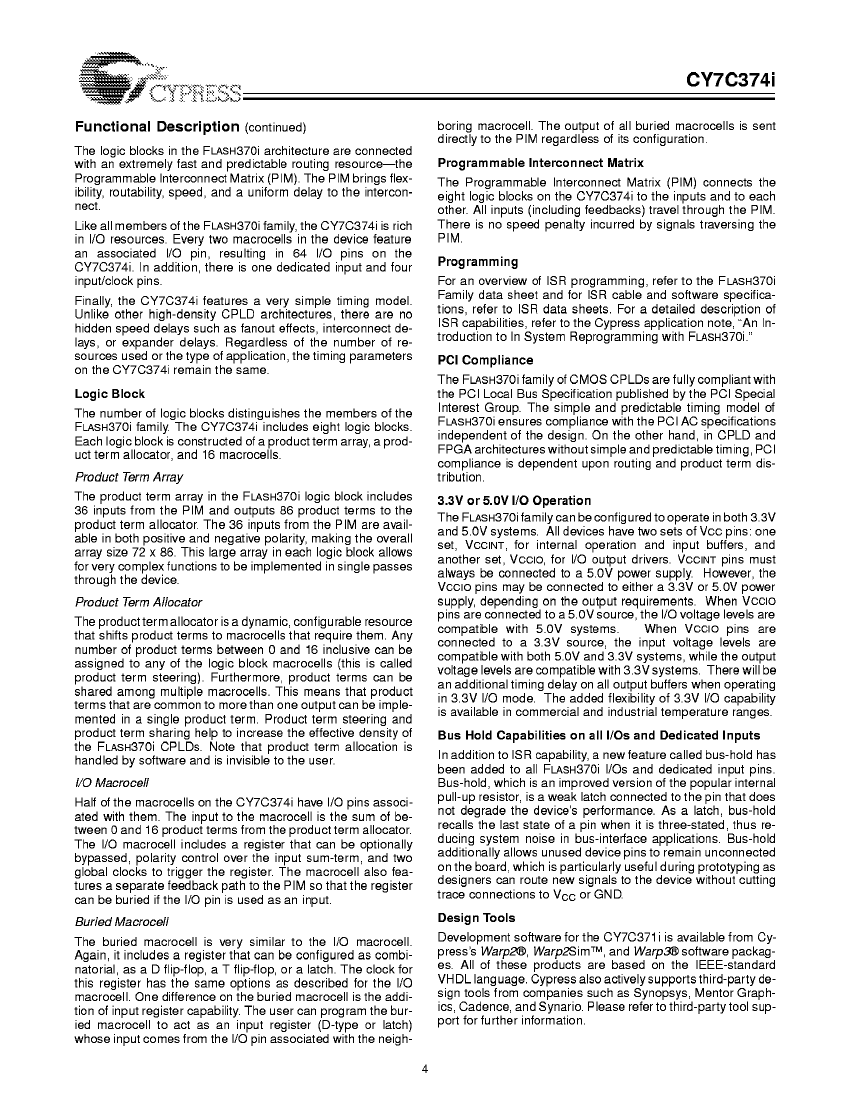

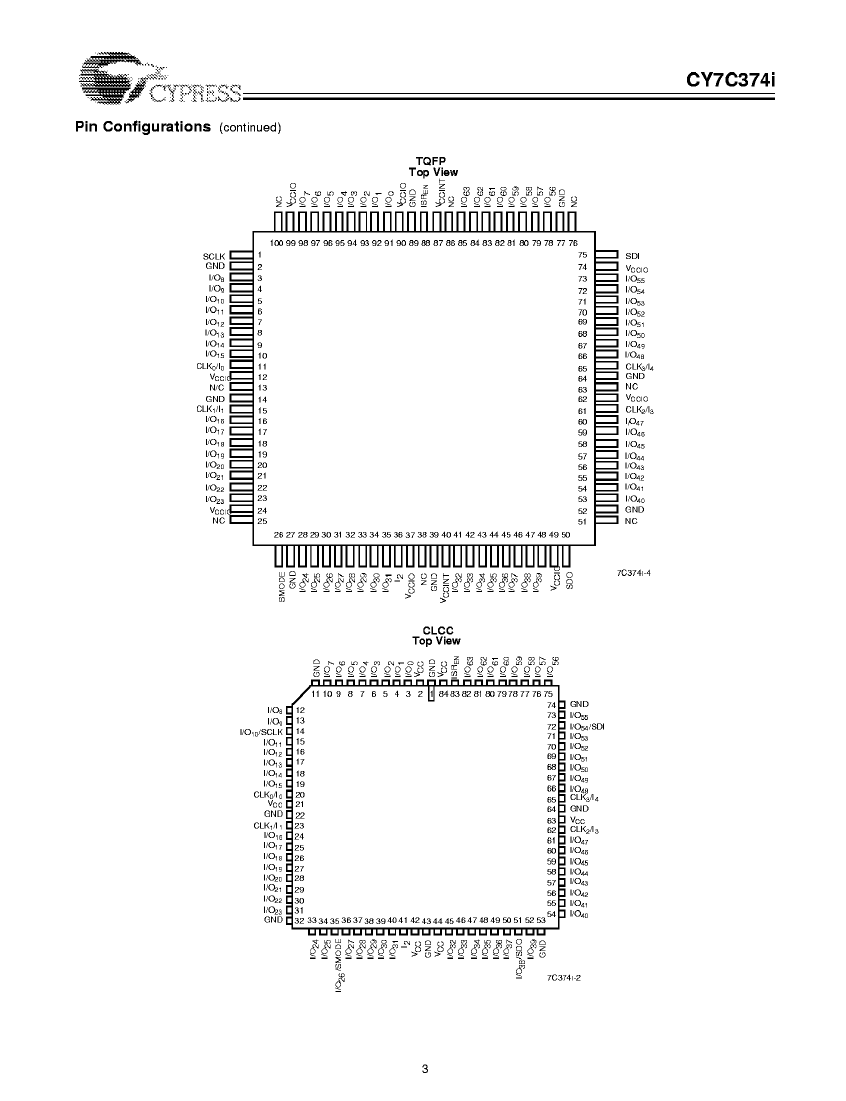

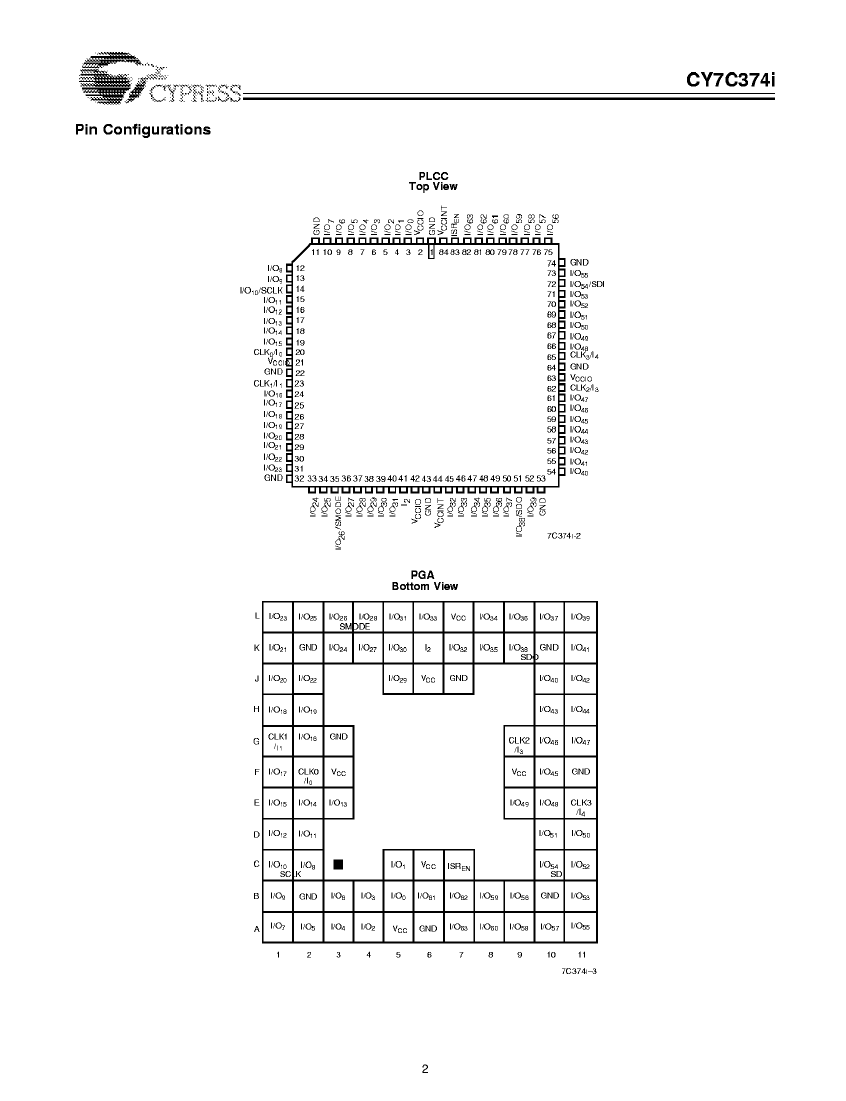

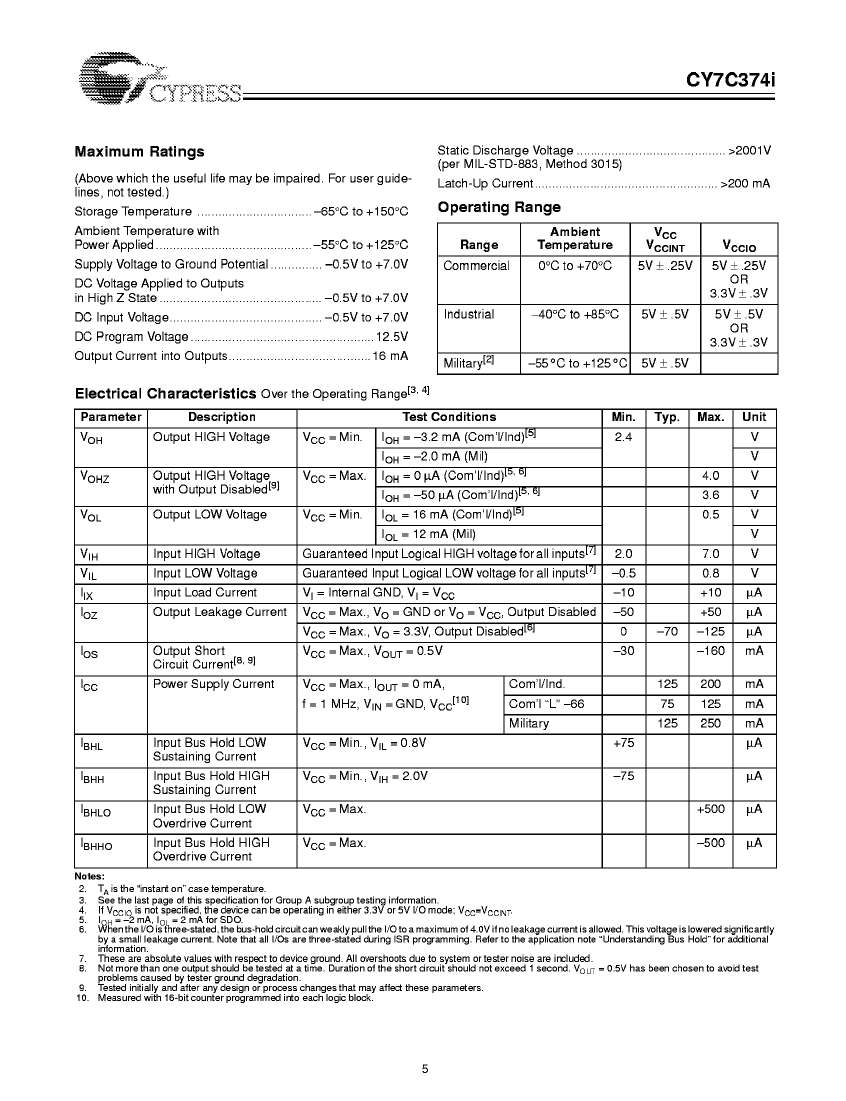

5962-9759802QXA Overview

Flash PLD, 19ns, CMOS, CPGA84, CAVITY-UP, CERAMIC, PGA-84

5962-9759802QXA Parametric

Parameter Name	Attribute value
Parts packaging code	PGA
package instruction	PGA,
Contacts	84
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
maximum clock frequency	67.5 MHz
JESD-30 code	S-CPGA-P84
JESD-609 code	e4
Dedicated input times	1
Number of I/O lines	64
Number of terminals	84
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	1 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Package shape	SQUARE
Package form	GRID ARRAY
Programmable logic type	FLASH PLD
propagation delay	19 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	PIN/PEG
Terminal location	PERPENDICULAR
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9759802QXA Related Products

	5962-9759802QXA	5962-9759802QYX	5962-9759802QXX	5962-9759801QXX	5962-9759801QYX
Description	Flash PLD, 19ns, CMOS, CPGA84, CAVITY-UP, CERAMIC, PGA-84	Flash PLD, 19ns, CMOS, CQCC84, CERAMIC, LCC-84	Flash PLD, 19ns, CMOS, CPGA84, CAVITY-UP, CERAMIC, PGA-84	Flash PLD, 24ns, CMOS, CPGA84, CAVITY-UP, CERAMIC, PGA-84	Flash PLD, 24ns, CMOS, CQCC84, CERAMIC, LCC-84
Parts packaging code	PGA	LCC	PGA	PGA	LCC
package instruction	PGA,	QCCJ,	PGA,	PGA,	QCCJ,
Contacts	84	84	84	84	84
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
maximum clock frequency	67.5 MHz	67.5 MHz	67.5 MHz	50 MHz	50 MHz
JESD-30 code	S-CPGA-P84	S-CQCC-J84	S-CPGA-P84	S-CPGA-P84	S-CQCC-J84
Dedicated input times	1	1	1	1	1
Number of I/O lines	64	64	64	64	64
Number of terminals	84	84	84	84	84
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	1 DEDICATED INPUTS, 64 I/O	1 DEDICATED INPUTS, 64 I/O	1 DEDICATED INPUTS, 64 I/O	1 DEDICATED INPUTS, 64 I/O	1 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	QCCJ	PGA	PGA	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	CHIP CARRIER	GRID ARRAY	GRID ARRAY	CHIP CARRIER
Programmable logic type	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD	FLASH PLD
propagation delay	19 ns	19 ns	19 ns	24 ns	24 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	PIN/PEG	J BEND	PIN/PEG	PIN/PEG	J BEND
Terminal location	PERPENDICULAR	QUAD	PERPENDICULAR	PERPENDICULAR	QUAD
Base Number Matches	1	1	1	1	-
