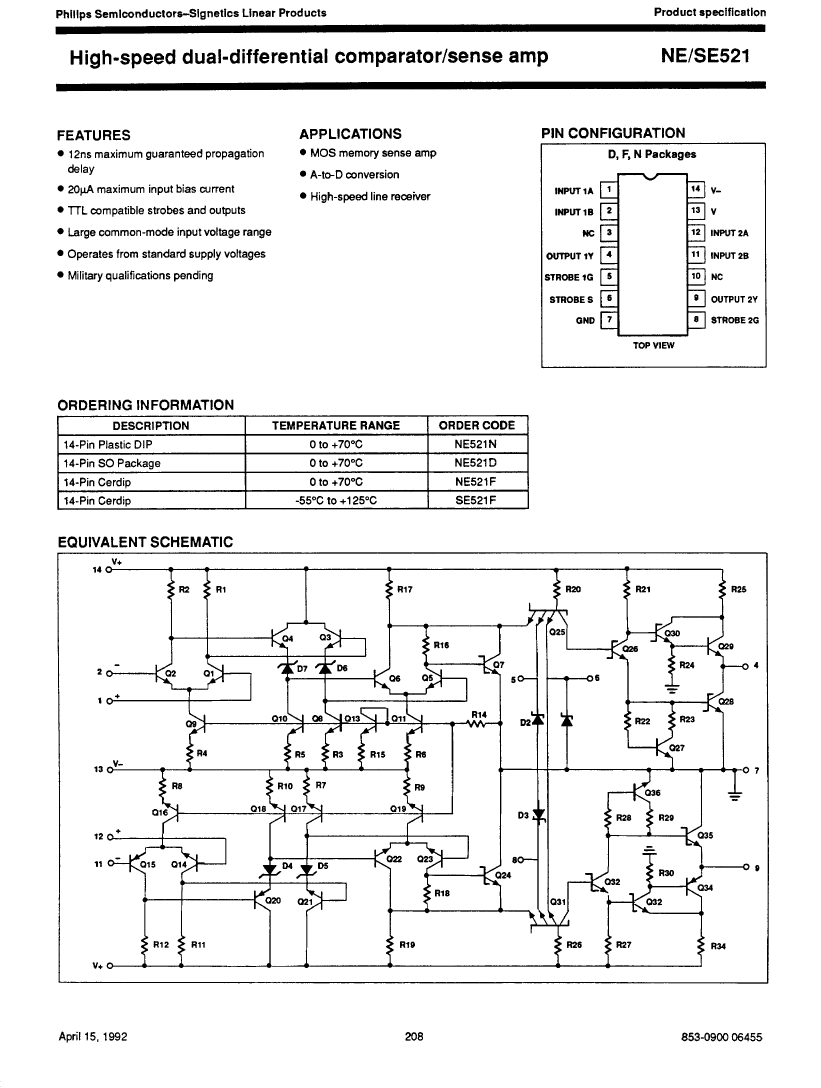

Basic information of SE521F amplifier:
SE521F is a COMPARATOR. The commonly used packaging method is DIP,
SE521F amplifier core information:
The minimum operating temperature of the SE521F is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 40 µA

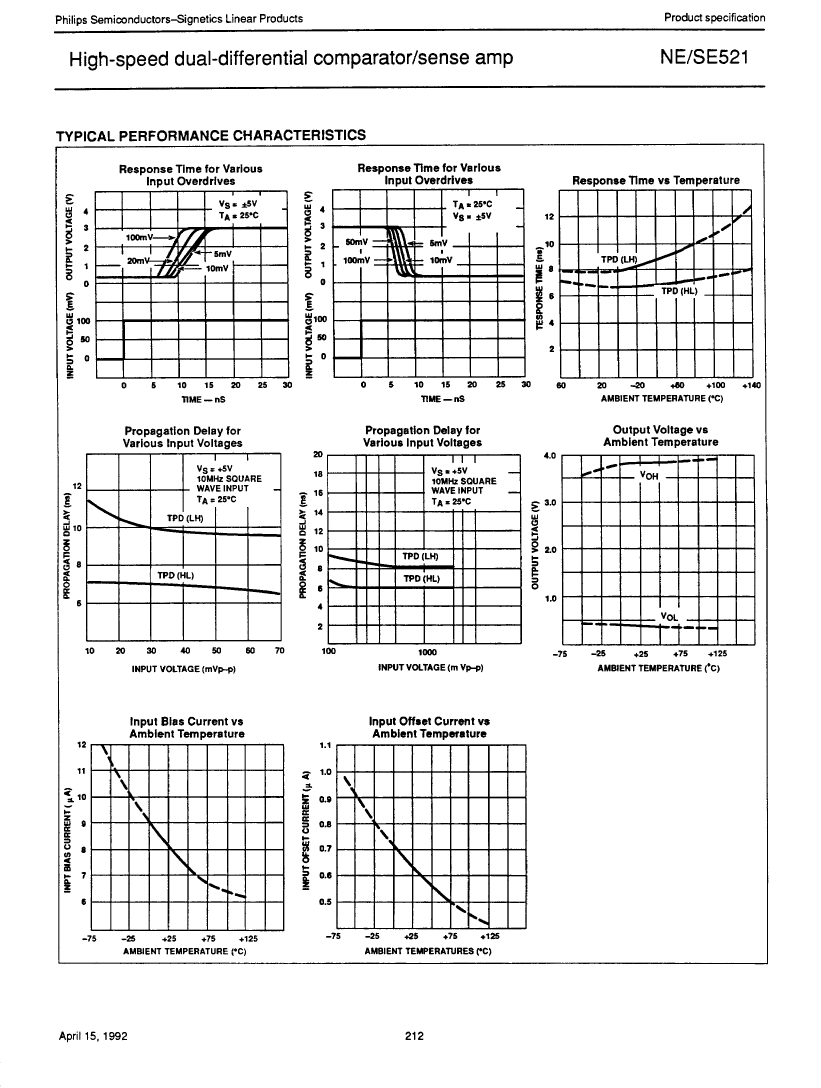

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The SE521F only takes 8 ns to complete the response.
The nominal supply voltage of the SE521F is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the SE521F is 15000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of SE521F:
The width of SE521F is: 7.62 mm and the length is 19.535 mm. SE521F has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
SE521F amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T14. The package code of SE521F is: DIP. The materials used in the SE521F package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The SE521F package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.
Basic information of SE521F amplifier:
SE521F is a COMPARATOR. The commonly used packaging method is DIP,

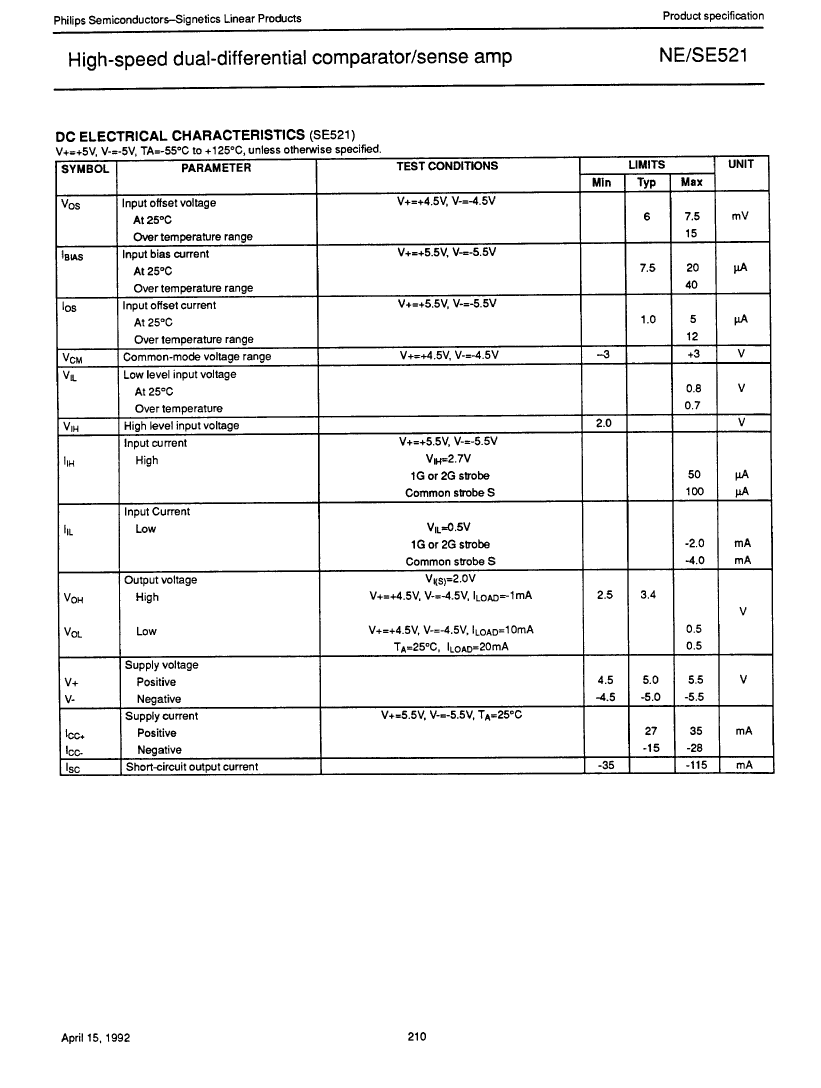

SE521F amplifier core information:
The minimum operating temperature of the SE521F is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 40 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The SE521F only takes 8 ns to complete the response.
The nominal supply voltage of the SE521F is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of the SE521F is 15000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of SE521F:
The width of SE521F is: 7.62 mm and the length is 19.535 mm. SE521F has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 14
SE521F amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T14. The package code of SE521F is: DIP. The materials used in the SE521F package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The SE521F package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.

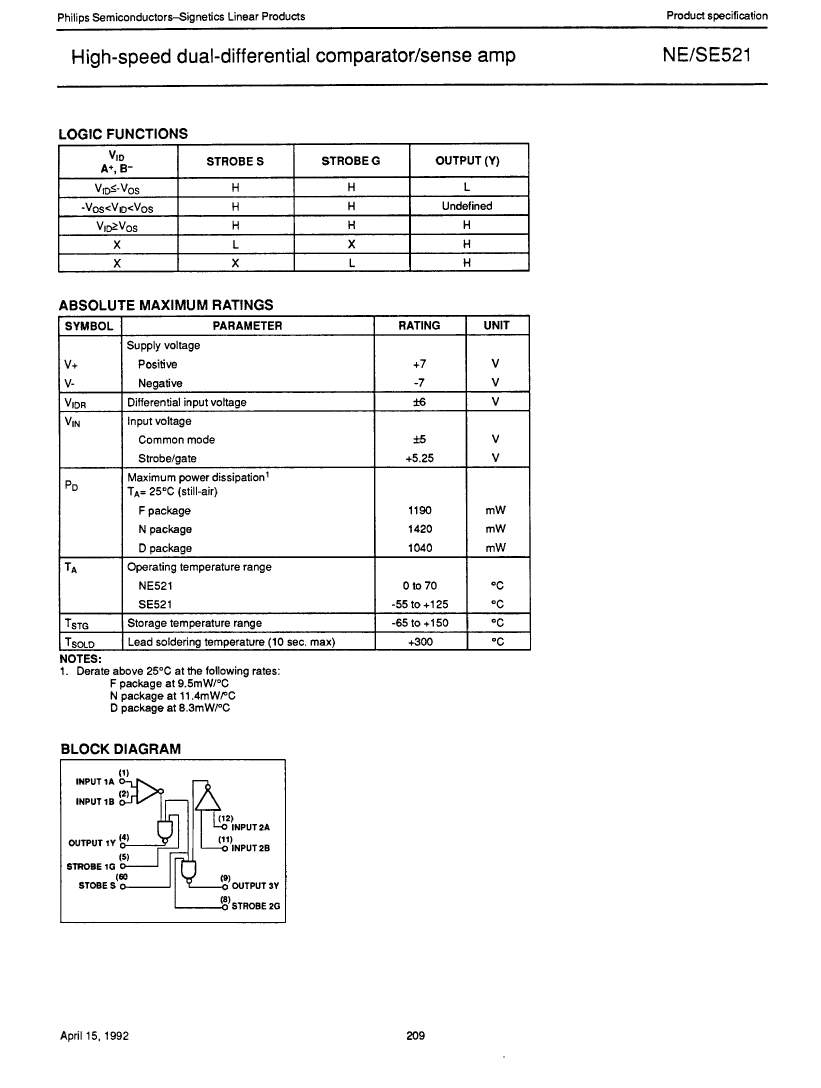

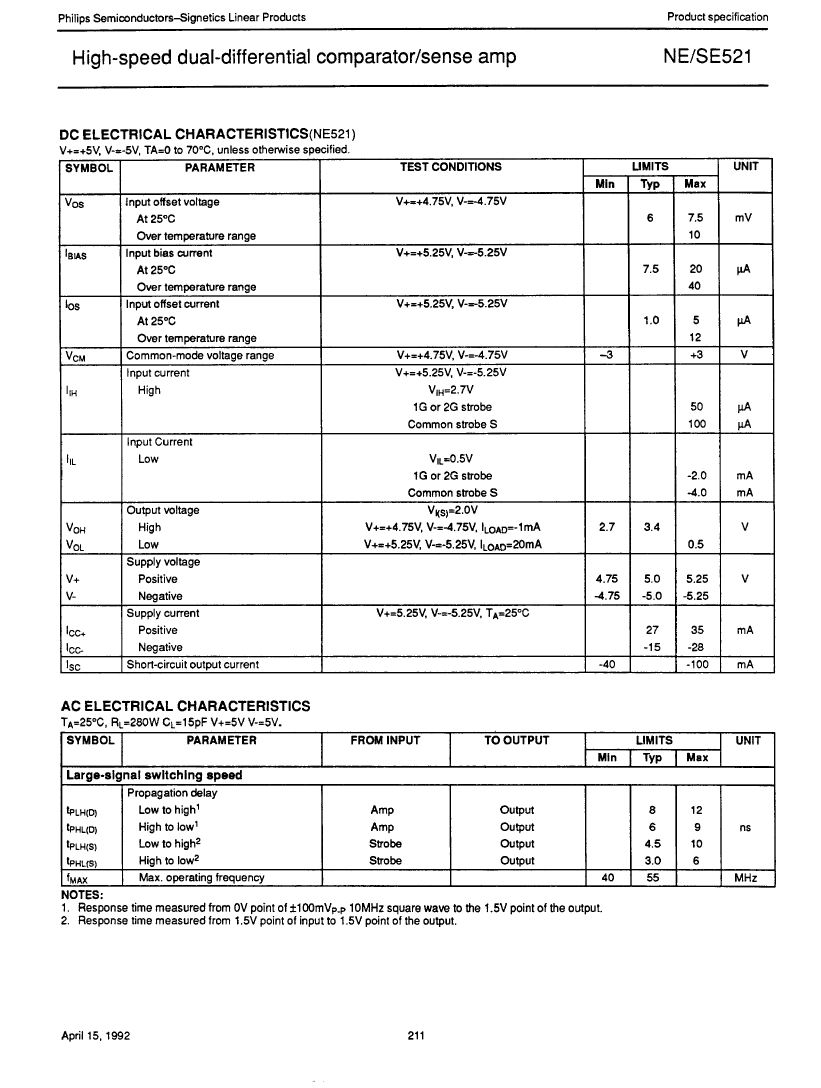

| Parameter Name | Attribute value |
| Maker | NXP |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 40 µA |
| Maximum input offset voltage | 15000 µV |
| JESD-30 code | R-GDIP-T14 |
| length | 19.535 mm |
| Negative supply voltage upper limit | -7 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output type | TOTEM POLE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Nominal response time | 8 ns |
| Maximum seat height | 5.08 mm |
| Supply voltage upper limit | 7 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| SE521F | NE521F | |
|---|---|---|
| Description | IC DUAL COMPARATOR, 15000 uV OFFSET-MAX, 8 ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14, Comparator | IC DUAL COMPARATOR, 10000 uV OFFSET-MAX, 8 ns RESPONSE TIME, CDIP14, CERAMIC, DIP-14, Comparator |
| Maker | NXP | NXP |
| Parts packaging code | DIP | DIP |
| package instruction | DIP, | DIP, DIP14,.3 |
| Contacts | 14 | 14 |
| Reach Compliance Code | unknown | unknown |
| ECCN code | EAR99 | EAR99 |
| Amplifier type | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 40 µA | 40 µA |
| Maximum input offset voltage | 15000 µV | 10000 µV |
| JESD-30 code | R-GDIP-T14 | R-CDIP-T14 |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V |
| Number of functions | 2 | 2 |
| Number of terminals | 14 | 14 |
| Maximum operating temperature | 125 °C | 70 °C |
| Output type | TOTEM POLE | TOTEM POLE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V |
| surface mount | NO | NO |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL |
| Base Number Matches | 1 | 1 |
