KBPC15PS SERIES
15A SINGLE PHASE BRIDGE RECTIFIER
WON-TOP ELECTRONICS
Pb
Features
Diffused Junction
Low Reverse Leakage Current
Low Power Loss, High Efficiency
Heatsink Integrated Epoxy Case for
Maximum Heat Dissipation
Low Thermal Resistance
High Surge Current Capability
Recognized File # E157705
A
D
-
C
~
~
G
D
+
C
H
J
E
B
Mechanical Data
Case: Epoxy Case with Heatsink Internally
Mounted in the Bridge Encapsulation
Terminals: Plated Faston Lugs
Polarity: As Marked on Case
Mounting: Through Hole with #10 Screw
Mounting Torque: 2.0 N.m Max.
Weight: 20 grams (approx.)
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
K
KBPC-PS
Dim
Min
Max
A
28.40
28.70
B
—
10.16
C
21.00
22.50
D
9.00
10.00
E
—
25.40
G
5.08Ø Nominal
H
6.35 Typical
J
0.71
0.91
K
2.5Ø Typical
All Dimension in mm
Maximum Ratings and Electrical Characteristics
@T
A
=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
KBPC15
00PS
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current @T
C
= 55°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed
on Rated Load (JEDEC Method)
Forward Voltage per leg
Peak Reverse Current
At Rated DC Blocking Voltage
I t Rating for Fusing (t < 8.3ms)
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance (Note 2)
RMS Isolation Voltage, t = 1min
Operating and Storage Temperature Range
2
Characteristic
Symbol
01PS
100
70
02PS
200
140
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
RM
It
C
J
R
θJC
V
ISO
T
J
, T
STG
2
Unit
08PS
800
560
10PS
1000
700
12PS
1200
840
V
V
A
A
V
µA
As
pF
°C/W
V
°C
2
04PS
400
280
15
06PS
600
420
50
35
300
1.1
10
500
375
200
1.9
2500
-55 to +150
@I
F
= 7.5A
@T
C
= 25°C
@T
C
= 125°C
Note: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
2. Thermal resistance junction to case, mounted on 127 x 102 x 76mm Al. heatsink.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
KBPC15PS SERIES
I
(AV)
, AVERAGE FORWARD RECTIFIED CURRENT (A)
WON-TOP ELECTRONICS
12
Mounted on
127 x 102 x 76mm
Al. Finned Heatsink
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
15
100
10
T
J
= 150°C
9
6
1.0
T
J
= 25°C
3
Resistive or
Inductive Load
Pulse Width = 300µs
1% Duty Cycle
0
0
15
30 45 60 75 90 105 120 135 150
T
C
, CASE TEMPERATURE (°C)

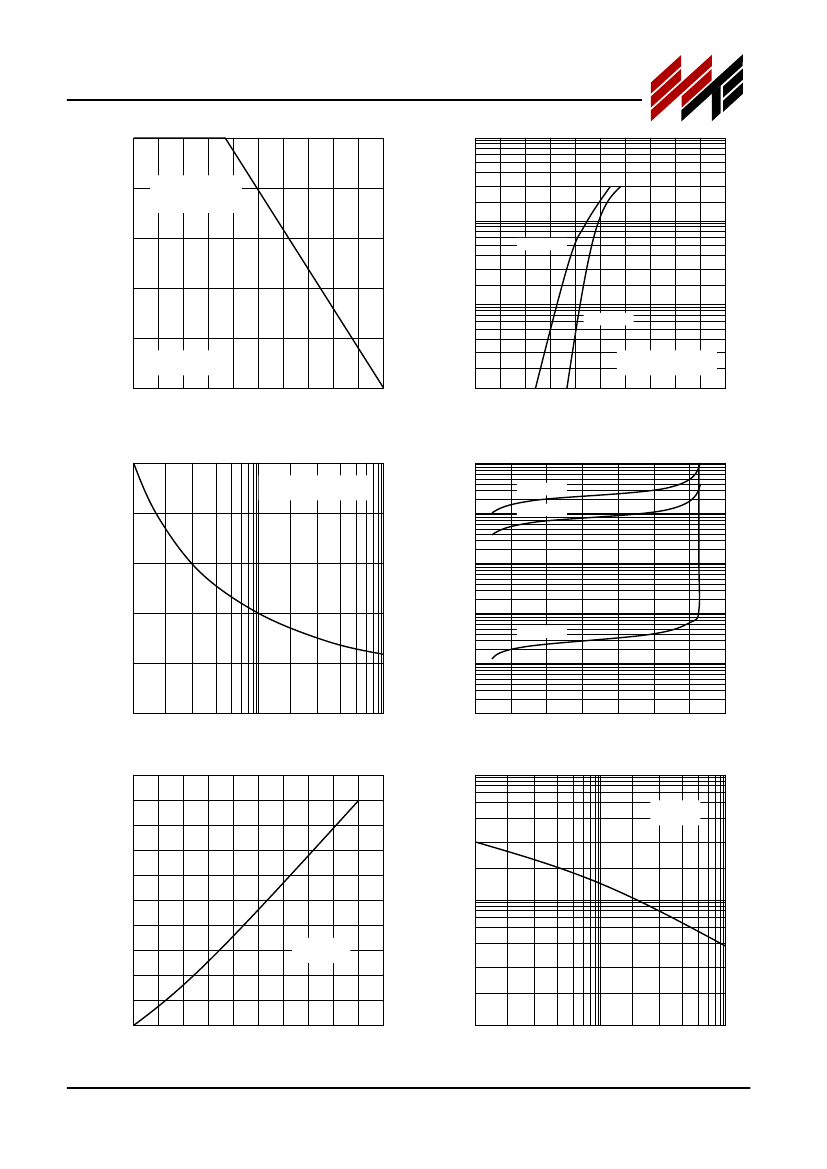

Fig. 1 Forward Current Derating Curve
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
0.1
0
0.4
0.8
1.2
1.6
2.0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
300
Single Half-Sine-Wave
JEDEC Method
1000
T
A
= 150°C
240
100
T
A
= 125°C
180
10
120
1.0
T
A
= 25°C
60
0.1
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Forward Surge Current Derating Curve
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
1000
C
J
, JUNCTION CAPACITANCE (pF)
T
J
= 25°C
f = 1MHz
40
36
P
D
, POWER DISSIPATION (W)
32
28
24
20
16
12
8
4
0
0
2
4
6
8 10 12 14 16 18 20
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 5 Forward Power Dissipation
Sine-Wave
T
J
= 150°C
100
10
1
10
V
R
, DC REVERSE VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
100
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
KBPC15PS SERIES
WON-TOP ELECTRONICS
MARKING INFORMATION
+
AC
KBPC15xxPS
KBPC15xxPS
xx
Polarity
= Device Number
= 00, 01, 02, 04, 06, 08, 10 or 12
= As Marked on Body
PACKAGING INFORMATION
BULK
Inner Box Size
L x W x H (mm)
195 x 195 x 40
Quantity
(PCS)
50
Carton Size
L x W x H (mm)
405 x 205 x 240
Quantity
(PCS)
500
Approx. Gross Weight
(KG)
12.0
Case Style
KBPC-PS
Note:
1. Paper box, white or brown color.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
®
KBPC15PS SERIES
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
KBPC15xxPS
1.
2.
Package Type
Square Bridge
Shipping Quantity
50 Units/Box
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, KBPC1500PS-LF.
