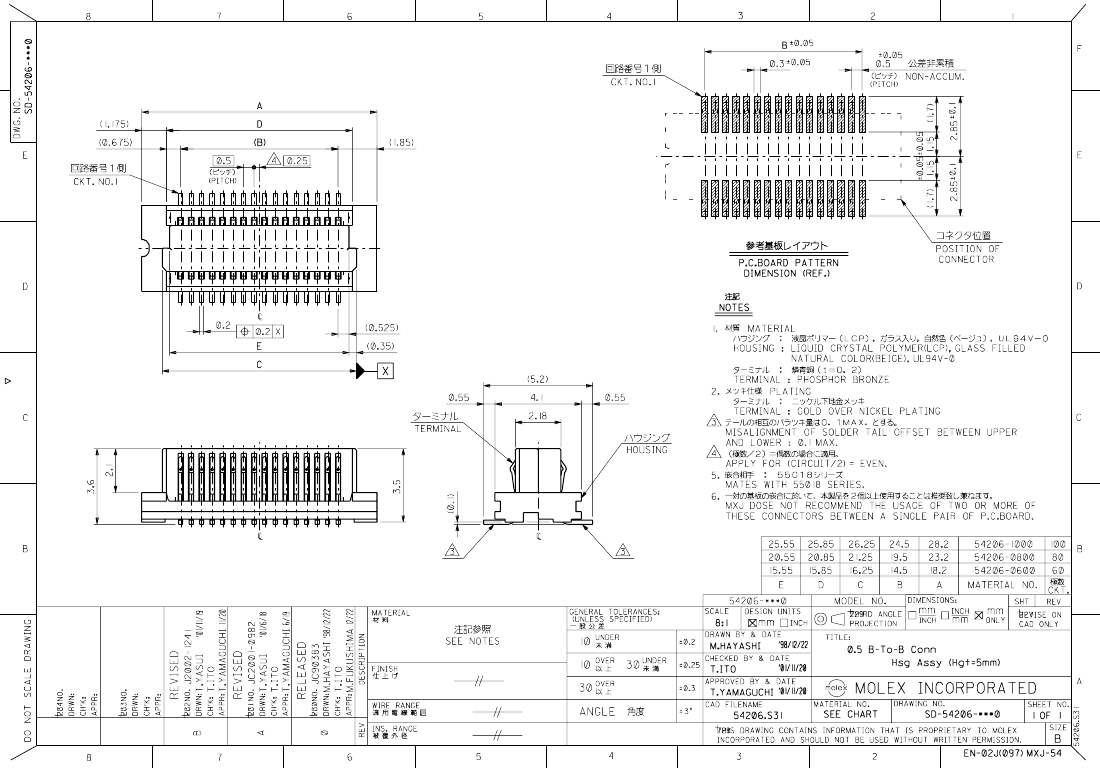

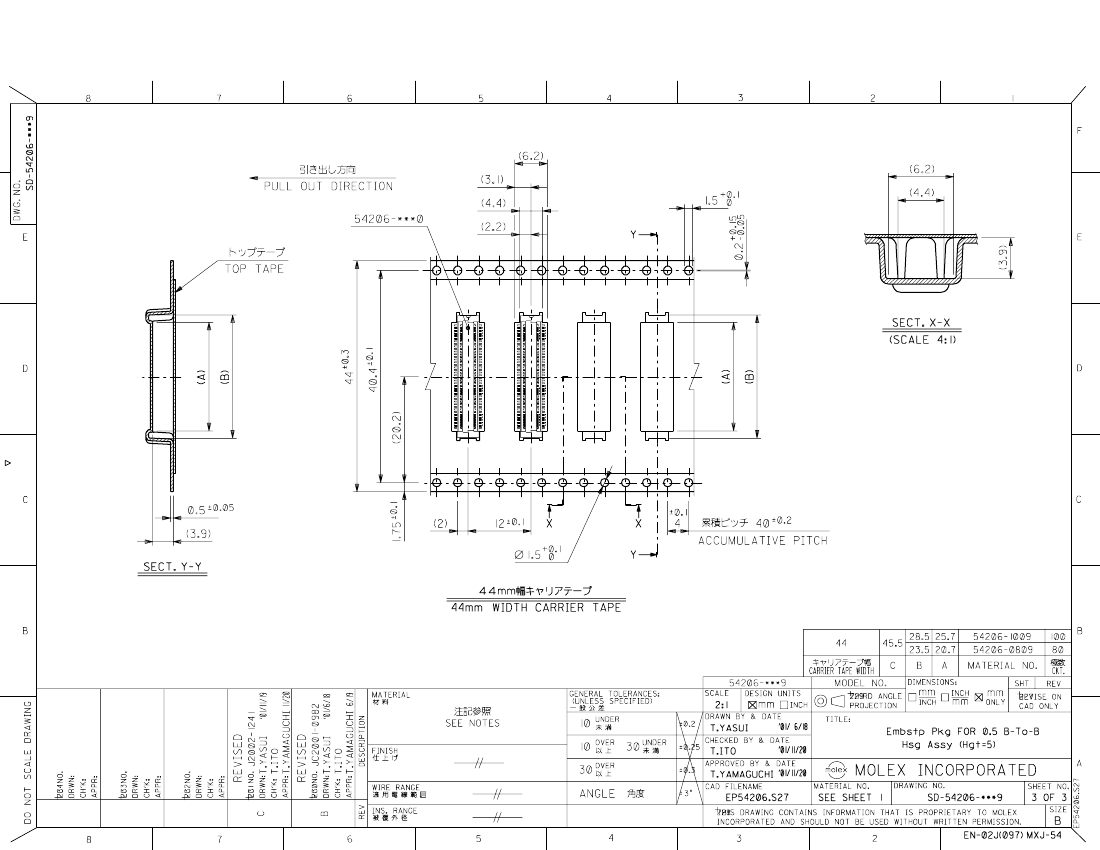

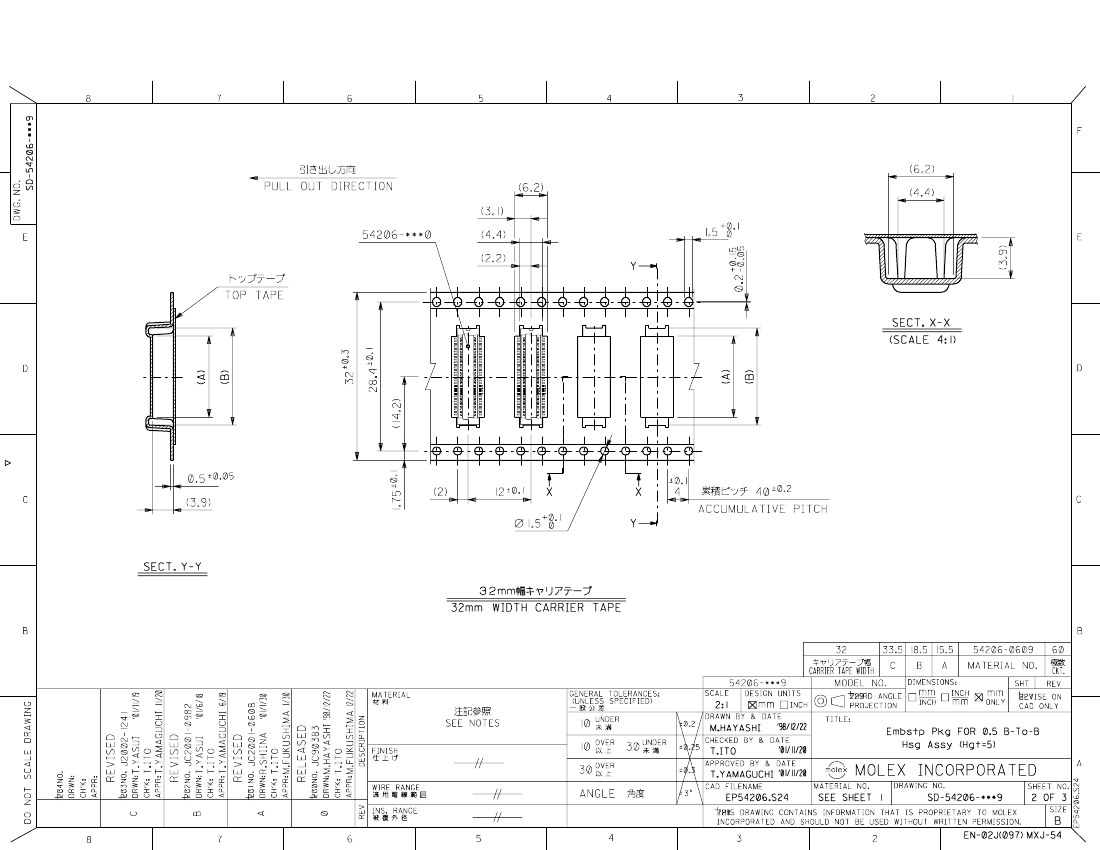

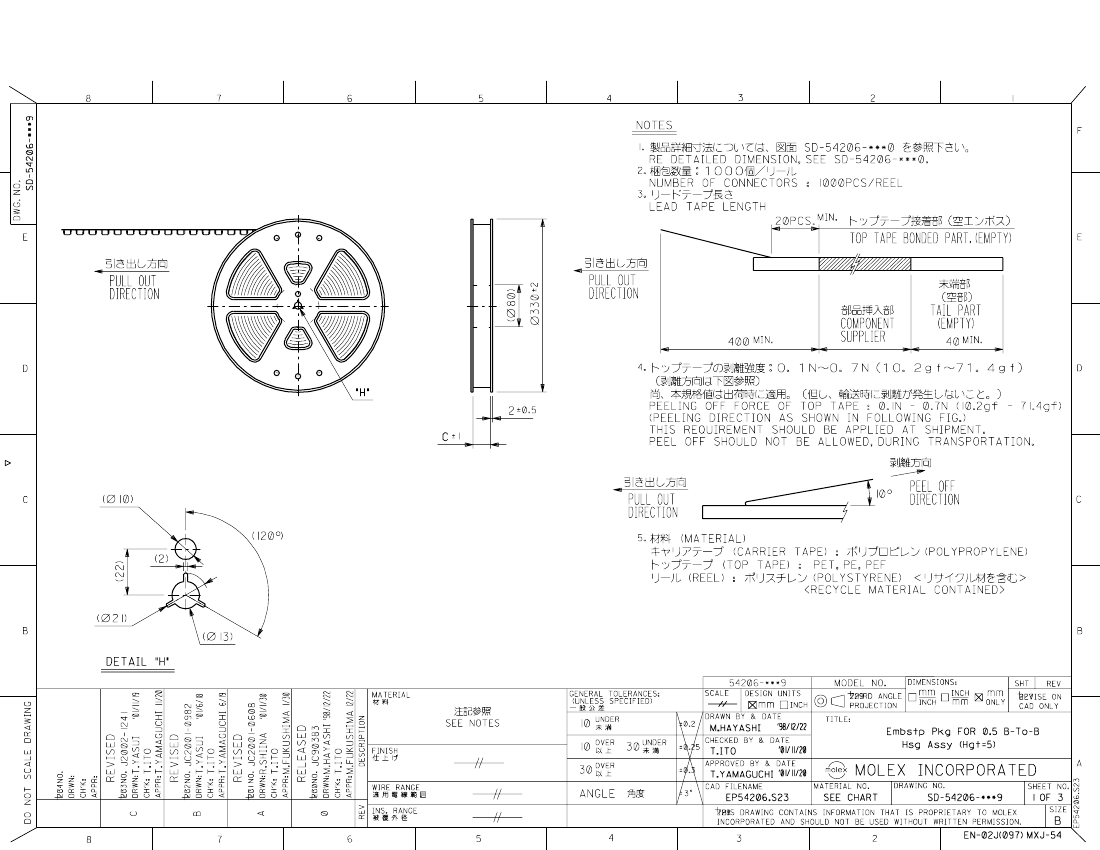

Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | POLARIZED |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 54206 |
| Plug information | MULTIPLE MATING PARTS AVAILABELE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 0.5 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 100 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 54206-1009 | 54206-0800 | 54206-0609 | |
|---|---|---|---|
| Description | Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Receptacle | Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking Mech, Beige Insulator, Receptacle, | Board Stacking Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle |
| Maker | Molex | Molex | Molex |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | POLARIZED | POLARIZED | POLARIZED |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR | BOARD STACKING CONNECTOR |
| Contact point gender | MALE | MALE | FEMALE |
| DIN compliance | NO | NO | NO |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 54206 | 54206 | 54206 |
| Plug information | MULTIPLE MATING PARTS AVAILABELE | MULTIPLE MATING PARTS AVAILABELE | 55018-0609 |
| Mixed contacts | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 0.5 mm | 0.5 mm | 0.5 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 100 | 80 | 60 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | - |
| ECCN code | - | EAR99 | EAR99 |
| body width | - | 0.161 inch | 0.161 inch |
| subject depth | - | 0.138 inch | 0.138 inch |
| body length | - | 0.913 inch | 0.717 inch |
| Contact to complete cooperation | - | AU ON NI | NOT SPECIFIED |
| Contact material | - | PHOSPHOR BRONZE | NOT SPECIFIED |
| contact mode | - | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | 80 mΩ | 80 mΩ |
| Contact style | - | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | - | 500VAC V | 500VAC V |
| Insulation resistance | - | 500000000 Ω | 500000000 Ω |
| Insulator color | - | BEIGE | BEIGE |
| insulator material | - | GLASS FILLED LIQUID CRYSTAL POLYMER | LIQUID CRYSTAL POLYMER (LCP) |
| Plug contact pitch | - | 0.02 inch | 0.02 inch |
| Number of connectors | - | ONE | ONE |
| PCB row number | - | 2 | 2 |
| Maximum operating temperature | - | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C |
| PCB contact pattern | - | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | - | 3.9878 mm | 3.9878 mm |
| polarization key | - | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | - | 0.4 A | 0.4 A |
| Guideline | - | UL | UL |
| reliability | - | COMMERCIAL | COMMERCIAL |
