FASTON* Connector,.187” & .197” sr.s Receptacle Contact
& L.I.F. Receptacle Contact.
1. SCOPE
This specification covers the requirements for application of FASTON* Connectors, .187” & .197” sr.s
receptacle contacts & L.I.F. receptacle contact. These requirements are applicable to automatic machine
crimping tools. For specific wire and insulation ranges relative to the products covered in this specification
see figure 6.
1.1
REFERENCE SPECIFICATION.
For applicable performance requirements, see AMP Product specification listed in Figure 6.
2. PRODUCT FEATURES.

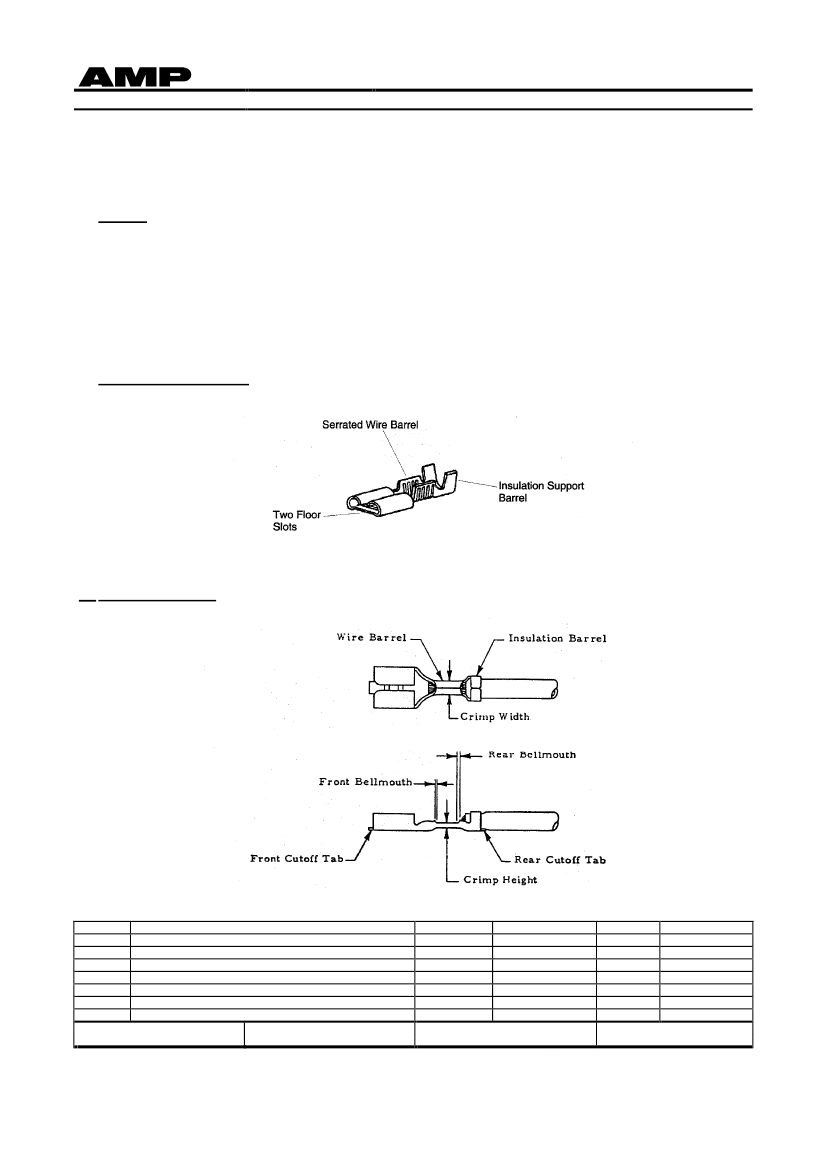

Figure 1
3.
NOMENCLATURE
Figure 2
D5
D4
D3
D2
D1
D
C
rev letter
DR.
H. YAALI
UPDATED
UPDATED
ADED ALTERNATIVE LOG
ADED ALTERNATIVE LOG FOR ET00-0050-03
ADED ALTERNATIVE LOG FOR ET00-0226-02
ADED PARTS FOR ET00-0127-01
REVISED AND RETYPED FOR ET00-0059-01
rev. record
H.Y.
H.Y.
H.Y.
H.Y.
H.Y.
H.Y.
H.Y.
DR
DATE APVD
03 APR 2001 C. TARTARI
13 JUN 2008
11 DEC 2006
13 OCT 2006
24 APR 2003
12 NOV 2002
15 MAY 2001
20 FEB 2001
Date
G.T.
G.T.
G.T.
C.T.
C.T.
C.T.
C.T.
CHK
13 JUN 2008
11 DEC 2006
13 OCT 2006
24 APR 2003
12 NOV 2002
15 MAY 2001
20 FEB 2001
Date
DATE
03 APR 2001
This specification is a controlled document.
* Trademark of AMP Incorporated
FTEC174 rev. 1 - July 99
This information is confidential and is disclosed to
you on condition that no further disclosure is made
by you to other than AMP personnel without written
authorization from AMP Italia.
Page 1 of 3
LOC I
114-20081
4.
CRIMP AND DIMENSIONAL REQUIREMENTS.
4.1 Wire preparation
A. Strip length:
Insulation shall be stripped as indicated in Figure 6.
B. Workmanship:
Reasonable care shall be taken not to nick, scrape or cut any strands during the
stripping operation.
4.2 Carrier Cutoff Tab and Burr
A. Cutoff Tab:
shall not exceed .012 [0.31 mm. max.].
B. Burr on cutoff:
shall not exceed .006 [0.15 mm. max.].
4.3 Wire Barrel Crimp.
A. Crimp Dimensions and Type:
Crimp height, width and type shall be as shown in Figure 6.
B. Wire barrel flash:
Shall not exceed .006 [0.15 mm. max.].
C. Wire barrel seam:
shall not be completely closed and there shall be no evidence of loose wire
strands or wire strands visible in the seam.
D. Bellmouth:
(1) Rear bellmouth length shall be .015x60° max. [0.38x60° max.]
(2) Front bellmouth length shall be .015x60° max. [0.38x60° max.]
E. Conductor location:
(3) End of the wire shall be flush with the front end of the wire barrel or extend .0015 [0.4mm]
maximum after crimping.
(4) Both insulation and conductor shall be visible between the insulation barrel and wire barrel. Care
shall be taken not to allow insulation to be crimped in the wire barrel.
4.4 Insulation Barrel Crimp.
A. Crimp Dimensions and Type:
Crimp width and type shall be as shown in Figure 6.
B. Workmanship:
Reasonable care shall be taken not to cut or break the insulation during the crimping
operation.
4.5 Alignment.
A. Straightness.
(1) The contact, including the cutoff tab and burr shall not be bent above or below the datum line
more than the amount shown in Figure 3.
Figure 3
(2) The side to side bending of the contact shall not exceed the limits specified in Figure 4.
Figure 4
B. Twist or Roll:
Twist or Roll of the crimped contact shall not exceed the limits specified in Figure 5.
Rev. D5
FTEC174 rev. 1 July 99
Page
2
of 3
LOC I
