M83515/2-06

Description
D Type Connector, 14 Contact(s), Female, 0.085 inch Pitch, Solder Lug Terminal, Hole .099-.111, Plug,
CategoryThe connector    The connector
File Size176KB,2 Pages
ManufacturerCinch Connectivity Solutions
Download Datasheet Parametric View All

M83515/2-06 Overview

D Type Connector, 14 Contact(s), Female, 0.085 inch Pitch, Solder Lug Terminal, Hole .099-.111, Plug,

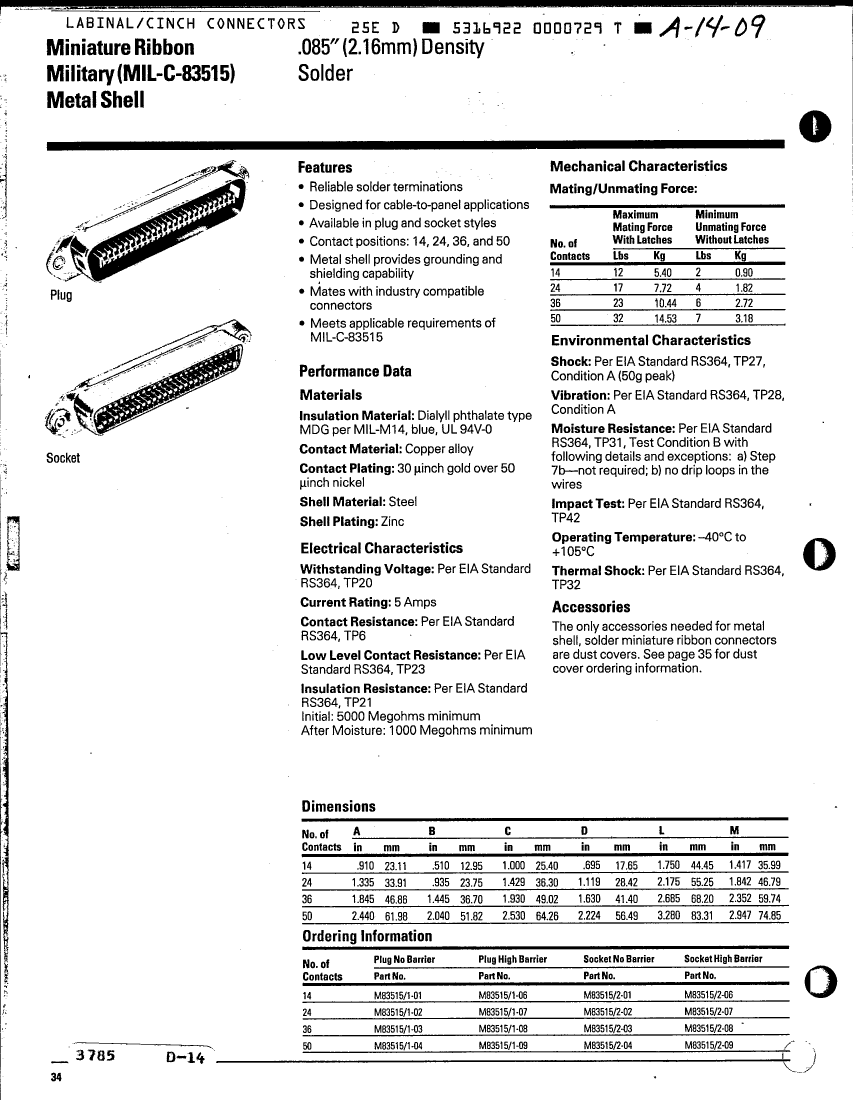

M83515/2-06 Parametric

Parameter NameAttribute value
MakerCinch Connectivity Solutions
Reach Compliance Codeunknown
Other featuresHIGH BARRIER

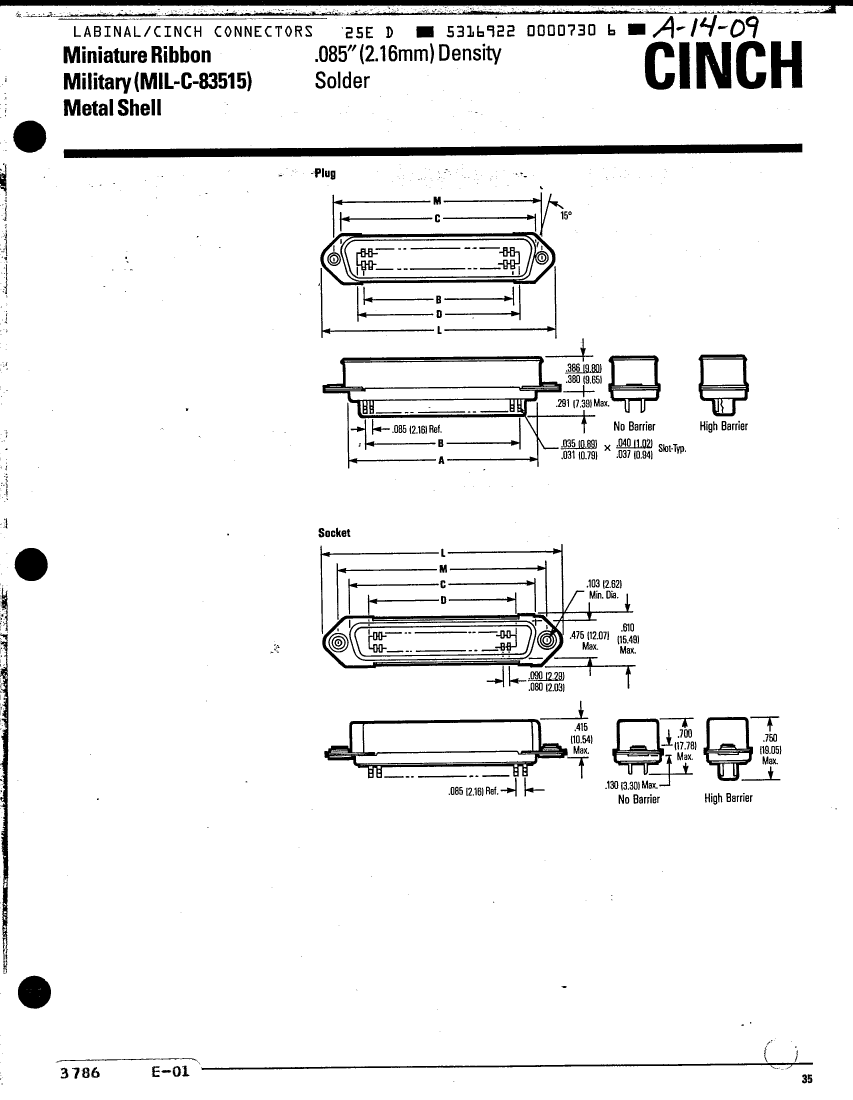

body width0.61 inch
body length1.75 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleBELLOWED TYPE
maximum insertion force3.8086 N
Insulation resistance1000000000 Ω
Insulator colorBLUE
insulator materialDIALLYL PHTHALATE
MIL complianceYES
Manufacturer's serial numberM83515
Plug contact pitch0.085 inch
Installation option 1HOLE .099-.111
Installation option 2FLOAT BUSHING
Installation typePANEL
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Plating thickness30u inch
Rated current (signal)5 A
GuidelineUL
reliabilityMIL-C-83515
Shell surfaceZINC
Shell materialSTEEL
Termination typeSOLDER LUG
Total number of contacts14
Evacuation force-minimum value.6394 N
Base Number Matches1
